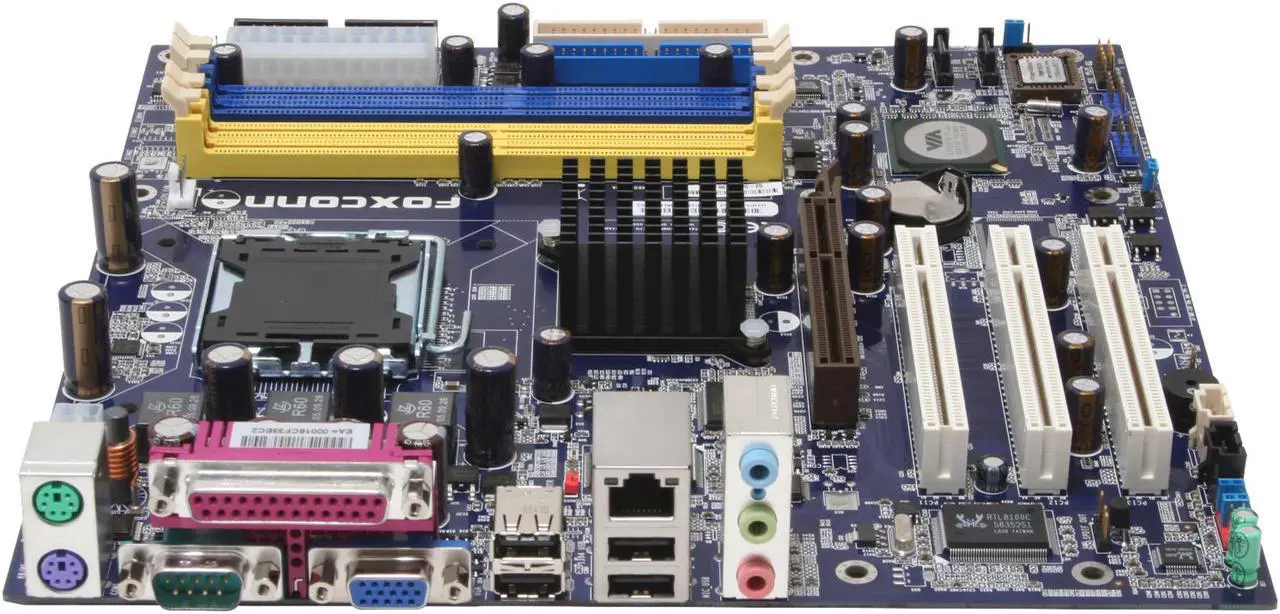

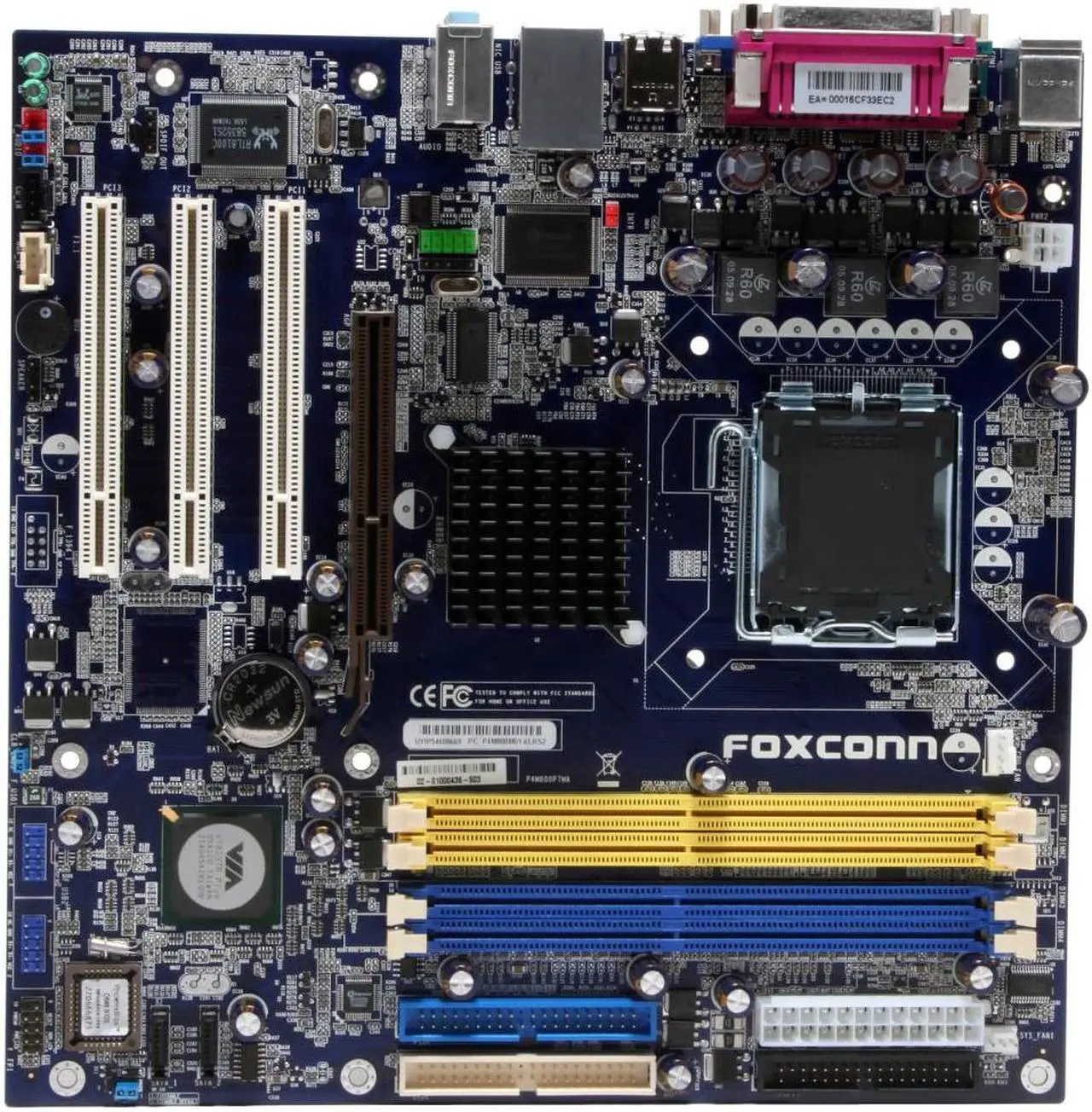

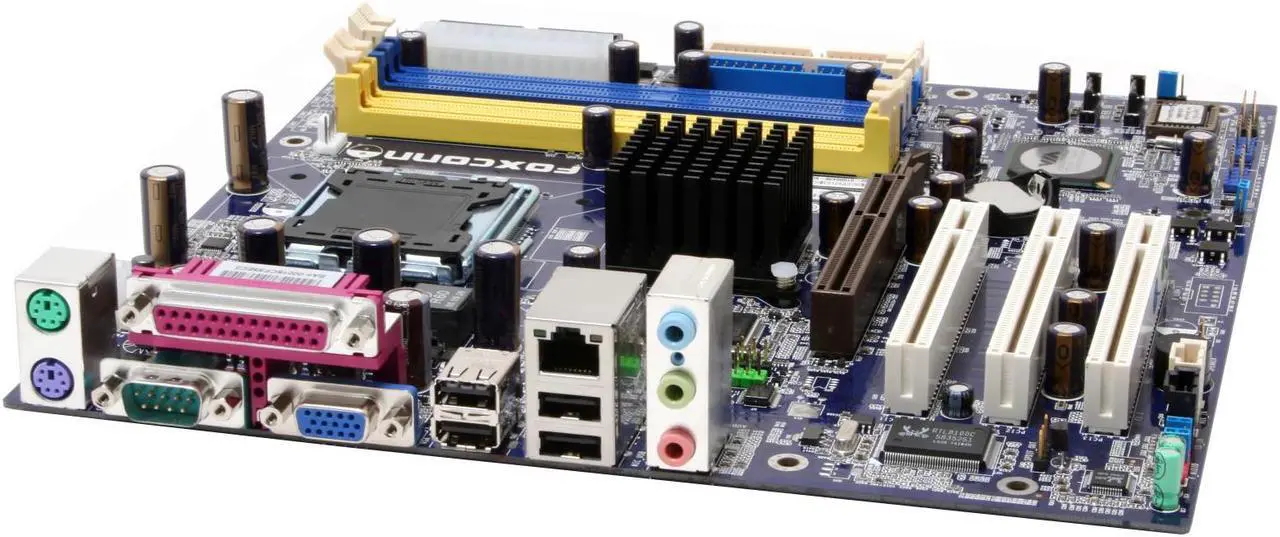

Foxconn P4M800P7MA-RS2 LGA 775 VIA P4M800 PRO Micro ATX Intel Motherboard
- VIA P4M800 PRO
- Pentium D / Pentium 4 HT / Celeron D
- DDR2 533 / DDR 400
Specs
Reviews (16)
Learn more about the Foxconn P4M800P7MA-RS2
| Brand | Foxconn |
|---|---|
| Model | P4M800P7MA-RS2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium D / Pentium 4 HT / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA P4M800 PRO |
|---|---|
| South Bridge | VIA VT8237R |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Number of Memory Slots | 2x184pin + 2x240pin |
|---|---|
| Memory Standard | DDR2 533 / DDR 400 |
| Maximum Memory Supported | 2GB (use one memory type or the other, not both) |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | RAID 0//JBOD |
| Audio Chipset | Realtek ALC653 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8100C |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |

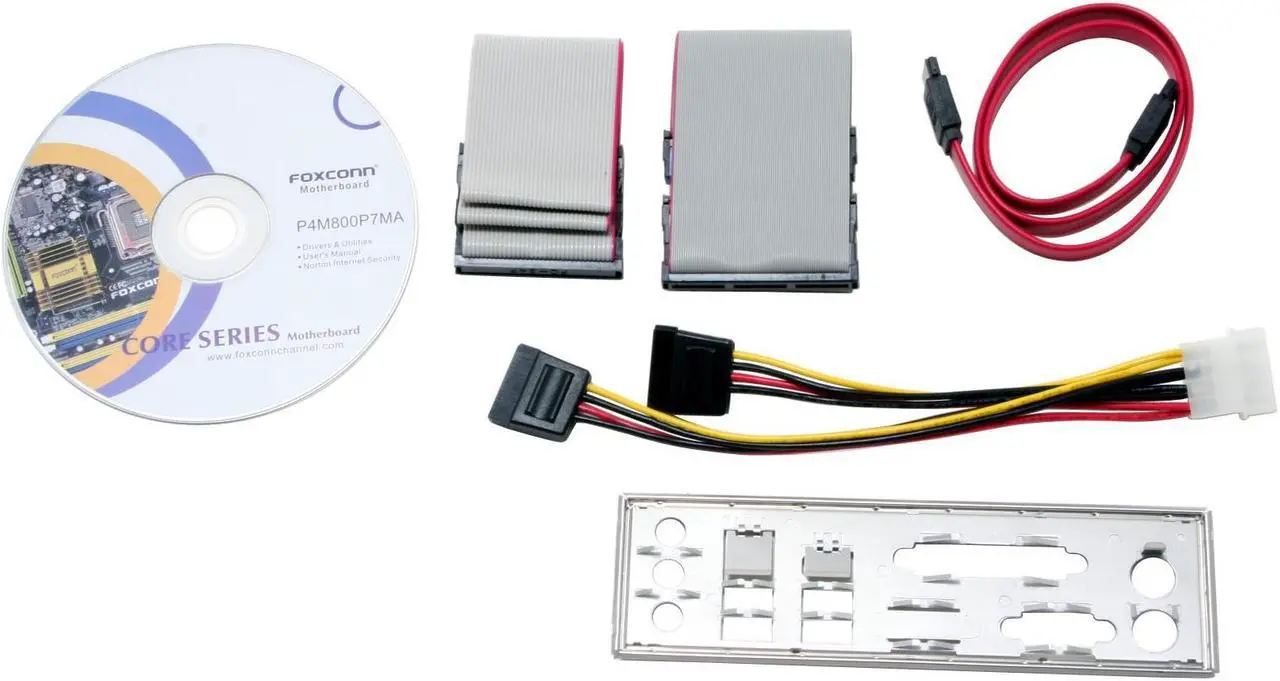

| Package Contents | Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Driver Disk Power Cable P4M800P7MA-RS2 |
|---|
| Date First Available | January 18, 2006 |
|---|
