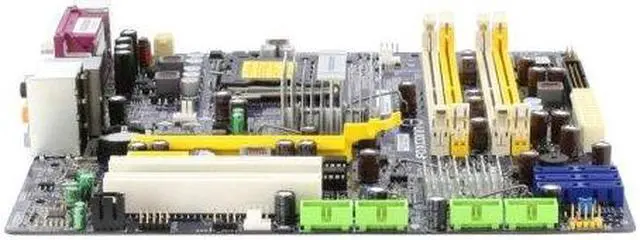

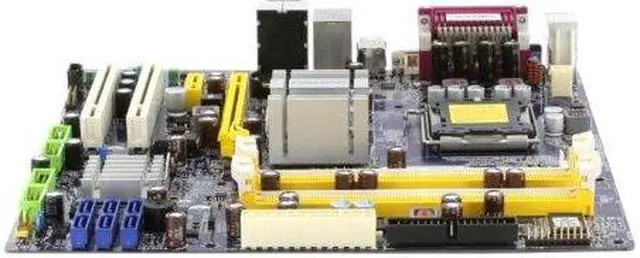

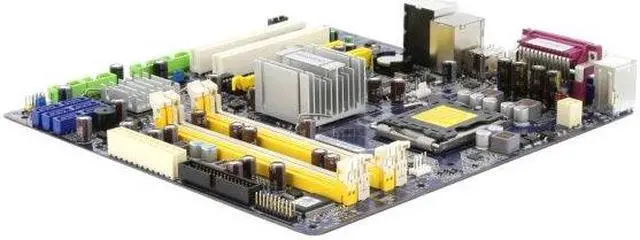

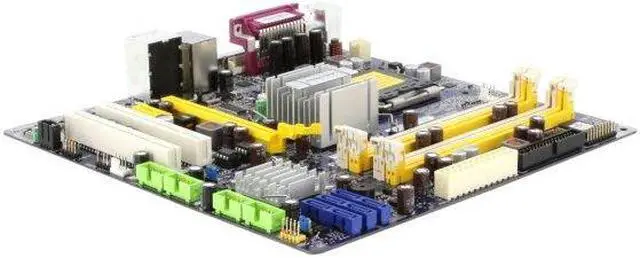

Foxconn Q45M LGA 775 Intel Q45 Micro ATX Intel Motherboard
- Intel Q45
- Core 2 Quad / Core 2 Duo
- DDR2 800/667
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn Q45M
| Brand | Foxconn |
|---|---|
| Model | Q45M |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Duo |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel Q45 |
|---|---|
| South Bridge | Intel ICH10DO |
| Onboard Video Chipset | Intel GMA X4500 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800/667 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1/5 |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel Boazman 82567 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 connectors support additional 8 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | September 18, 2009 |
|---|
