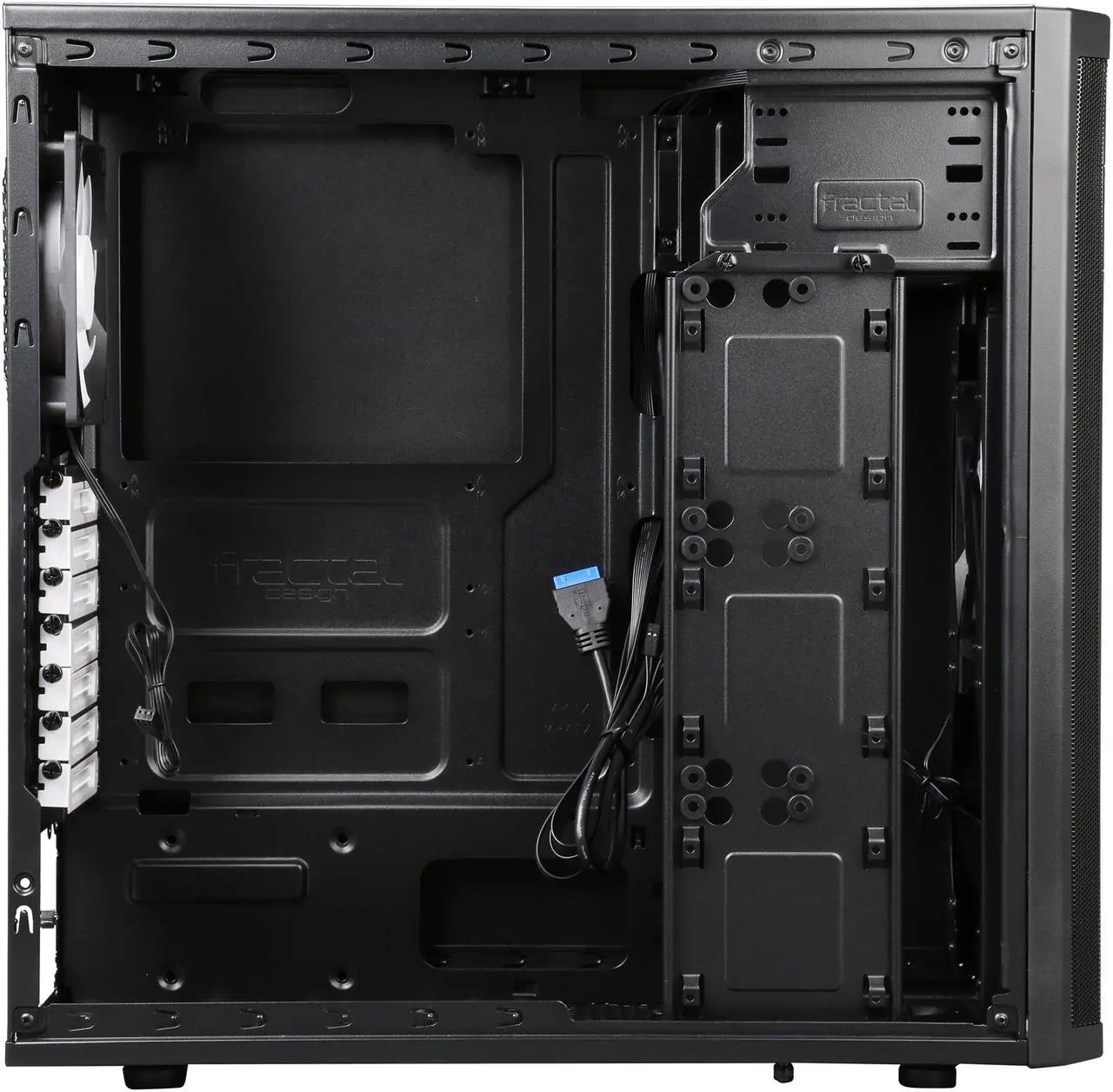

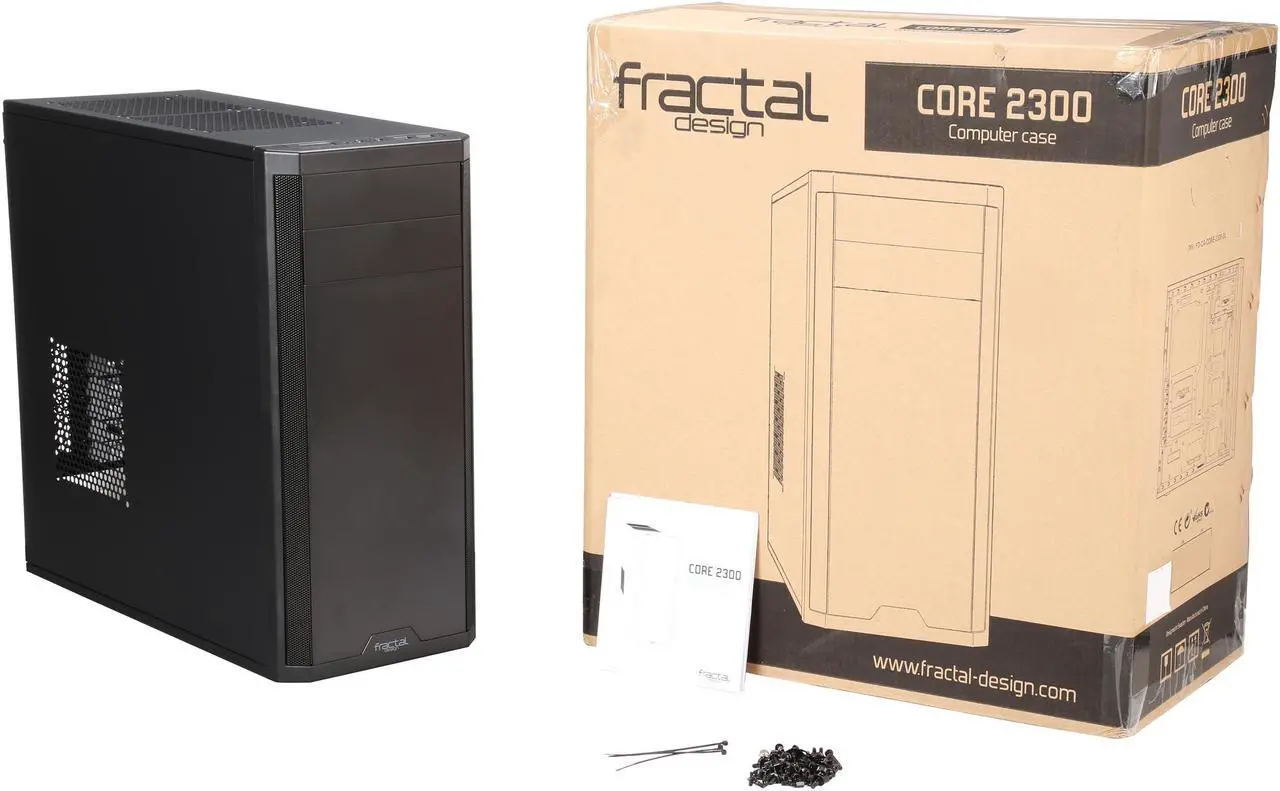

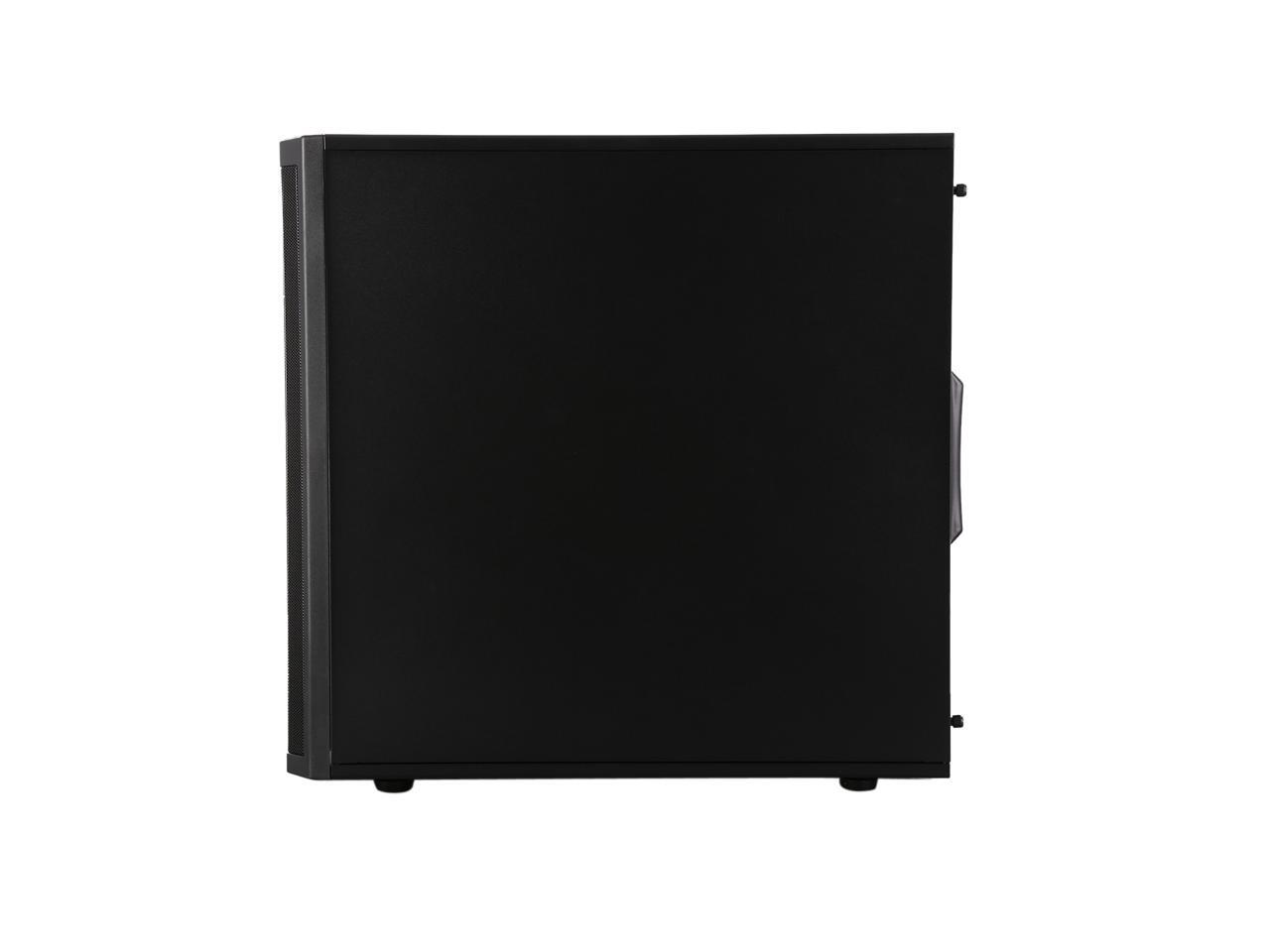

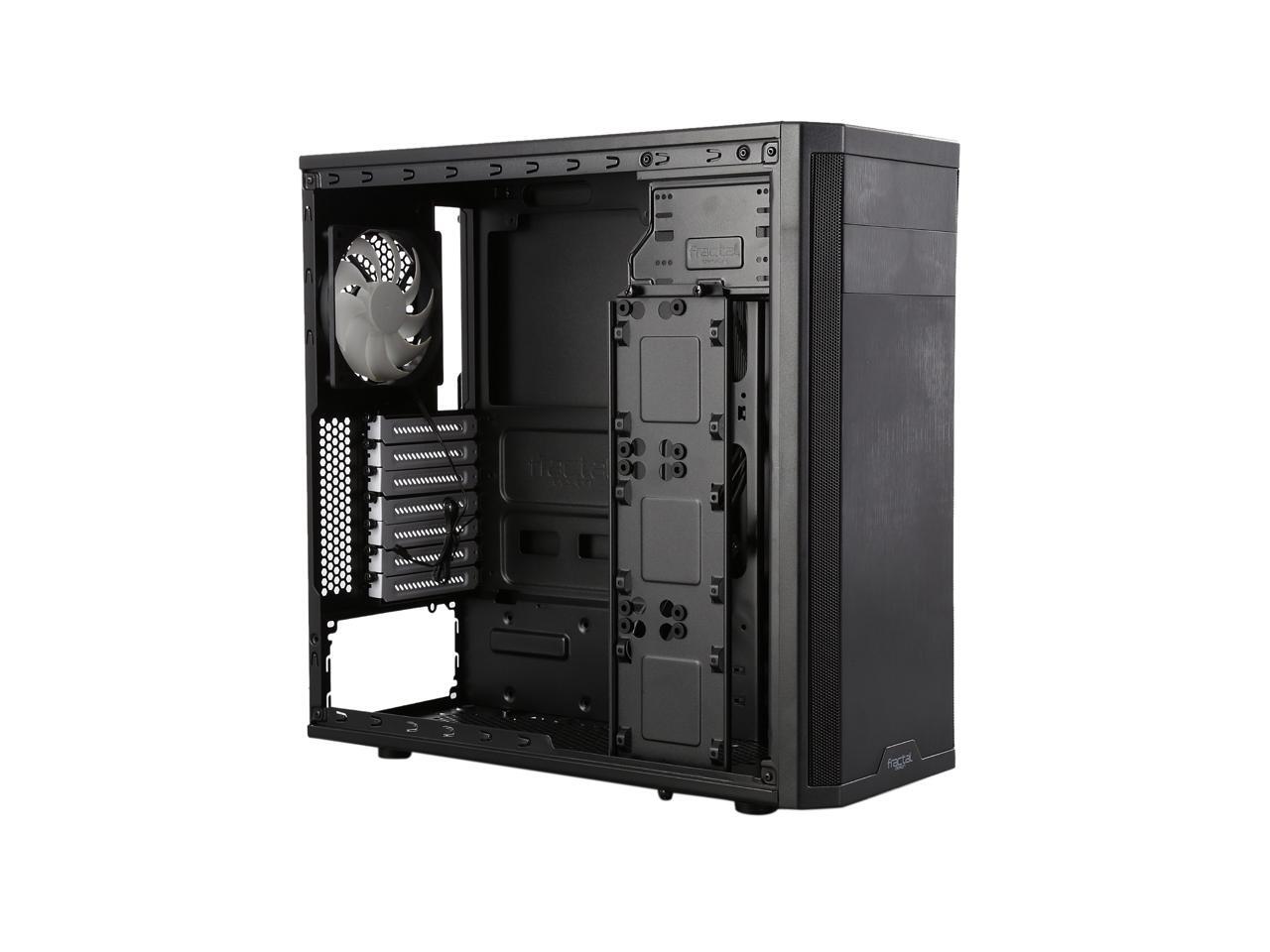

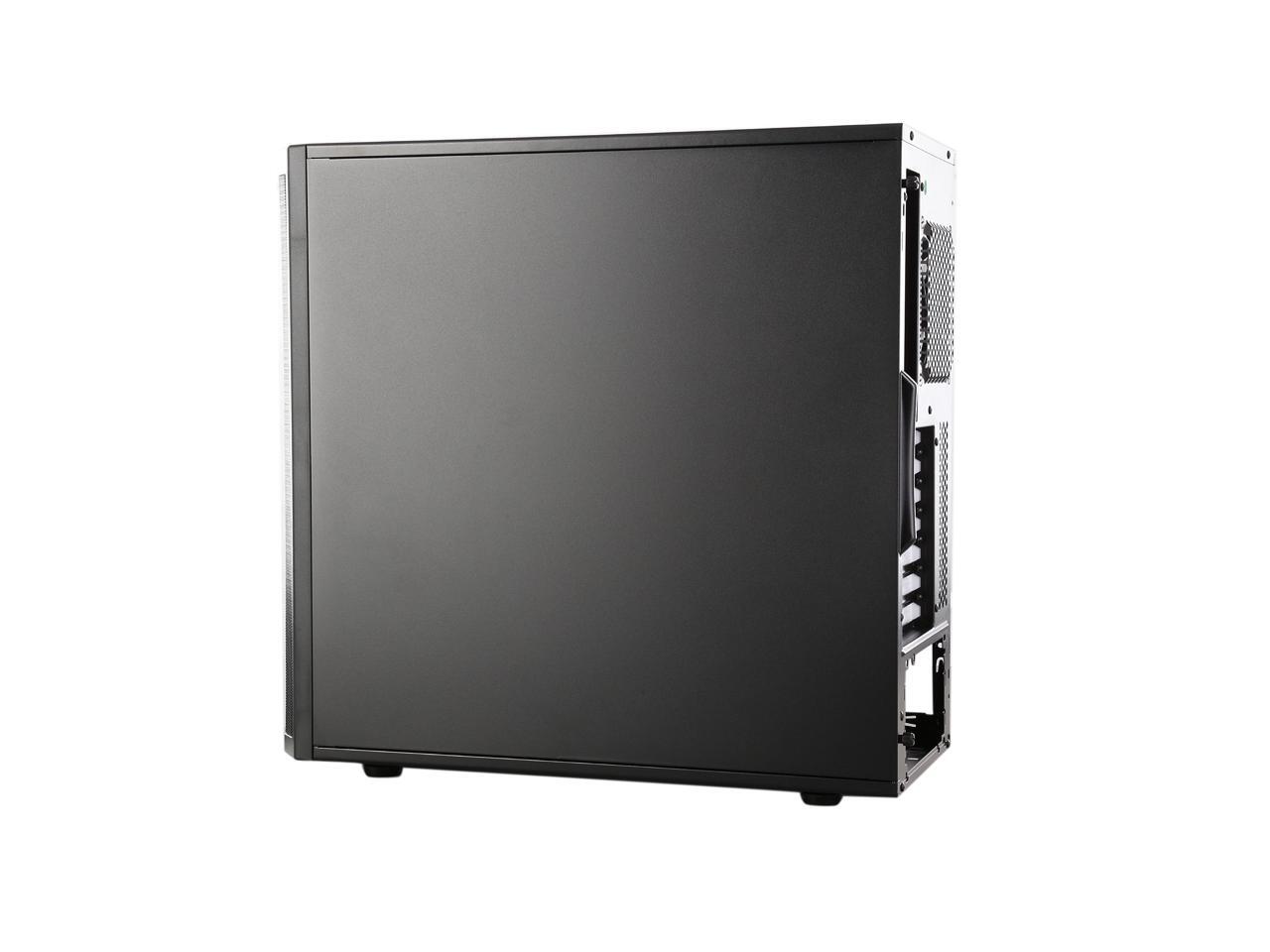

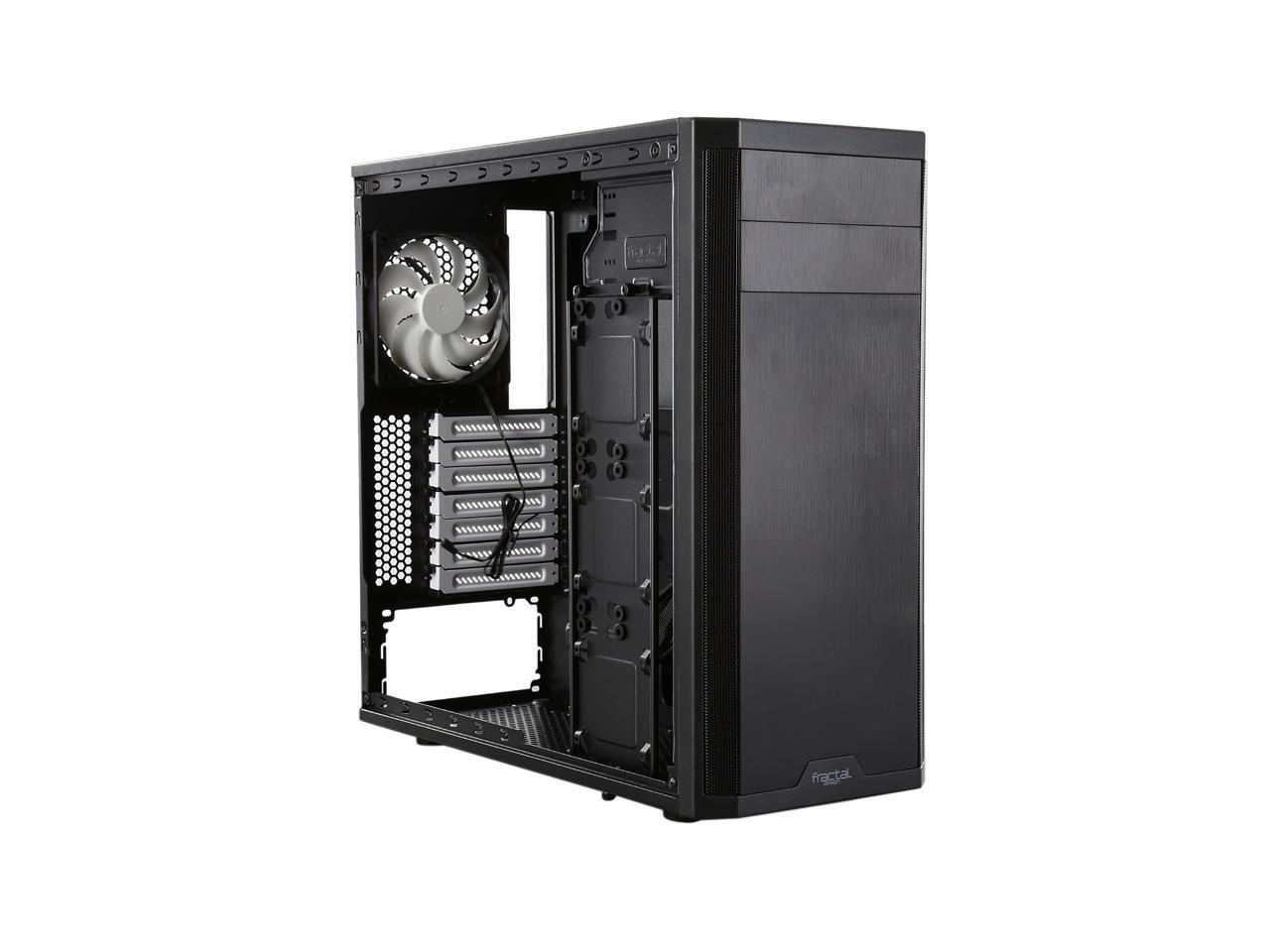

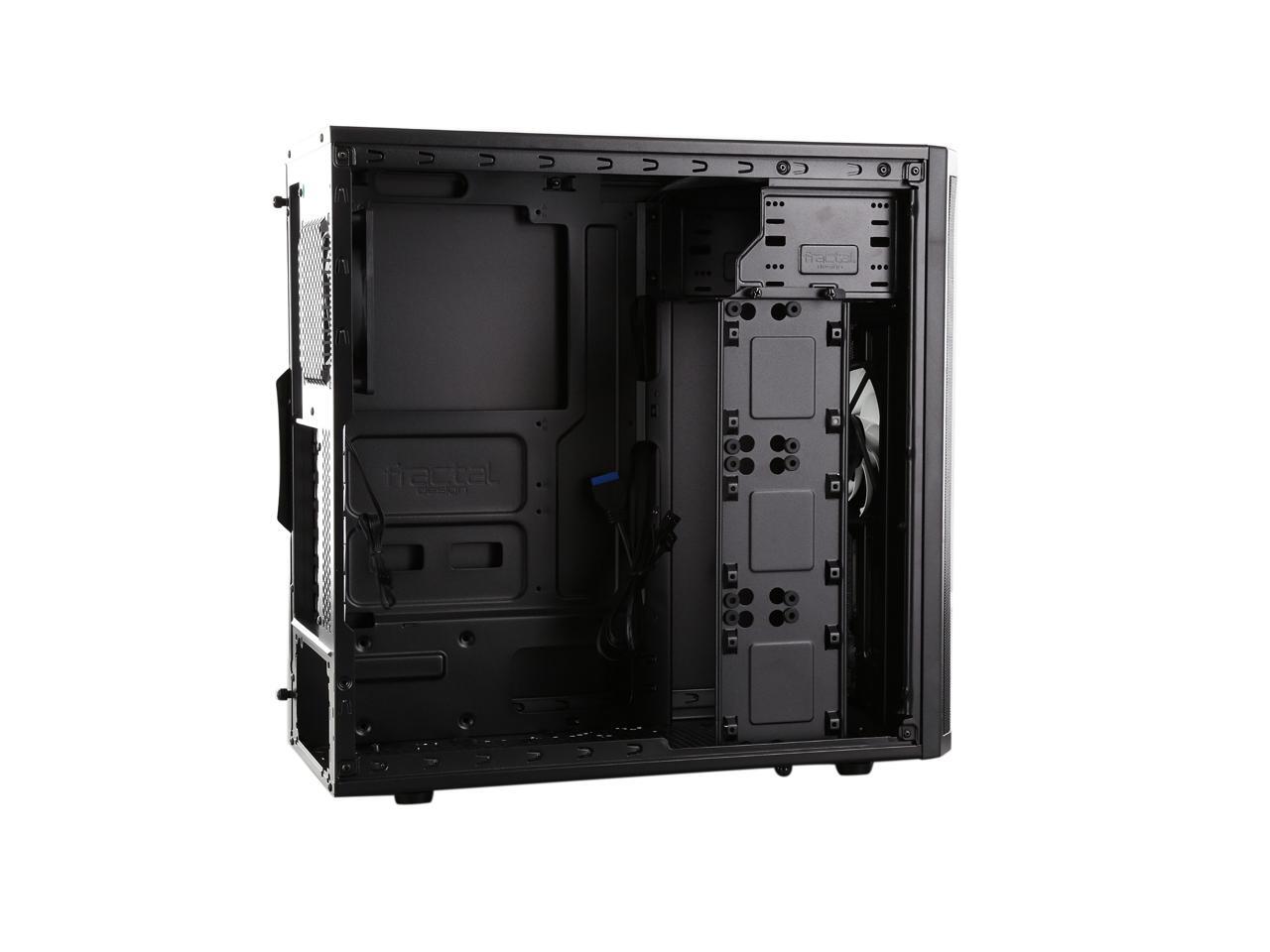

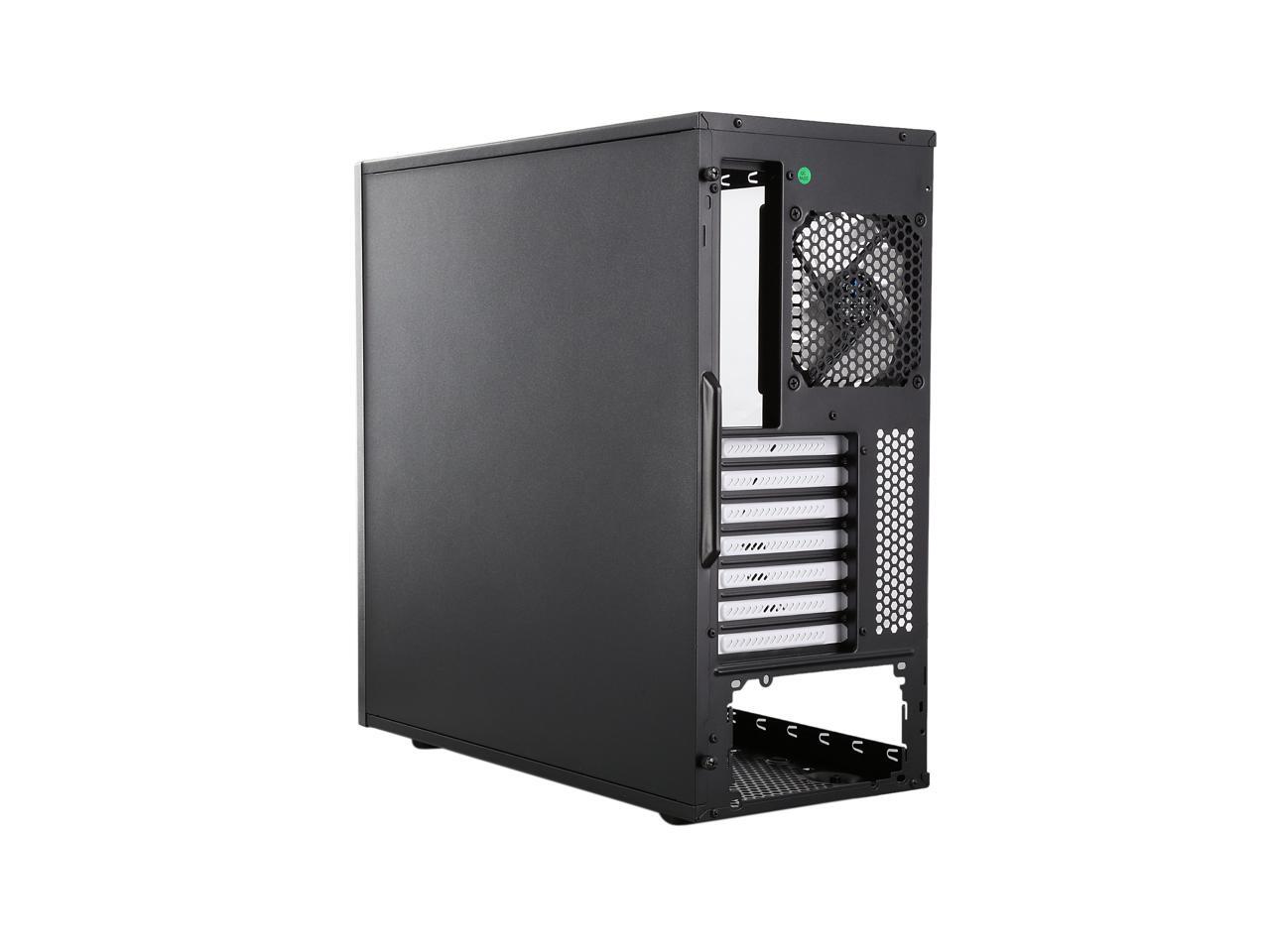

Images from RETAIL item, box contents may vary.

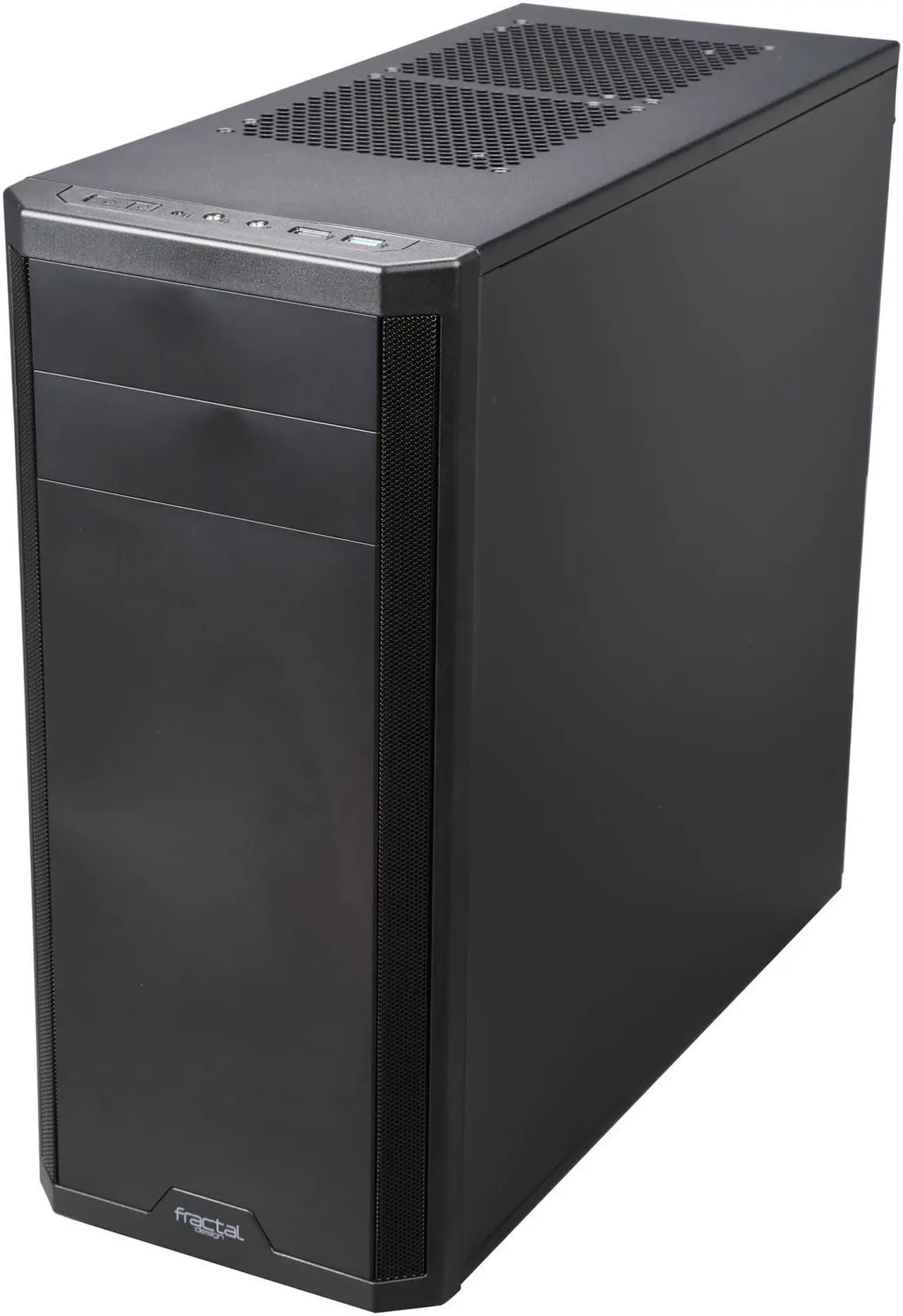

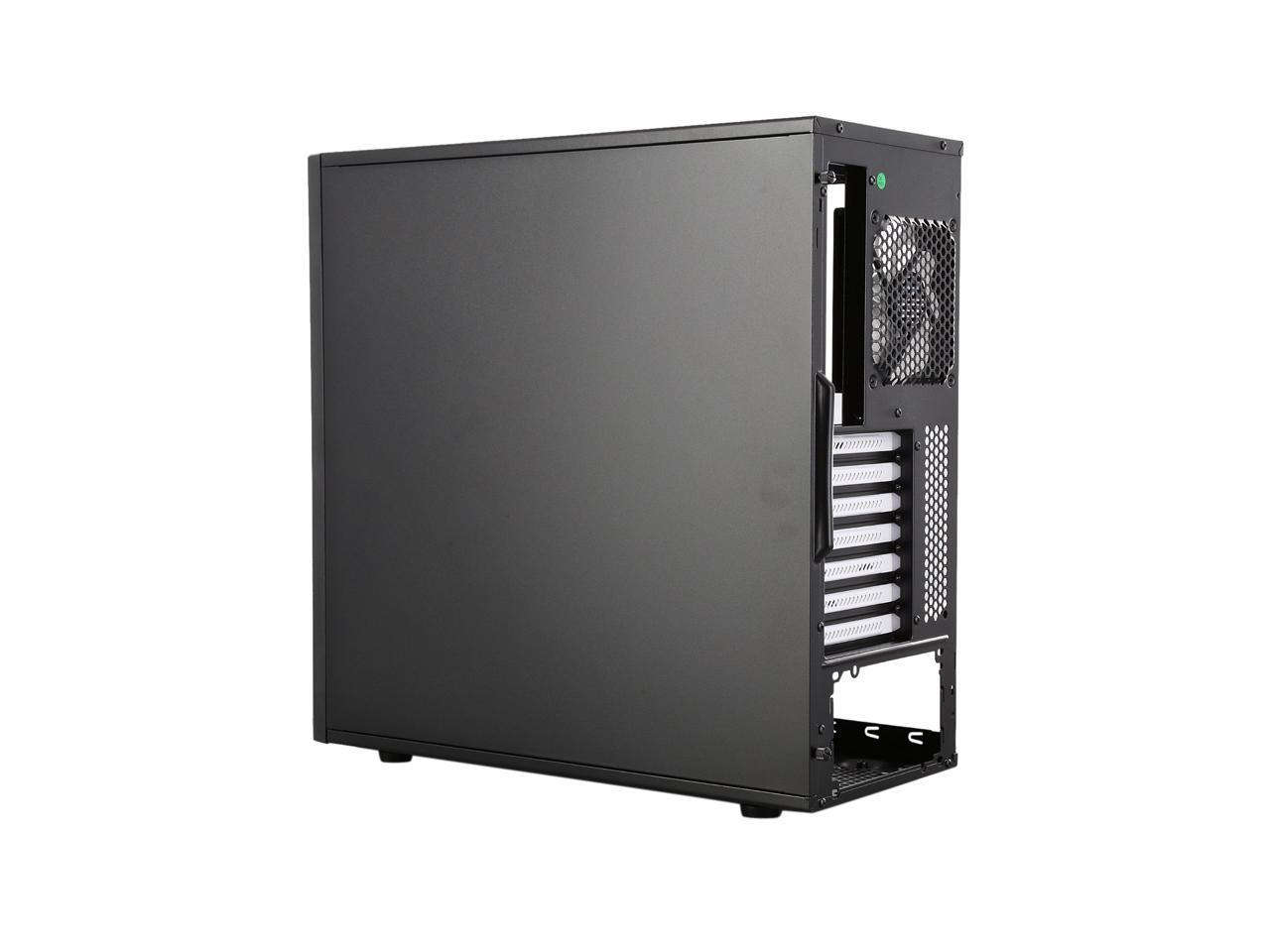

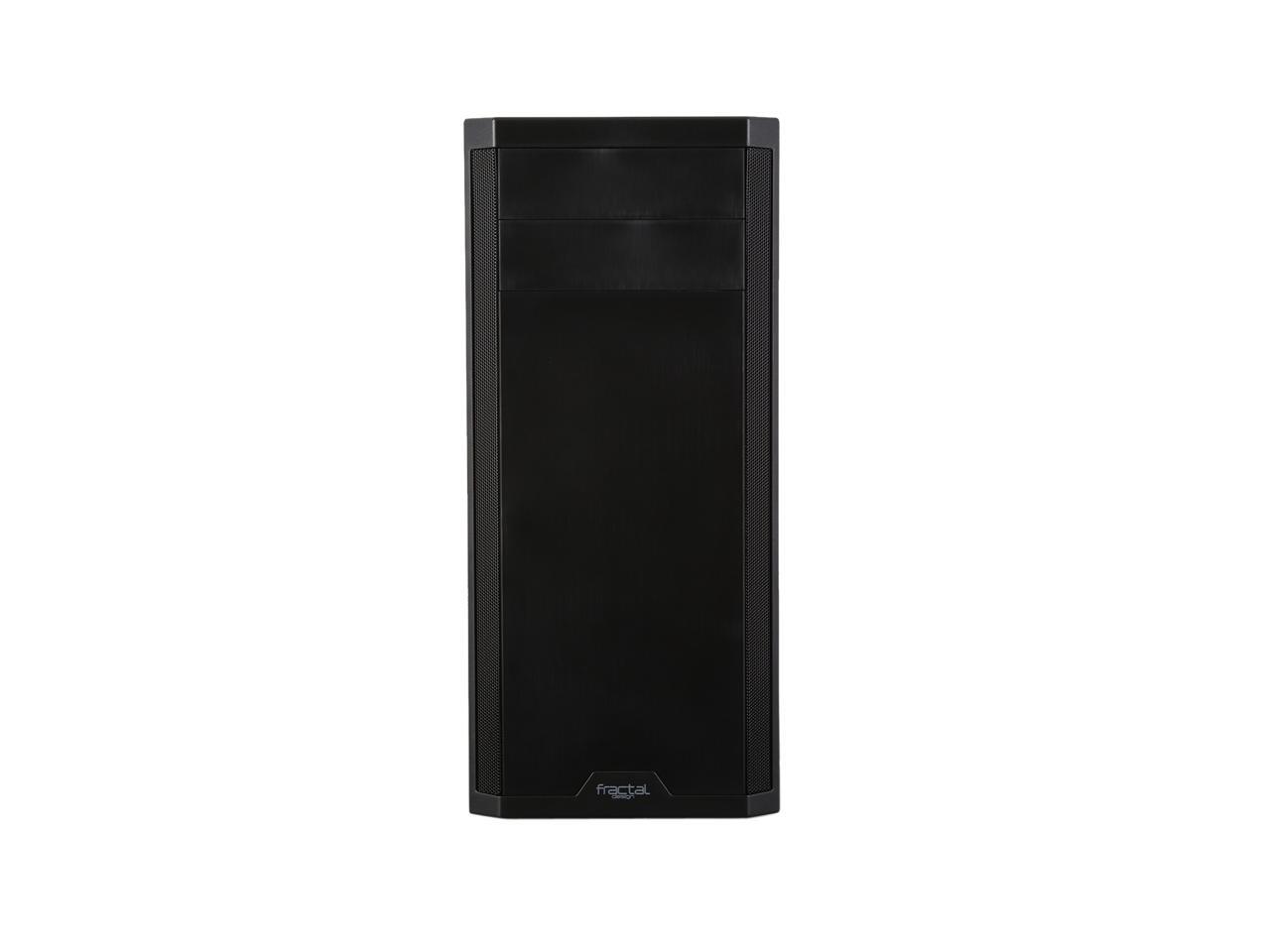

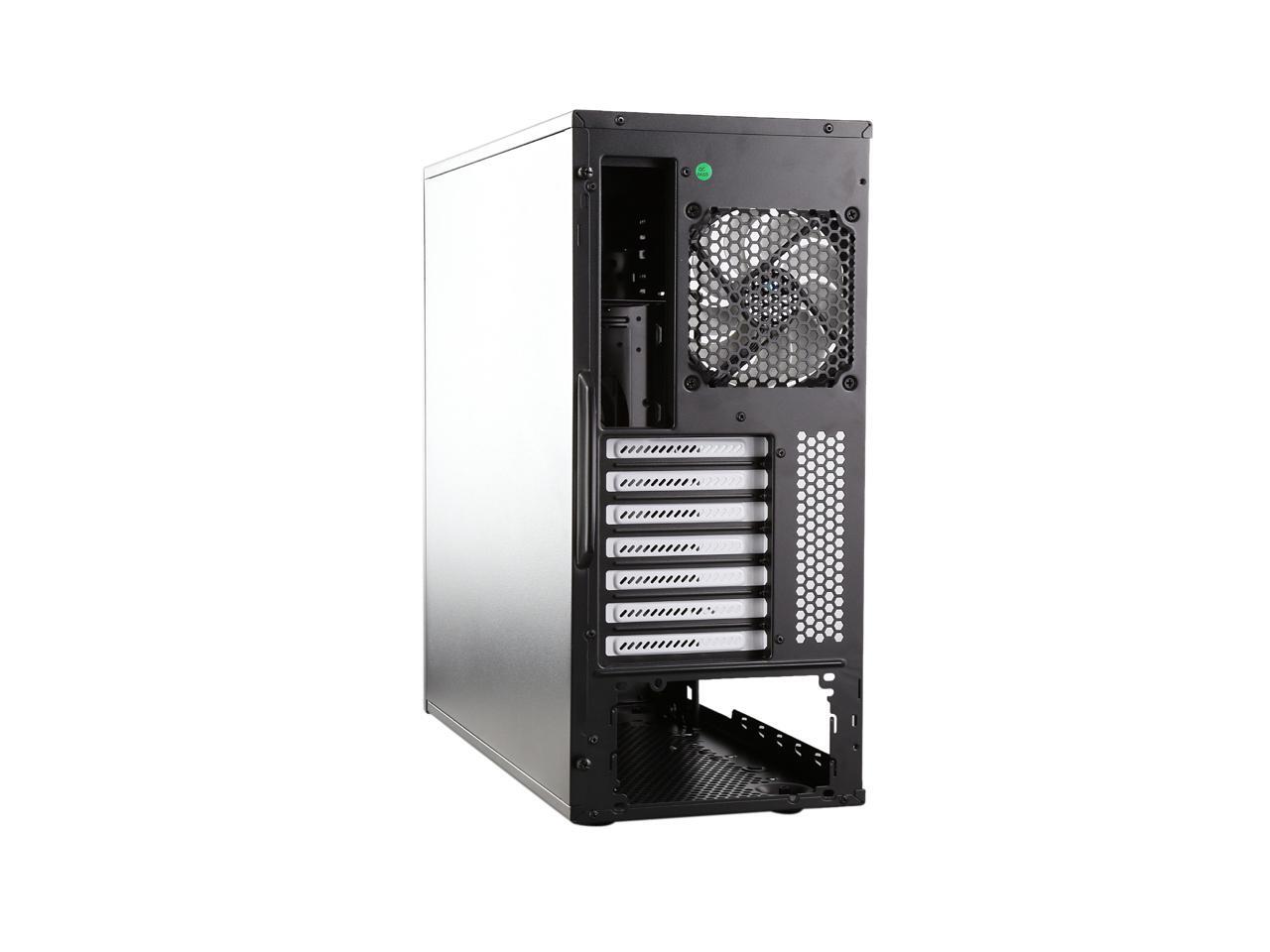

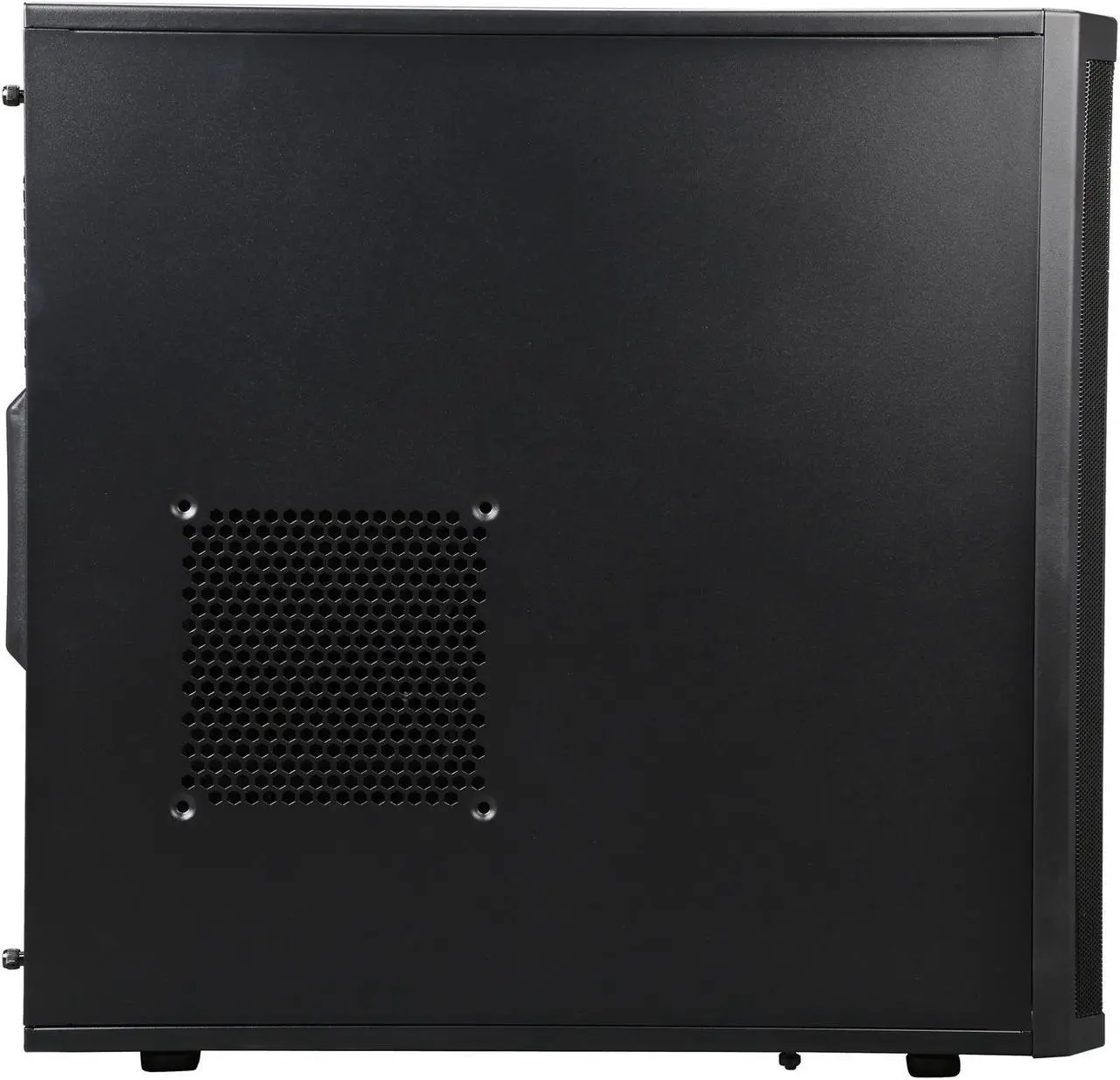

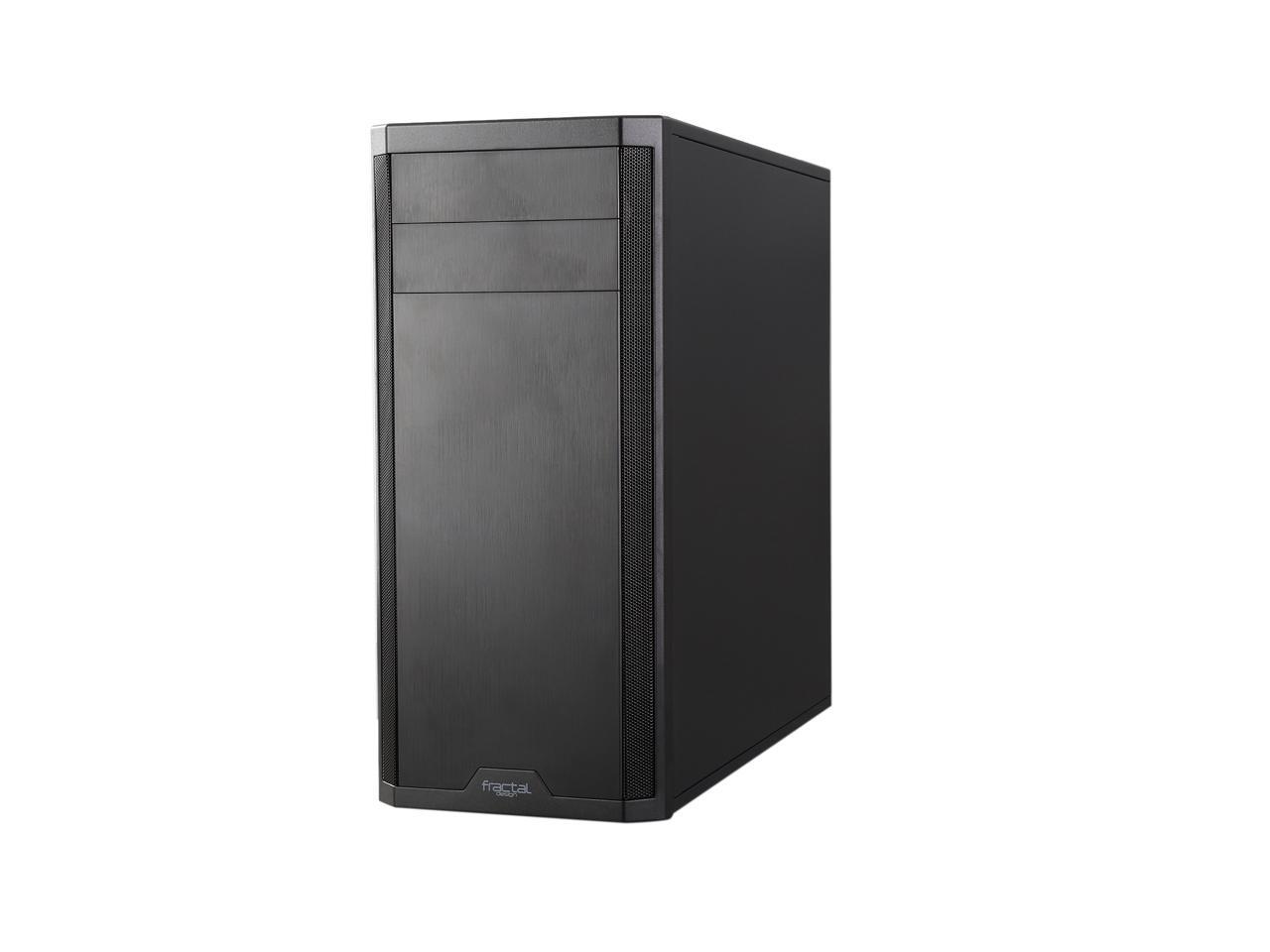

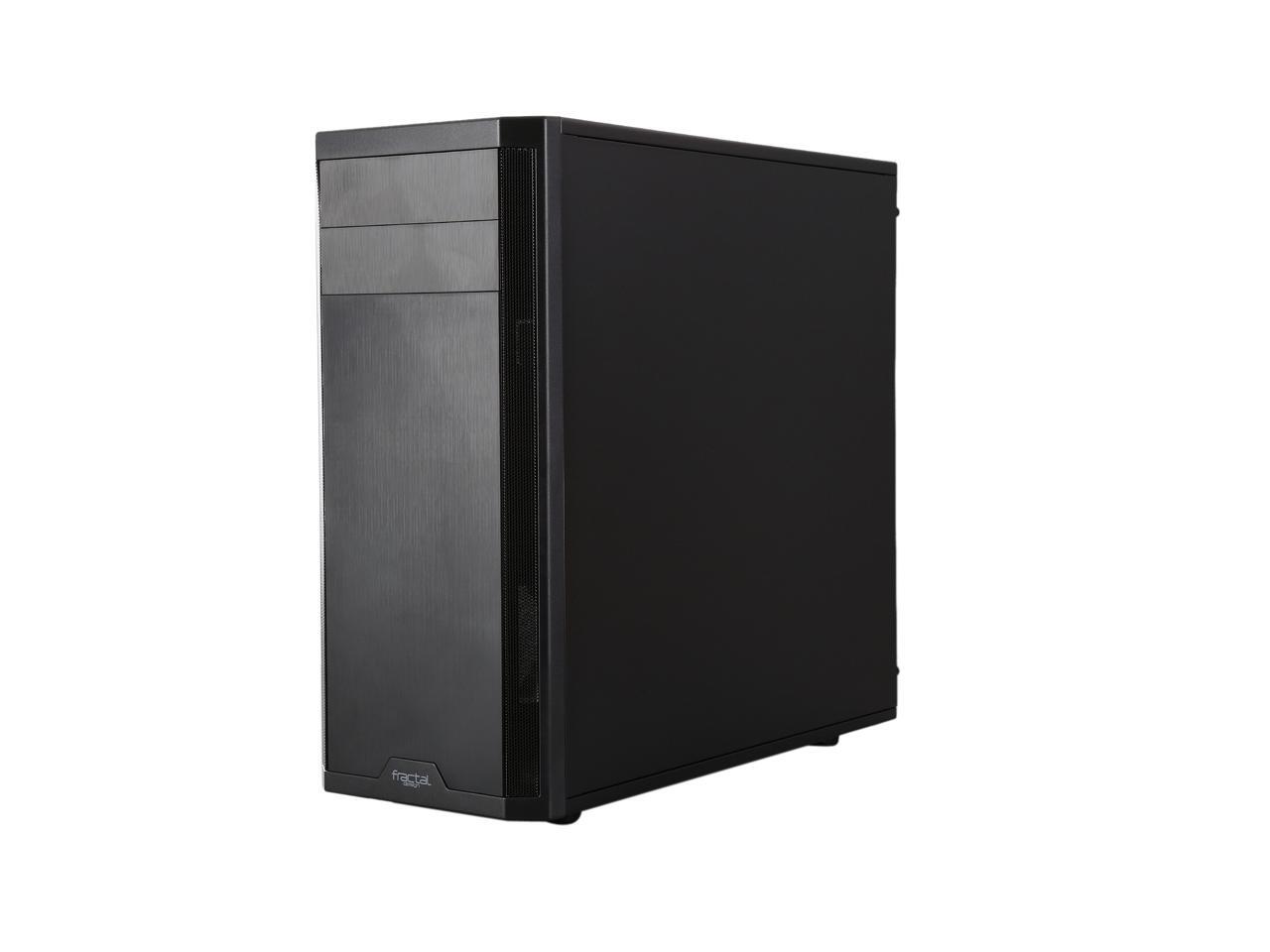

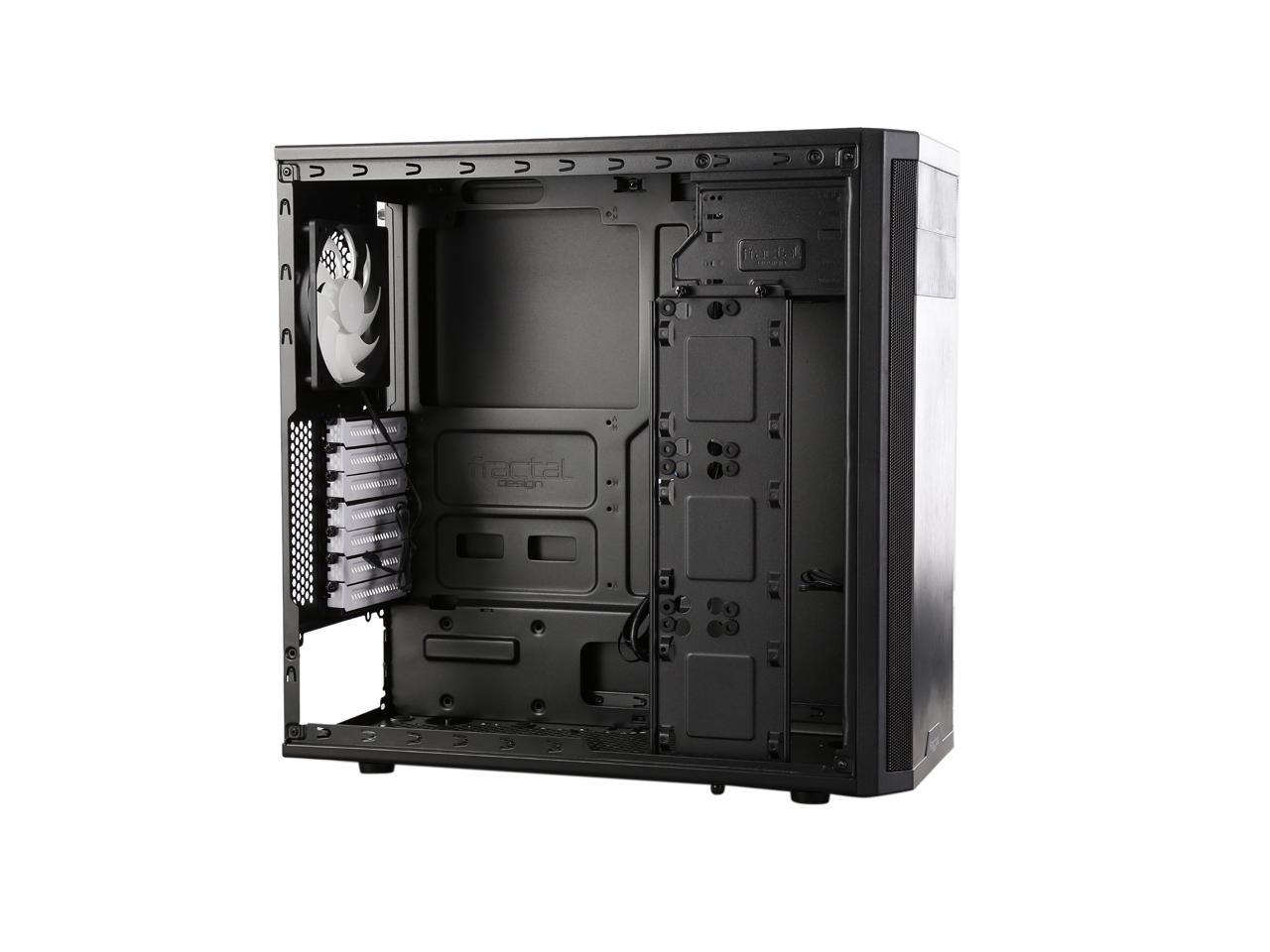

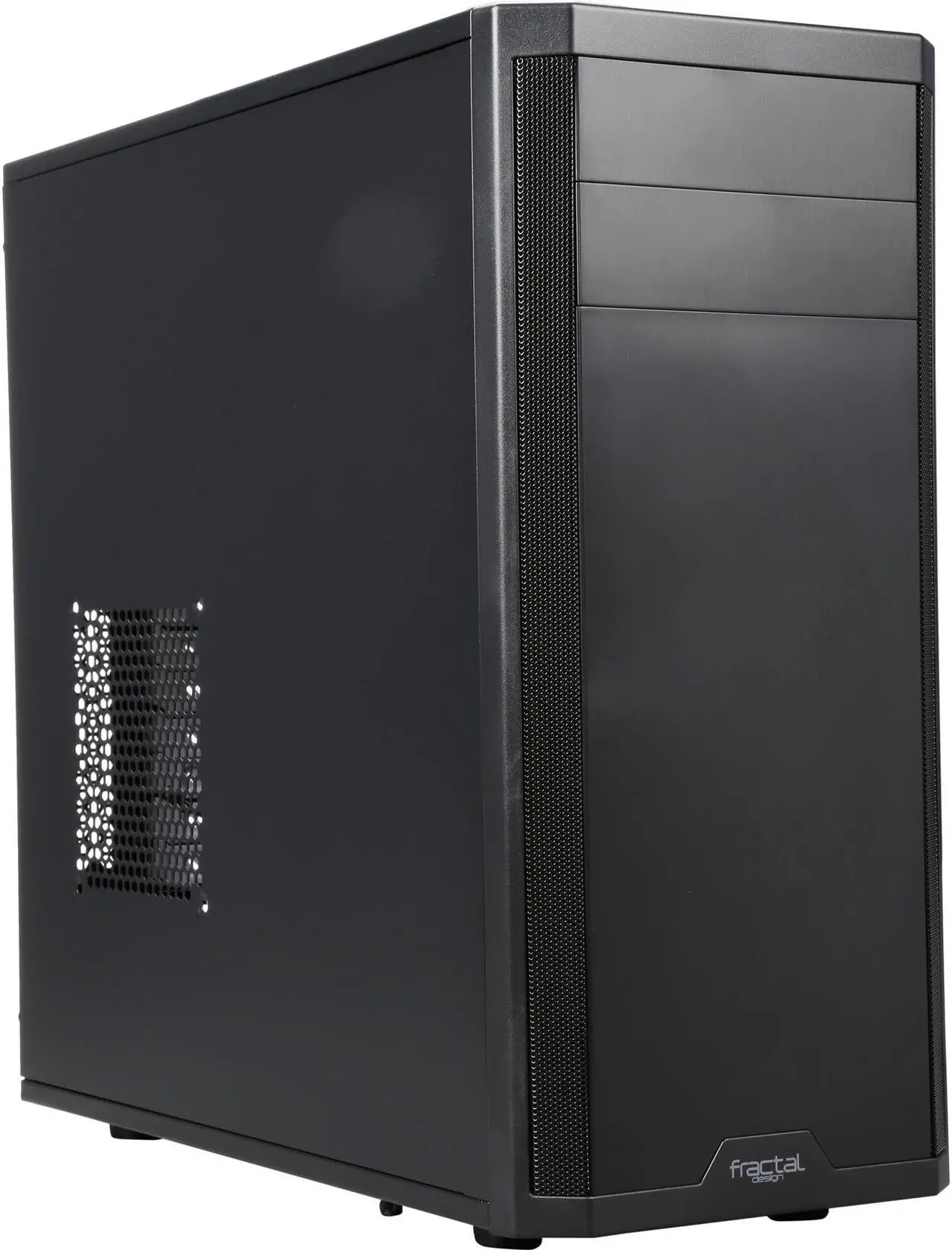

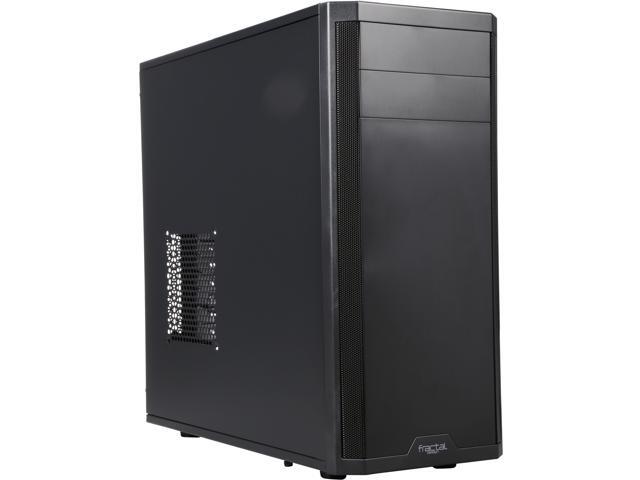

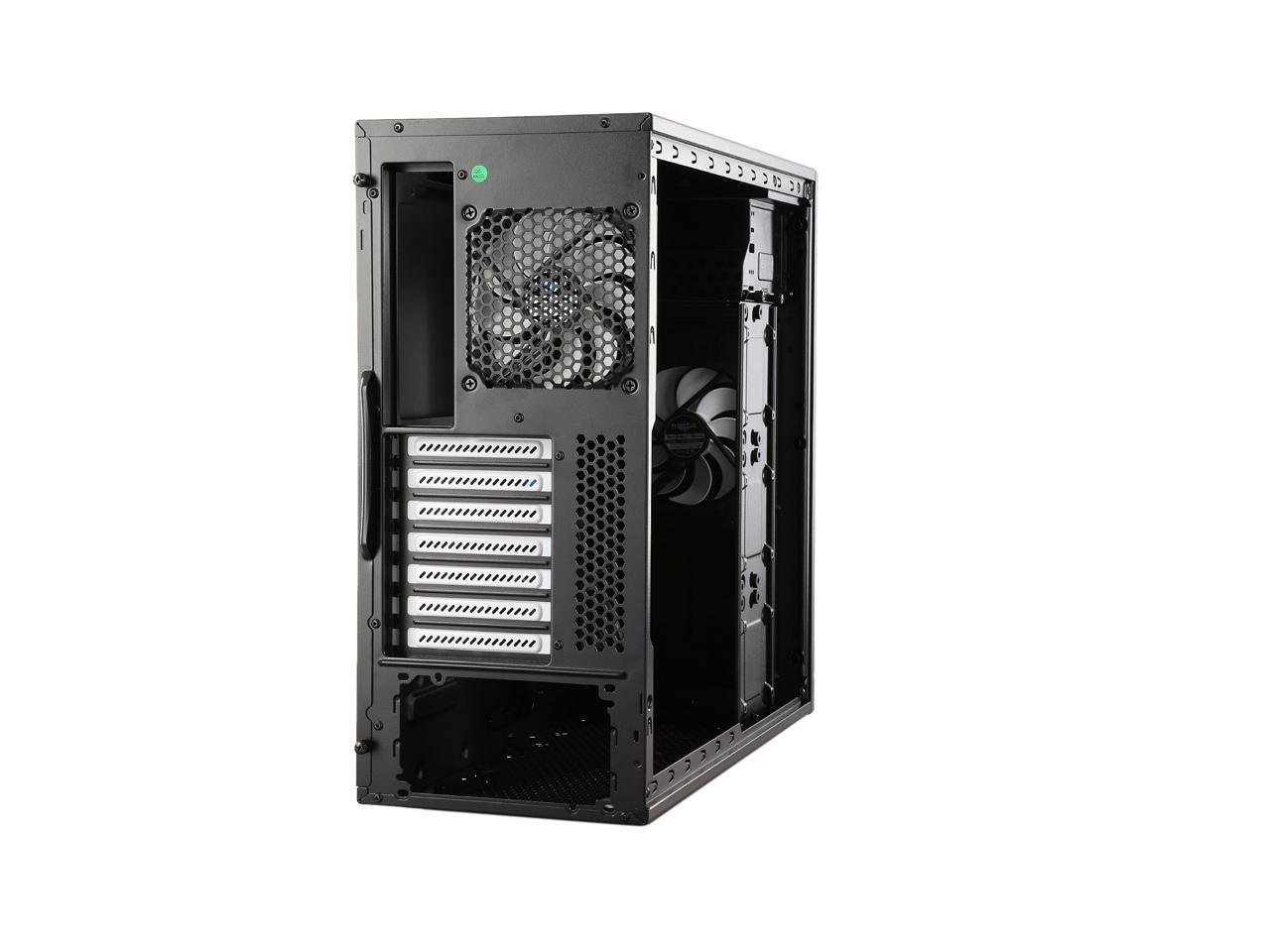

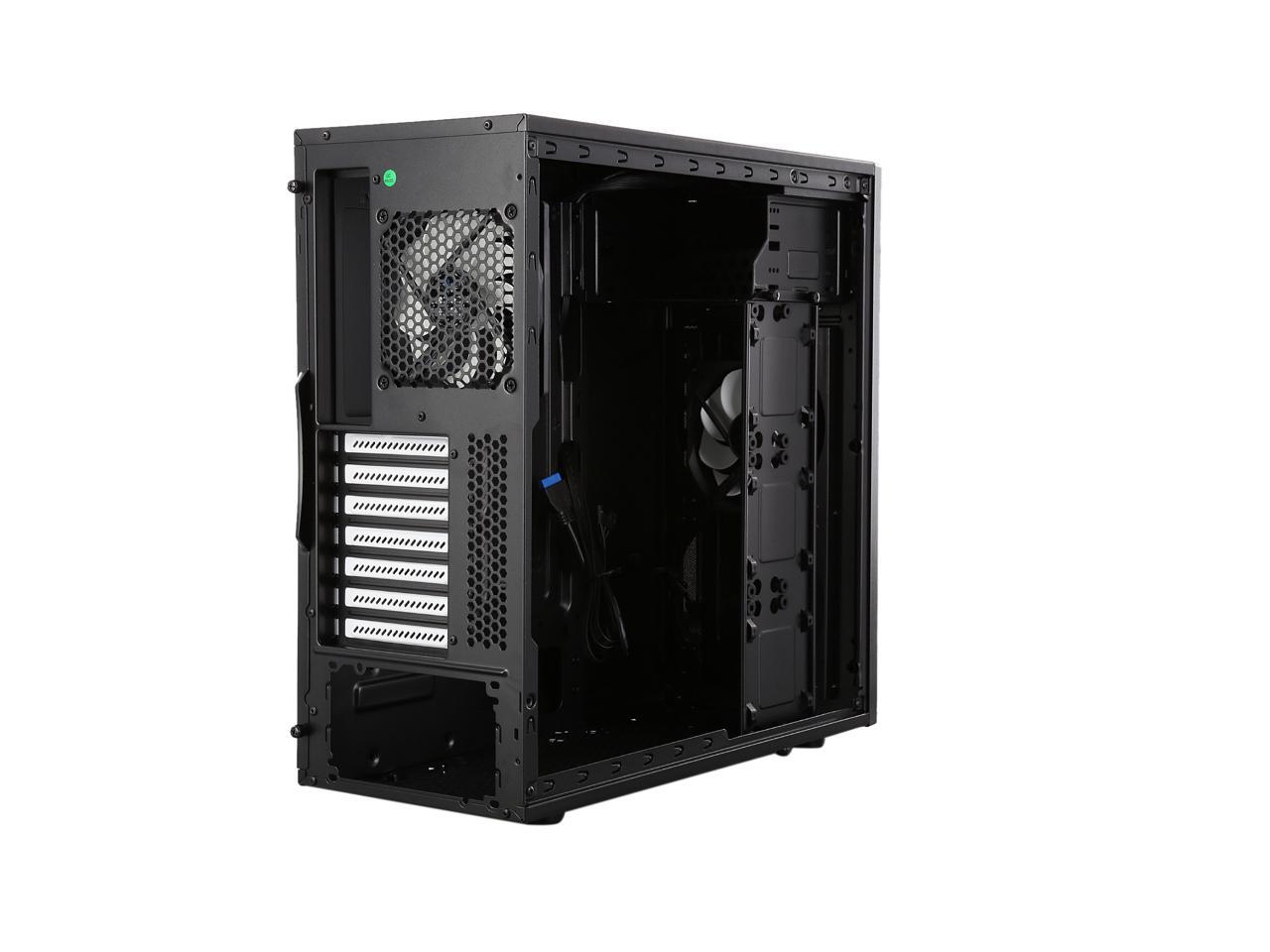

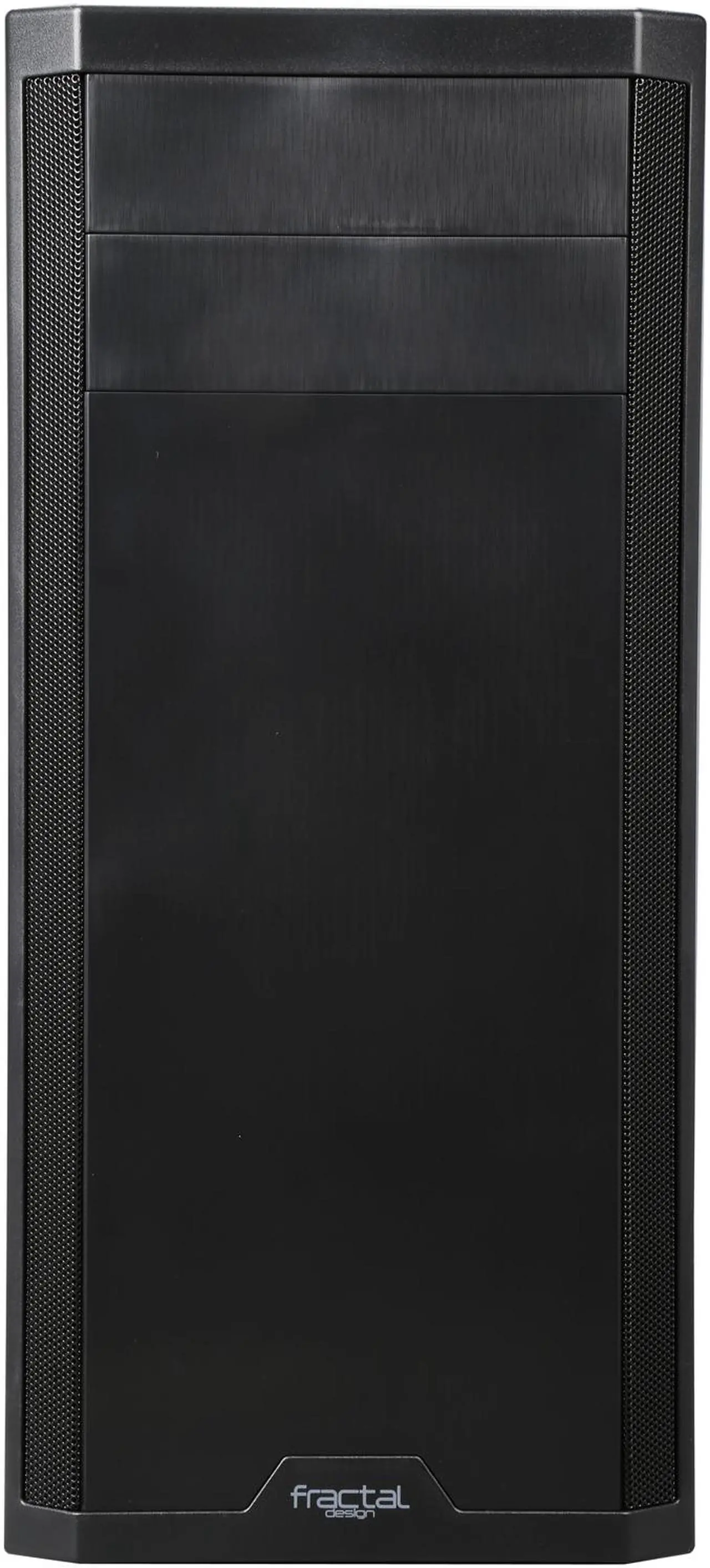

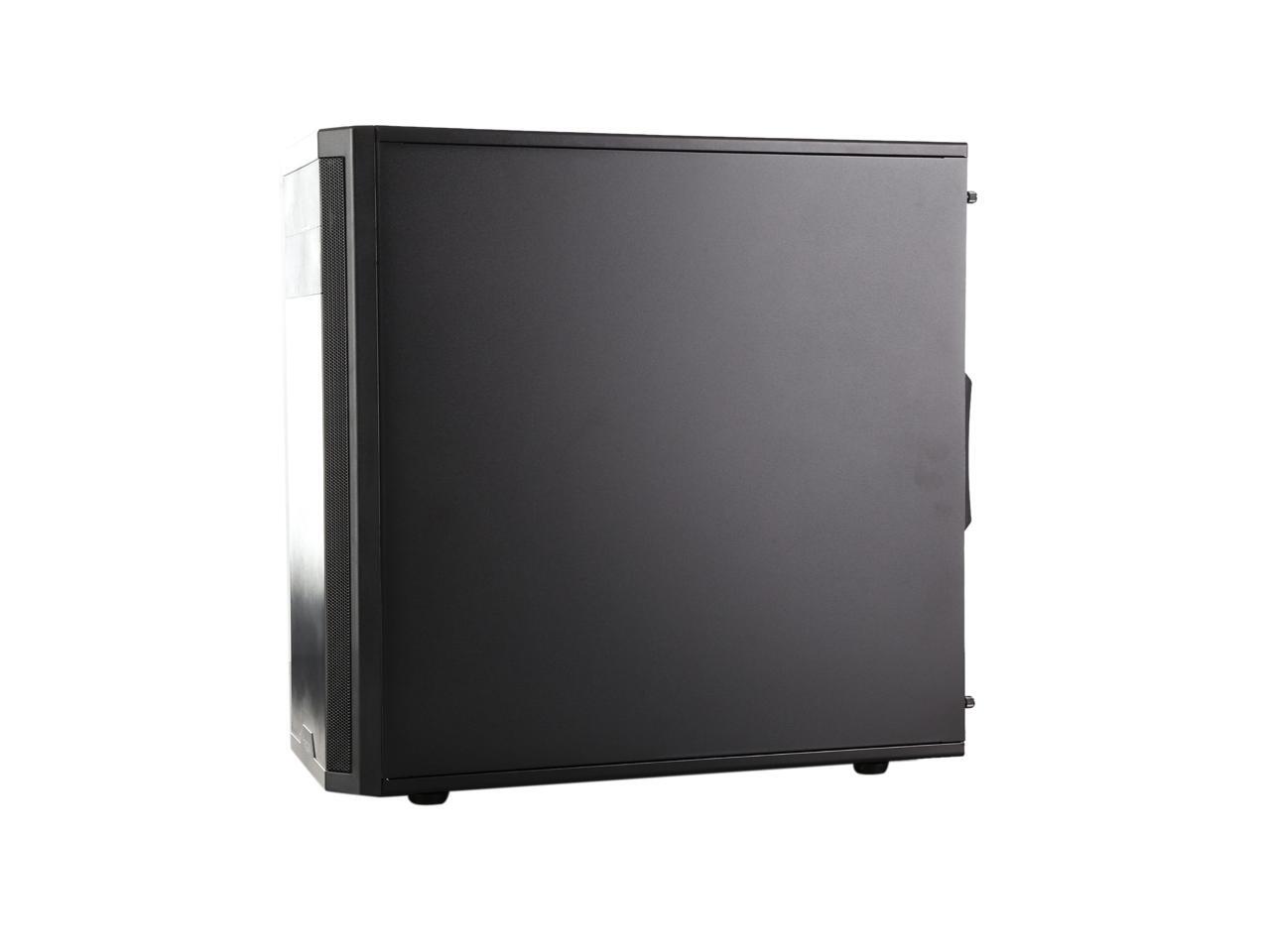

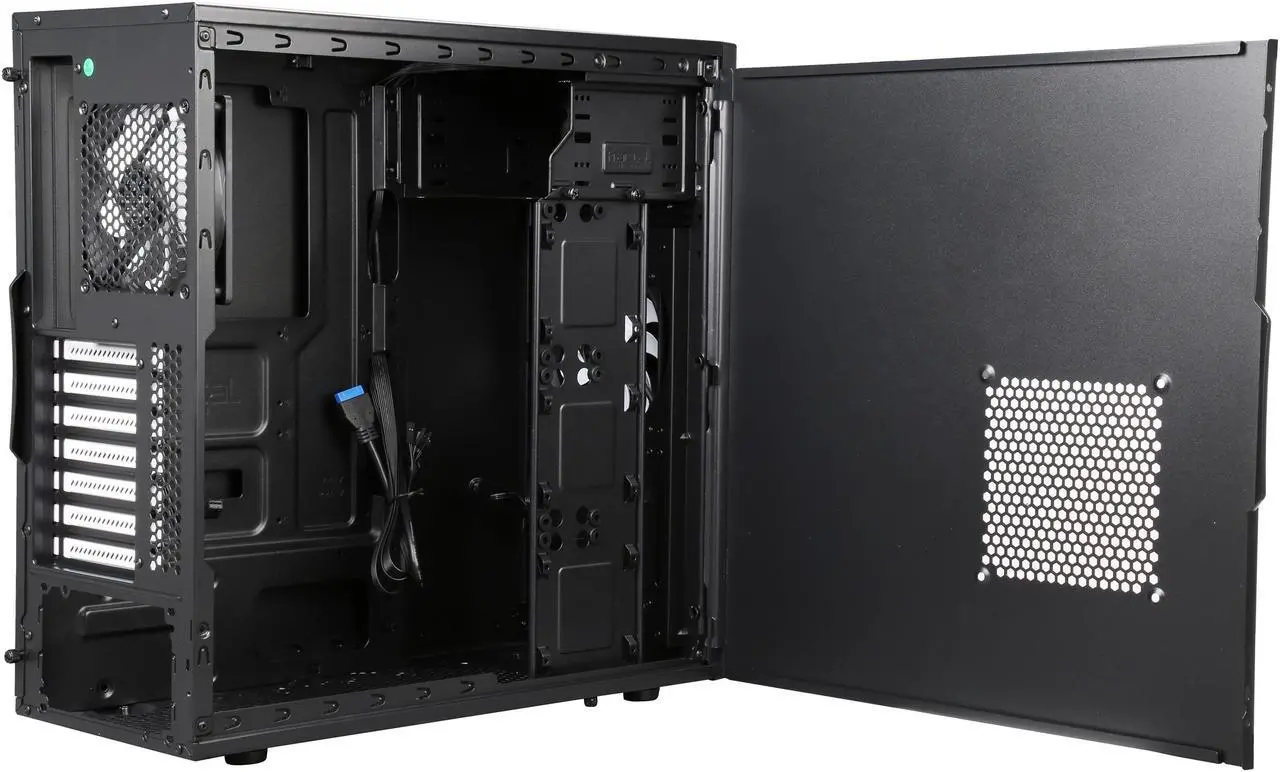

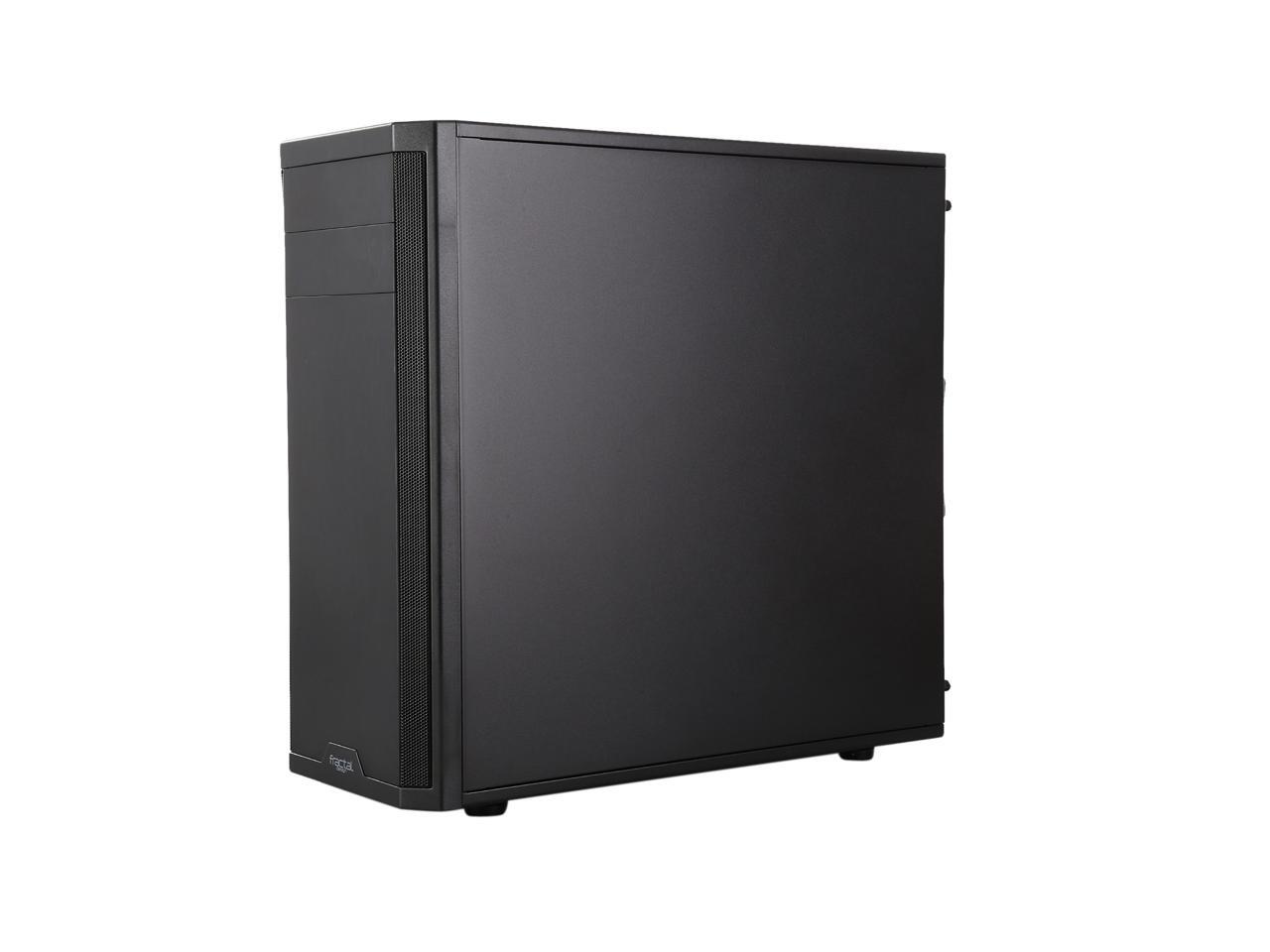

Fractal Design Core 2300 Black Compact ATX Midtower Computer Case
OPEN BOX Product Type
- Steel ATX Mid Tower
- Supports up to 3 radiators (1 X 280mm/240mm, 1 X Slim 240mm, 1 X 120mm)
- Filtered fan slots in front and bottom
- 1 x USB 3.0 / 1 x USB 2.0 / Audio Front Ports
Specs
Learn more about the Fractal Design Core 2300 FD-CA-CORE-2300-BL
| Brand | Fractal Design |
|---|---|
| Model | Core 2300 FD-CA-CORE-2300-BL |
| Type | ATX Mid Tower |
|---|---|
| Color | Black |
| Case Material | Steel |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ATX / Mini-ITX |
| Side Panel Window | No |
| External 5.25" Drive Bays | 2 |
|---|---|

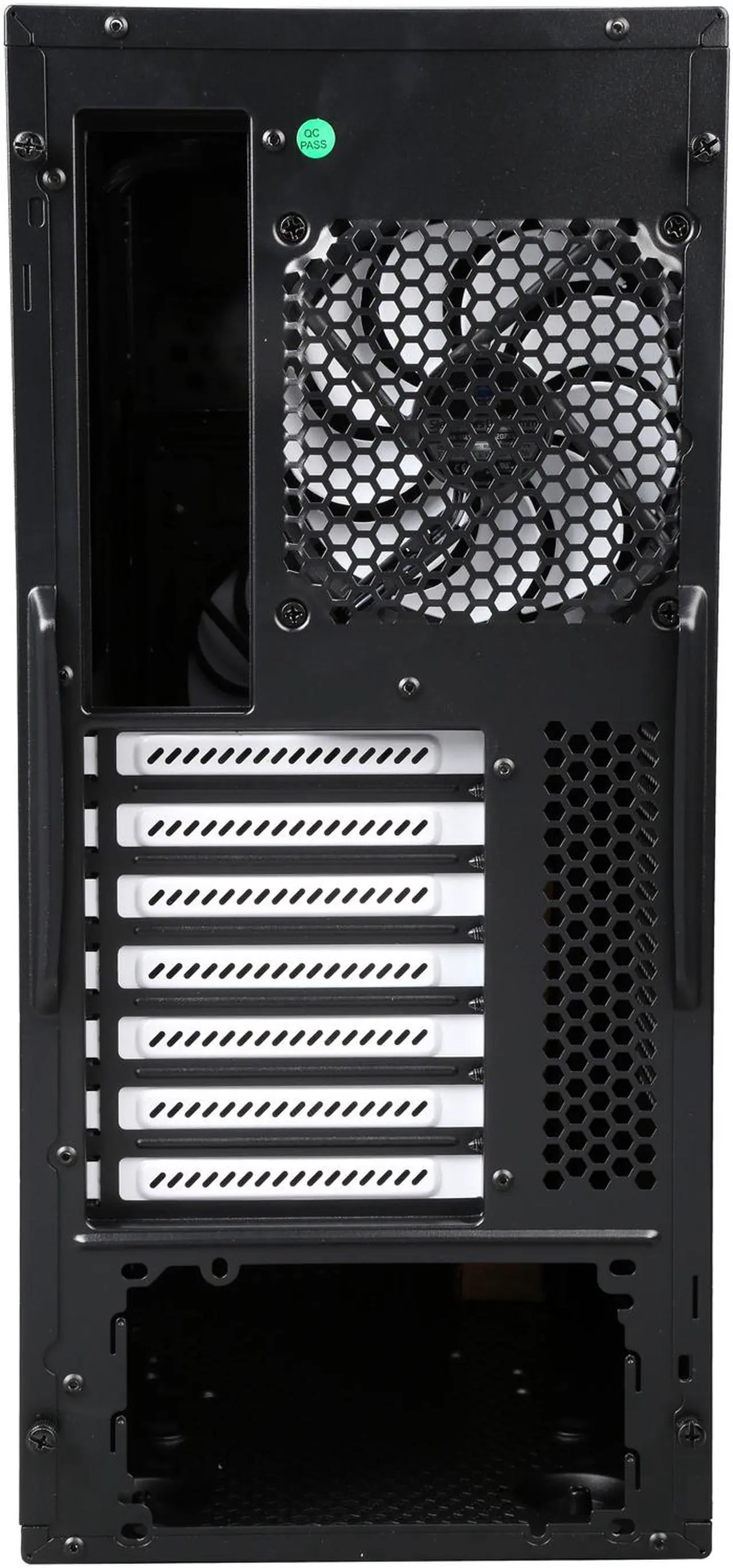

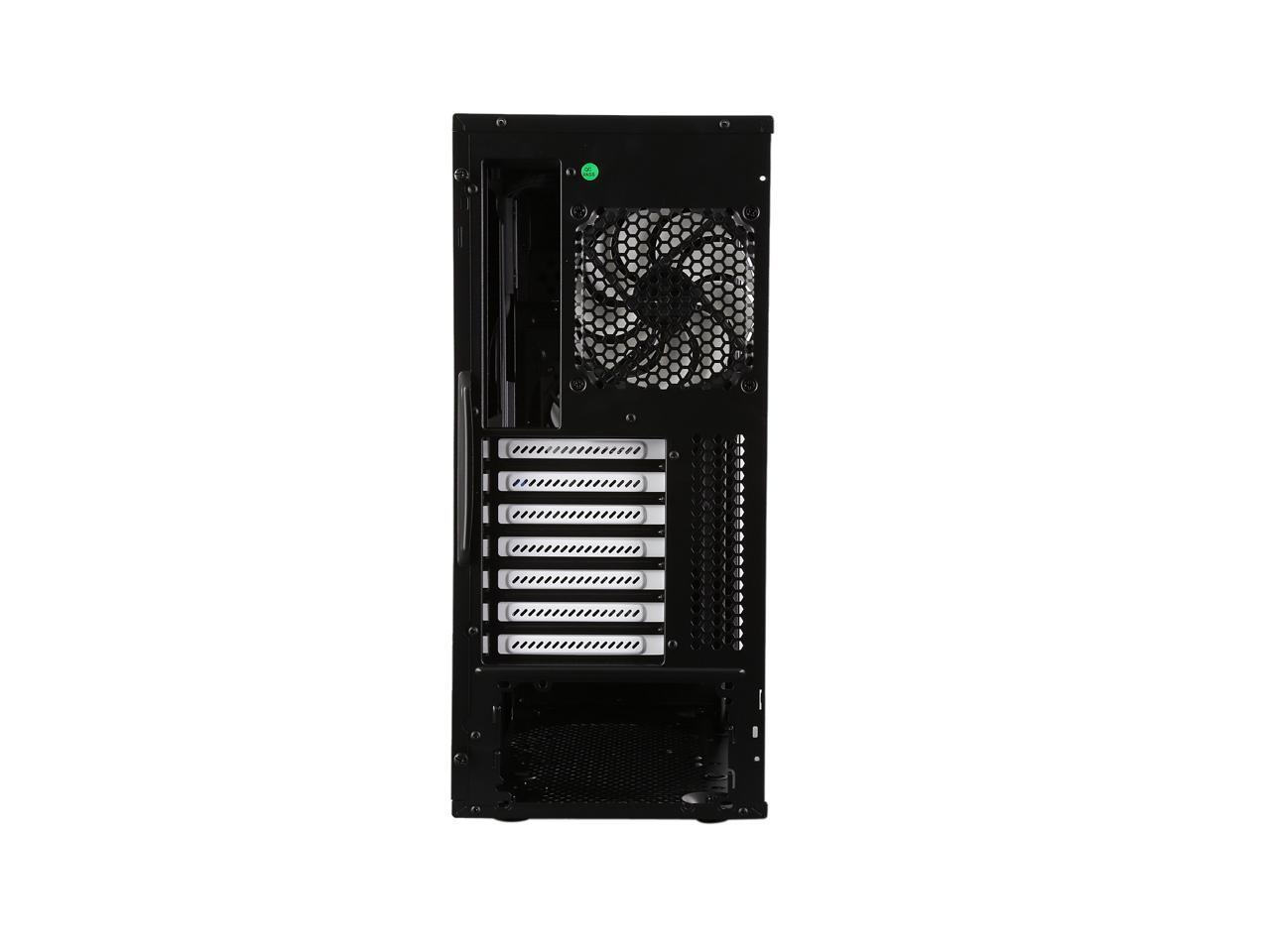

| Expansion Slots | 7 |
| Front Ports | 1x USB3.0 1x USB2.0 Audio In/Out |
|---|
| 120mm Fans | 2 |
|---|
| Max GPU Length | 380 mm |
|---|---|
| Max CPU Cooler Height | 162 mm |
| Weight | 13.75 lbs |

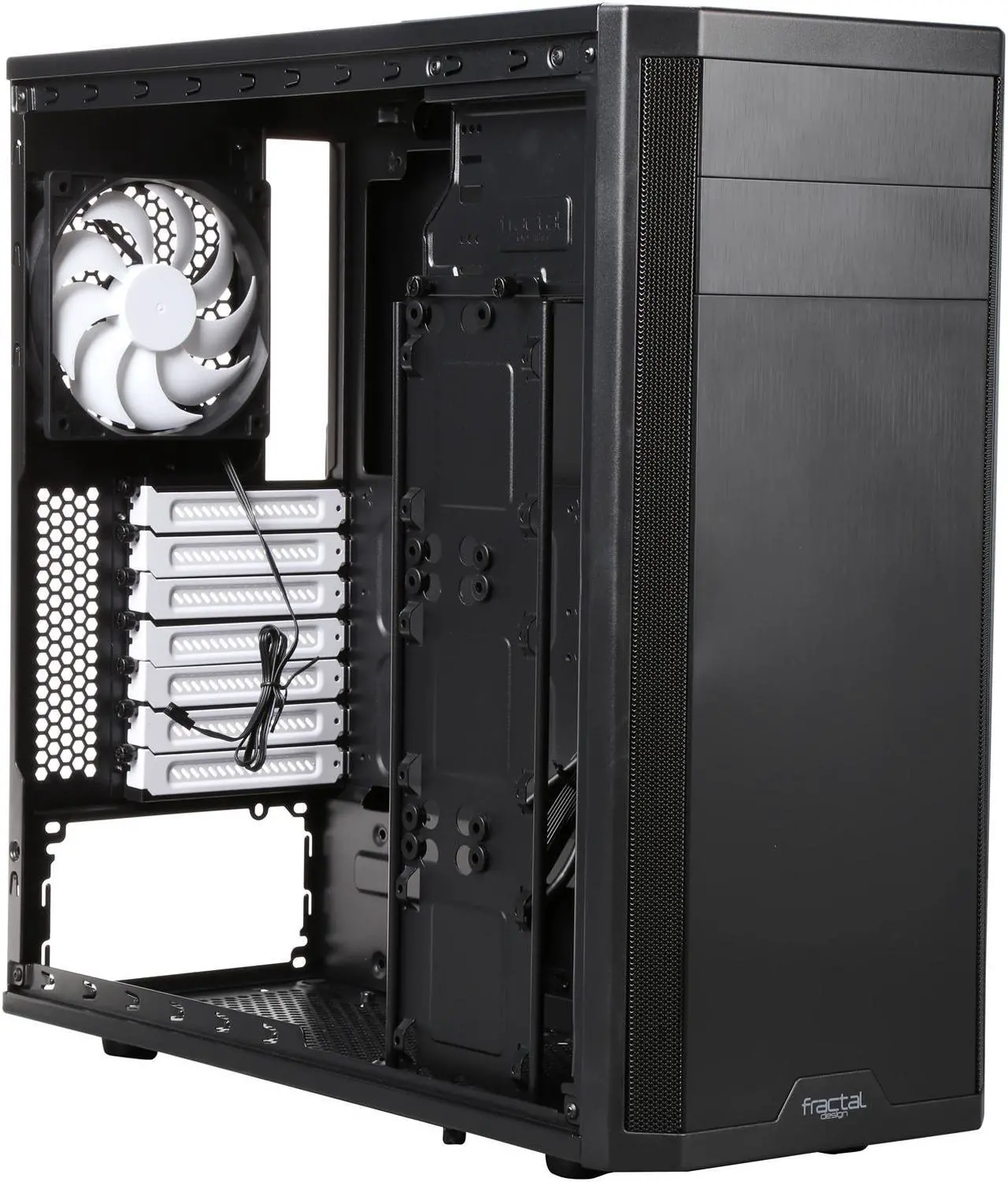

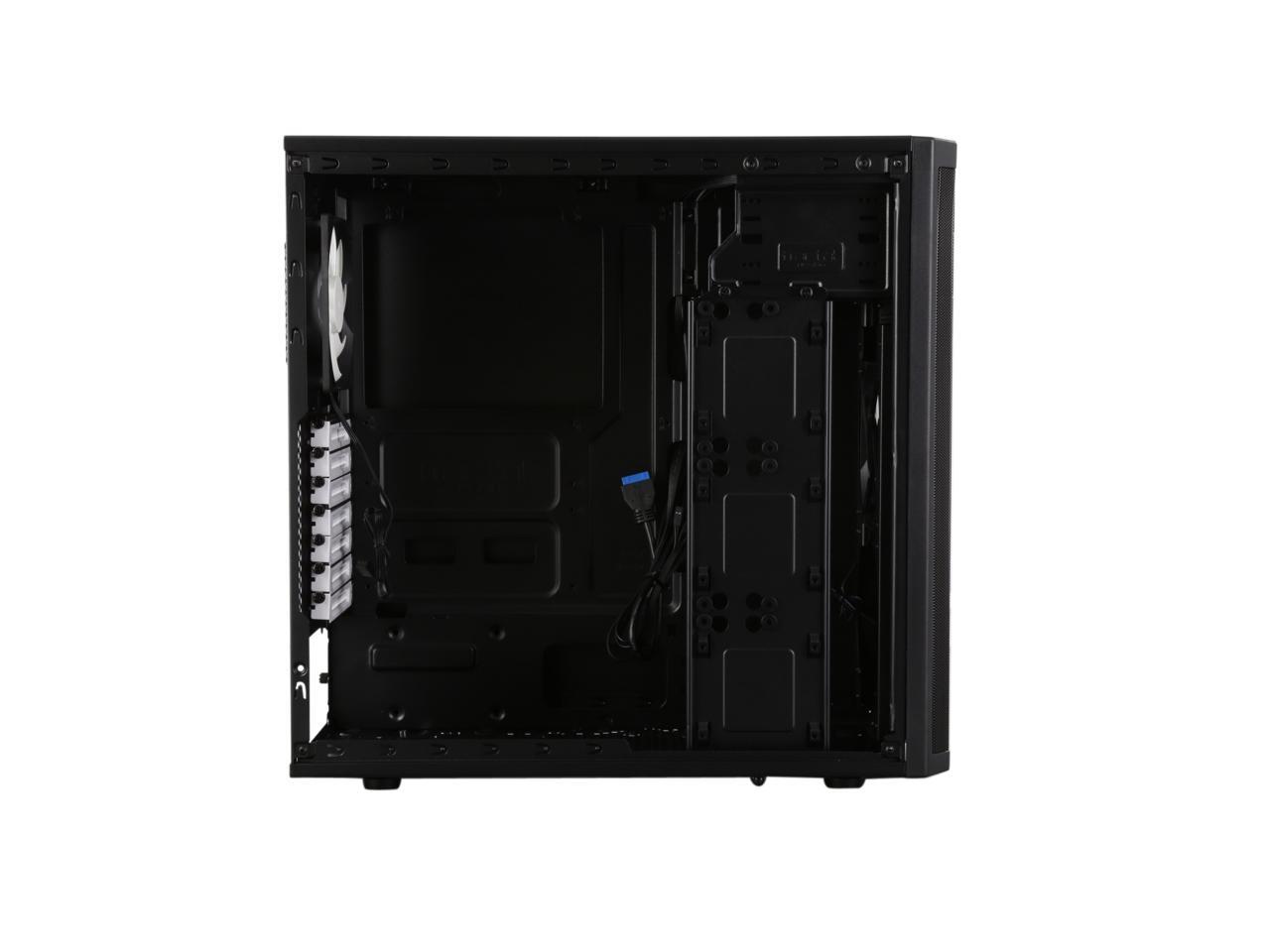

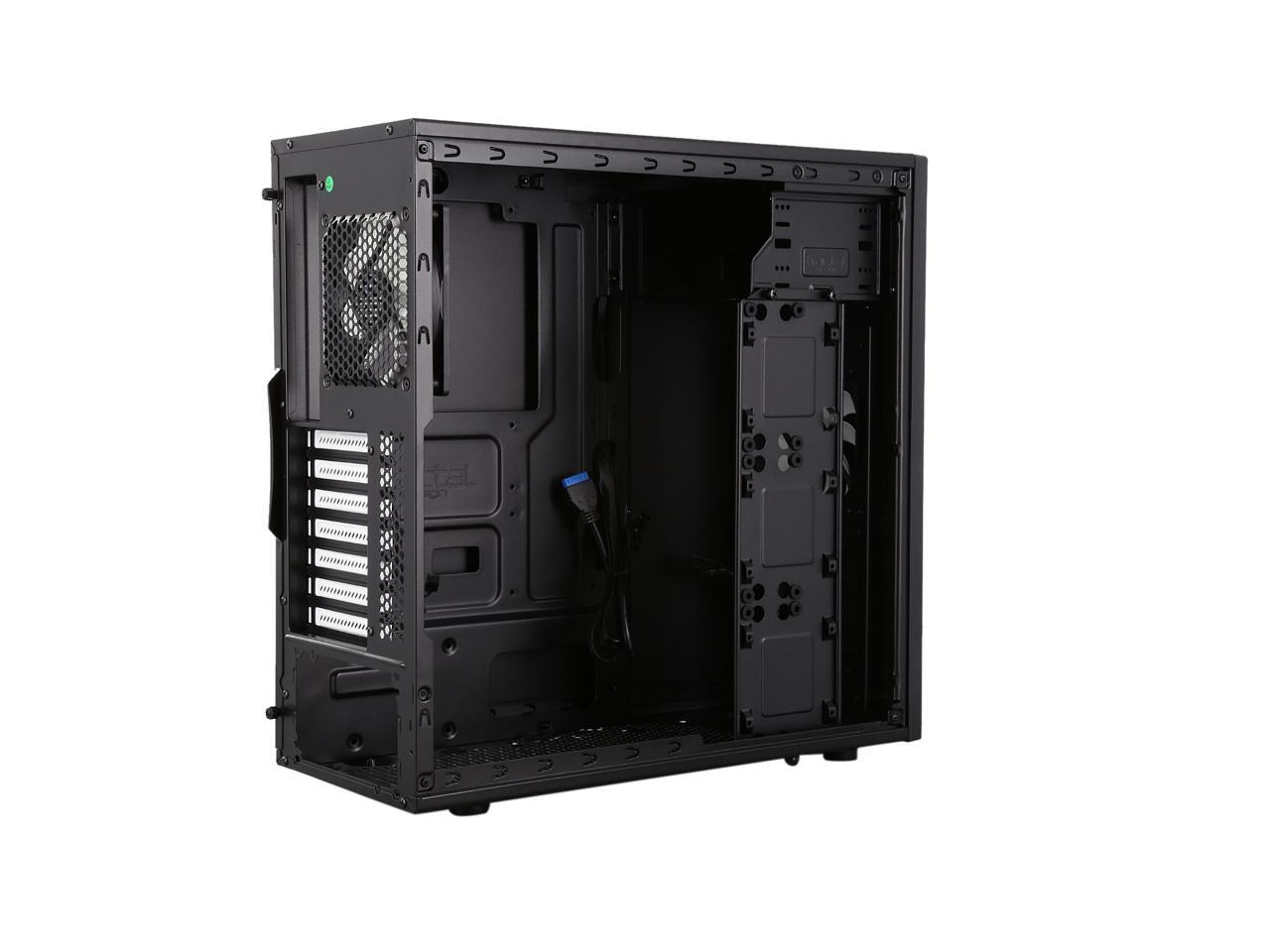

| Features | 240mm radiator fully supported in front, plus limited support for 280mm radiators Additional 240mm radiator supported in top Cable management behind motherboard tray (18.5mm, 13.5mm directly behind motherboard) 3x 3.5" HDD + 4x 2.5" SSD (simultaneous) 1x USB3 + 1x USB2 Bottom mounted PSU 38.3L volume Two top fan slots, each with support for 120 or 140mm fans. Fan slots offset, supports a top 240mm radiator with most motherboards (top 5.25" slot limited to 135mm length devices) 1x USB3 (internal connector) and 1x USB2 ABS front panel with brushed aluminum texture Two front fan slots, each with support for 120 or 140mm fans Support for all 240mm radiators in front, plus limited support for 280mm radiators HDD platter with support for 3x 3.5" HDDs (inside) and 3x 2.5" drives (outside) Vibration dampened 3.5" HDD mounting Support for 355mm long graphics cards (HDDs might conflict with sideways mounted GPU power connectors on cards longer than 205mm) 120mm rear fan included Padlock loop and Kensington lock slot included Reusable PCI blanks, fastened with thumbscrews Supports CPU coolers up to approx 162mm Cable management, including HDAudio, ATX 12V and mATX holes Support for 1x 120mm fan (two locations) or 1x 140mm fan on bottom panel Dust filter for bottom fan (any location) and PSU 1x SSD hidden behind PSU Large CPU backplate cutout |
|---|
| Date First Available | March 24, 2018 |
|---|
