what type of power supply will fit in this case?

ATX fits fine. No brackets to put a sfx or sfx-l but there is no reason to spend more for that

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 5 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

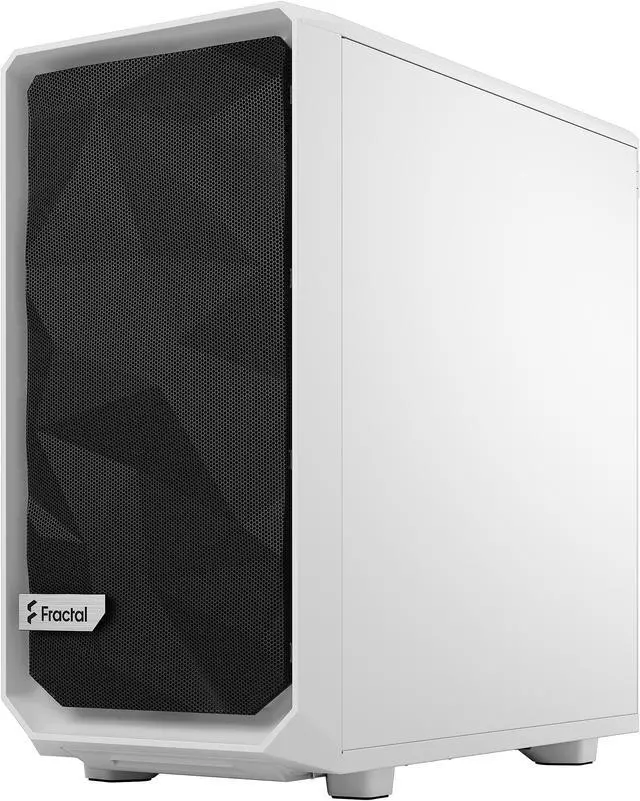

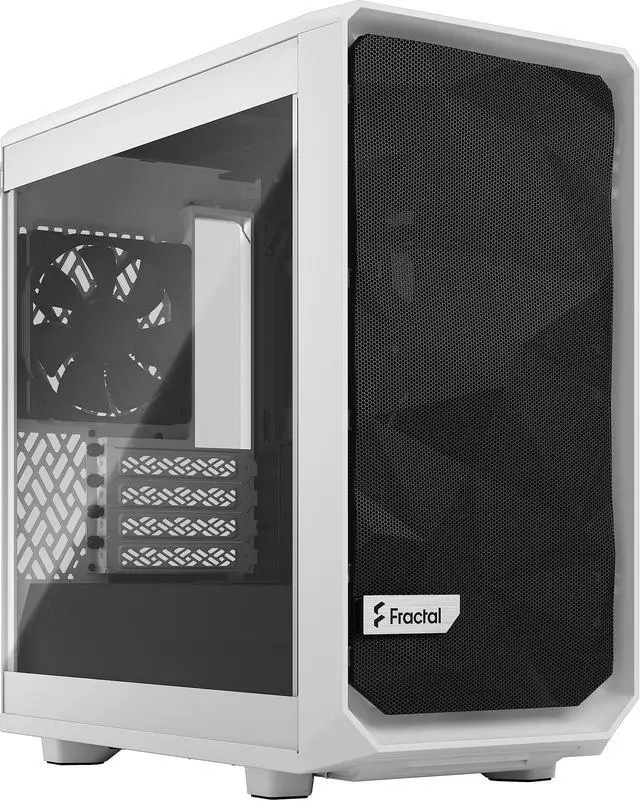

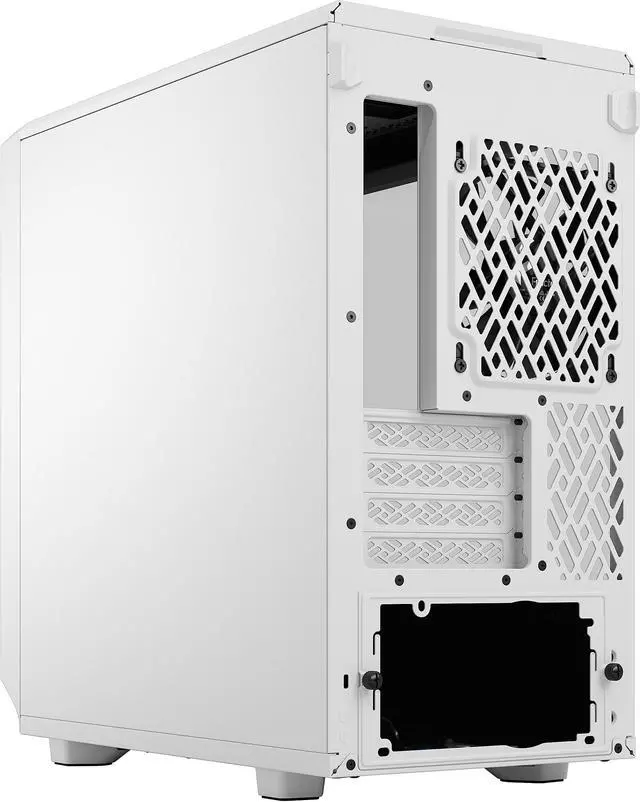

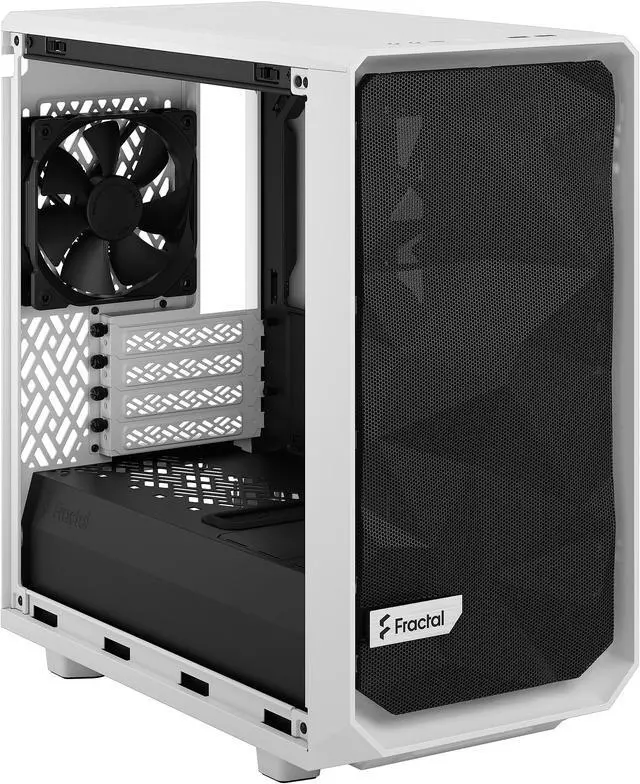

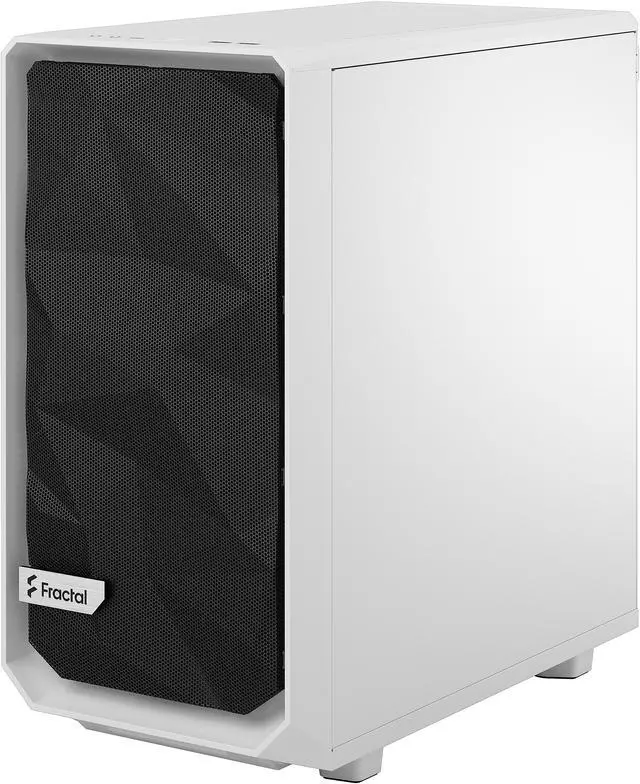

Main image of Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 2 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 3 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 4 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 5 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 6 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 7 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 8 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 9 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 10 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 11 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 12 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 13 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 14 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 15 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 16 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 17 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 18 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 19 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Alt view image 20 of 20 - Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

Customer images

Shop All Fractal Design Products

Fractal Design Meshify 2 Mini White TG mATX High-Airflow Clear Tempered Glass Window Computer Case

(26)(6) Write a Review

Iconic angular mesh design and smooth, filtered airflow

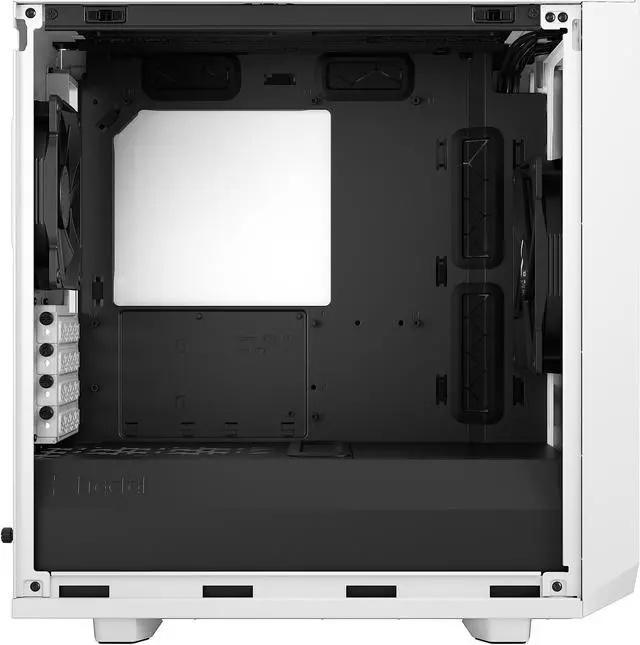

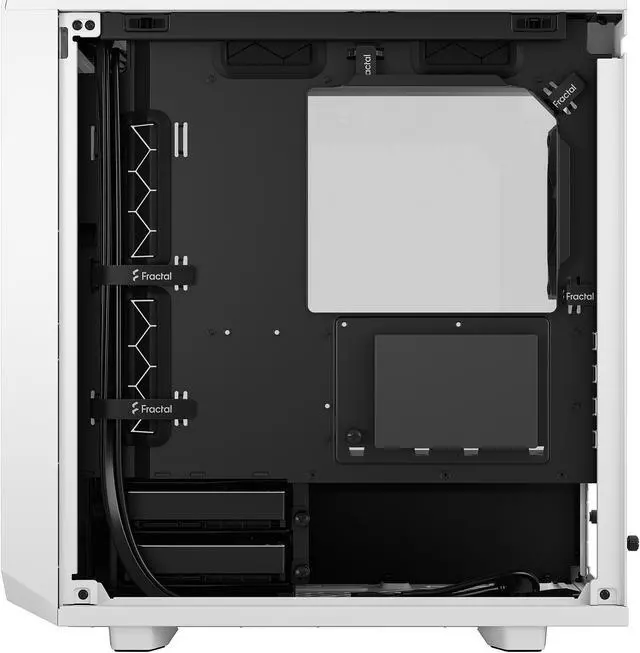

Open interior for smooth airflow from front intake to rear exhaust
Holds a 331 mm GPU with a 240 mm radiator in the top
Flush TG panel with steel frame support and bolt-free top-latching
Excellent interior access through top panel and fan bracket
New front nylon filter that can be removed for increased airflow
Three front USB ports including one USB 3.1 Gen 2 Type-C

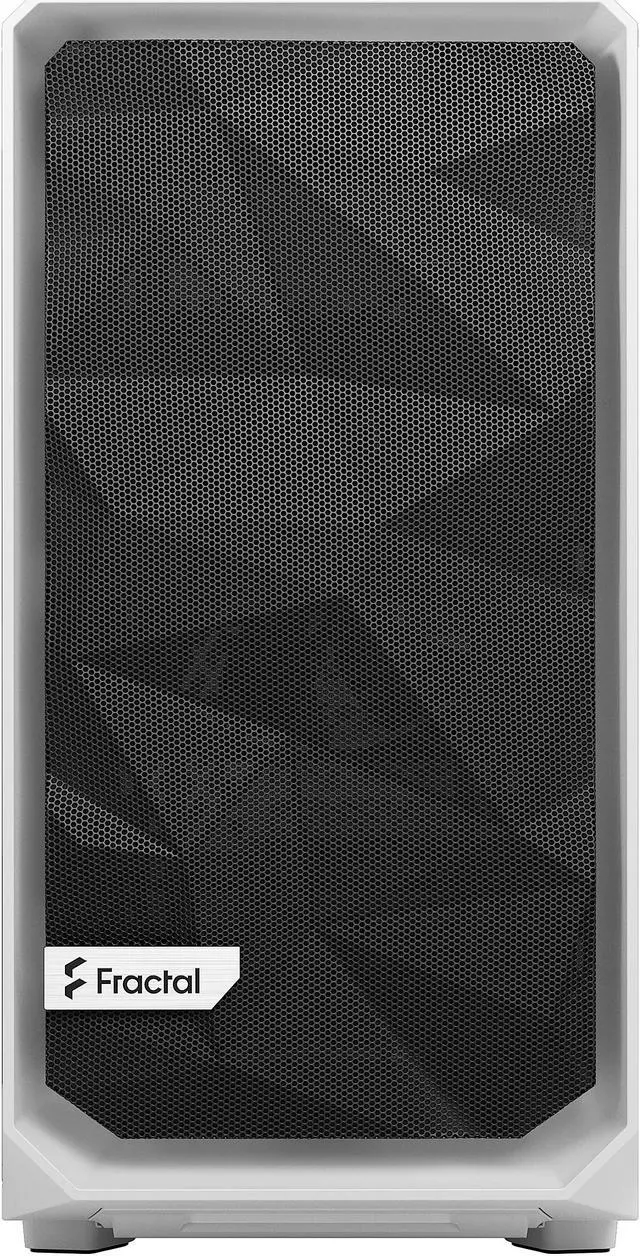

Hinged mesh front panel with removable nylon filter and tether-free bezel
Flexible storage options supporting up to two HDDs and four SSDs
Seven total fan positions and support for 240/280 mm radiators

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (26)

Any questions? Our AI beta will help you find out quickly.

Try me now

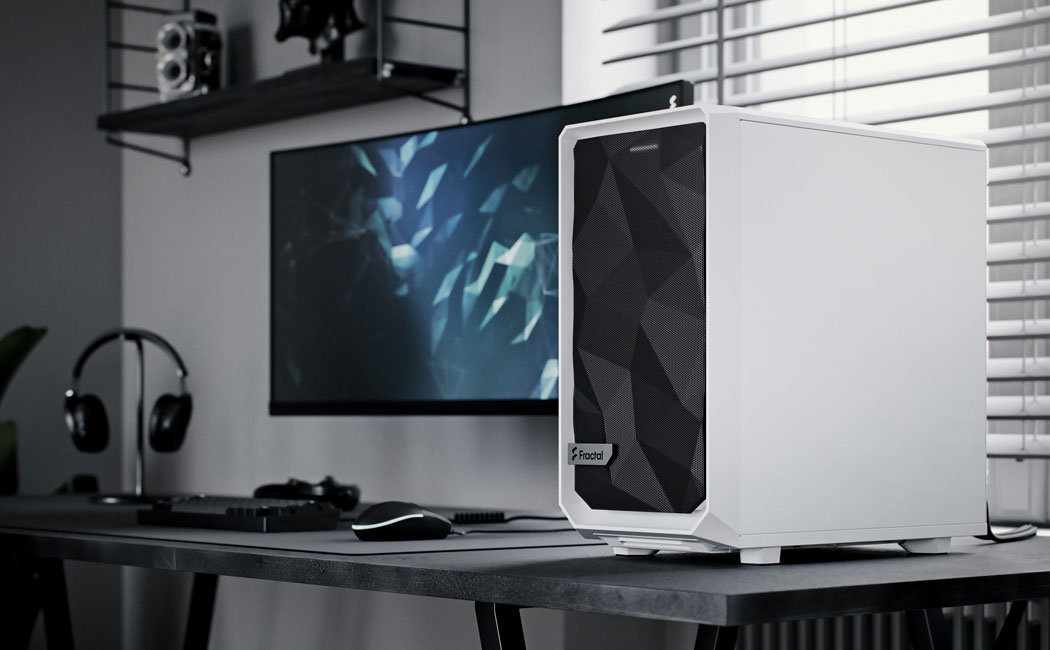

The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top. Its accessible and intuitive interior layout makes it easy and enjoyable to build a stylish, airflow-centric system.

ALL ACCESS

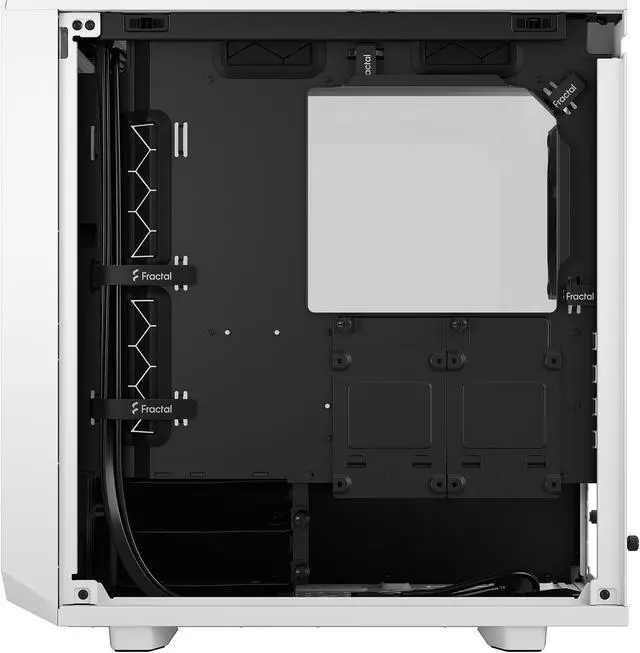

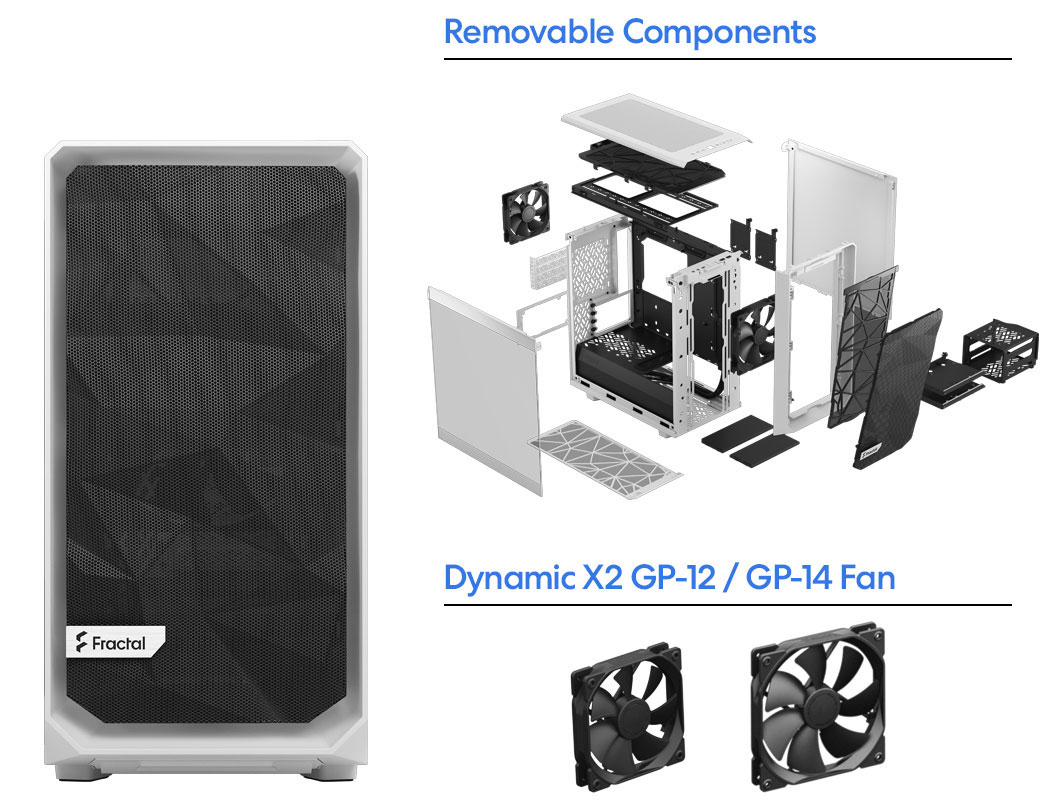

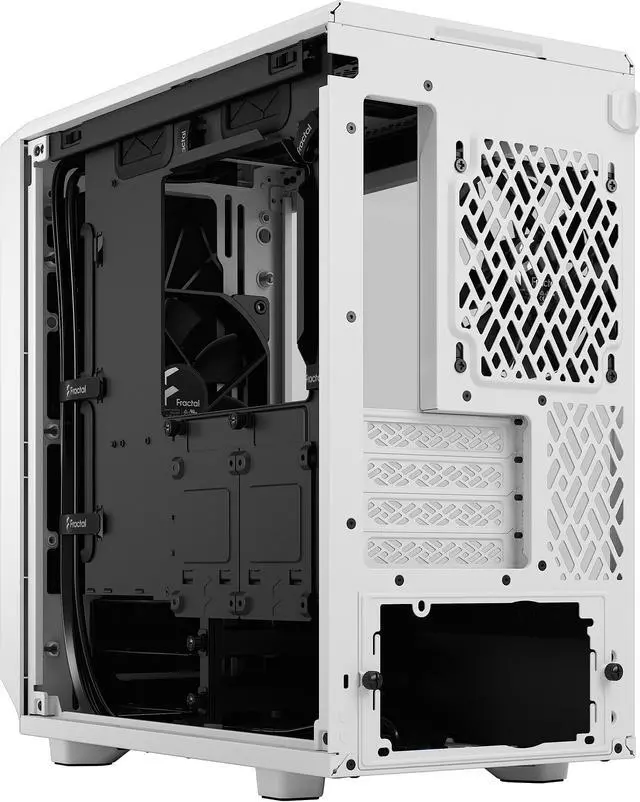

The fully removable top panel and fan bracket offers excellent interior access and easy cable routing

SLICK AND STREAMLINED

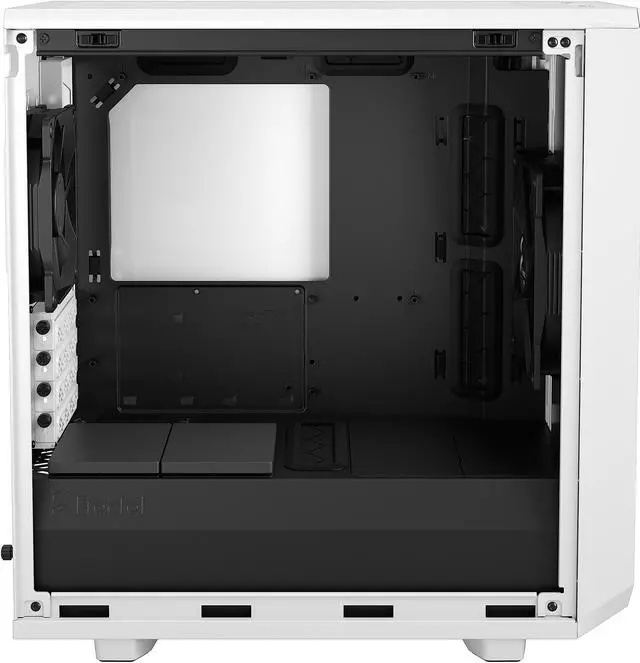

The open interior layout creates a smooth airflow path from intake to rear exhaust

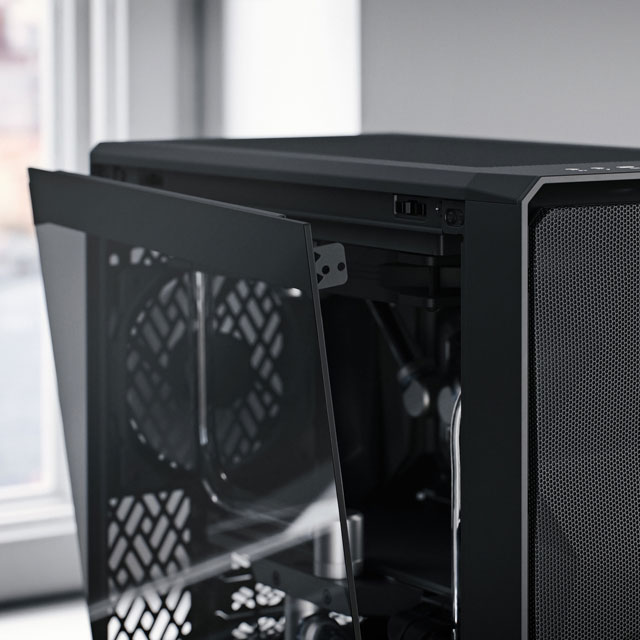

BOLT-FREE GLASS

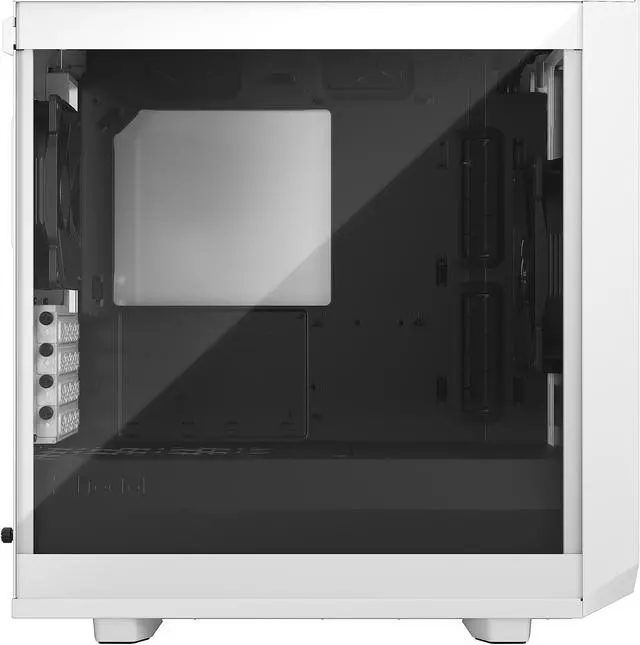

Seamless, top-latching tempered glass panels make for a stylish exterior

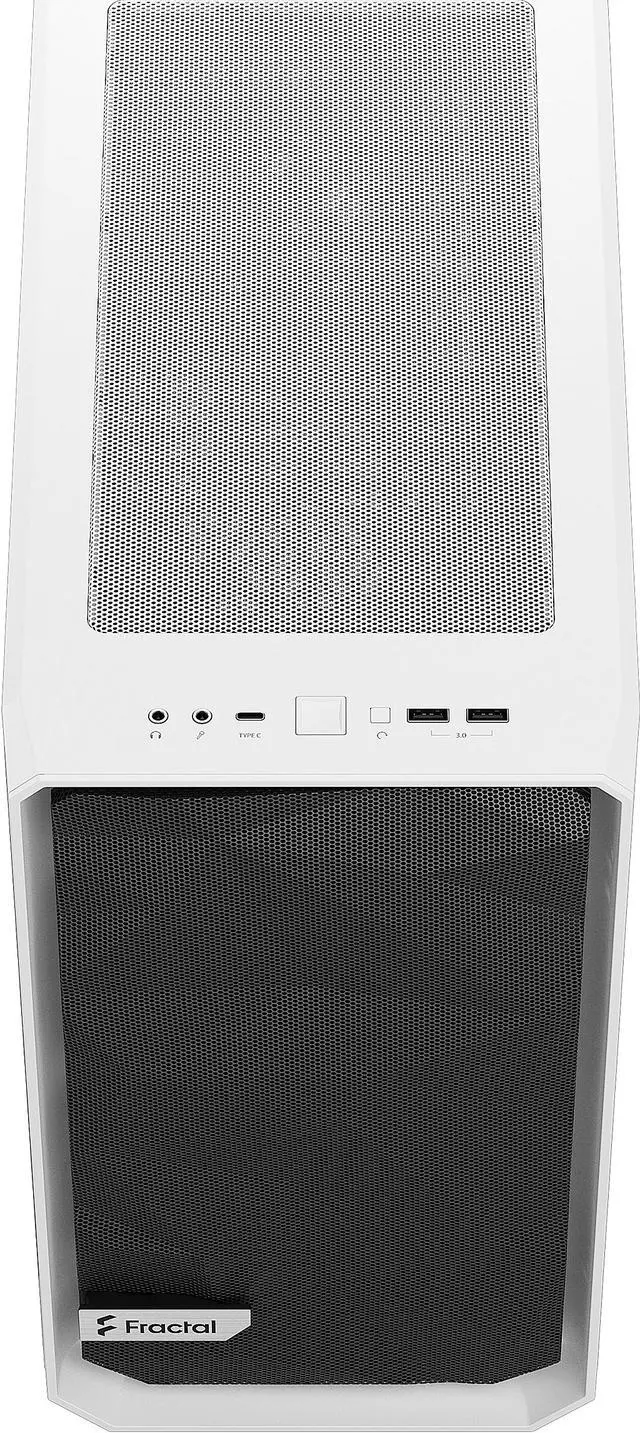

TYPE-C INTERFACE

USB Type-C front I/O offers quick access to fast charging and speeds up to 10 Gbps

MORE IN STORE

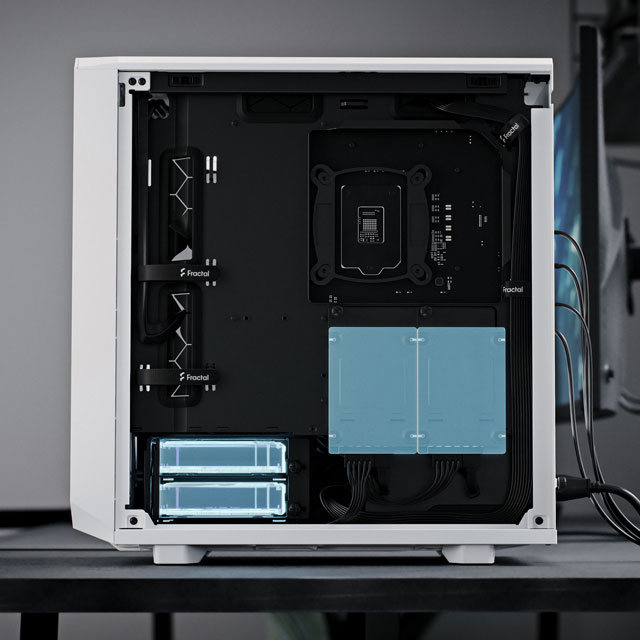

Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)

ROBUST COOLING

Install up to seven fans, front radiators up to 280 mm, or top radiators up to 240 mm

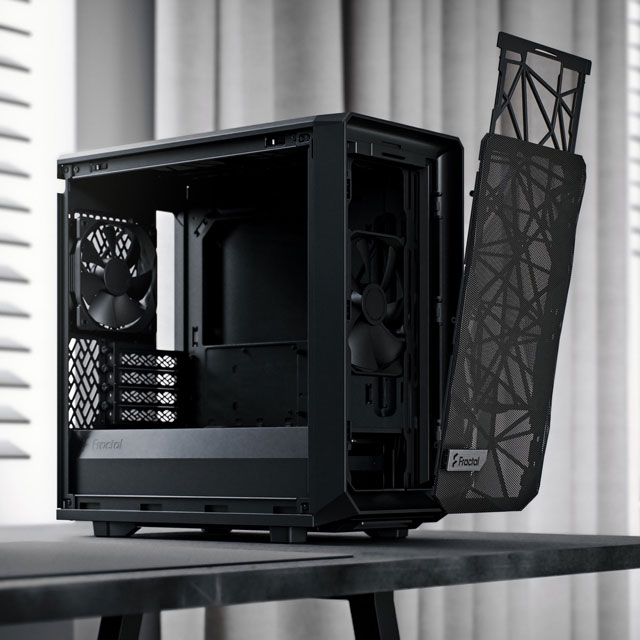

DETACHABLE FRONT FILTER

The front nylon filter can be easily removed from the hinged mesh panel for even more airflow

NO HOLDS BARRED

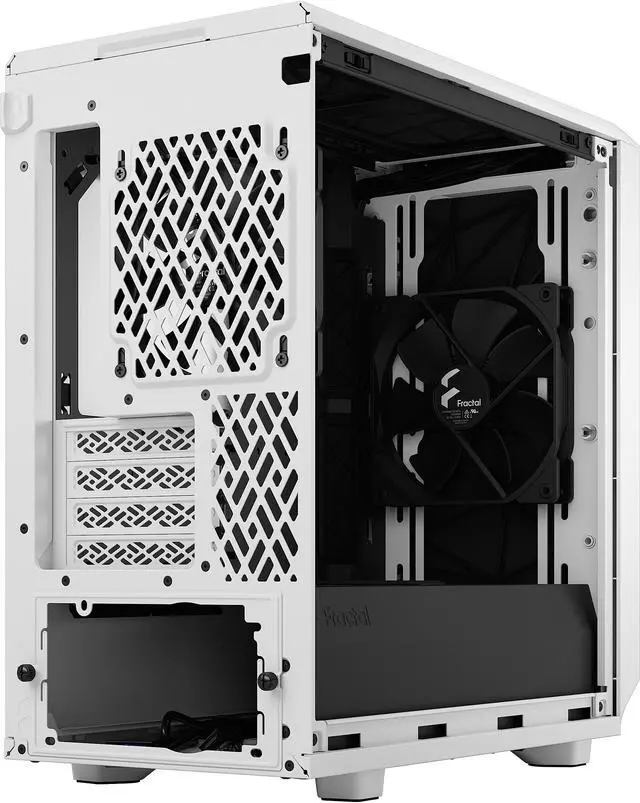

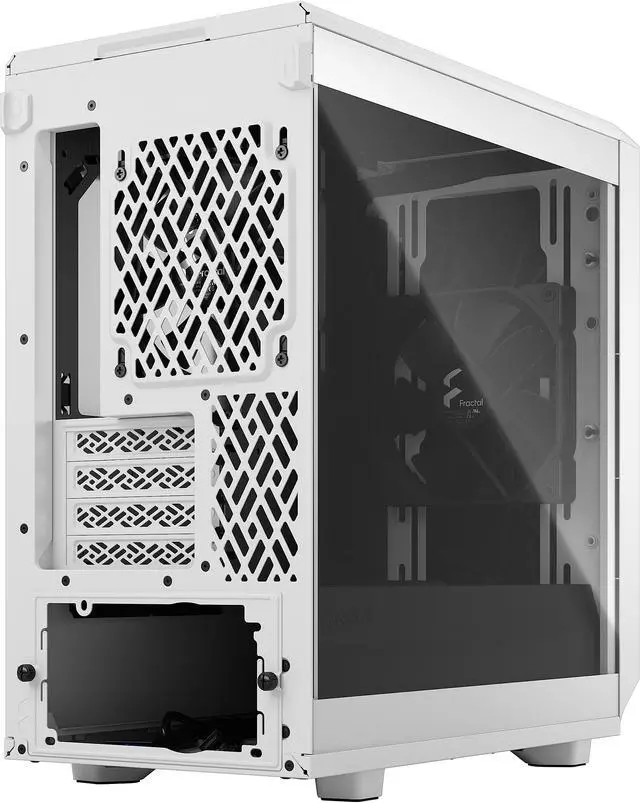

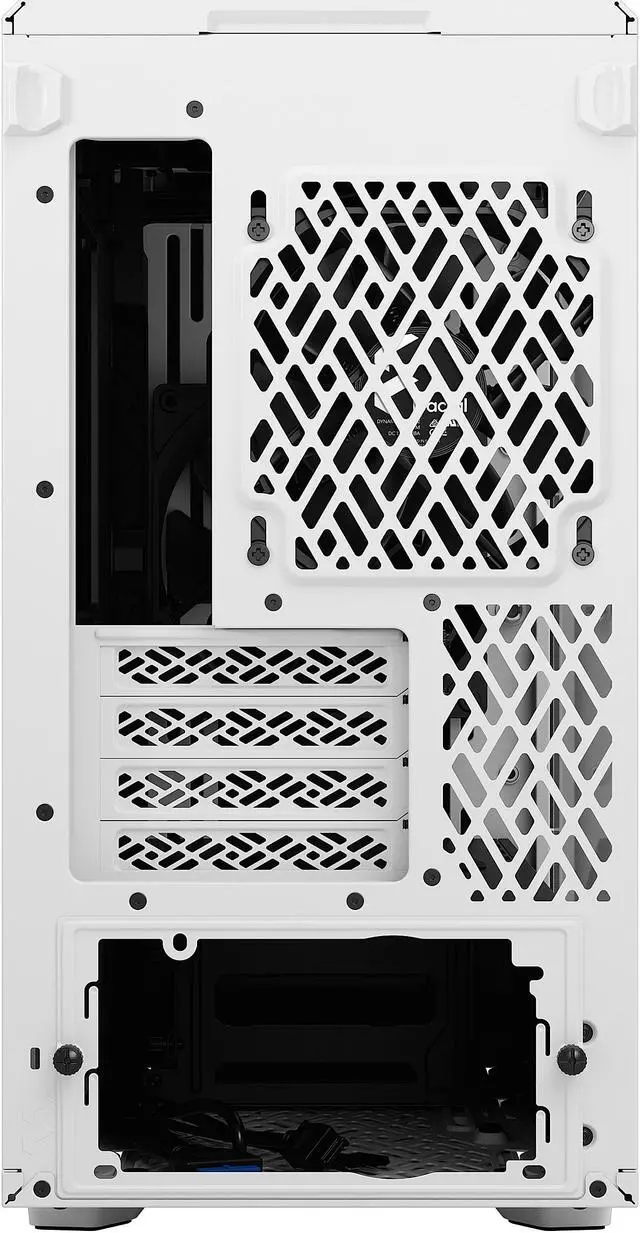

Bridgeless PCI expansion slots ensure unrestricted GPU exhaust

Model
Brand	Fractal Design
Series	Meshify 2 Mini
Model	FD-C-MES2M-02

Details
Type	Micro ATX Tower
Color	White
Case Material	Steel / Tempered Glass
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro-ATX / Mini-DTX / Mini-ITX
Side Panel Window	Yes
LED	No
Dust Filters	Bottom (including PSU) / Front / Top

Expansion
Internal 3.5" Drive Bays	2 (included)
Internal 2.5" Drive Bays	4 (2 included, max 8 mm drive height on two positions)
Expansion Slots	4

Front Panel Ports
Front Ports	2 x USB 2.0 / 2 x USB 3.0 / 1 x USB 3.1 Gen 2 Type-C / Audio

Cooling System
Fan Options	Front: 3 x 120mm / 2 x 140mm fan (1 x Dynamic X2 GP-14 included) Top: 2 x 120mm / 2 x 140mm fan Rear: 1 x 120mm fan (1 x Dynamic X2 GP-12 included) Bottom: 1 x 120mm fan (requires removal of HDD cage)
Radiator Options	Front: 280mm / 240mm (max 146mm width) Top: 240mm (max 121mm width, 37mm MB component height) Rear: 120mm Bottom: 120mm (requires removal of HDD cage)

Dimensions & Weight
Max GPU Length	331mm (306mm with front fan)
Max CPU Cooler Height	167 mm
Max PSU Length	200mm (165mm with HDD cage)
Dimensions (H x W x D)	15.98" x 8.07" x 15.59" with feet/screws/protrusions 13.58" x 8.07" x 15.12" without feet/screws/protrusions
Weight	14.59 lbs.

Additional Info
Features	Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support Open interior layout creates a smooth airflow path from front intake to rear exhaust Room for GPUs up to 306 mm long including front fans with 331 mm total space Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing Double layered front filter with detachable nylon for increased airflow Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included) Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included) Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support Integrated cable guides with cable straps further simplify cable management behind the board Radiator support: Front - 280/240/140/120 mm (146 mm max width), Rear - 120 mm, Top - 240/120 mm (121 mm max width, 35 mm max MB component height), Bottom - 120 mm (with HDD cage removed)

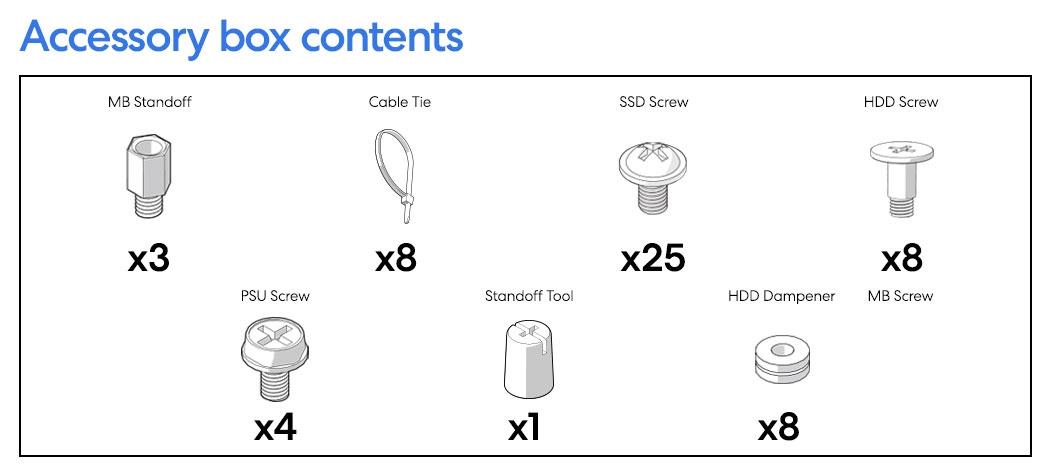

Package Content	Meshify 2 Mini Case User manual Accessory box
