You think with some slight modding this could fit 4 3.25 Hard Drives?

No, unless you put them in place of video card and use APU

Can I mount this onto a wall?

I mean, maybe if you rig something up but you would no doubt restrict airflow and I would not recommend that

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 25 wish lists)

Sold by Newegg

Shipped by Newegg

Main image of Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

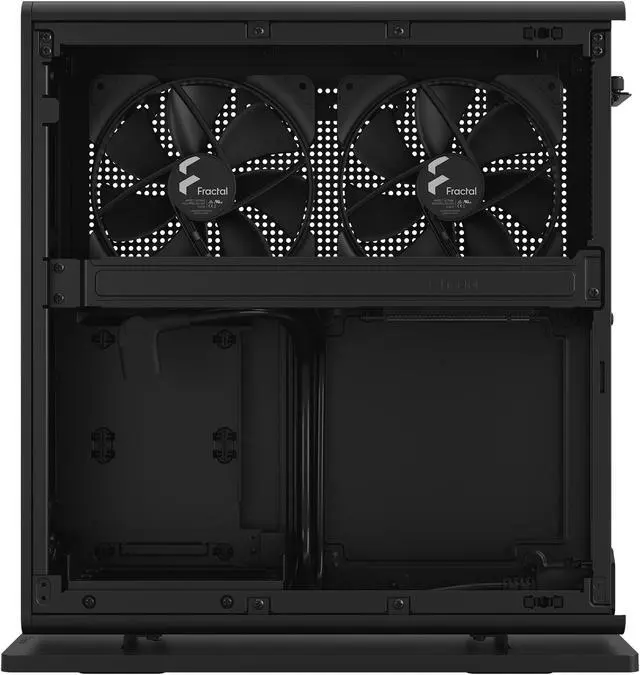

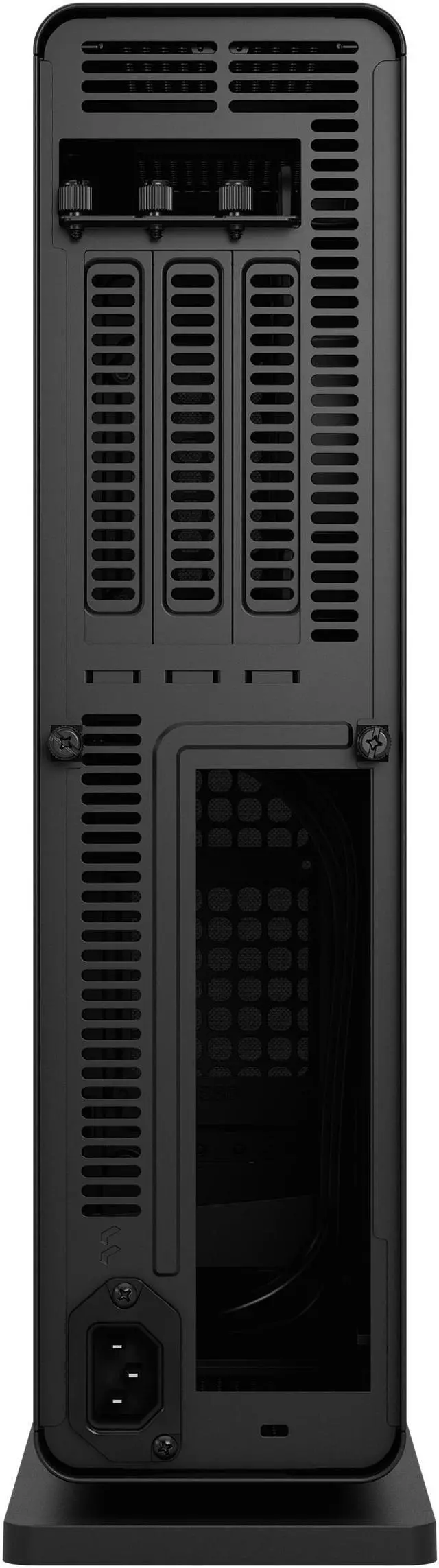

Alt view image 2 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 3 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 4 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 5 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 6 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 7 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 8 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 9 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 10 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 11 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 12 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 13 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 14 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 15 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 16 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 17 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 18 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 19 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Alt view image 20 of 20 - Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Customer images

Shop All Fractal Design Products

Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

(12)(10) Write a Review

Compact SFF console-type case
SFX/SFX-L support
6 mm anodized and CNCd aluminum front
PCIe 3.0 riser card and 2x 140 mm PWM Aspect fans included

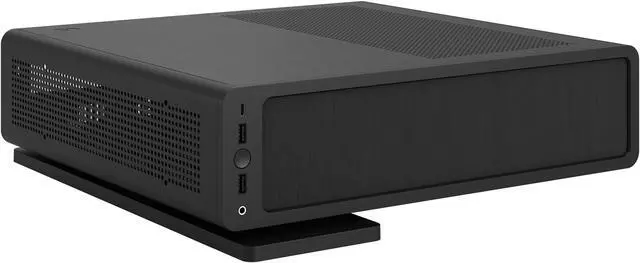

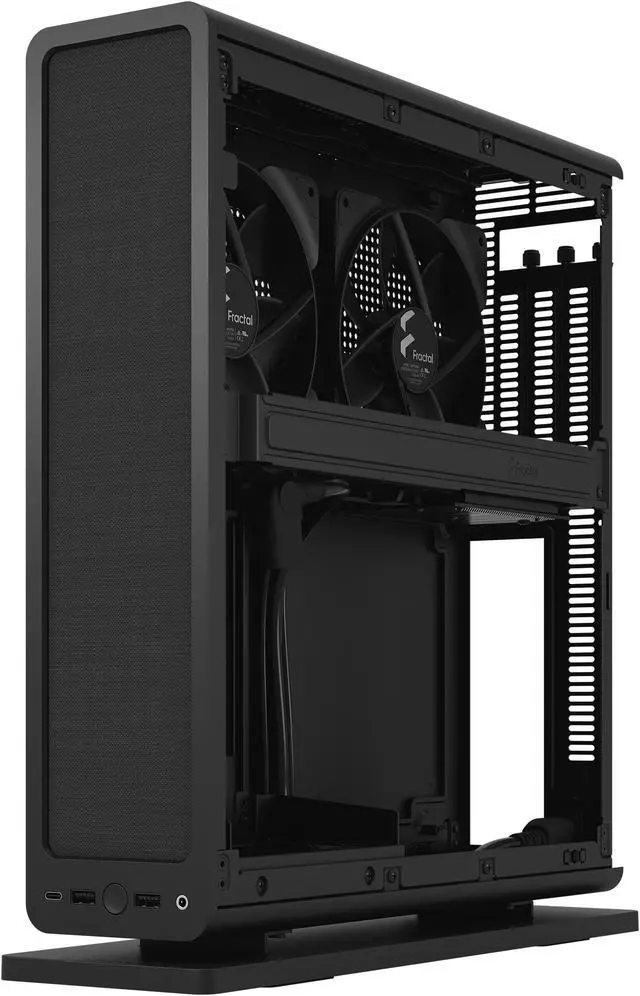

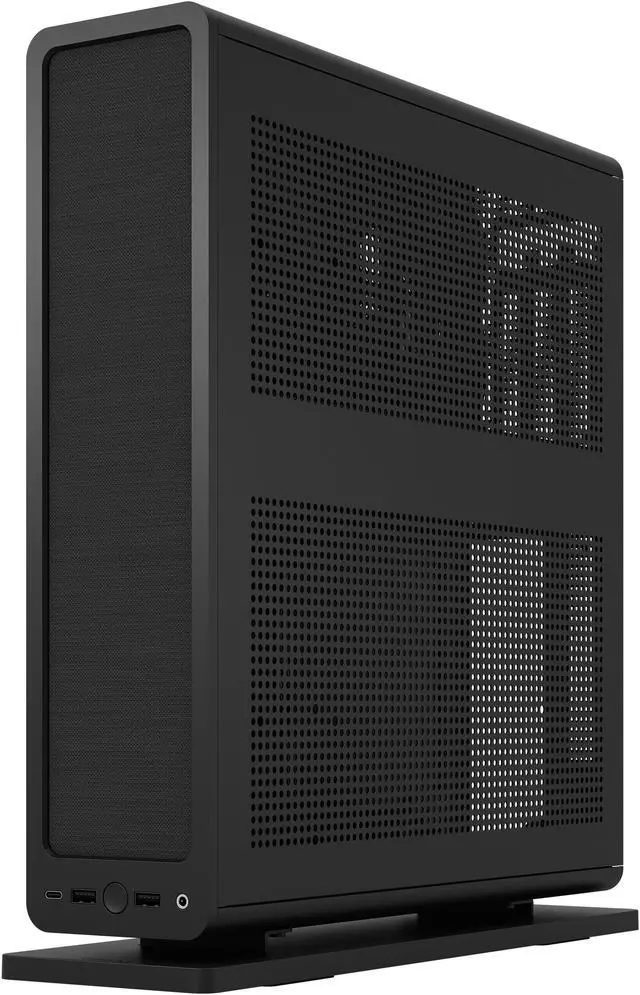

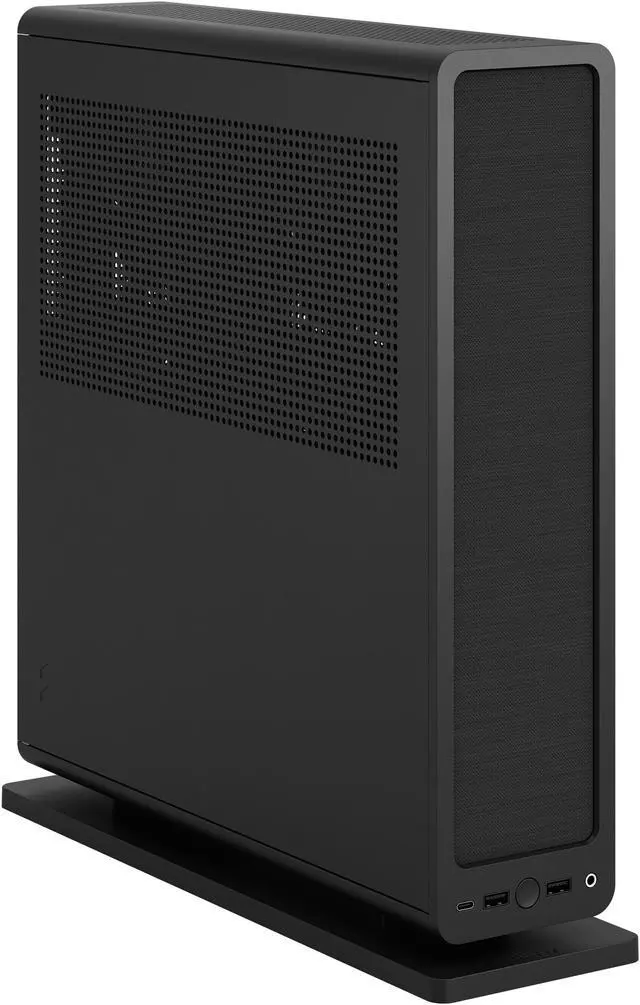

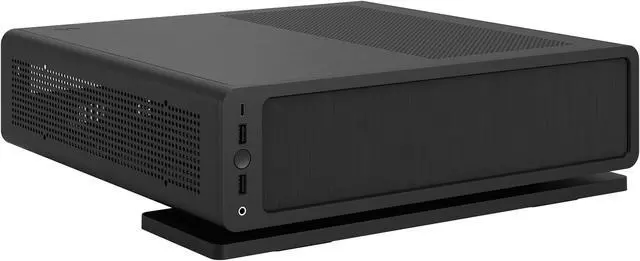

Horizontal and vertical orientation (multiple foot configurations)
Excellent GPU cooling

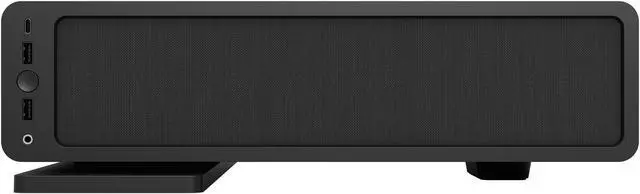

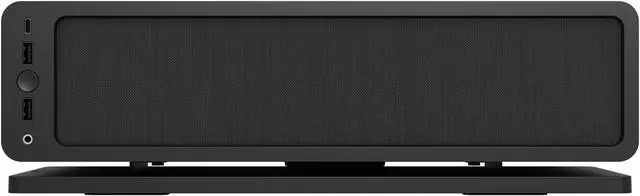

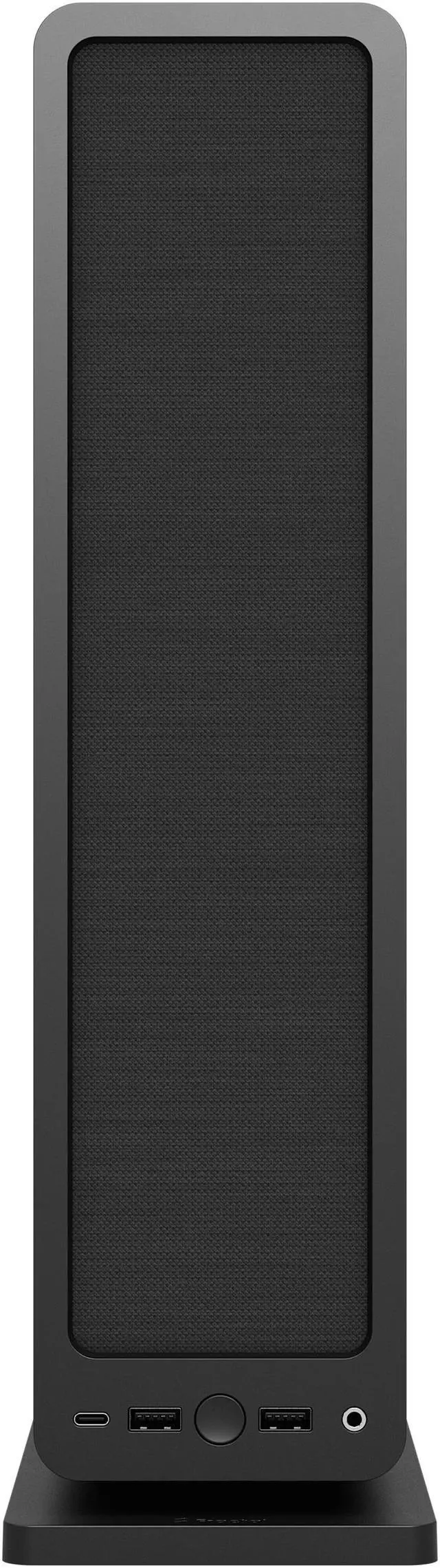

Front I/O with 2x USB 3.0, 1x USB-C and Combo jack
2x 140 mm side and 3x 80 mm top fan support

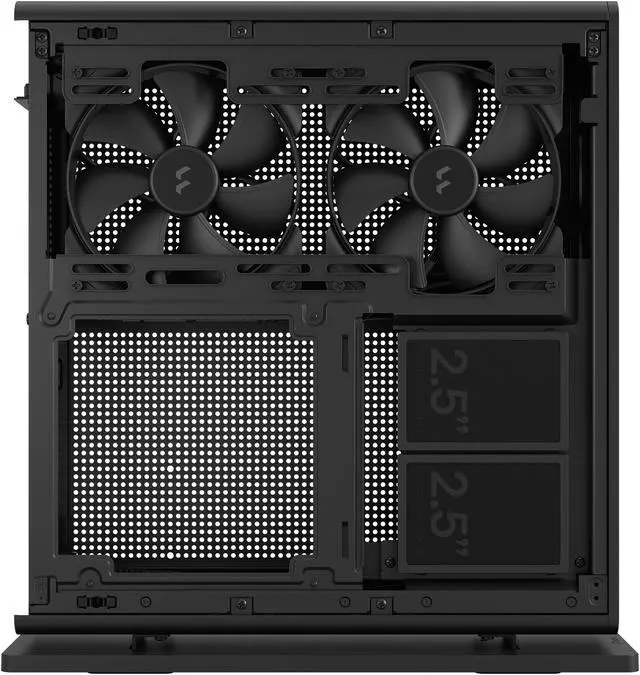

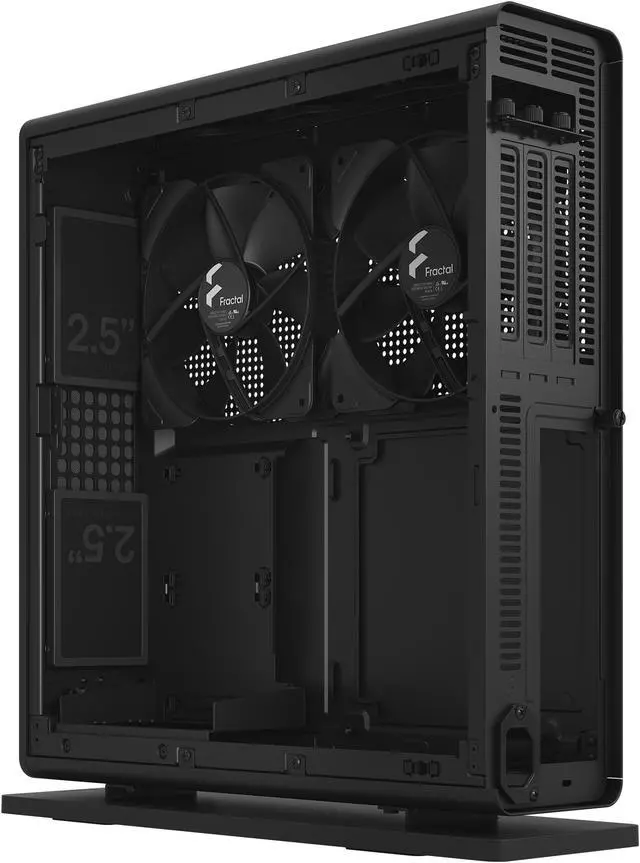

4x SSD support, 2x screw mount and 2x clip-in fast mounts
Discreet power LED bar in front

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (12)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Fractal Design
Series	Ridge
Model	FD-C-RID1N-01

Details
Type	Small Form Factor
Color	Black
Case Material	Steel
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini-ITX / Mini-DTX (with one 140 mm case fan removed)
Side Panel Window	No
With front LCD display	Front power LED bar

Expansion
Internal 2.5" Drive Bays	4 (included)
Expansion Slots	3

Front Panel Ports
Front Ports	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x CTIA Combined headphone/mic audio jack

Cooling System

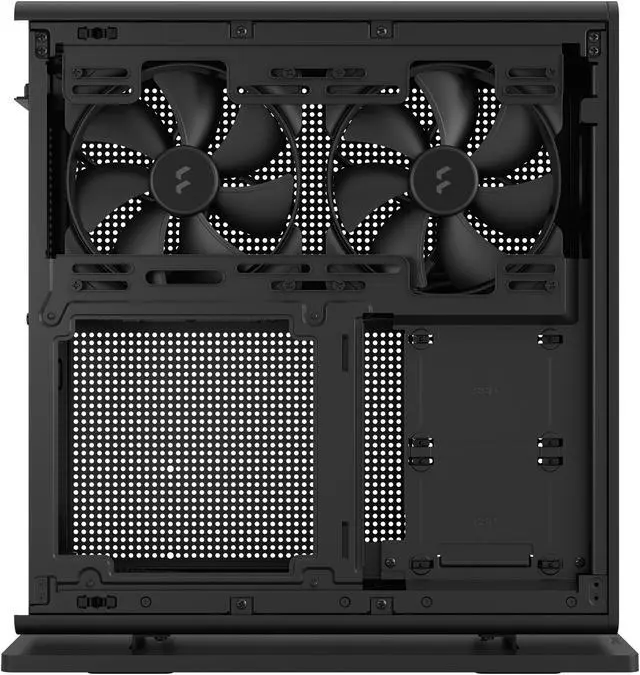

Fan Options	Total fan mounts: 2x 120/140 mm and 3x 80 mm Side: 2x 120/140 mm (2x Aspect 140 mm PWM included) Top: 3x 80 mm
Radiator Options	Side: 120 mm with GPU up to 175mm in length, 240/280 mm without GPU

Dimensions & Weight
Max GPU Length	335 mm total, 325 mm with SSD installed
Max CPU Cooler Height	70 mm
Max PSU Length	130 mm Cable Routing Space: 13.8 mm behind PSU
Dimensions (H x W x D)	395.4 x 110 x 374 mm in vertical orientation w/ stand 115 x 375 x 360 mm in horizontal orientation w/ stand 94.6 x 375 x 355 mm without feet/screws/protrusions
Weight	4.3 kg

Additional Info

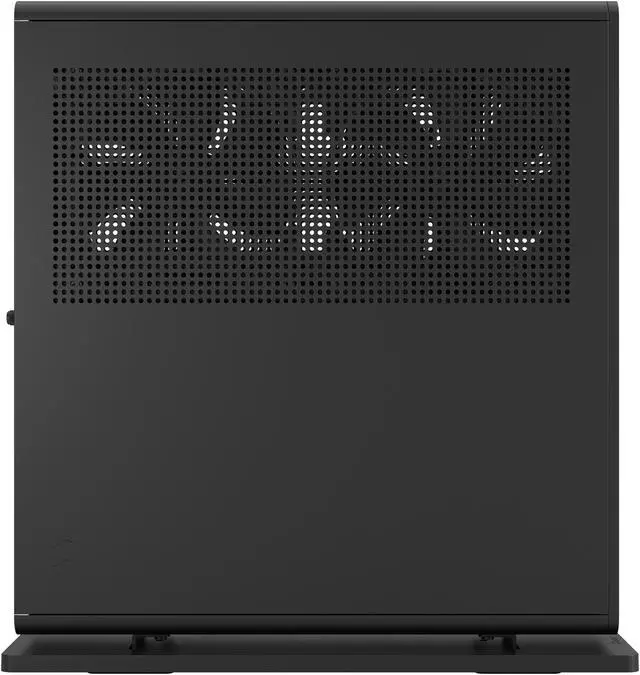

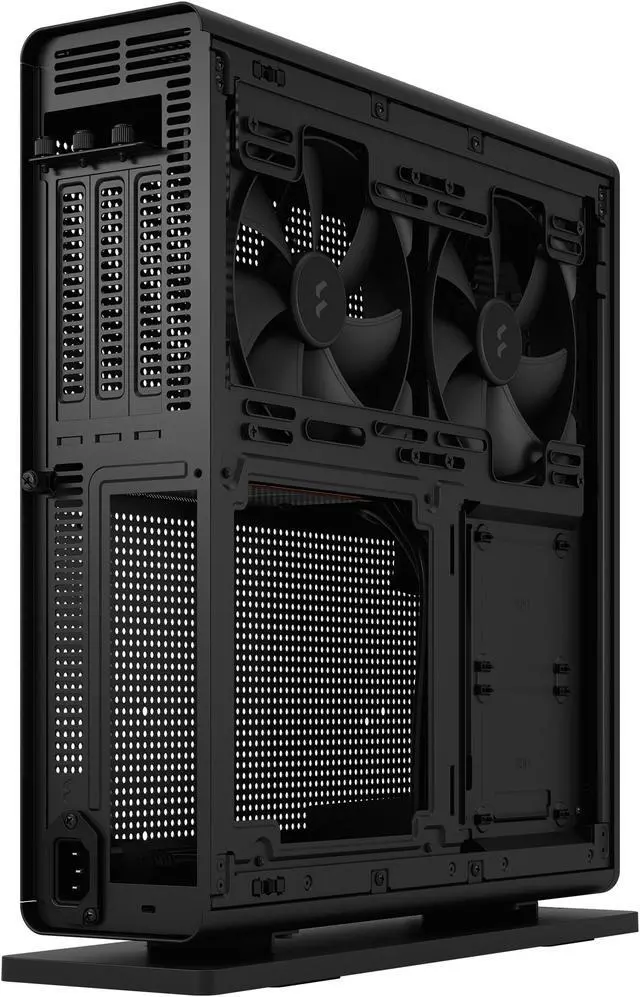

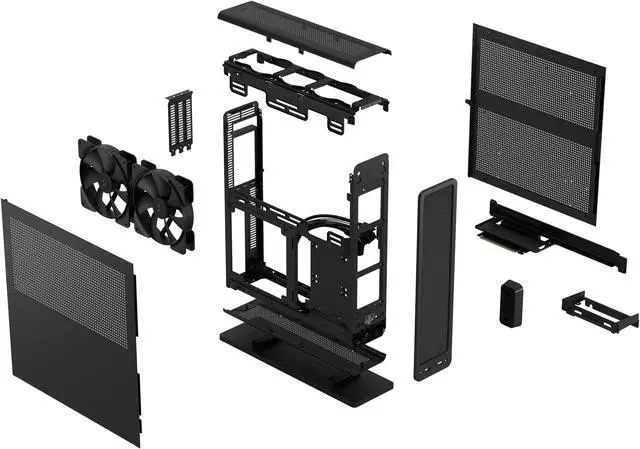

Features	• Compact SFF console-type case • All panels come off for maximum accessibility • 6 mm anodized and CNCd aluminum front • PCIe 3.0 riser card included • Horizontal and vertical orientations with multiple foot configurations • Ventilated side, top and bottom panels • 2x 140 mm PWM Aspect fans included • 2x 140 mm side fan and 3x 80 mm top fan support • Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack • 4x SSD support, 2x screw mount and 2x clip-in fast mounts • Excellent GPU Cooling • Supports GPUs up to a length of 335 mm • 57 mm thick GPU support with included 140 mm fans (82 mm without fans) • 70 mm CPU cooler support • Fits a 120 mm radiator (without full-length GPU) • SFX/SFX-L Support • Power LED bar in front • Built-in security lock slot • Radiator support without GPU: Up to 240/280 mm (max 328 mm length, 144 mm width) • Radiator support with GPU under 175 mm long: 120 mm
Package Content	Case Accessory box Manual

Additional Information
First Listed on Newegg	November 16, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
