KEHIPI Breakout Board for Raspberry Pi Pico 1 2 W H WH, Terminal Block Shield HAT with Pin Header, GPIO Status LED

Be the first to review this product...

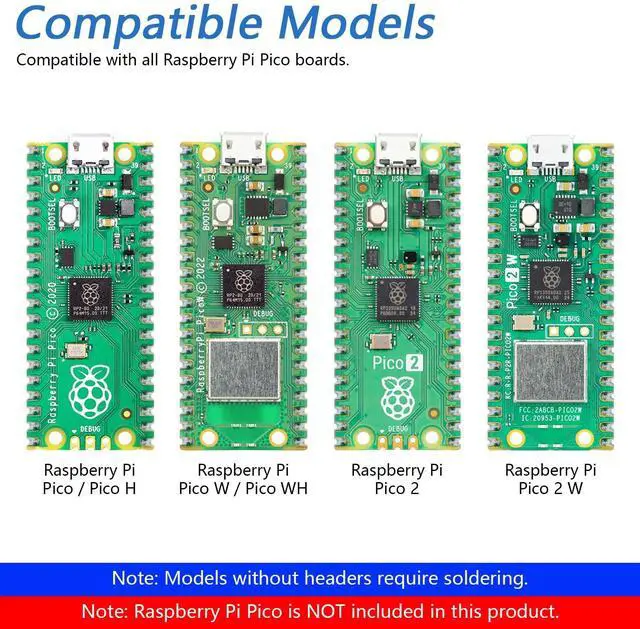

Compatible Models: Raspberry Pi Pico / Pico H / Pico W / Pico WH / Pico 2 / Pico 2 W (NOT included in this kit)
GPIO Status LED: LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level

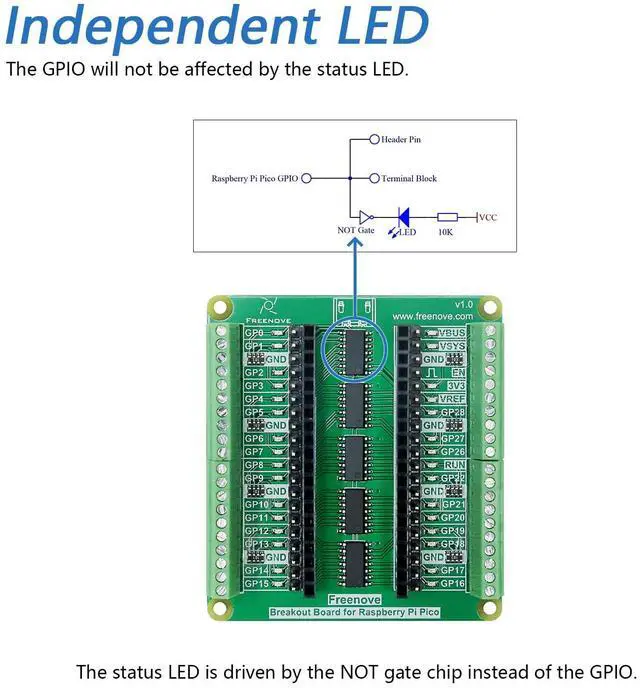

Independent LED: The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected

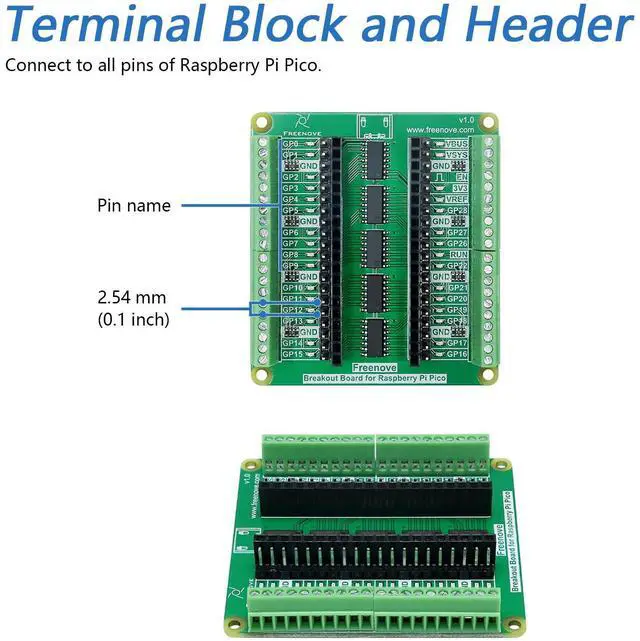

Terminal Block and Header: Connect to all pins of Raspberry Pi Pico, 2.54 mm (0.1 inch) pitch
Pin Name: The name of each Pin is printed next to it

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Freenove Products

Starter Kits, Robot Kits, Boards and Accessories for mainstream controllers

For Raspberry Pi
?
Starter Kits
Accessories
Accessories, Robots
Robots
For Raspberry Pi Pico
?
Starter Kits, Boards
Robots
Compatible with Arduino IDE
?
Starter Kits, Boards (V4/Rev3)
Starter Kits, Boards (V5/Rev4)
Robots
For ESP32
?
Starter Kits, Accessories
Boards, Robots
For ESP32-S3
?
Starter Kits, Boards
For BBC micro:bit
?
Starter Kits, Boards, Robots

Freenove Products

Starter Kits, Robot Kits, Boards and Accessories for mainstream controllers

For Raspberry Pi
?
Starter Kits
Accessories
Accessories, Robots
Robots
For Raspberry Pi Pico
?
Starter Kits, Boards
Robots
Compatible with Arduino IDE
?
Starter Kits, Boards (V4/Rev3)
Starter Kits, Boards (V5/Rev4)
Robots
For ESP32
?
Starter Kits, Accessories
Boards, Robots
For ESP32-S3
?
Starter Kits, Boards
For BBC micro:bit
?
Starter Kits, Boards, Robots

Important Notes:

This product does NOT include Raspberry Pi Pico board.

Overview:

This breakout board can help you wire and know the status of the GPIO.

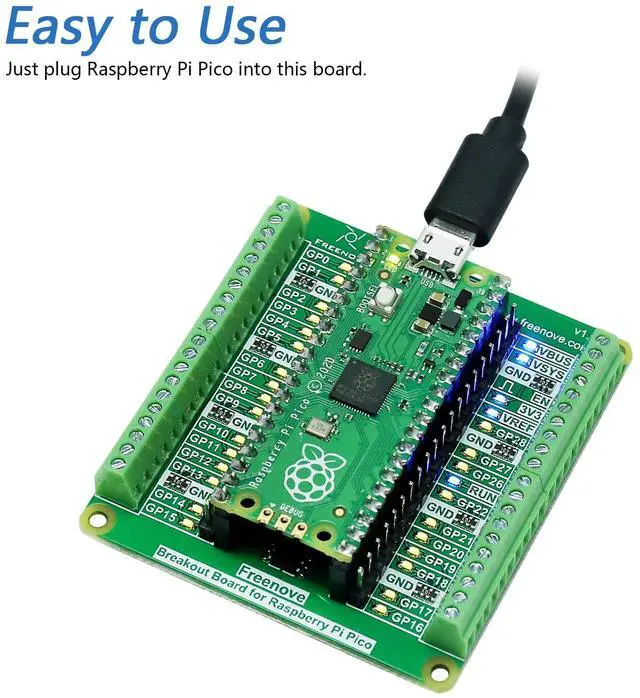

Just plug your Raspberry Pi Pico into this board to complete the installation.

We provide free technical support to help you with any questions and problems.

Compatible Models:

* Raspberry Pi Pico / Pico H / Pico W / Pico WH / Pico 2 / Pico 2 W

Tutorial:

Comes with tutorial to show how to use. (Download needed, no paper tutorial.)

The download link can be found on the product box.

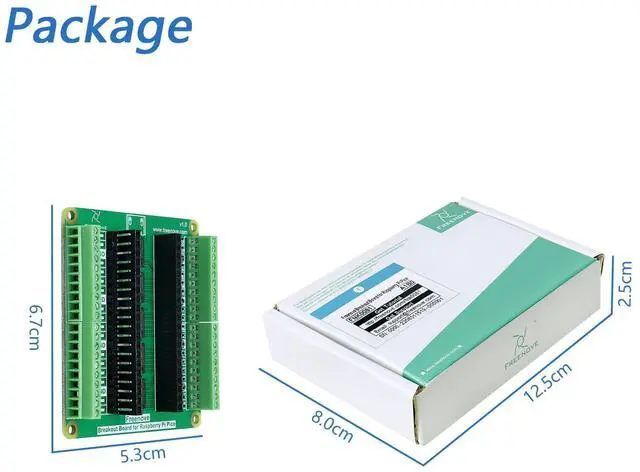

Package Includes:

1 x Breakout board

1 x Pinout card

1 x Slotted screwdriver
