I have a AP-MPS3ATX35, what is the replacement for this or do you have one to sell?

On a quick search the dimension of that model is 5.86" x 3.3" x 4" so this model (ATX300-PA) is not a compatible replacement. This power supply has the atx sized facing on the fan and plug end but the depth on the inside is shorter than a regular atx power supply so its an odd ball to find a replacement but a quick filter on newegg site with micro-atx power supplies shows BESTEC ATX-1956 and Enhance ATX-1125BTA-R300 as a viable replacements. A quick google search also gave me result to same model to buy if you don't want something different. Good luck

does fsp atx-300pa replace fsp atx-250pa(1)?

The only diffrence is the wattage output. The atx300 is 300w and the atx250 is 250w. I prefer to use at least a 300w power supply with basic machines.

Does anyone have the dimensions on this unit? I must be getting old, I didn't see them in the description or specs.

Product Type ATX12V & EPS12V Power Supply Dimensions 5.90" Height x 5.50" Width x 3.40" Depth all power supplies are standard sized just like motherboards are i did check to see if the specs are correct i own one of these

What are the dimension of this?

As listed in the specifications tab, '5.75”(W) x 3.25”(H) x 5.5”(D)'.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

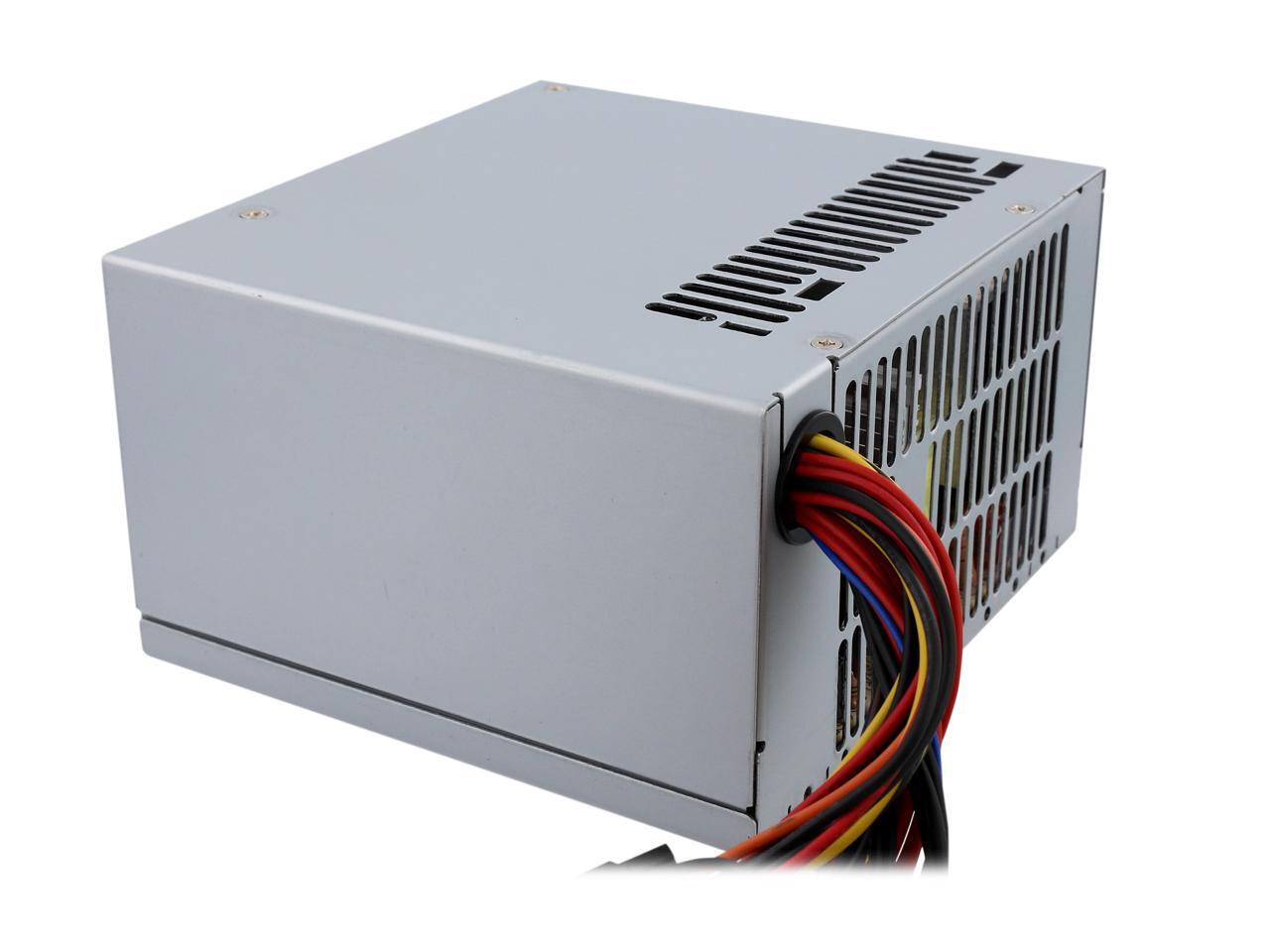

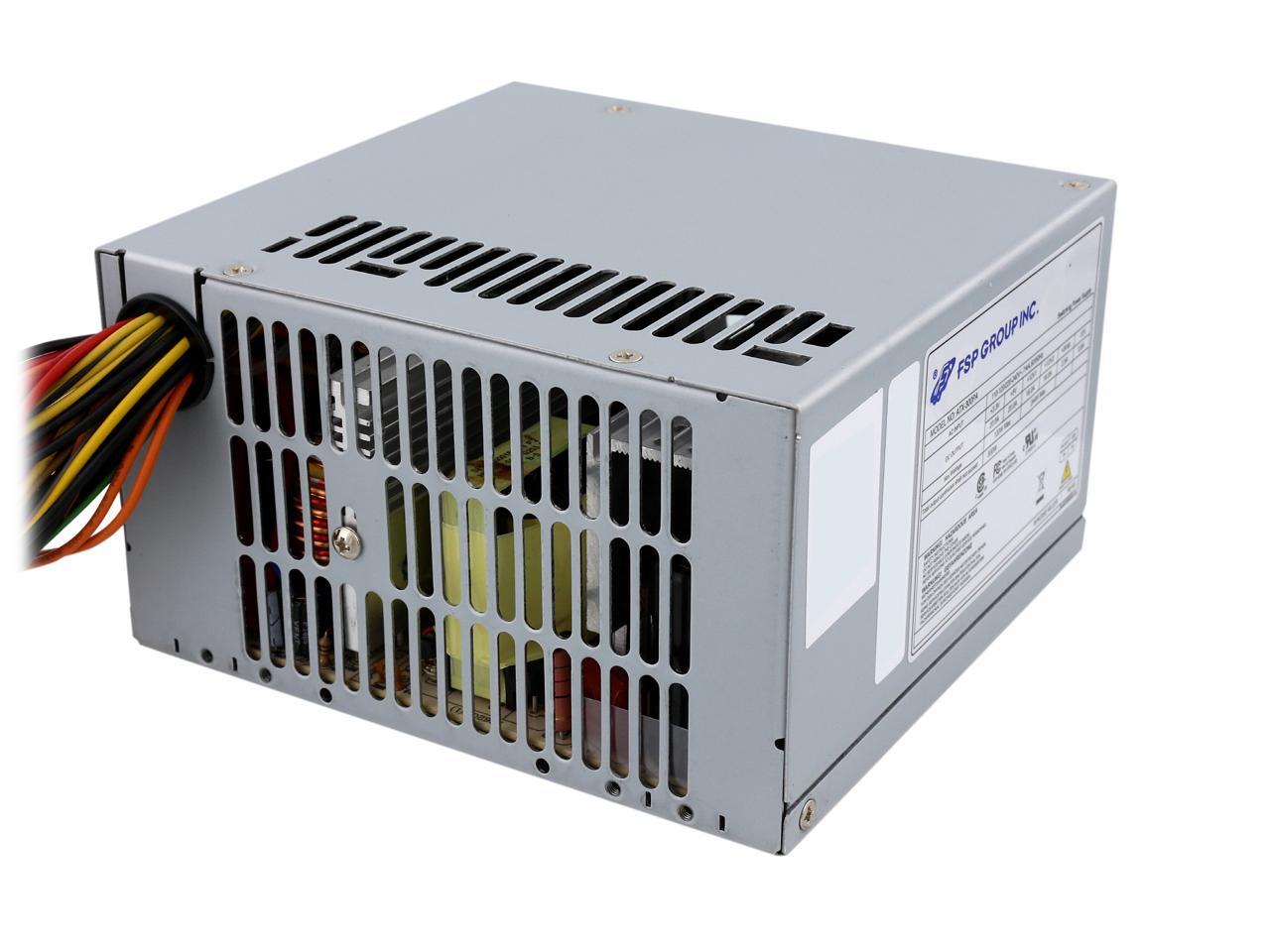

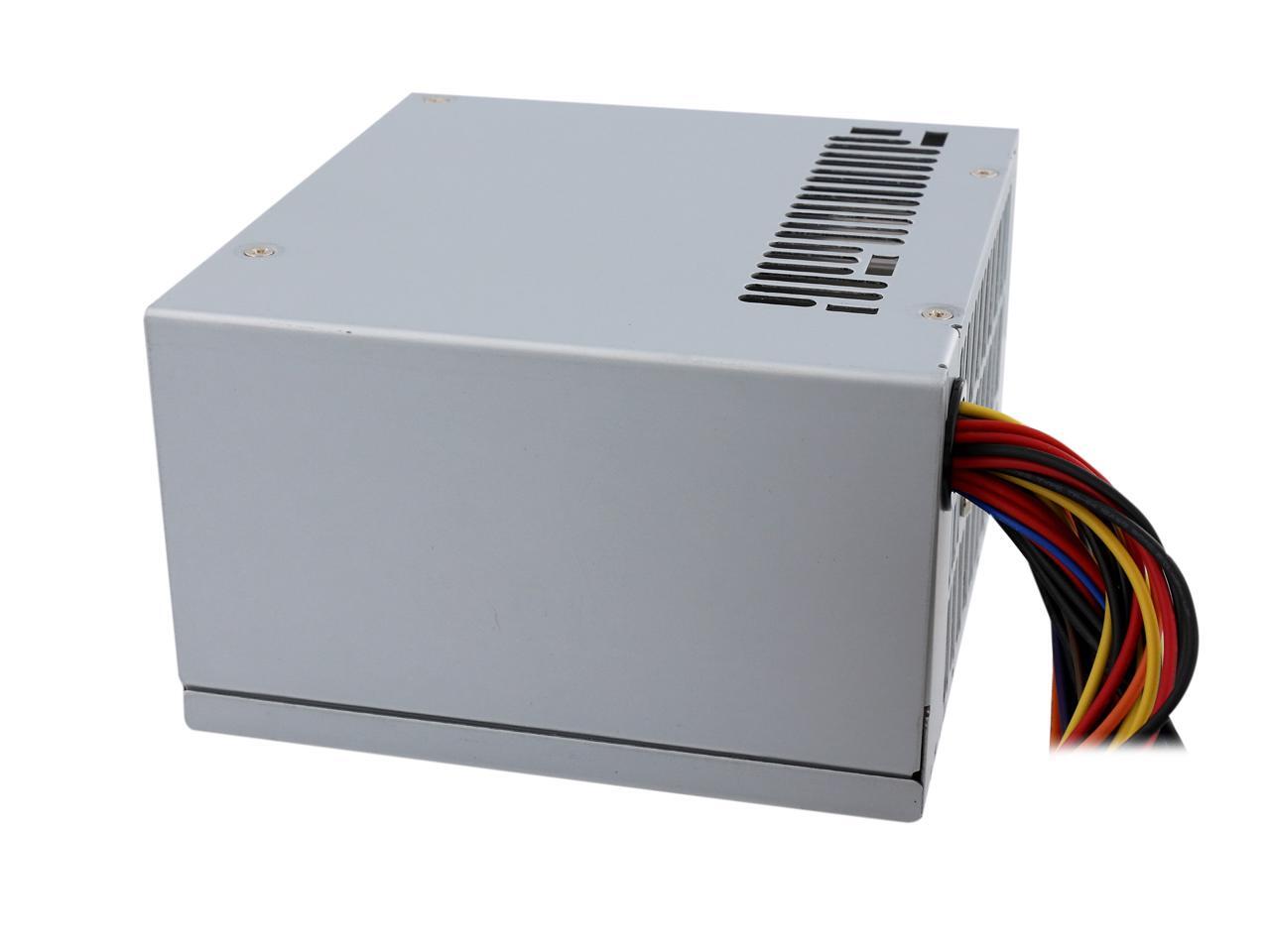

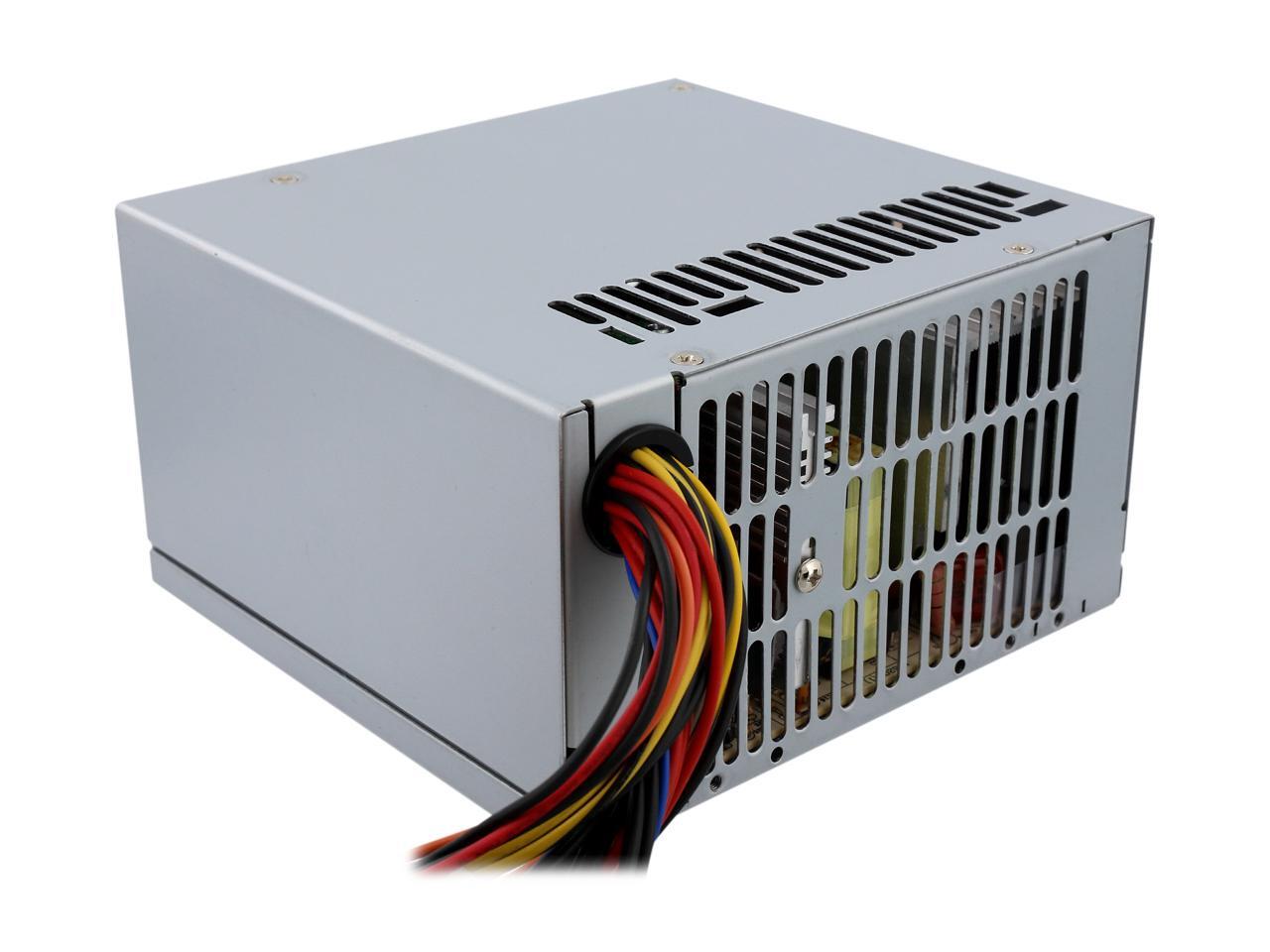

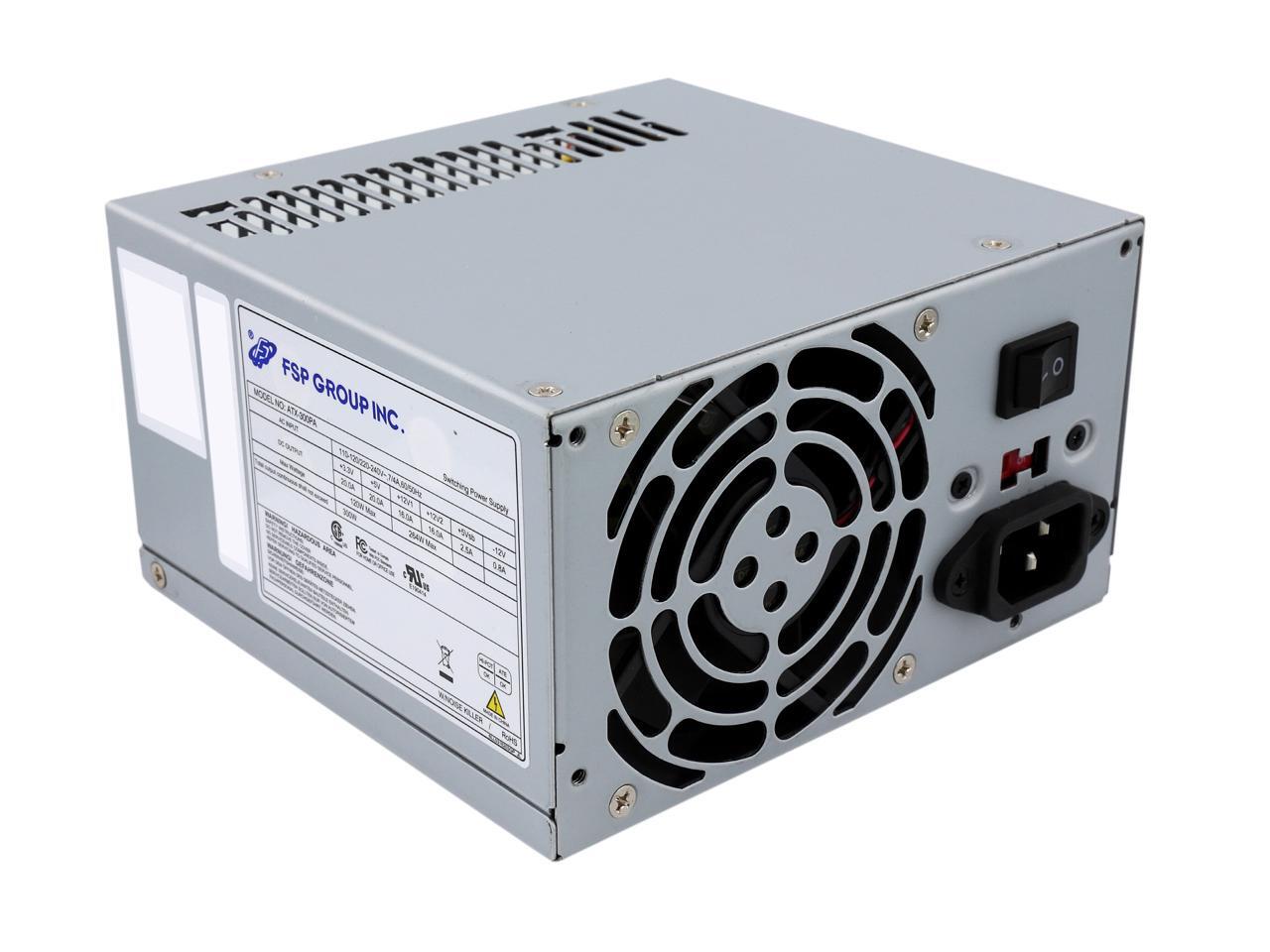

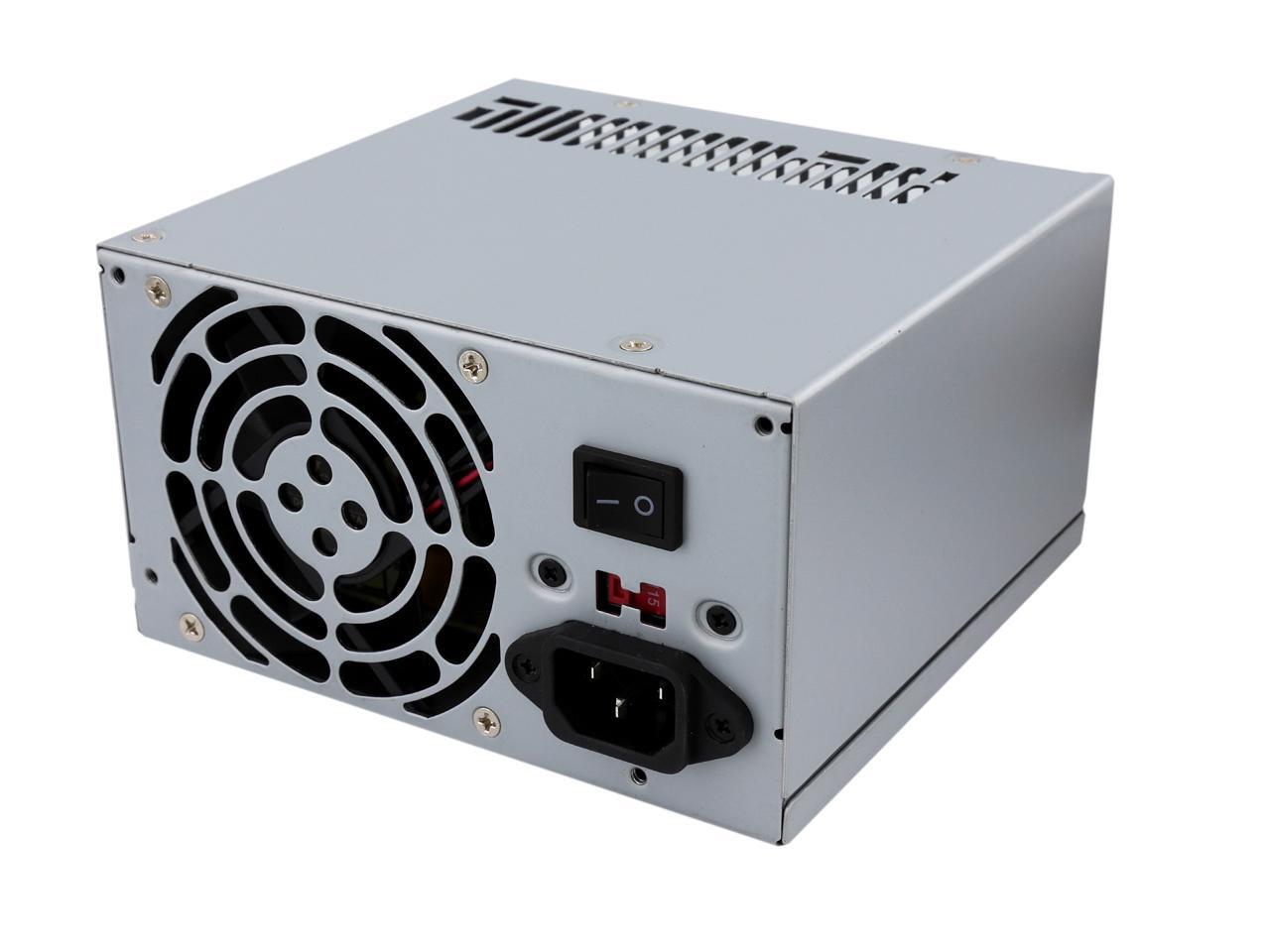

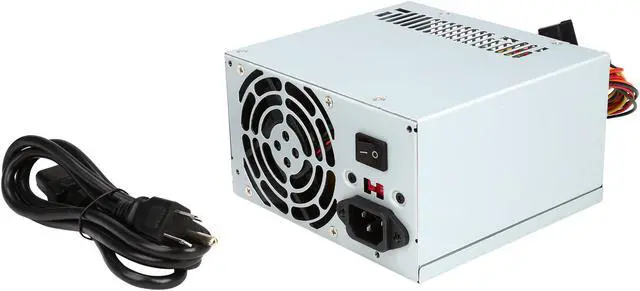

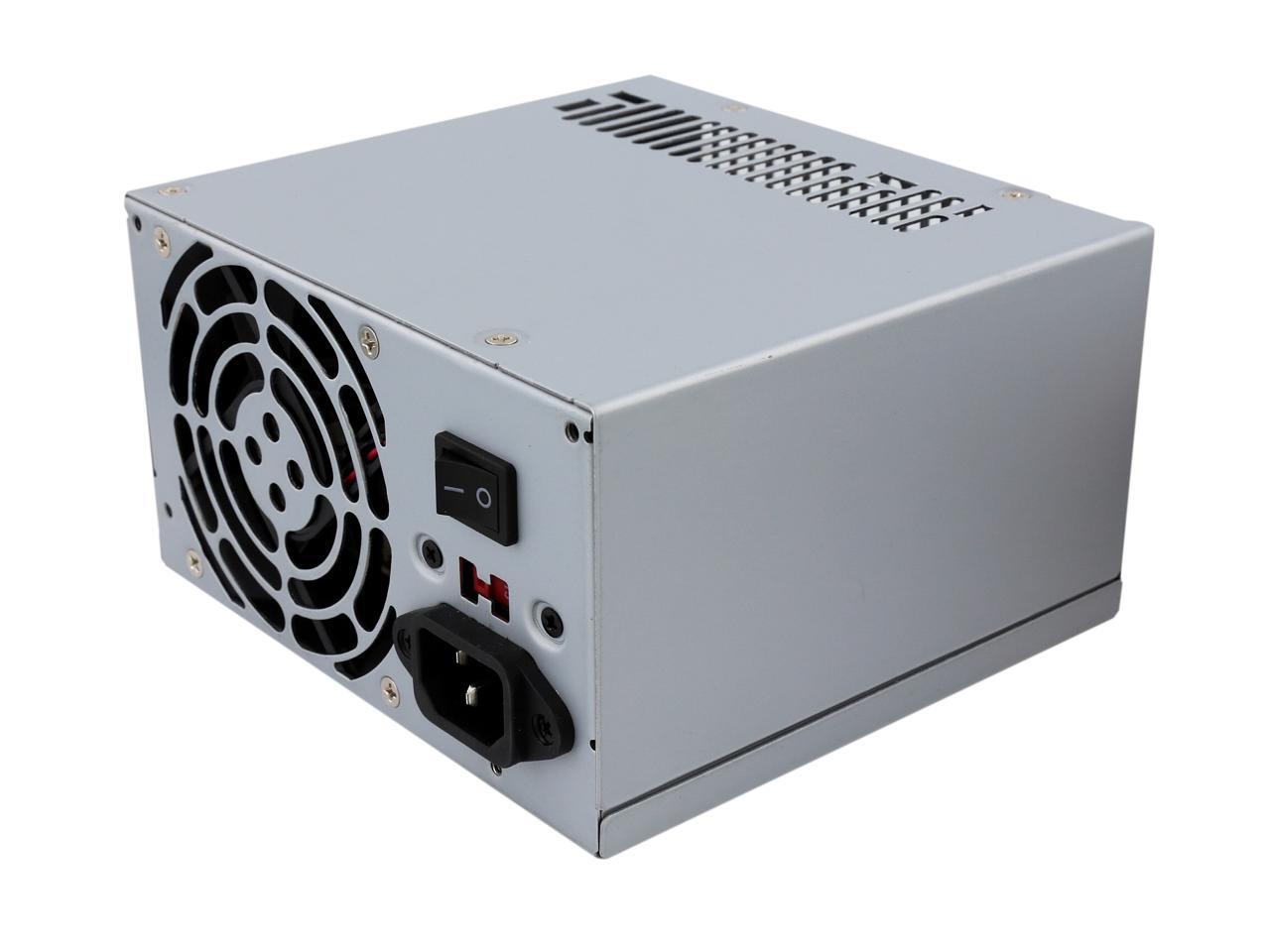

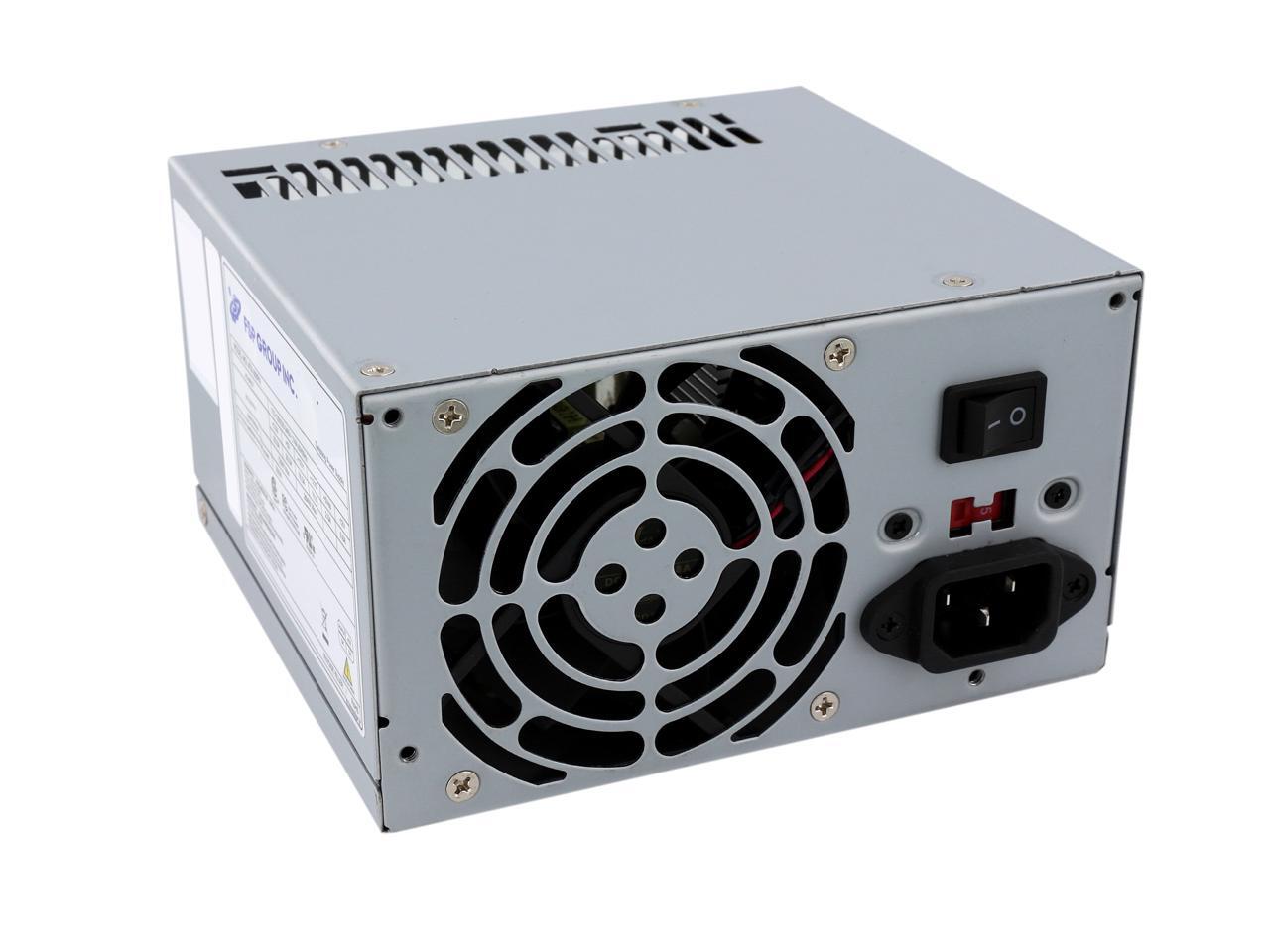

Main image of FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

100%

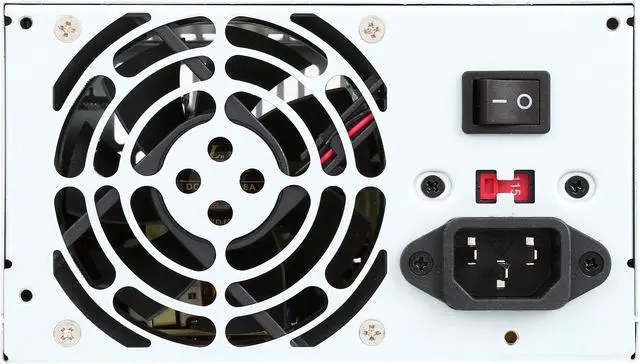

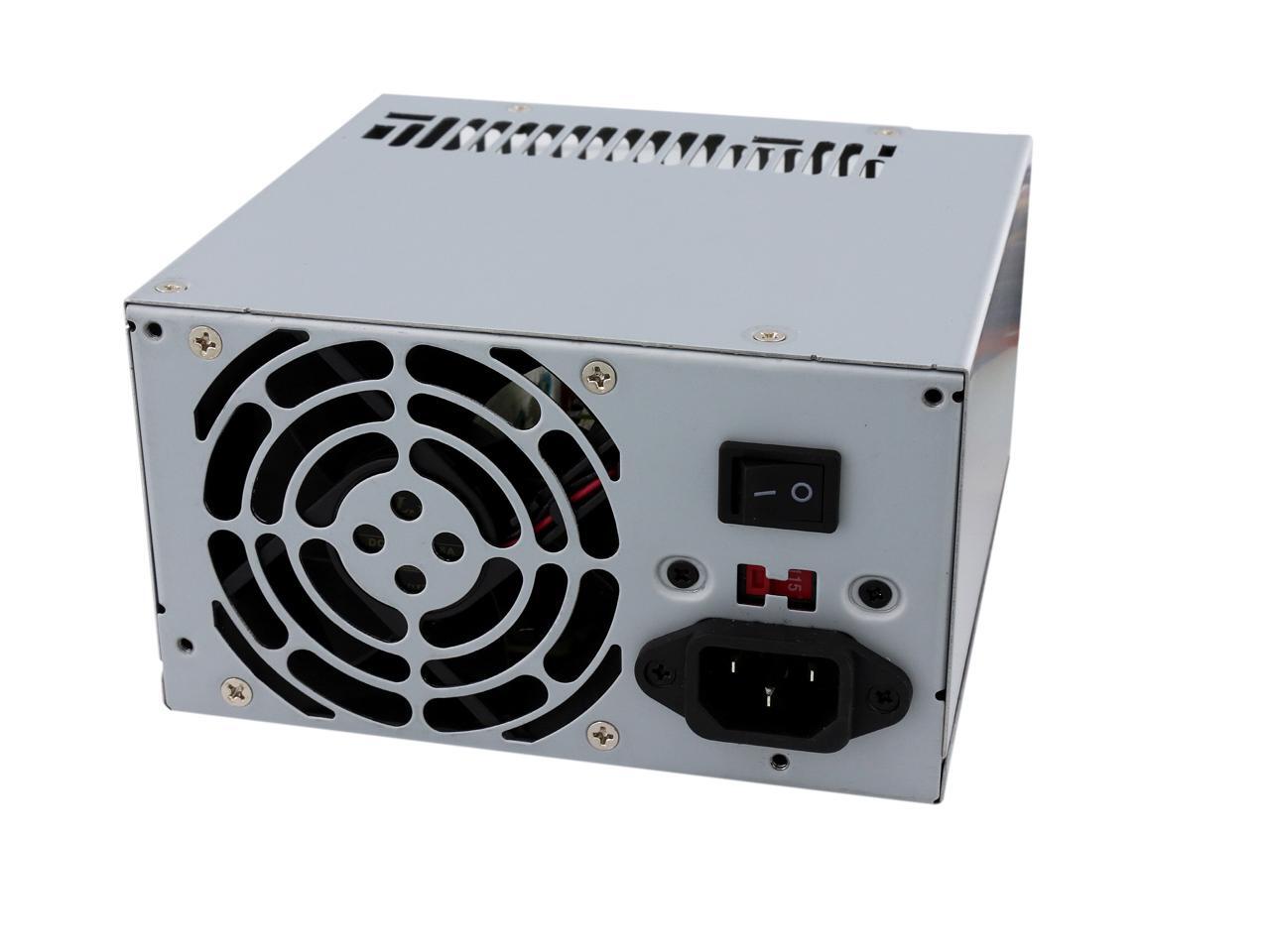

Alt view image 2 of 6 - FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

Alt view image 3 of 6 - FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

Alt view image 4 of 6 - FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

Alt view image 5 of 6 - FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

Alt view image 6 of 6 - FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

360^°

Shop All FSP Products

FSP Group ATX300-PA 300W ATX 12V (v2.2) Power Supply - OEM

(29) Write a Review

ATX 12V (v2.2)
110 - 127/220 - 240V

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (29)

There is a good selection of connectors to keep your drives and accessories powered. The 4 Molex and 1 FDD connector are supplemented by an SATA connector. Keep your system running at peak efficiency with a new power supply from FSP.

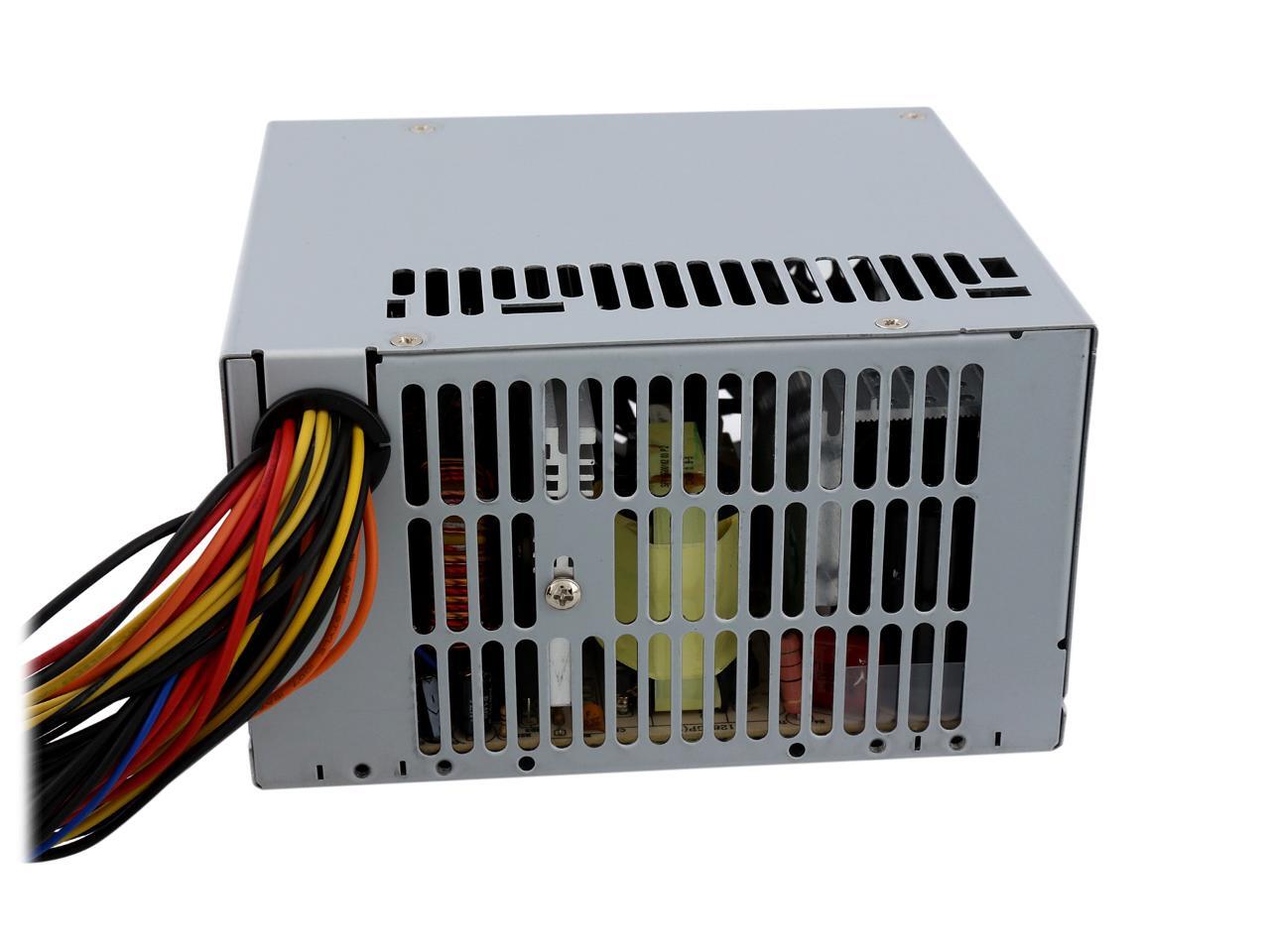

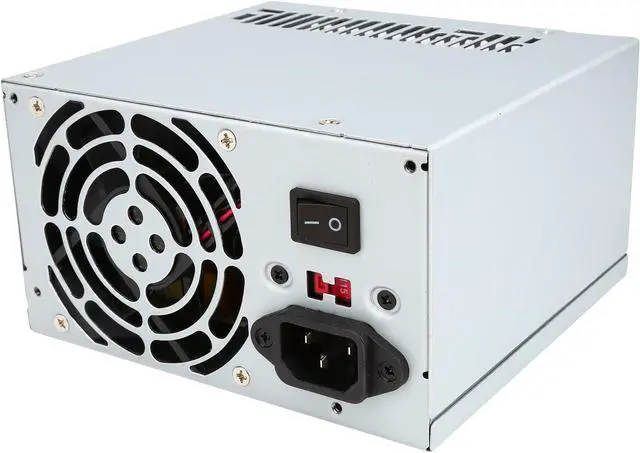

Is it time to upgrade or replace your PSU? The ATX300-PA from FSP will nicely do the job. The 300W output provides ample power for most applications. It has two +12V rails for stable output during heavy loads. An 80mm fan pulls air directly across the internal components to eliminate overheating worries.

There is a good selection of connectors to keep your drives and accessories powered. The 4 Molex and 1 FDD connector are supplemented by an SATA connector. Keep your system running at peak efficiency with a new power supply from FSP.

ATX12V v2.0 CompatibleCompatible with the ATX12V v2.0 standard, the FSP Group ATX300-PA power supply provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop computer systems.
300W Maximum PowerA maximum power of 300W delivers safe, reliable output for basic computer systems.

General
Brand	FSP Group
Model	ATX300-PA

Details
Type	ATX 12V (v2.2)
Maximum Power	300 W
Fans	1
PFC	No
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	No
SATA Power Connector	1
SLI	No
Haswell Support	No
Modular	No
Power Good Signal	100-500ms
Hold-up Time	12.0mS minimum at 115V/60Hz or 230V/50Hz (Full Load)
Efficiency	> 70%
Over Voltage Protection	+3.3V (4.6V max.), +5V (6.5V max.), 12V1 (15.5V max.), 12V2 (15.5V max.)
Overload Protection	Yes
Input Voltage	110 - 127/220 - 240V
Input Frequency Range	50/60 Hz
Input Current	7A @ 115V, 4A @ 230V

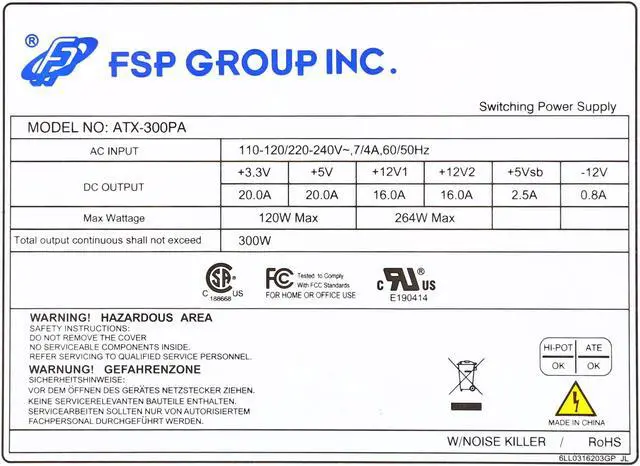

Output	+3.3V@20A, +5V@20A, +12V1@16A, +12V2@16A, -12V@0.8A, +5VSB@2A
MTBF	100K hours at 25°C
Approvals	UL, CSA, TUV, NEMKO, CB & FCC

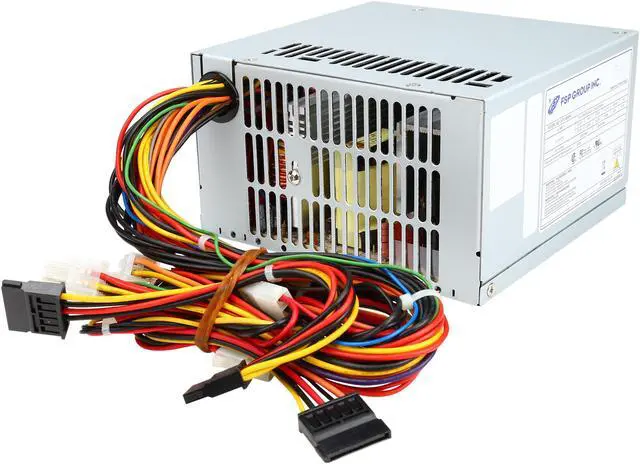

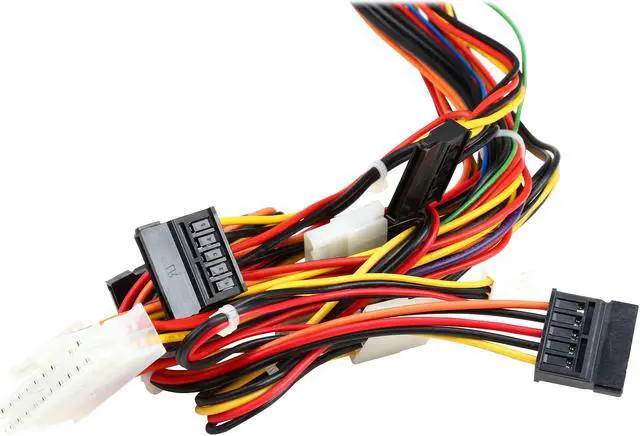

Connectors	1 x Main connector (20+4 pin) 1 x 4 pin CPU connector 4 x SATA 2 x Molex 1 x Floppy

Features
Features	Remote ON/OFF Control: The power supply shall accept a logic open collector level which will disable / enable all output voltage (excluding +5V standby). Over-current protection: +3.3V (66.0A max.), +5V (50.0A max.), 12V1 (27.0A max.), 12V2 (27.0A max.) Temperature range: operating 0°C~50°C, storage -20°C~65°C Humidity: 90~95% RH Dielectric strength: primary to Frame Ground 1800 VAC for 1 second, primary to secondary 1800 VAC for 1 second

Additional Information
First Listed on Newegg	July 11, 2005
