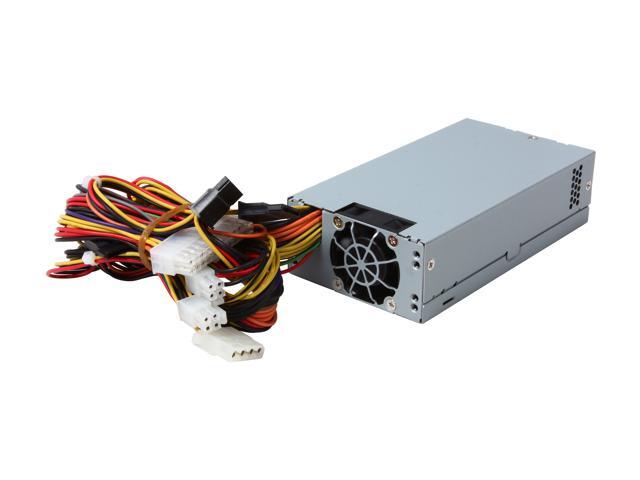

FSP Group FSP270-60LE 270 W Mini ITX/ Flex ATX 80 PLUS Certified Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the FSP FSP270-60LE

General
Brand	FSP Group
Model	FSP270-60LE

Details
Type	Mini ITX/ Flex ATX
Maximum Power	270 W
Fans	1 x 40mm ball-bearing fan linked with Thermal Sensor
PFC	Active
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	No
SATA Power Connector	2
SLI	No
CrossFire	No
Modular	No
Efficiency	83%
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	5.0A @ 115 Vrms, 60 Hz; 3.0A @ 230 Vrms, 50 Hz
Output	+3.3V@16A, +5V@18A, +12V1@16A, +12V2@10A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL, CSA, VDE, NEMKO, TUV, CE, CB, FCC
Connectors	1 x Main connector (20+4Pin) 1 x 4 Pin EPS 12V 3 x Peripheral 2 x SATA 1 x Floppy

Features
Features	Vacuum-impregnated Transformer Ultra.high Efficiency Advanced Thermal Control Sensor Replace \| Upgrade To Most Server PSU Resetable Power Shut Down Low Ripple \| Low Operating Noise Ocp: Over Current Output Protection Scp: Short Circuit Output Protection

Dimension & Weight
Dimensions	5.9" x 3.15" x 1.57"
Weight	3.0 lbs.

Additional Information
First Listed on Newegg	November 16, 2009
