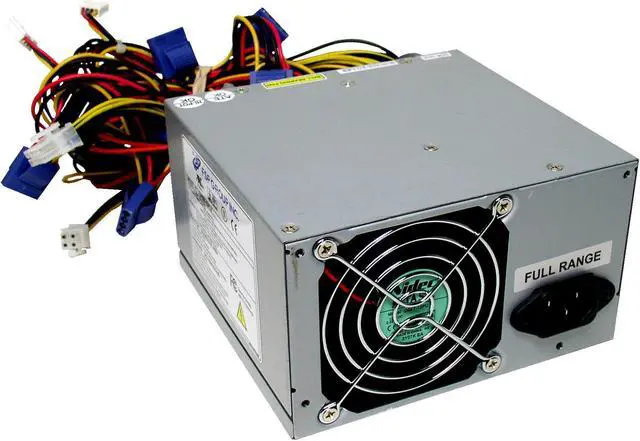

FSP Group FSP550-60PLN 550 W EPS12V Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (12)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the FSP FSP550-60PLN

General
Brand	FSP Group
Model	FSP550-60PLN

Details
Type	EPS12V
Maximum Power	550 W
Fans	Internal 8cm Fan
PFC	Active

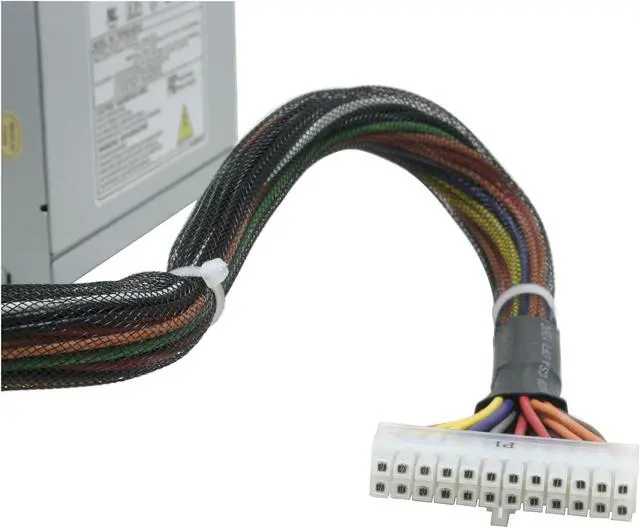

Main Connector	24Pin
+12V Rails	Yes
SLI	No
Modular	No
Power Good Signal	100-500ms
Hold-up Time	18ms min.
Efficiency	> 63%
Over Voltage Protection	+5V output : 5.6V-6.5V +3.3V output: 3.8V-4.5V +12V output: 13.0-14.5V
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10A

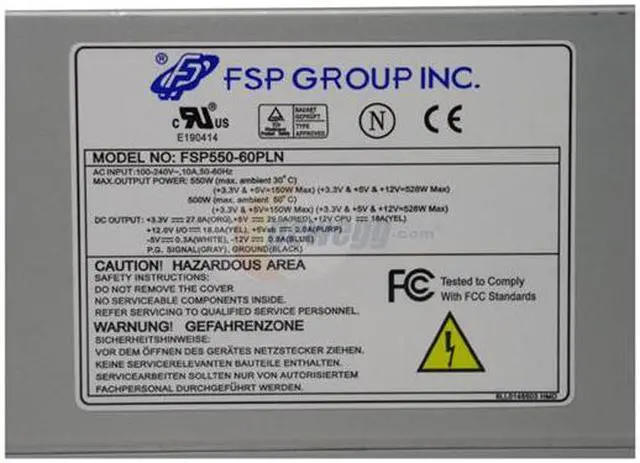

Output	+3.3V@27A, +5V@29A, [email protected], +12V1@18A, +12V2@18A, [email protected], +5VSB@2A
MTBF	MTBF: 100K hours at 25°C
Approvals	UL, CAS, TUV, NEMKO, CB & CE

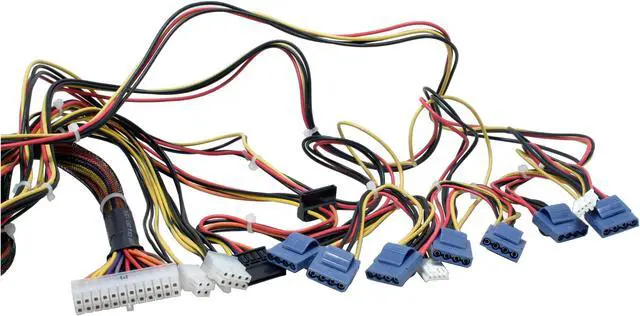

Connectors	1 x Main connector (24 pin) 1 x 12V (P4) (4 pin ) 1 x 12V (server) (8 pin ) 7 x peripheral 2 x SATA 2 x Floppy

Features
Features	High efficiency switching power supply Low ripple &Noise Short circuit protection on all output Reset table power shut down 100% burn-in under high ambient temperature (50ºC) vacuum-impregnated transformer 100% Hi-pot tested Line input fuse protection Complies with EN61000-3-2 AC input full range Over-current protection meet 240VA

Additional Information
First Listed on Newegg	May 06, 2003
