FSP Hydro G series stands for the needs of PC DIY enthusiasts and gamers who want a high end PSU with stylish ID design but do not want to compromise electronic performance at all. By server grade circuit and advanced thermal layout design, Hydro G series deliver full load (wattage) at 50°C ambient temperature. Silent operation is considered by intelligent fan speed control circuit design with 0dBA function to fulfill gamers need in playing games.

Unique product ID with changeable side stickers for DIY enthusiasts and gamers
Intelligent fan speed control circuit design with 0dBA function
Server grade circuit and advanced thermal layout design
Complies with newest ATX12V & EPS12V standards
High efficiency ≥ 90%
Active PFC ≥ 99%
High wattages with 80PLUS® gold certification
Powerful single +12V rail design
Advanced full modular design with ribbon cables
Main japan made capacitor
SLI and Crossfire ready
Quiet and long-lasting 135mm FDB fan
Full protections: OCP, OVP, SCP, OPP, UVP, OTP
Global safety approved

Full Modular
Easy Installation, neat build

Ribbon Cable
Easy Installation, neat build

Quiet and Durable Cooling
FDB(Fluid Dynamic Bearing) fan with low noise and long-lasting life span

Zero Noise
Intelligent fan speed control circuit design with 0dBA function

Server grade design
Copper bars joint mainboard and daughter board to increase conversion efficiency.

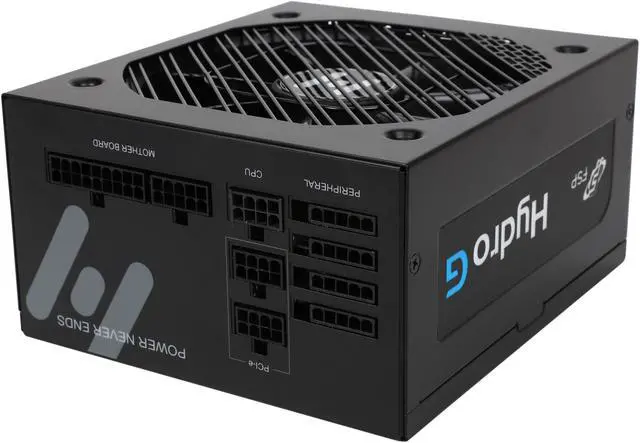

User friendly connector allocation
To connect MB with 24 pin & PCI-e pin easily, no cable mess in case.

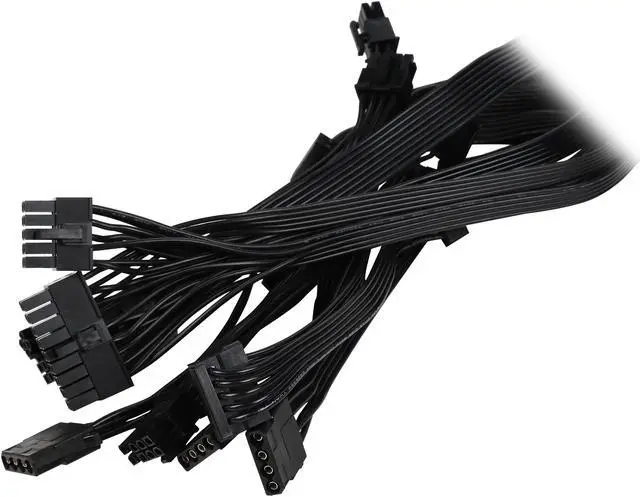

Full modular design with ribbon cable
Neat build and easy installation, enhance cooling performance.

3.3V & 5V DC – DC module design
Not only maximize total 12V rating but also minimize the voltage regulation for all rails.

Intelligent fan speed control circuit design with 0dBA function

Special heat sink design for 12V switching circuit
A new heat dissipation design that conducts heat through a thermal pad on the bottom of the power supply, transforming the whole PSU chassis into a heat-sink and cooled by system airflow.

5V standby circuit on separate board
In order to stabilize 3.5A output of 5V standby, Hydro G adopts vertical PCB design to optimize airflow effectively.

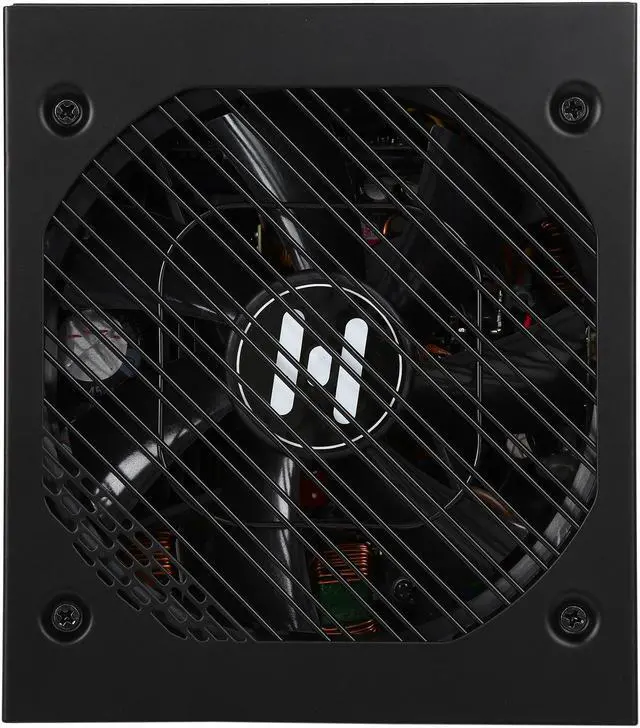

135mm FDB fan
Quiet and durable cooling.

Double EMI filter
Provides superior pure AC mains.

Unique dissymmetry ID and vent- hole design
To minimize fan speed and acoustic from turbulence.

Rating

Model No.	HG850
AC Input	100-240Vac~ 11-5.5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	25A	25A	70.83A	0.5A	3.5A
Max. Combined Power	150W		850W	6W	17.5W
Total Power	850W

Model No.	HG750
AC Input	100-240Vac~ 10-5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	25A	25A	62.5A	0.5A	3.5A
Max. Combined Power	150W		750W	6W	17.5W
Total Power	750W

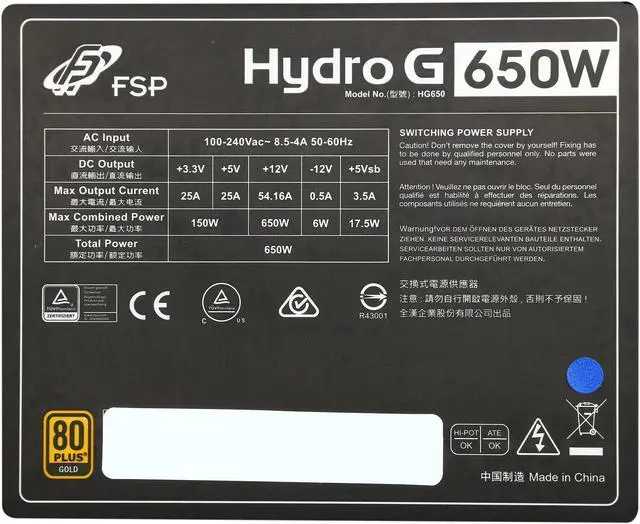

Model No.	HG650
AC Input	100-240Vac~ 8.5-4A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	25A	25A	54.16A	0.5A	3.5A
Max. Combined Power	150W		650W	6W	17.5W
Total Power	650W

Cables

Specifications



	650W	750W	850W
Model	HG650	HG750	HG850
Type	ATX	ATX	ATX
PFC	Active PFC	Active PFC	Active PFC
Input Voltage	100V-240V	100V-240V	110V-240V
Input Current	8.5A	10A	11A
Input Frequency	50-60Hz	50-60Hz	50-60Hz
Output Capacity	650W	750W	850W
Max. Output Power	650W	750W	850W
Fan Type	FDB Fan, 135mm	FDB Fan, 135mm	FDB Fan, 135mm
Efficiency	90%	90%	90%
MTBF	100,000 Hrs	100,000 Hrs	100,000 Hrs
Protection	OCP, OVP, OPP, SCP, UVP, OTP	OCP, OVP, OPP, SCP, UVP, OTP	OCP, OVP, OPP, SCP, UVP, OTP
Weight	1.8kg	1.8kg	1.8kg
Dimension(L×W×H)	150 × 170 × 86 mm	150 × 170 × 86 mm	150 × 170 × 86 mm

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
