FSP Group AURUM PT Series 1200W (PT1200FM) ATX12V/EPS12V 80 PLUS PLATINUM Certified Full Modular Power Supply New 4th Gen CPU Certified Haswell Ready
- ATX12V V2.4 & EPS12V V2.92
- Full Modular
- 80 PLUS PLATINUM Certified
- 100 - 240 V 50/60 Hz
- +3.3V@25A, +5V@25A, +12V@100A, [email protected], +5VSB@3A
Overview
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
FSP Platinum PT FM Series 1200W 80 PLUS Platinum Certified Power Supply
Overview
The AURUM PT Series, a high end modular PSU, is designed specifically for gaming enthusiasts and demanding overclockers. At 80 Plus® Platinum certification, the AURUM PT Series delivers a premium product and is the ideal choice for those seeking high-performance, reliability and quality.
High Performance and Reliability
The AURUM PT Series delivers high-performance at a great cost-to-power ratio. To do this safely, the AURUM PT features full industrial-grade Japanese capacitors and solid capacitors on the secondary side. This ensures the +12V Single-Rail Design delivers consistent ripple free power. In addition, E-Sync Remote-Sensing provides Synchronized 3.3V/5V/12V with a superbly stable signal. E-Sync Remote-Sensing is an FSP exclusive technology that provides superior noise and ripple suppression.
Video
Features

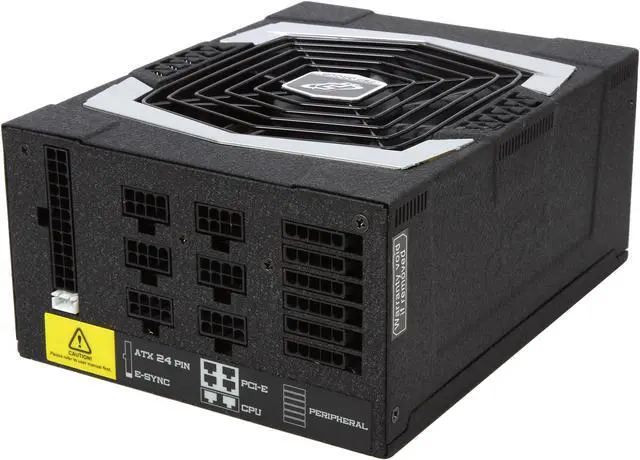

Full Modular Design
The modular cable design simplifies installation and allows flexibility and simplicity, in choosing only those cables needed.
Unique Airflow Technology
Arrow-shaped ventilation to provide remarkable air ventilation and superior cooling performance.
E-Sync Remote Sensing
Synchronize 3.3V/5V/12V with stable signal, allows AURUM PT to provide better ripple/noise performance.
Maximum Cables
13 SATA and 8 PCI-E cables provide the most flexible support for your hardware setup.
Fully Compatible with 4th Generation Intel Core Series Processors
FSP's power supply provide 100% Compatible with Haswell CPUs.
+12V Single Rail Design
- Designed for power-intensive VGA cards
- Provides strong power to any overloading condition
SATA Array Cable, Easy Installation
50mm intervals for 4 SATA device installation
- Optimized the airflow in case
- No-hassle with case side panel
Full Safety Approved
OVP/UVP/OCP/SCP/OTP/OPP
protect you and your system
105°C Japanese-made Capacitor and Solid Capacitor
makes prolonged life span possible
Active PFC
Power factor≥ 99%
Quiet and Durable Cooling
power by low noise and long-lasting FDB fan
2013 ErP/Eup Ready
The total AC power consumption of the completed system is less than 0.5W in standby mode

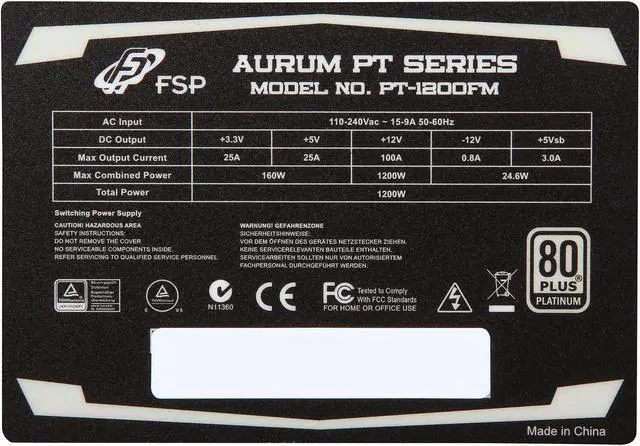

Current Info
| Model No. | PT-1200FM | ||||
|---|---|---|---|---|---|
| AC Input | 100 ~ 240VAC | 15-9A | 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max. Output Current | 25A | 25A | 100A | 0.8A | 3.0A |
| Max. Combined Power | 160W | 1200W | 24.6W | ||
| Total Power | 1200W | ||||
Strong Single +12V RailCompliant with ATX12 v2.4/EPS12 v2.9 specifications, the FSP Group AURUM PT1200FM power supply delivers 1200W total continuous output @ 40°C. The single +12V rail offers the high current needed to power your high-end CPU and GPU, as well as a multi-GPU configuration. Synchronize 3.3V/5V/12V with a stable signal to provide better ripple/noise performance.
80PLUS Platinum certifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of at least 92% at any load between 20% and 100%, saving you money on your electric bill, reducing heat in your computer's system, and prolonging its life.

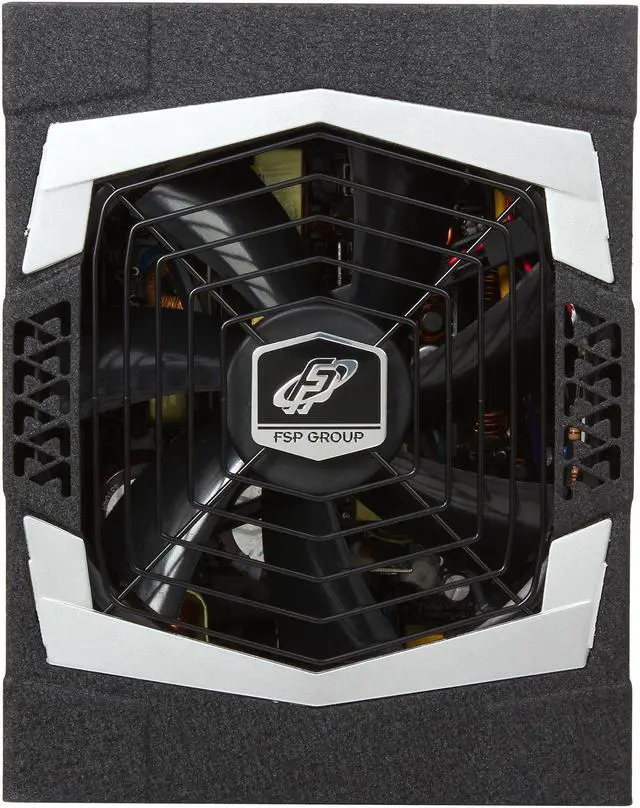

Silent CoolingThe FSP’s unique arrow-flow technology provides remarkable air ventilation and superior cooling performance.
High-quality Japanese capacitorsThis power supply utilizes 105° Japanese-made capacitor and a solid capacitor, providing a higher quality over regular electrolytic caps.
SLI and CrossFire ReadyWith eight 6+2 pin PCI-E connectors, and SLI and CrossFire support, you can build a multi-GPU configuration for the maximum graphics performance.
Enhanced cable managementThe unique SATA array cable design allows for better cable management. The modular cable design allows use of only the cables you need, resulting in an improved internal airflow with reduced system clutter.
Strong Single +12V RailCompliant with ATX12 v2.4/EPS12 v2.9 specifications, the FSP Group AURUM PT1200FM power supply delivers 1200W total continuous output @ 40°C. The single +12V rail offers the high current needed to power your high-end CPU and GPU, as well as a multi-GPU configuration. Synchronize 3.3V/5V/12V with a stable signal to provide better ripple/noise performance.
80PLUS Platinum certifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of at least 92% at any load between 20% and 100%, saving you money on your electric bill, reducing heat in your computer's system, and prolonging its life.
Silent CoolingThe FSP’s unique arrow-flow technology provides remarkable air ventilation and superior cooling performance.
High-quality Japanese capacitorsThis power supply utilizes 105° Japanese-made capacitor and a solid capacitor, providing a higher quality over regular electrolytic caps.
SLI and CrossFire ReadyWith eight 6+2 pin PCI-E connectors, and SLI and CrossFire support, you can build a multi-GPU configuration for the maximum graphics performance.
Enhanced cable managementThe unique SATA array cable design allows for better cable management. The modular cable design allows use of only the cables you need, resulting in an improved internal airflow with reduced system clutter.Warranty & Returns
