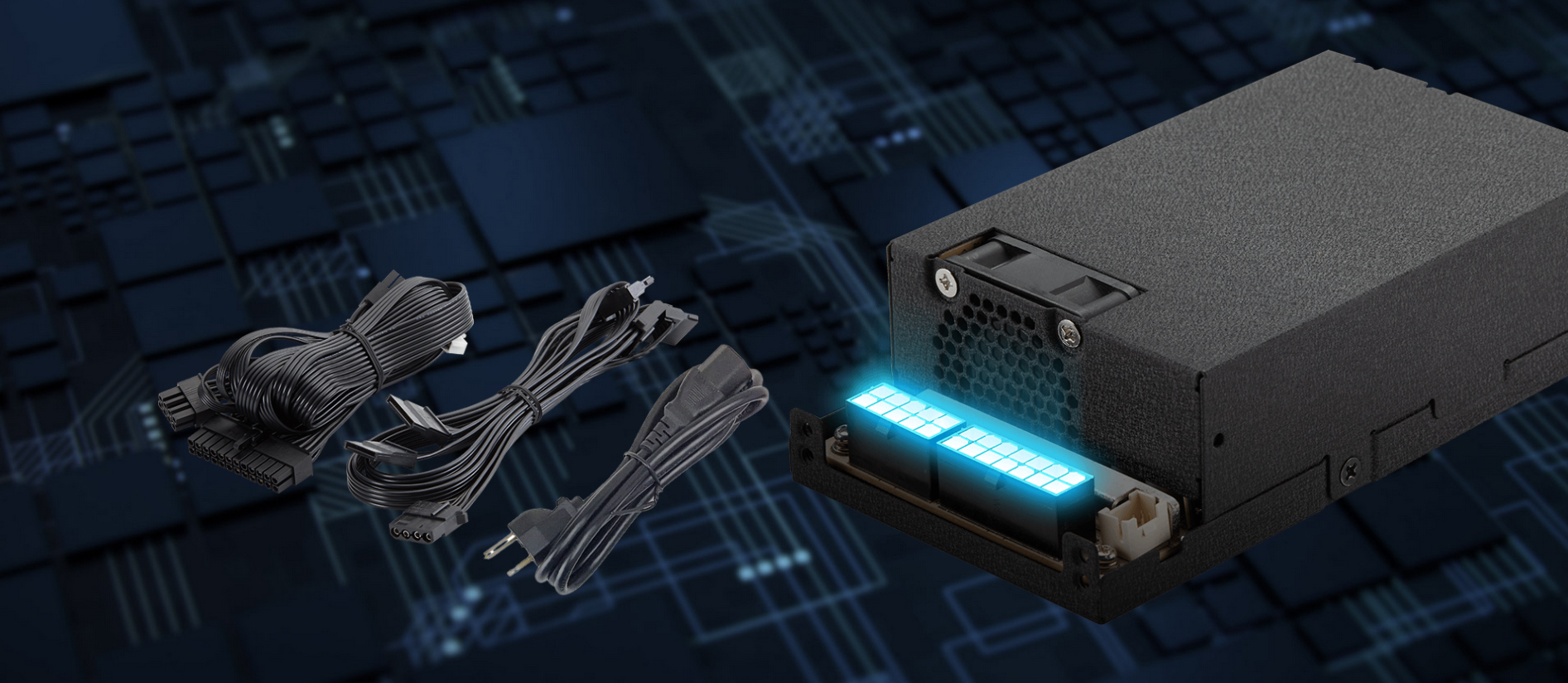

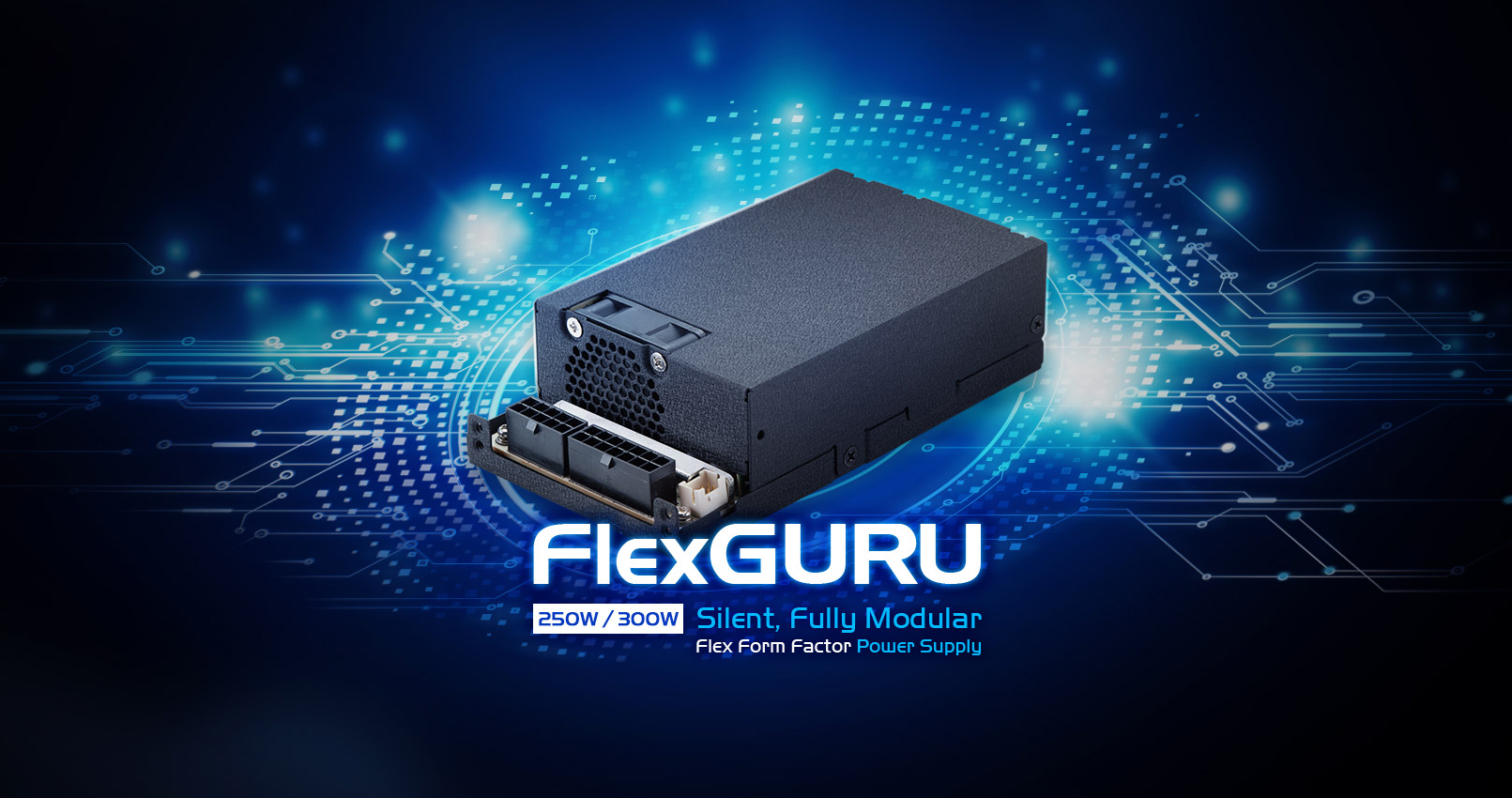

Fully Modular Design
A fully modular design with all black ribbon cables simplifies installation and allows you to use only the cables you need for a cleaner build.

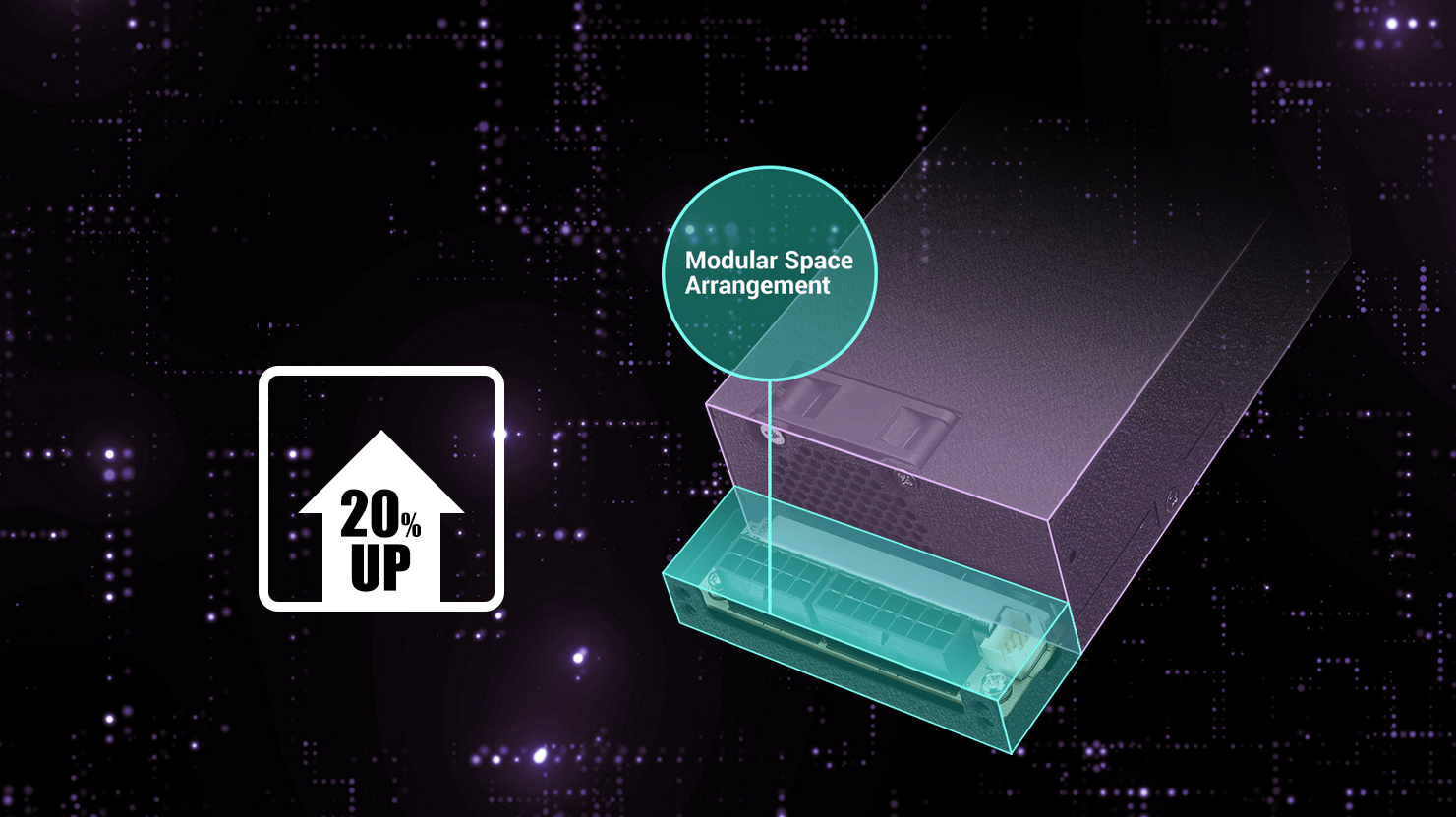

High Power Density
The FlexGURU series features higher power density, 20% higher than any Flex PSU in the same category.

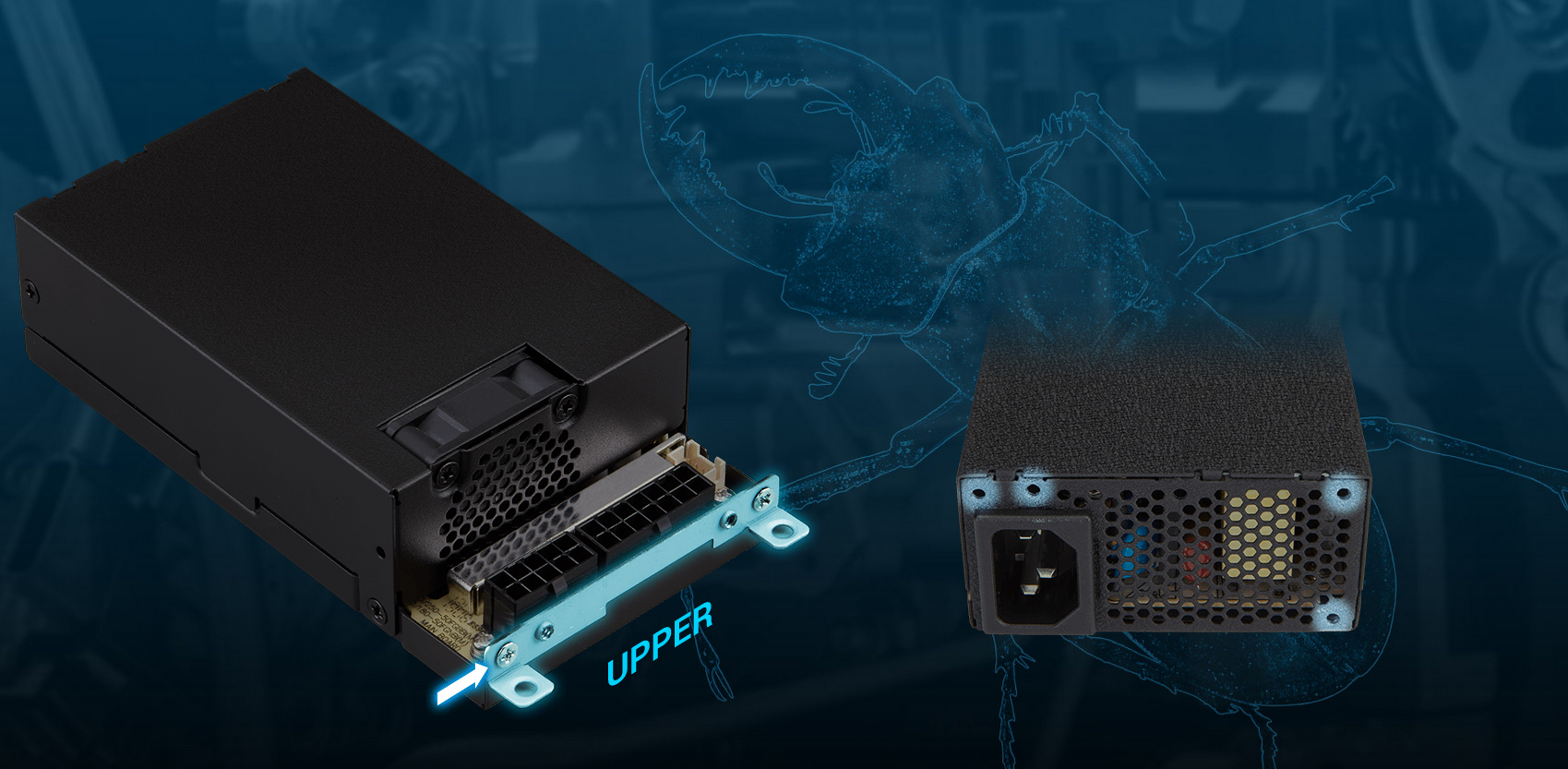

Firm Installation with Beetle Technology
FSP pioneered the development of the Beetle technology in its Flex ATX PSU. The new Beetle technology strengthens the fixation adequacy by 25%, which allows the PSU to fit into most Flex ATX chassis available on the market today.
Excellent Thermal Performance
The FlexGURU series differs from the general Flex PSU by offering a built-in inner 40mm fan. This reduces noise and offers maximum cooling at all times.
85% Efficiency Conversion
The efficiency of your power supply is important because it directly affects your system's performance. The FlexGURU 250W has a guaranteed typical efficiency of 85%, which offers high conversion power to boost your system.
Application Field
Keep in Compliance IEC 62368
FSP Group brings you the latest technologies in renewable energy. FSP provides a full range of additional safety features to keep up with the latest regulations. FSP has upgraded the majority of their power supplies to the latest UL 62368 standard.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
100% Japanese Electrolytic Capacitors
Using Japanese electrolytic capacitors, the FlexGURU series offers stable output and the long-term reliability that you need.

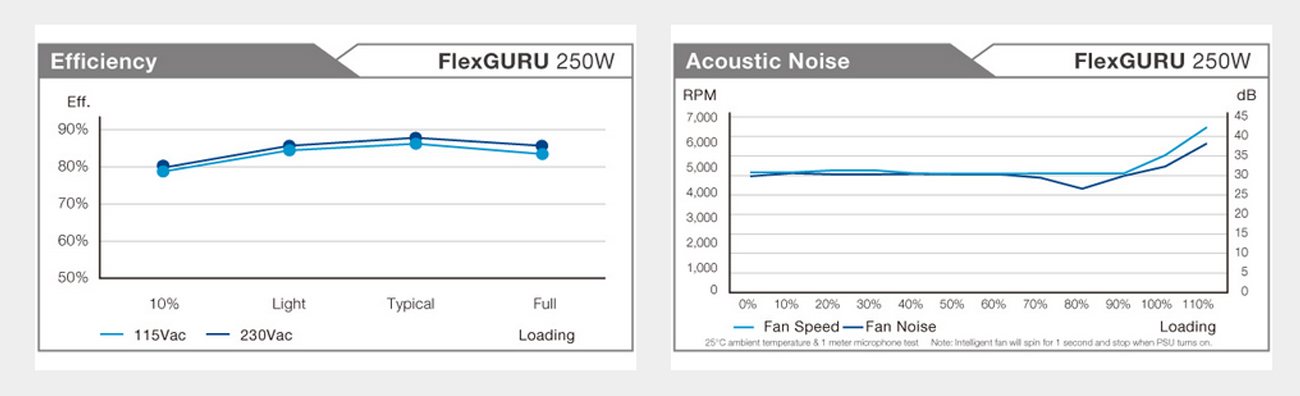

Performance

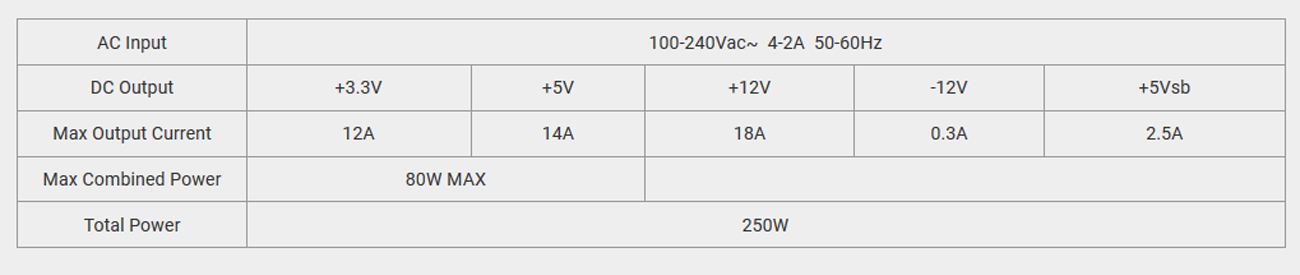

AC/DC

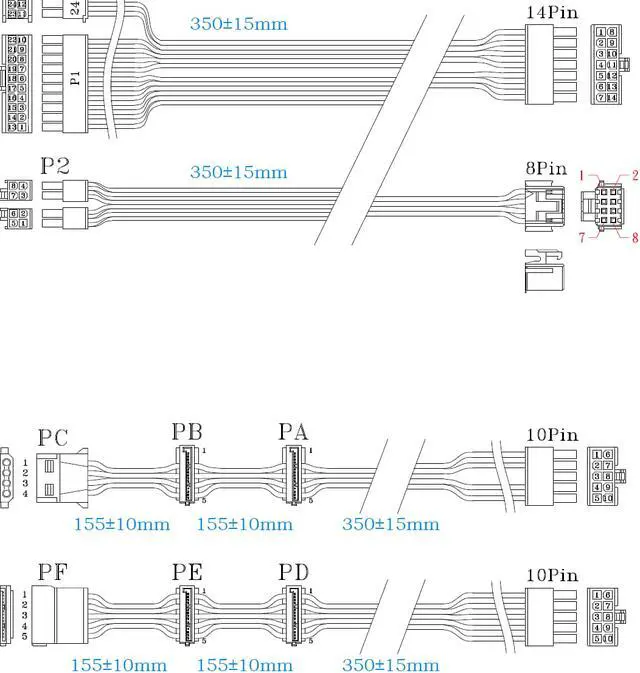

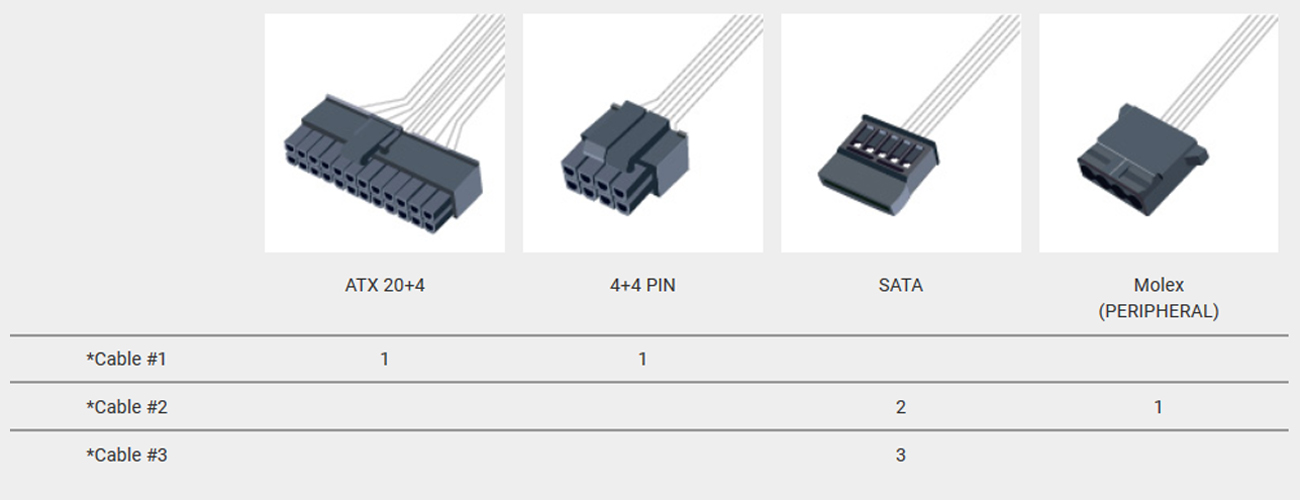

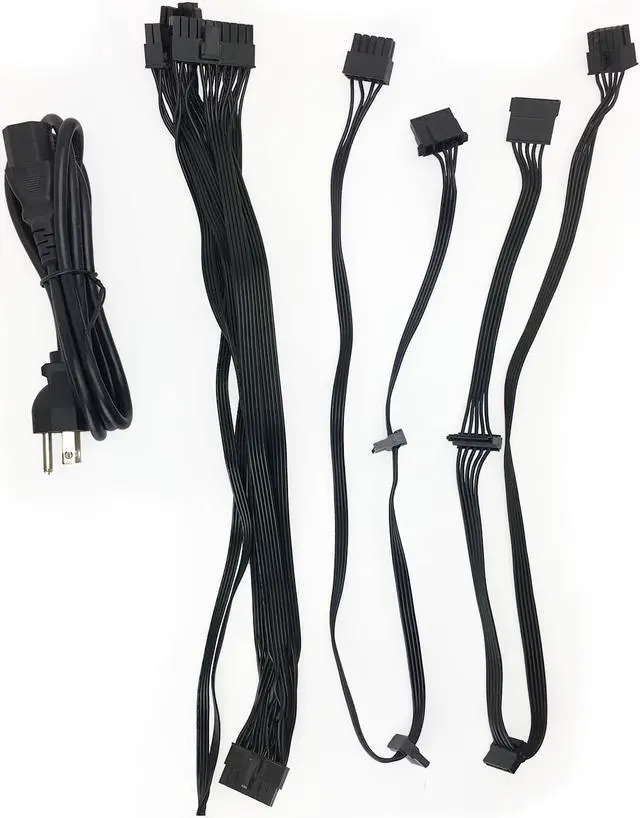

Cables
*There are 3 sets of cables available for different cable combinations.
(ie. Cable #1 & #2 or Cable #1 & #3)

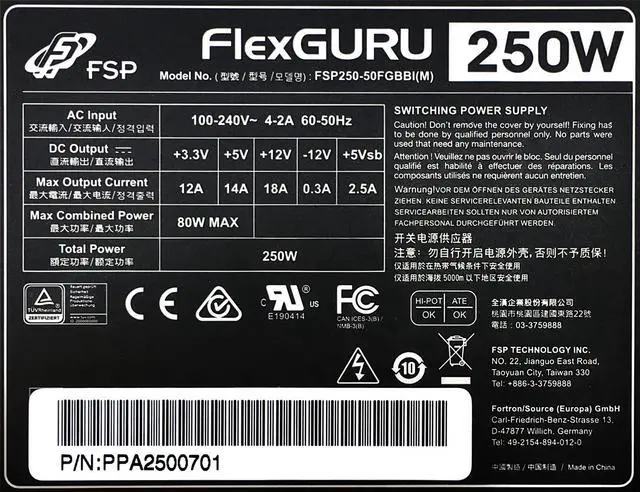

Specifications
| Model | FSP250-50FGBBI(M) |
| Rated Output Power | 250W |
| Form Factor | Flex ATX |
| Input Voltage | 100-240V |
| Input Current | 4-2A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 85% |
| Fan Type | Ball Bearing, 40mm |

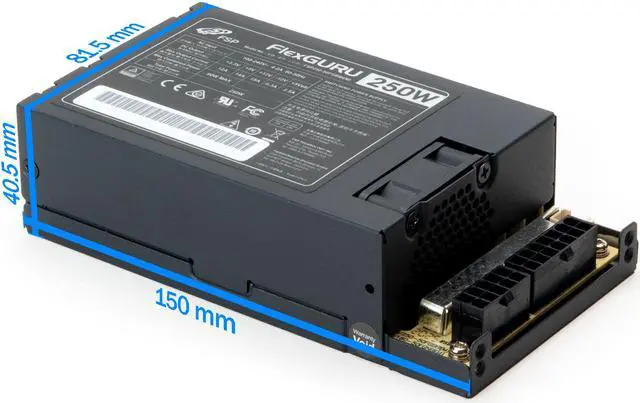

| Dimensions(L x W x H) | 150 x 40.5 x 81.5mm |
| Operation Temp. | 100,000 Hrs |
| Protection | UVP, OVP, SCP, OPP, OTP |
