Built from the same DNA as its bigger brothers, GTX 680, the GeForce GTX 670 brings the performance and features of 28nm Kepler architecture to a more affordable price point. The GTX 670 comes with 1344 CUDA cores and a base clock of 915 MHz, slightly lower than the GTX 680, but is essentially identical in all other aspects. It provides a great upgrade compared to its predecessor, GTX 570 with average 41% performance increase and runs over 50% faster in many demanding DirectX 11 games, while remaining extremely power efficient at 175w TDP with 28nm process. The breakthrough NVIDIA GPU Boost technology pushes the performance to the limit by intelligently increasing clock speed based on actual work load. An array of NVIDIA exclusive technology, such as NVIDIA Adaptive Vertical Sync for stuttering- and tearing-free gaming, NVIDIA Surround with up to four monitors, two new Anti-aliasing modes of FXAA and TXAA, NVIDIA 3D Vision Ready, and NVIDIA PhysX Technology works in concert to ensure you get the most immersive and impressive gaming experience.

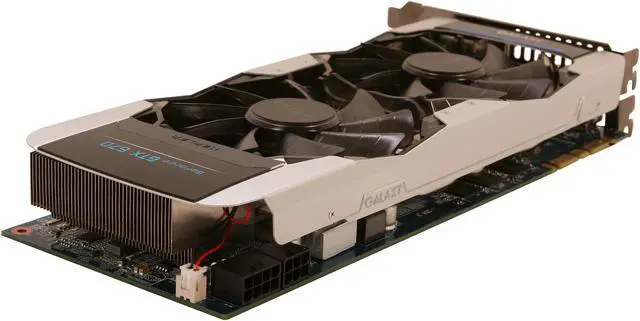

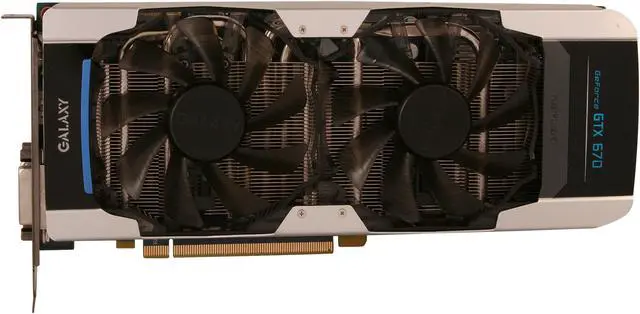

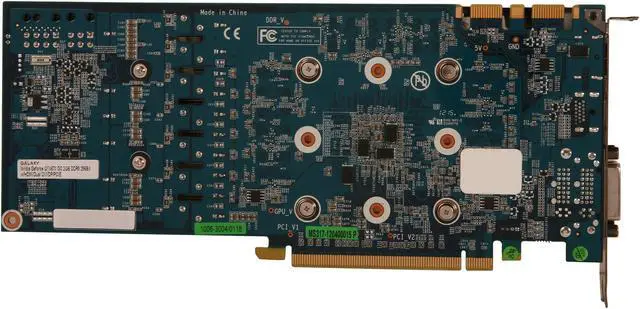

Galaxy has once again taken every opportunity to enhance performance in the specially engineered redesign of the GTX 670 GC, which features the same high-end custom PCB and dual-fan cooler found in the Galaxy GTX 680 GC. The latest advances in PCB design make possible a factory overclock to over 1 GHz, and the high efficiency cooler keeps the card running at low temps with whisper-quiet operation.
Kepler GPU ArchitectureNVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest DirectX 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world class performance and the highest image quality in an elegant and power efficient graphics card.
NVIDIA GPU BoostUp until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load and increases the clock speed whenever possible. The result is that the GPU always performs at its peak and you get the highest framerate possible.
NVIDIA Adaptive Vertical SyncNothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.
NVIDIA Surround with Up To Four MonitorsNothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision and provides for the most immersive experience in racing and flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming.
Two New Anti-aliasing Modes: FXAA and TXAAAnti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel. The second mode, TXAA, is an in-game option that combines MSAA, temporal filtering, and post processing for even higher visual fidelity.
NVIDIA 3D Vision ReadyNVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor and keyboard brightness with NVIDIA 3D LightBoost technology. In addition, you can enjoy 3D movies and 3D digital photographs in eye popping, crystal-clear quality.
Learn more about the Galaxy 67NPH6DV6KXZ
Model
Brand
Galaxy
Model
67NPH6DV6KXZ
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce GTX 600 Series
GPU
GeForce GTX 670
Core Clock
1006MHz
Boost Clock
1085MHz
CUDA Cores
1344 Cores
Memory
Effective Memory Clock
6008 MHz
Memory Size
2GB
Memory Interface
256-Bit
Memory Type
GDDR5
3D API
DirectX
DirectX 11
OpenGL
OpenGL 4.2

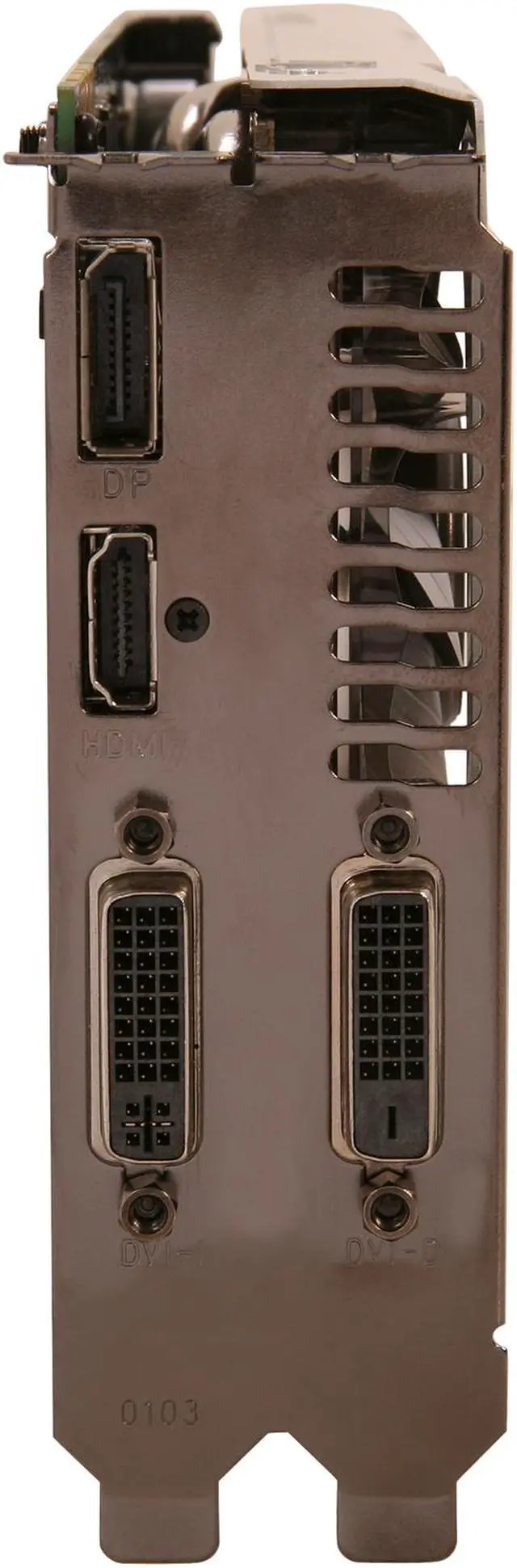

Ports
HDMI
1 x HDMI
DisplayPort
1 x DisplayPort
DVI
2 x DVI
Details
RAMDAC
400MHz
Max Resolution
2560 x 1600 (DL-DVI)
3D VISION Game Ready
Yes
SLI Support
SLI Ready
Cooler
Double Fans
Thermal Design Power
170W
System Requirements
Minimum of a 500 Watt power supply.
Power Connector
1 x 6-Pin + 1 x 8-Pin
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Features
Features
Factory Overclocked
Custom dual-fan cooling
Quad nickel-plated heatpipes
Special fan blade design minimizes noise
Aluminum cover with LED effects
NVIDIA GPU Boost
NVIDIA Adaptive Vertical Sync
NVIDIA Surround
NVIDIA PhysX technology
NVIDIA 3D Vision Ready
NVIDIA CUDA technology
Form Factor & Dimensions
Card Dimensions (L x H)
10" x 4.37" x 1.51"
Packaging

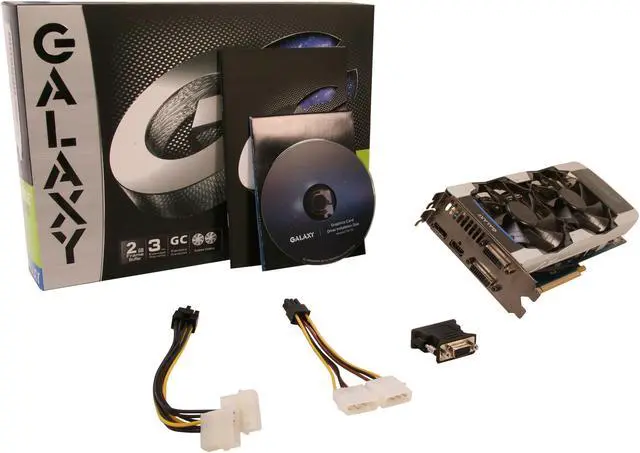

Package Contents
GeForce GTX 670 Graphics Card Driver Installation Disk Quick Installation Guide User Manual 8-pin PCI Express power conveter 6-pin PCI Express power conveter DVI to VGA converter
