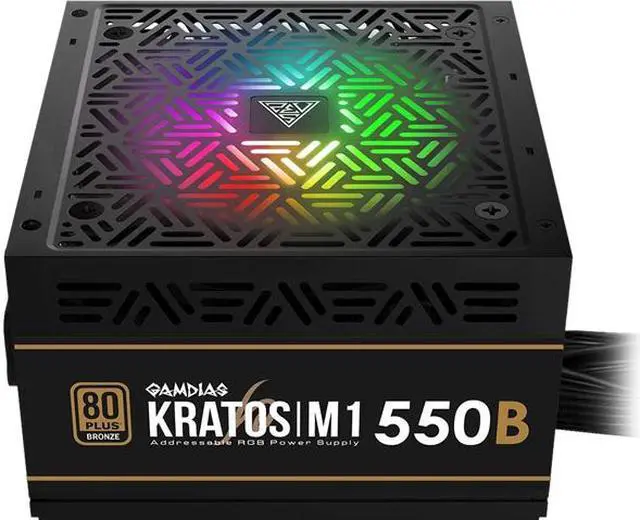

Gamdias Kratos M1-550B 550 W ATX12V v2.2 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply with Built-in RGB Lighting Effects and Addressable LEDs
- ATX12V v2.2
- Non-Modular
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@15A, +5V@15A, +12V@43A, [email protected], [email protected]
Specs
Reviews
Learn more about the GAMDIAS Technology Kratos M1-550B
| Brand | Gamdias |
|---|---|
| Model | Kratos M1-550B |
| Type | ATX12V v2.2 |
|---|---|
| Maximum Power | 550 W |
| Fans | 120mm Silent Fan |
| Fan LED | RGB |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 5 |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | OVP/ UVP/ OPP/ OCP/ SCP/ SP/ ICP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 4.5 - 8.5 A |
| Output | +3.3V@15A, +5V@15A, +12V@43A, [email protected], [email protected] |
| Connectors | 1 x Main Power (20+4 Pin) 1 x CPU (4+4 Pin) 2 x PCI-E (6+2 Pin) 5 x SATA (5 Pin) 2 x Molex (4 Pin) 1 x Floppy (4 Pin) |
| Features | Meet 80+ PLUS Bronze Efficiency RGB Motherboard Sync Neon-Flex RGB 30 built-in lighting effects Addressable LEDs Silent Mode Support C6/C7 power state |
|---|
| Dimensions | 3.39" x 5.51" x 5.91" |
|---|
| First Listed on Newegg | November 27, 2019 |
|---|
