Tiny White Mini ITX PC (8.1L) - KXRORS S300 - Full size GPU

[WhiteWolfPCs]

Youtube Video: https://youtu.be/h-0r3NakWMk

Youtube Shorts: https://youtube.com/shorts/cE8iSKrRC7s

PC Part Picker: Tiny White Mini ITX PC (8.1L) - KXRORS S300 - Full size GPU by saurabh1312 - AMD Ryzen 5 9600X, GeForce RTX 5070 - PCPartPicker

This one didn’t exactly turn out as planned, but doesn’t look bad regardless.

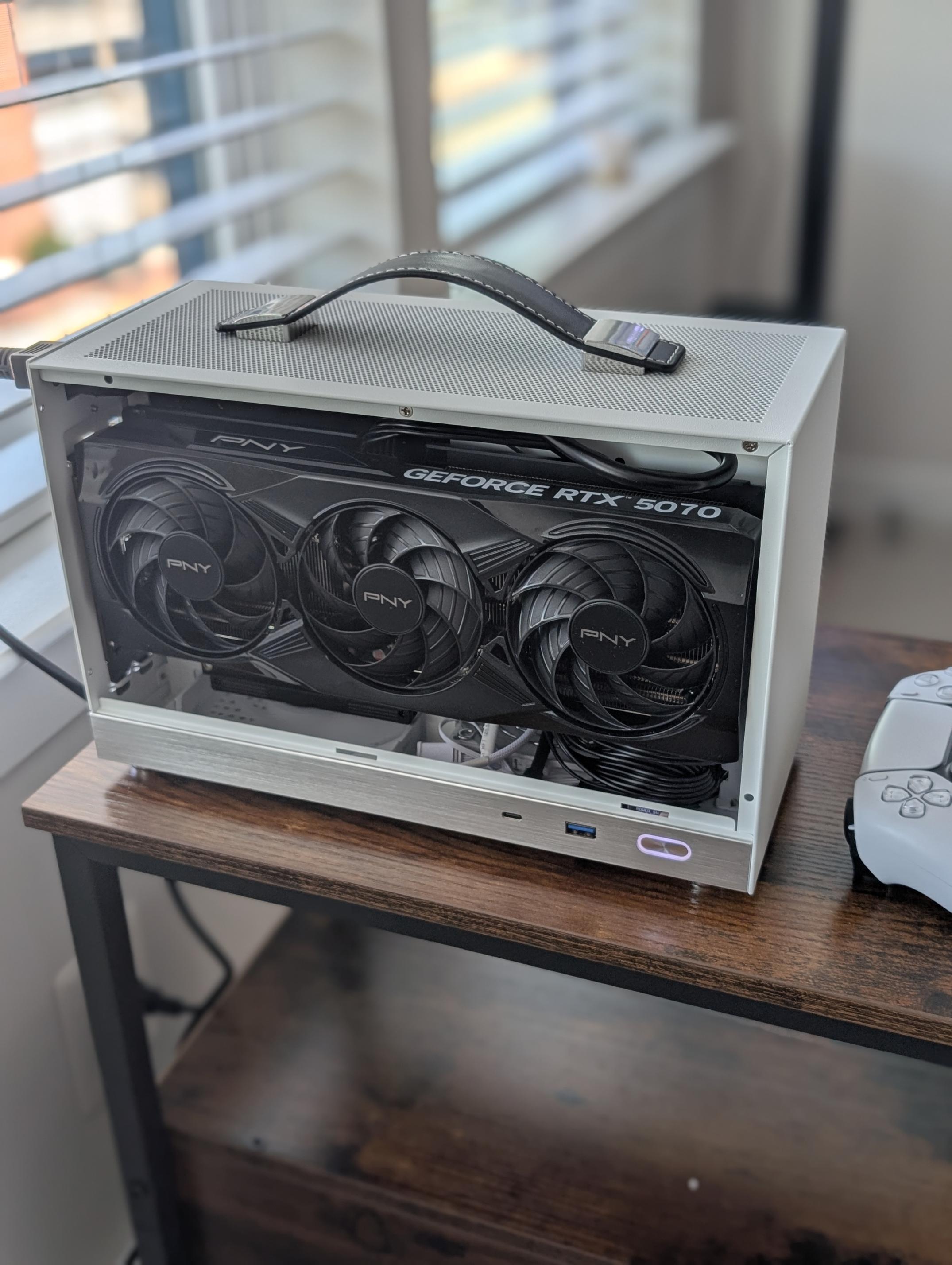

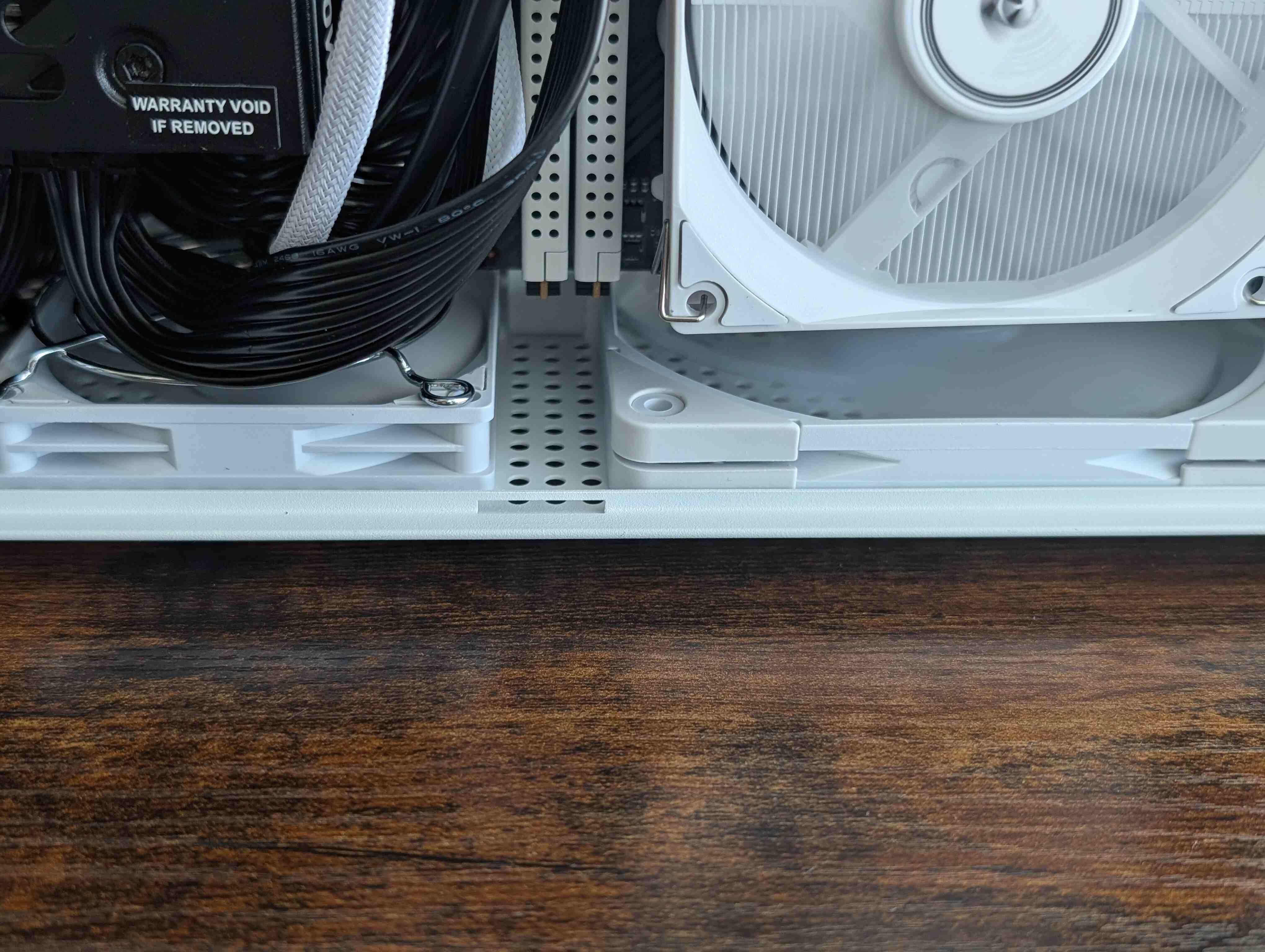

Smallest PC I built with a full sized GPU. At 8.1L volume, it is 2/3rd the size of Lian Li A4 H20 and Fractal Terra cases (which are both pretty small). Also has 2 exhaust fans at the bottom (since both the GPU and CPU coolers are intakes).

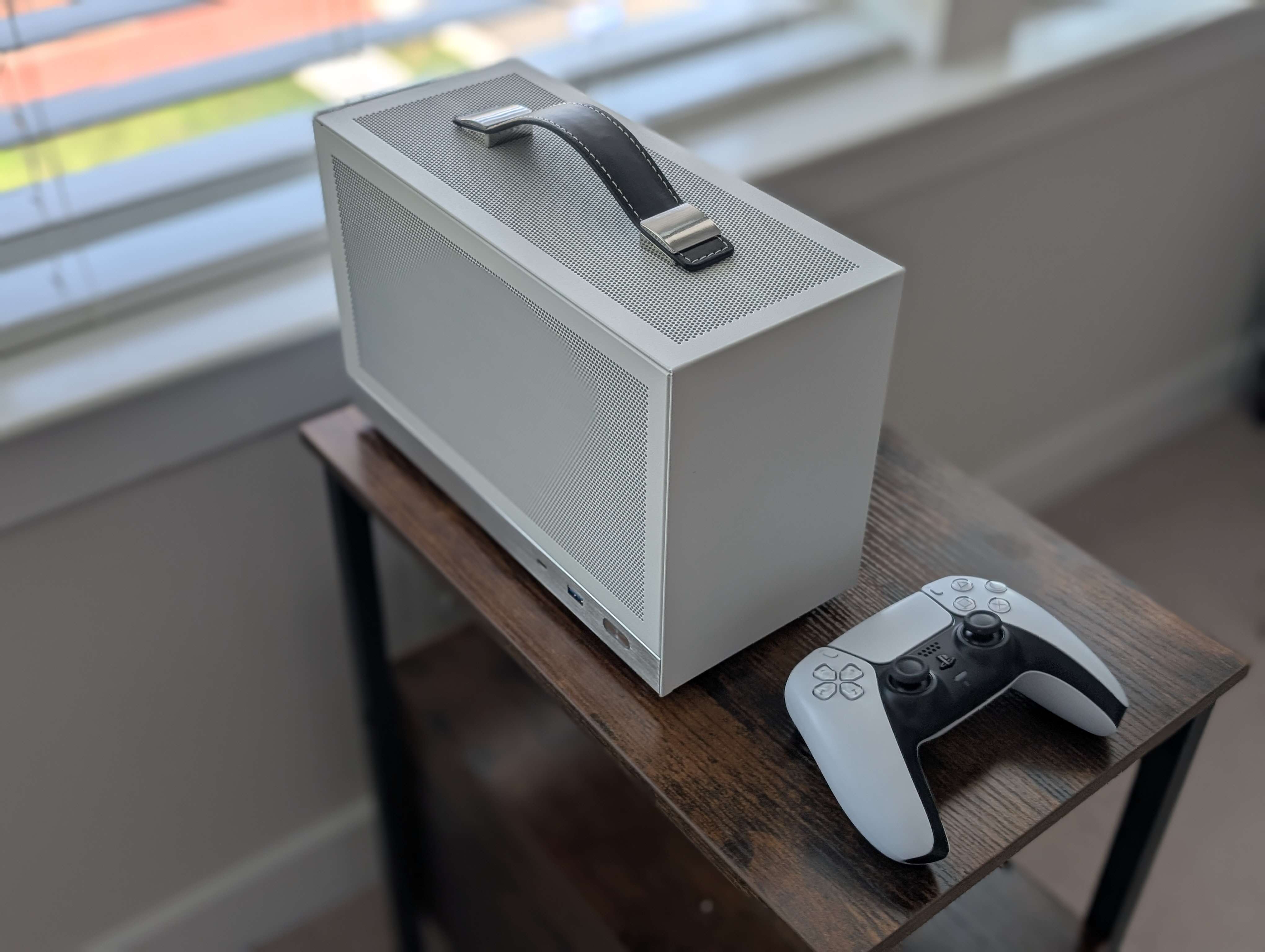

Can easily fit this into a cabin bag when traveling. The white color looks nice too!

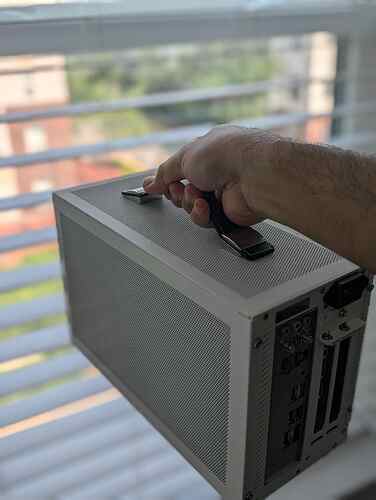

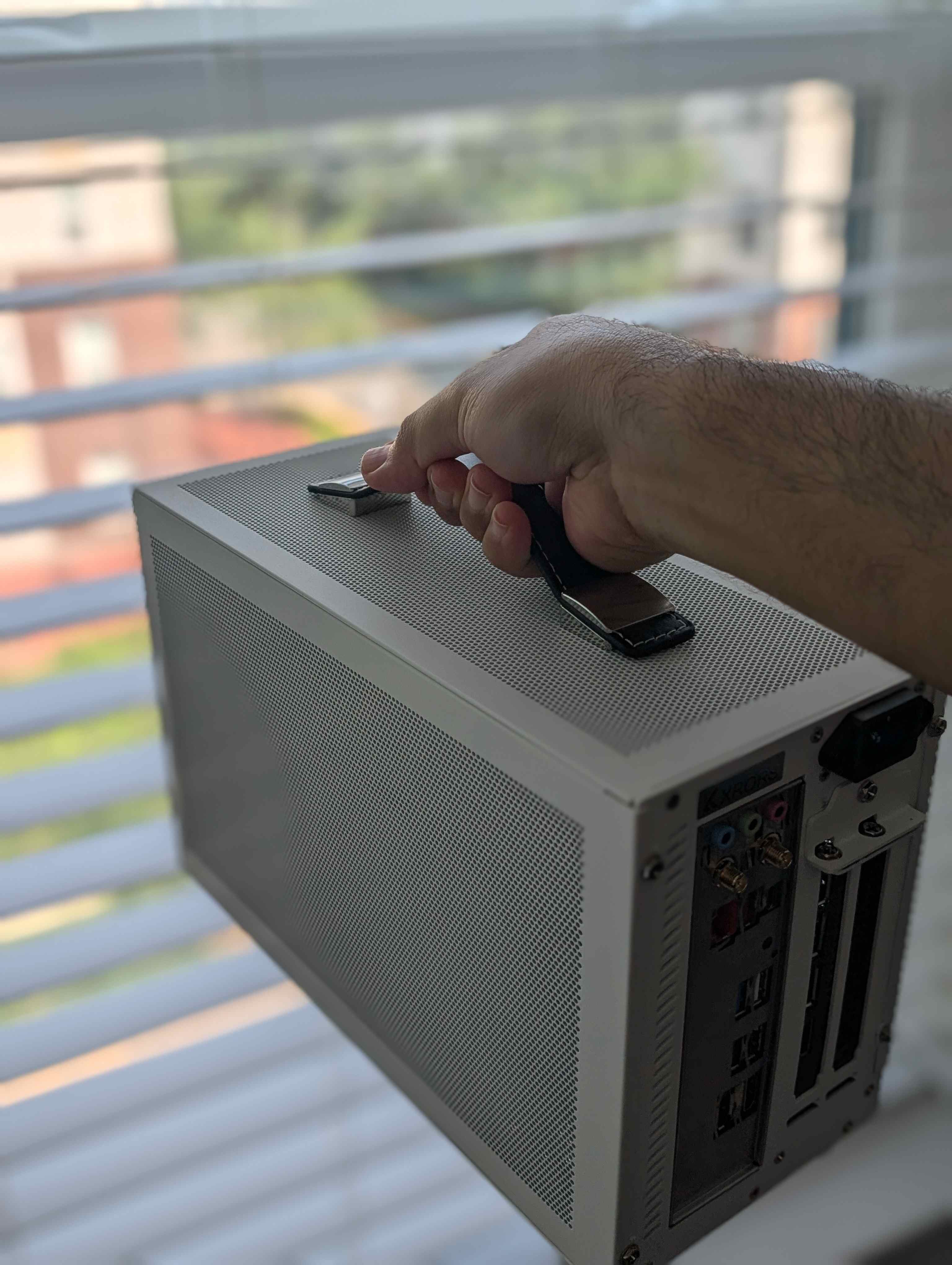

The mesh panels all around allows for good airflow. The leather handle on top is really sturdy and can alone easily handle the PCs weight.

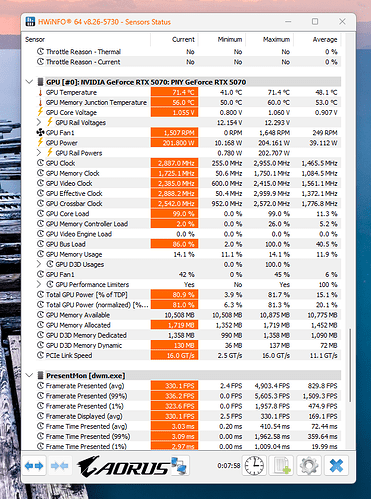

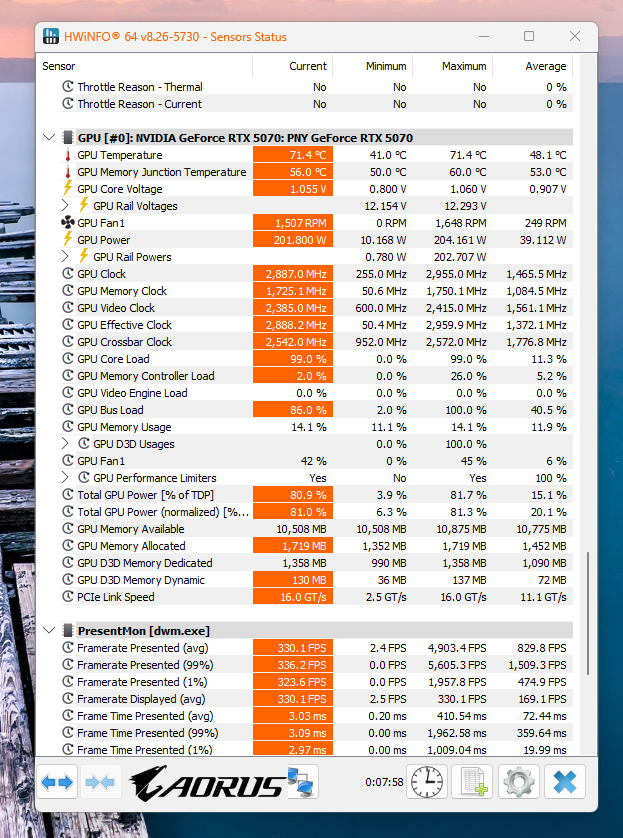

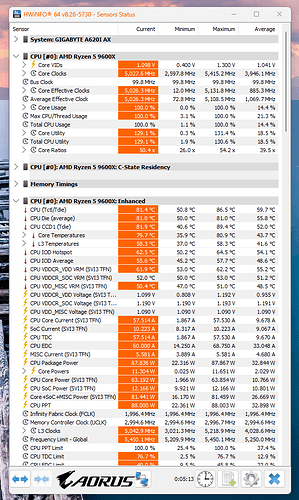

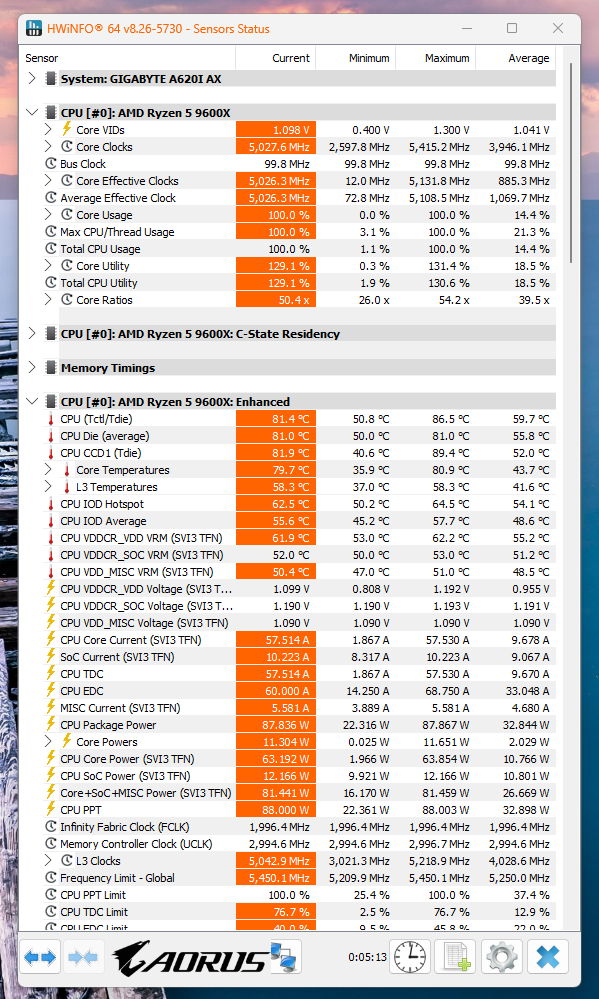

Good benchmarks and cooling for this size of a case (see screenshots for 100% load stress tests).

Swapped to a PCIe 4.0 riser cable.

I was expecting this case to be loud, but it turned out to be whisper quiet (quieter than big full tower cases)

Amazon link for the case: Amazon.com: S300 - Gaming Case - Front I/O USB 3.0 Type - C Port - SFX Power Supply 100-130mm -Cable Management System - luminum Mini-ITX Motherboard Small Portable for PC (PCIe 3.0 16X Riser Cable) : Electronics

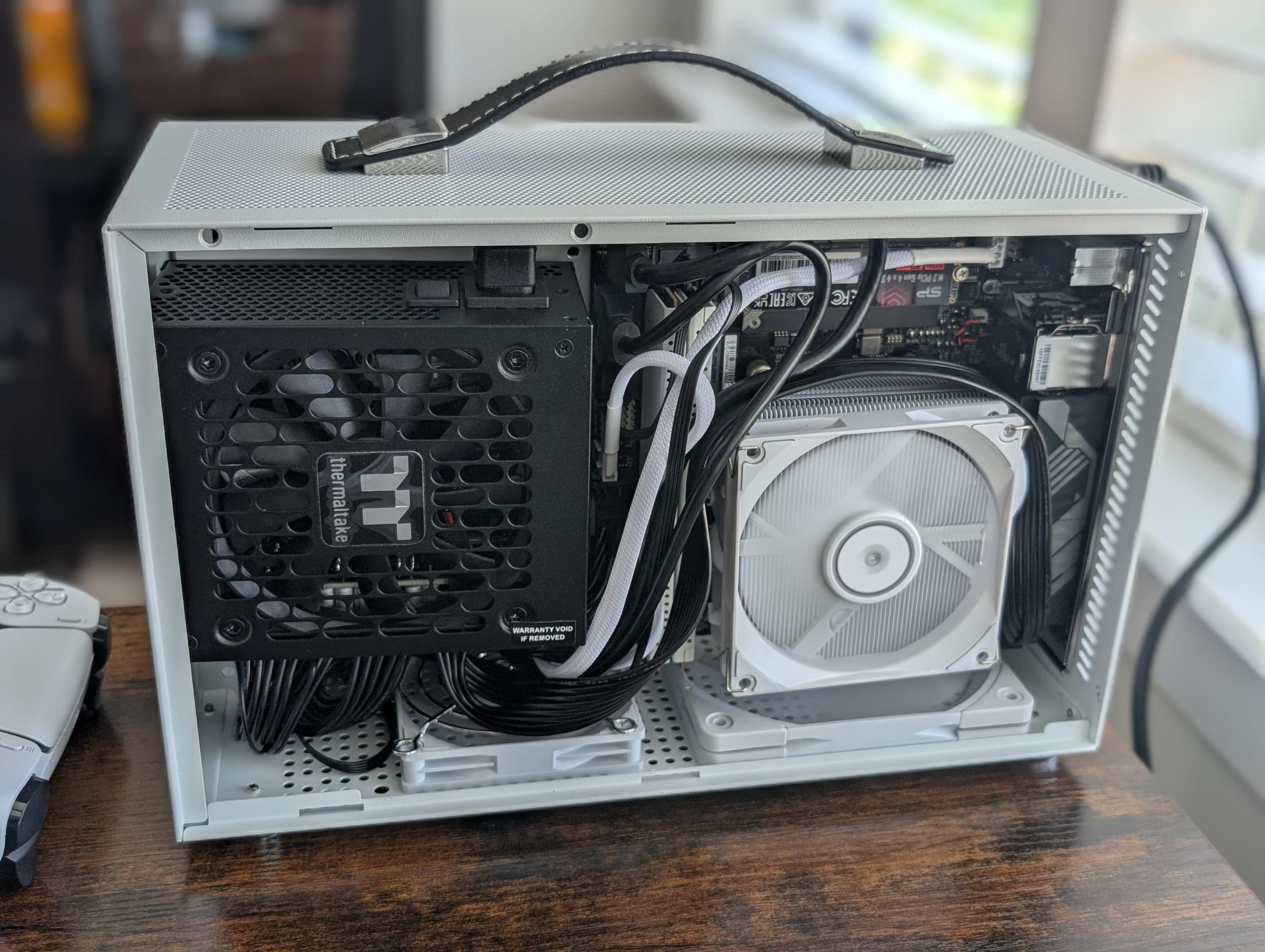

Amazon link for the CPU Cooler - Thermalright AXP90-X53 White Amazon.com: Thermalright AXP90-X53 White Low Profile ITX CPU Air Cooler, 53mm Height, TL-9015W Slim PWM Fan Low Noise 22.4dba, Silent ITX CPU Cooler, 2700RPM,for AM4/AM5/Intel 1150/1151/1155/1156/1200/1700/1851 : Electronics

[Voltage]

Dads suitcase for “work”

[elaniselan]

Is Timespy free?

[WhiteWolfPCs]

It’s part of 3DMark. The demo version is free, the full version is paid.

[elaniselan]

Ah, thanks! What are good scores? How do you compare the scores?

[WhiteWolfPCs]

@Voltage I don’t follow what you are saying. Are you mixing up some other thread here?

[WhiteWolfPCs]

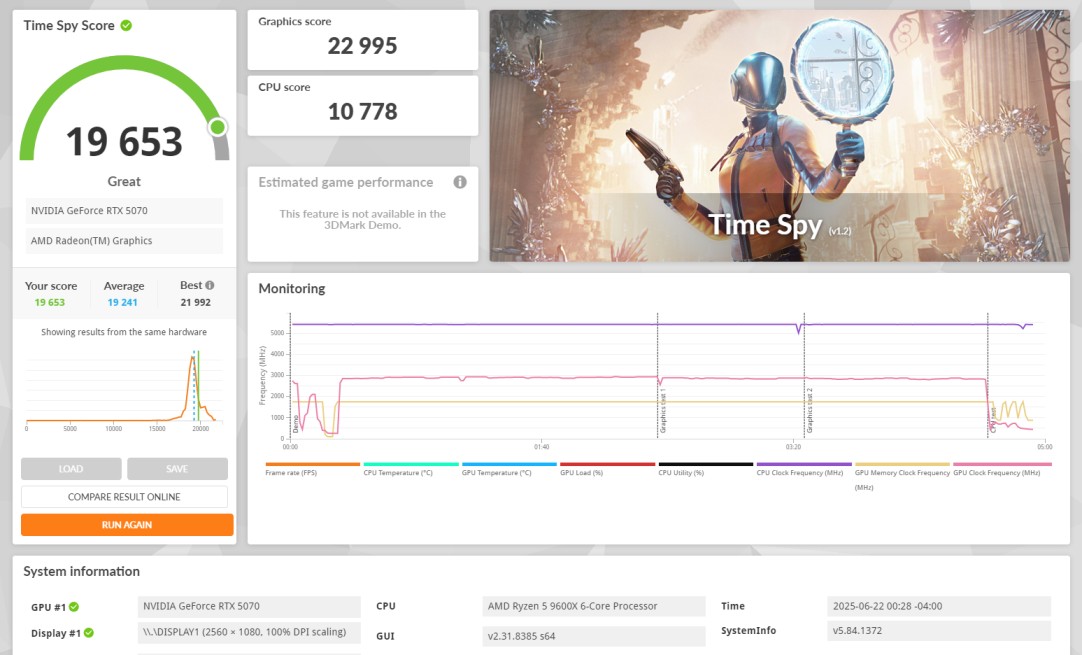

@elaniselan There are 2 parts of the Timespy / Steel Nomad scores. One is the numerical part that just shows the raw performance of the PC. The other is the rating compared to other PCs of the same specs (same CPU / GPU combination). A rating of Good, Great, Extraordinary, Legendary implies your PC performs better than the average PC of the same CPU / GPU combination. Such ratings in ITX cases is even better because it performs better in spite of the size / limited airflow.

[Doug]

I have to admit, I had no idea what you were talking about until you explained you were making a meme about the economy.

This is a cool little case. Thanks for sharing!
