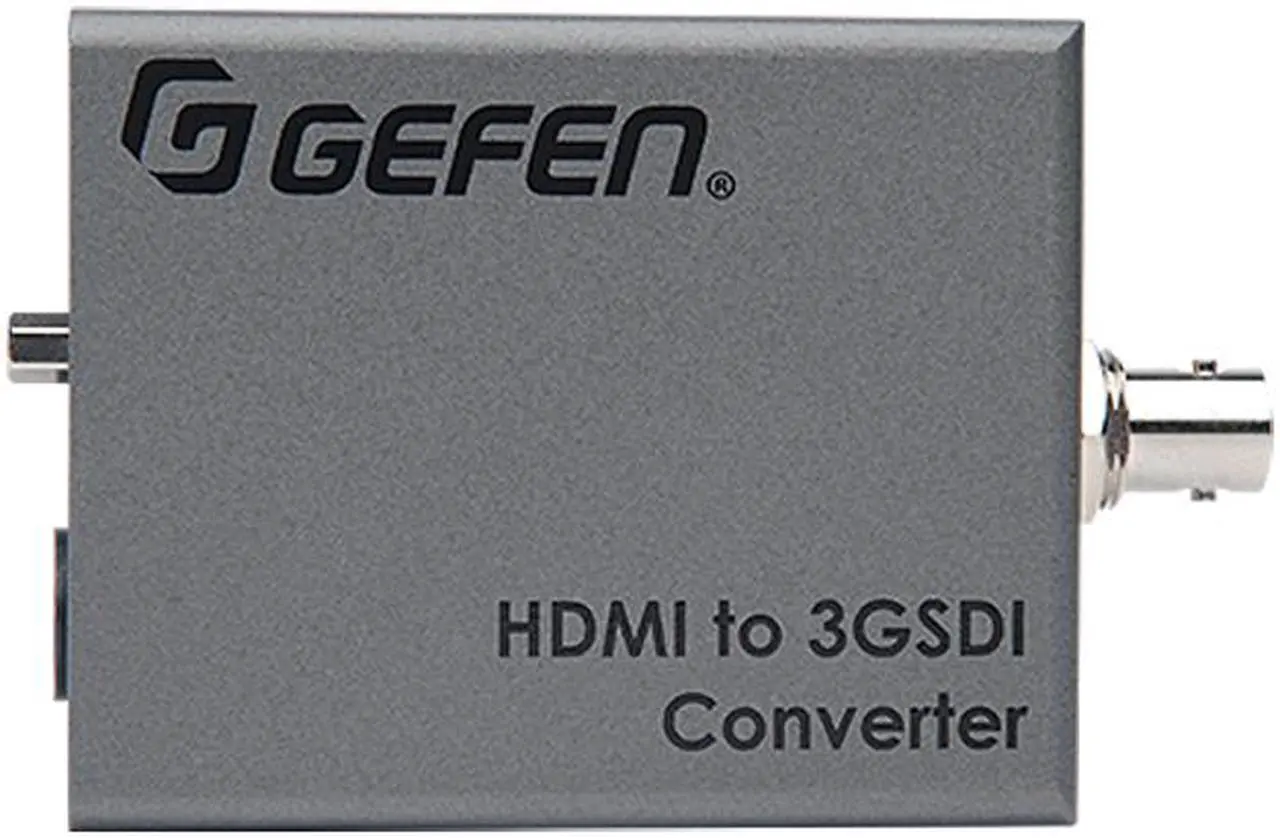

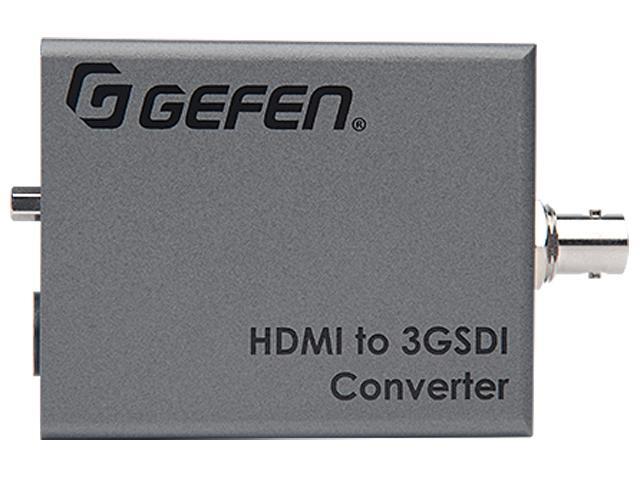

Gefen HDMI to 3GSDI Converter EXT-HD-3G-C

Be the first to review this product...
  • HDMI to 3GSDI
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Gefen EXT-HD-3G-C

Model
Brand Gefen
Model EXT-HD-3G-C
Converter Type HDMI to 3GSDI
Connection
USB Port (1) Mini-B
Indicater
LED Indicator HDMI Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power
Power Consumption 3W maximum
Power Supply 12V DC nominal (6V to 24V DC operating range)
Specification
Specification Maximum Pixel Clock:150 MHz
Maximum TMDS Clock: 225 MHz

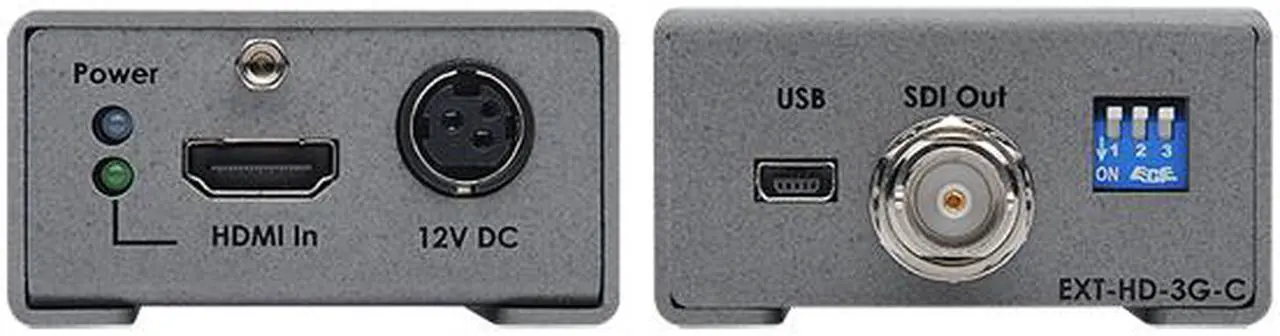

Video Input Connector: (1) HDMI Type A 19-pin, female, locking
Video Output Connector: (1) SDI BNC-type, female
Configuration Switches: (3) DIP-type
Power Supply Connector: (1) 3-pin, locking
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Feature
Feature Converts HDMI to SDI
Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
Output resolutions up to 1080p60
Supports HDMI 12 bit color and SDI 10-bit color
Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )
Supports 3G-SDI Levels A and B
Up to LPCM 7.1 audio support
Field configurable via DIP switch settings or Gefen Syner-G software
Gefen Syner-G simplifies in-field firmware updates and advanced EDID management
Mini USB port for use with Gefen Syner-G
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
1/4-20 industry-standard camera gear attachment thread on bottom

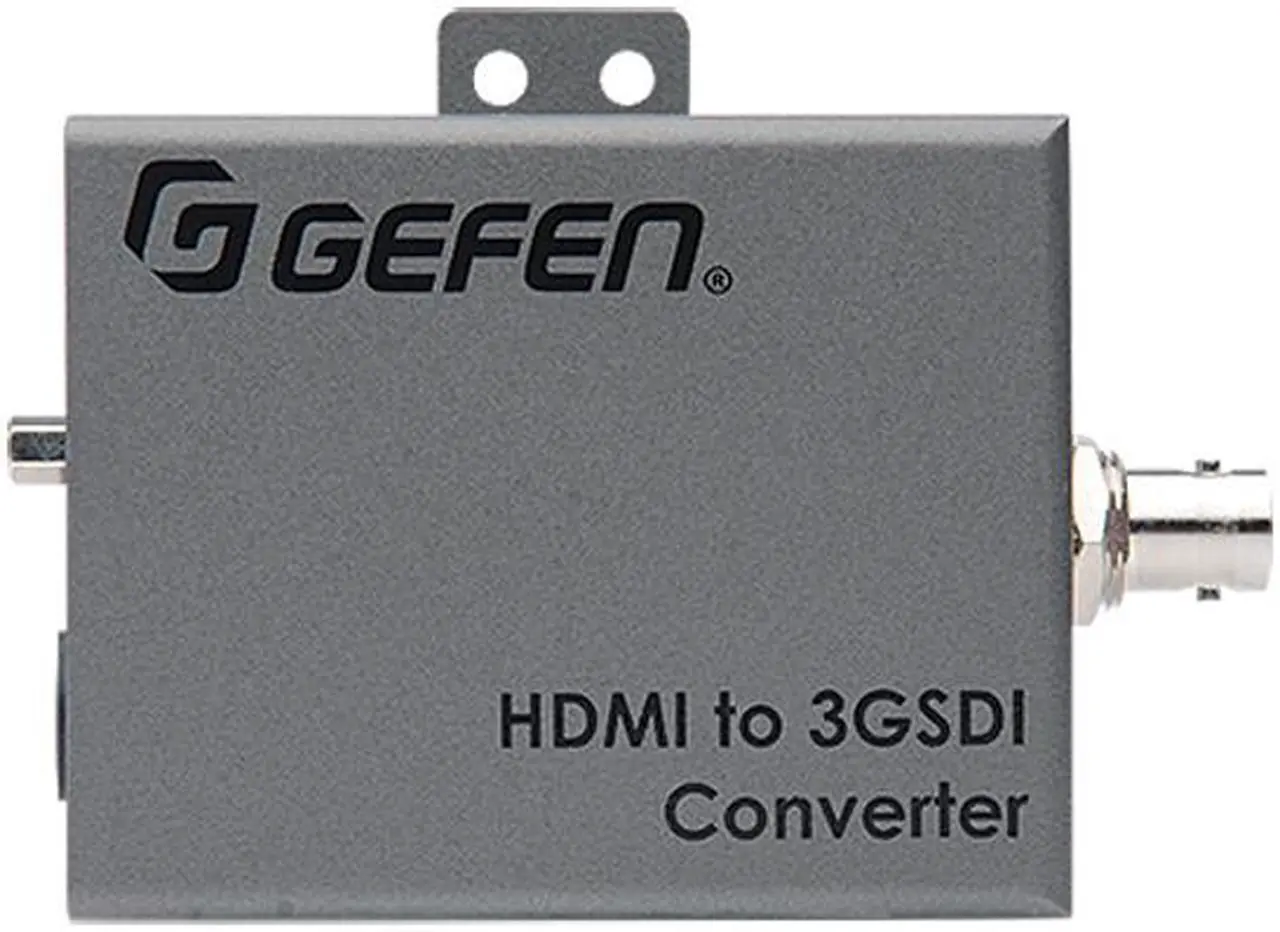

Surface-mountable using the included detachable bracket
Dimensions & Weight
Dimensions 2.9" x 1.2" x 2.3" (excluding connectors, W x H x D)
Weight 0.3 lbs (0.15 kg)
Additional Information
First Listed on Newegg February 23, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
