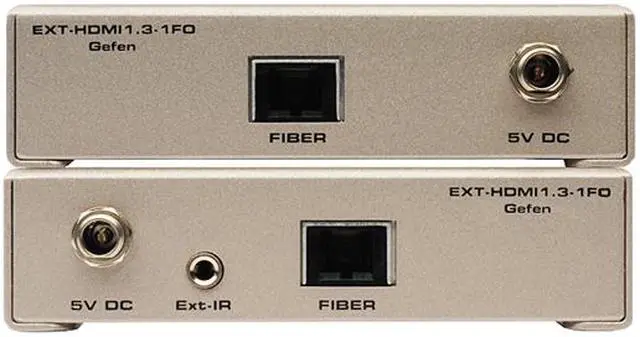

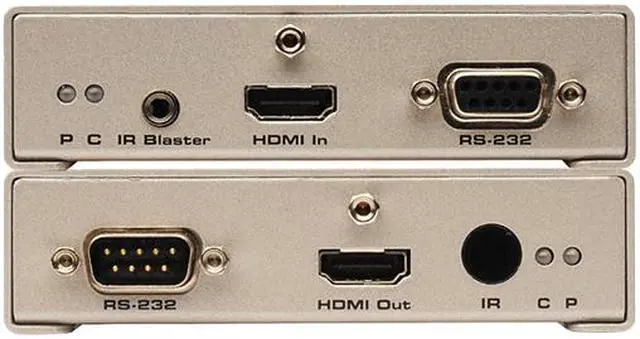

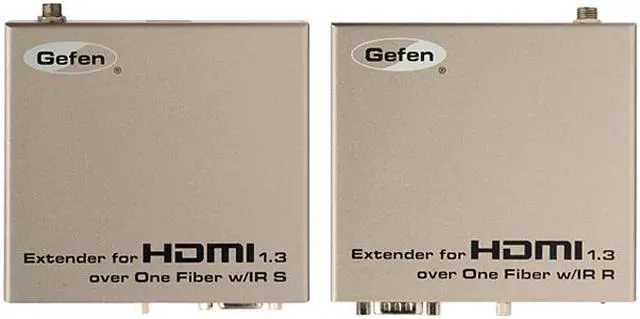

Gefen EXT-HDMI1.3-1FO Extender for HDMI over One Fiber w/IR

Be the first to review this product...
  • Supports video resolutions up to 1080p,1920 x 1200 and 2K
  • Extends HDMI and RS-232 up to 1000 feet (300m)
  • 3DTV Pass-Through
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Gefen EXT-HDMI1.3-1FO

Model
Brand Gefen
Model EXT-HDMI1.3-1FO
Details
Type Video Extender
Specifications Maximum Pixel Clock: 225 MHz
Link Connector (Sender/Receiver): (1) Type SC fiber (50 or 62.5micro-)
Fiber Cable: CAB-1SC-XXXX (62.5 micro- multimode)
IR Emitter Port (Sender): (1) 3.5mm mini-mono jack
IR Extender Port (Receiver): (1) 3.5mm mini-stereo jack
RS-232 Port (Sender): DB-9, female
RS-232 Port (Receiver): DB-9, male
Power Supply (Sender/Receiver): 5V DC
Power Consumption: 10W (max.) each
Dimensions (Sender/Receiver): 4.2" W x 3.8" D x 1.2" H
Tuner
Ports In 1 x HDMI Type A 19-pin female
Ports Out 1 x HDMI Type A 19-pin female
Features
Features Supports video resolutions up to 1080p,1920 x 1200 and 2K

3DTV Pass-Through

Delivers highest quality signal of any HDMI extension method

EDID Detection/Adjustment for rapid integration of source and displays

Extends HDMI and RS-232 up to 1000 feet (300m)

Uses widely available single-strand multi-mode SC fi ber optic cable

Immune to electromagnetic interference (EMI)

HDCP Compliant
Package Contents
Package Contents (1) HDMI 1.3 RS232 IR Over Fiber Sender Unit
(1) HDMI 1.3 RS232 IR Over Fiber Receiver Unit
(1) 6 ft. HDMI cable (M-M)
(1) 6 ft. Serial DB9 cable (M-F)
(2) 5V DC Locking Power Supply
(2) Mounting Plates
(1) User Manua
Additional Information
First Listed on Newegg June 20, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
