What types of inputs does the Gefen EXT-HDVGA-3G-SC accept?

It accepts HDMI and VGA inputs along with L/R analog audio.

What is the maximum resolution supported by the Gefen HDMI & VGA to 3GSDI Scaler/Converter?

The maximum resolution supported is 1920 x 1200.

$458^.86

Free 30-day Returns

Limit 99999 per customer.

Sold by NothingButSavings

Top Rated

4.5 (9,002 seller ratings)

Shipped by NothingButSavings

Price alert

Add to wish list

Best Sellers

Hot Deals 4 Less

Top Rated

4 (3,715 total ratings)

$490^.00

Compute4Less Corp

Hot Seller

3.6 (355 total ratings)

$485^.57
+ FREE SHIPPING

Meet Your Seller

NothingButSavings

See Seller Store

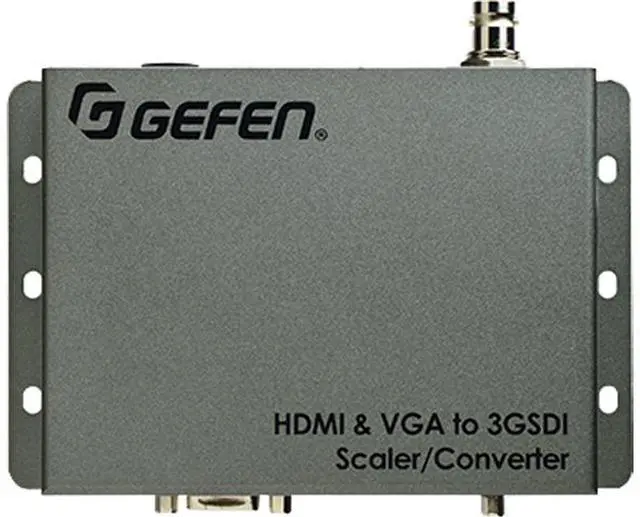

Main image of Gefen HDMI & VGA to 3GSDI Scaler/Converter EXT-HDVGA-3G-SC

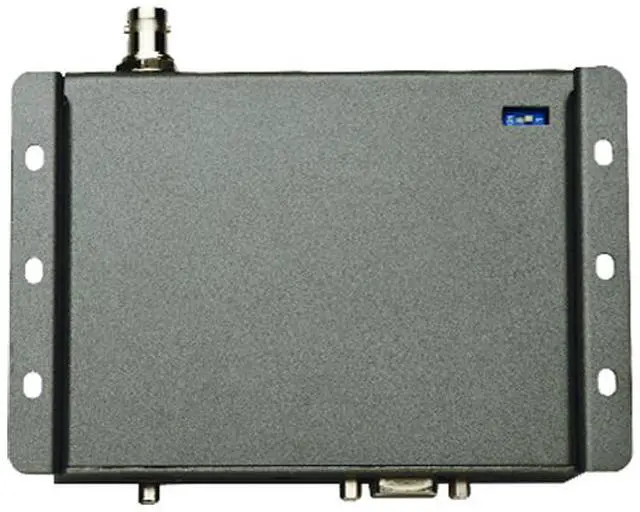

Alt view image 2 of 4 - Gefen HDMI & VGA to 3GSDI Scaler/Converter EXT-HDVGA-3G-SC

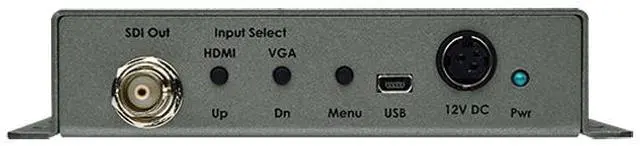

Alt view image 3 of 4 - Gefen HDMI & VGA to 3GSDI Scaler/Converter EXT-HDVGA-3G-SC

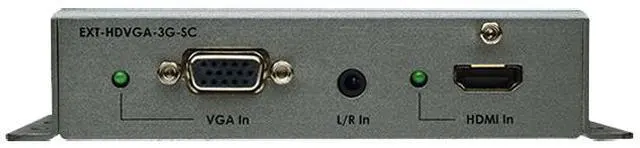

Alt view image 4 of 4 - Gefen HDMI & VGA to 3GSDI Scaler/Converter EXT-HDVGA-3G-SC

Shop All Gefen Products | Visit NothingButSavings Store

Gefen HDMI & VGA to 3GSDI Scaler/Converter EXT-HDVGA-3G-SC

Be the first to review this product...

HDMI/VGA + Analog Audio Inputs
Supports 1080p60 Video
Video Scaling
OSD Menu Settings
EDID Management
Locking Connectors
6-24V Operation

Overview

Specs

Reviews

See all Q & A

Model
Brand	Gefen
Model	EXT-HDVGA-3G-SC
Converter Type	HDMI & VGA to 3GSDI

Power
Power Consumption	5W maximum
Power Supply	12V DC nominal (6V to 24V DC operating range)

Specification
Specification	Maximum Pixel Clock - HDMI and VGA Inputs: 165 MHz Maximum Pixel Clock - SDI Output: 150 MHz Maximum TMDS Clock: 225 MHz Video Input Connectors: - (1) HDMI Type A 19-pin, female, locking - (1) VGA HD-15, female Audio Input Connector: (1) 3.5mm mini-stereo jack Video Output Connector: (1) SDI, BNC-type, female USB Connector: (1) Mini-B Input Select/Menu/Navigation Switches: (3) tact-type HDMI Indicator: (1) LED, green VGA Indicator: (1) LED, green Power Indicator: (1) LED, blue Power Supply Connector: (1) 3-pin, locking Operating Temperature: +32 to +122 °F (0 to +50 °C) Operating Humidity: 5% to 90% RH, non-condensing Storage Temperature: -4 to +185 °F (-20 to +85 °C) Storage Humidity: 0% to 95% RH, non-condensing MTBF: 50000 hours

Feature
Feature	Converts and scales HDMI and VGA and L/R analog audio to SDI Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60 Output resolutions up to 1080p60 On-screen display (OSD) menu allows easy set-up and control Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop Test Pattern Generator for quick system configuration Embeds 2-channel analog stereo audio in SDI signal (VGA Input only) Up to LPCM 7.1 audio support (HDMI input only) Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings USB port for use with Gefen Syner-G Wide power supply operating range (6V to 24V DC) Locking power supply connector Surface mountable

Dimensions & Weight
Dimensions	5.6" x 1.2" x 3.7" (excluding connectors, W x H x D)
Weight	0.5 lbs. (0.23kg)

Additional Information
First Listed on Newegg	August 02, 2024
