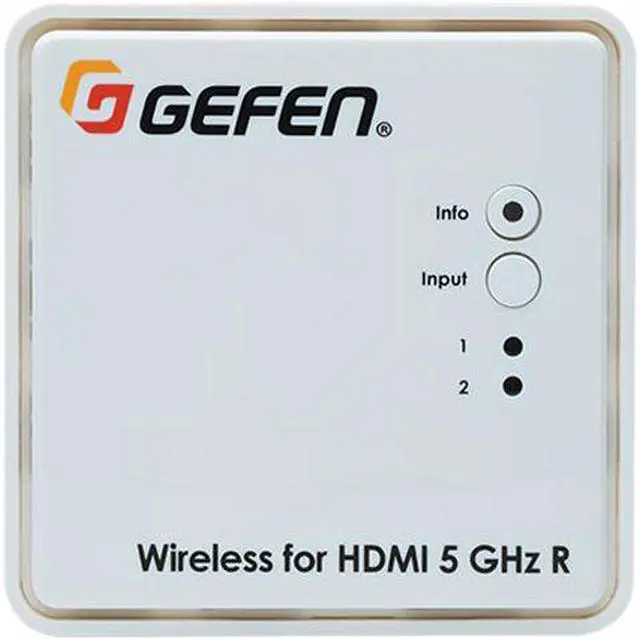

Main image of Gefen Wireless Extender for HDMI 5 GHz Long Range up to 100 feet (30 meters) EXT-WHD-1080P-LR

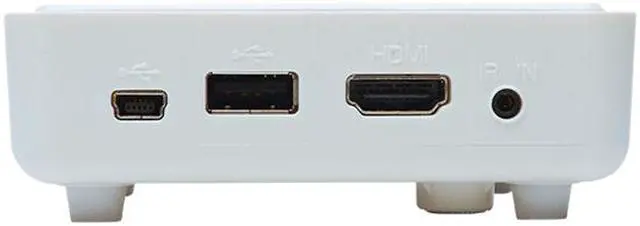

Alt view image 2 of 2 - Gefen Wireless Extender for HDMI 5 GHz Long Range up to 100 feet (30 meters) EXT-WHD-1080P-LR

Shop All Gefen Products

Gefen Wireless Extender for HDMI 5 GHz Long Range up to 100 feet (30 meters) EXT-WHD-1080P-LR

Be the first to review this product...

Extend HDMI Signals up to 100'
Supports 1080p Full HD
Supports 5.1 Dolby and DTS Formats
Supports Gefen SynerG Software Suite

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Gefen EXT-WHD-1080P-LR. Brand NewIncludes 2 Year Warranty. . Product # EXT-WHD-1080P-LR. . HDMI without wires up to 100 feet. (30 meters). . The Wireless for HDMI 5 GHz LR (Long Range) Extender system sends high definition audio and video to any HDTV display up to 100 feet (30 meters). It extends HDCP-compliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1 channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are support

Model
Brand	Gefen
Model	EXT-WHD-1080P-LR

Power
Power Consumption	Sender/Receiver: 7W (max.) / 6W (max.)
Power Supply	Sender: (1) 5V/2A DC with USB Type-A connector Receiver: (1) 5V/2A DC with USB Type-A connector

Specification
Specification	Number & location of channels: US model: 4: 5.19 GHz, 5.230 GHz, 5.755 GHz, 5.795 GHz EU model: 2: 5.19 GHz, 5.230 GHz Maximum number of Senders to be linked: 8 Video Input Connectors (Sender): (2) HDMI Type A, 19-pin, female Video Output Connector (Sender): (1) HDMI Type A, 19-pin, female Video Output Connector (Receiver): (1) HDMI Type A, 19-pin, female Power Connector (Sender): (1) 3.5mm barrel-type DC jack Power Connector (Receiver): (1) USB Mini-B Operating Temperature: +32 to +104 °F (0 to +40 °C) Operating Humidity: +10 to +85%, Relative Humidity, non-condensing Storage Temperature: +14 to +140 °F (-10 to +60 °C ) Storage Humidity: +5 to +90%, Relative Humidity, non-condensing

Feature
Feature	Wireless extension of HDMI up to 100 feet (30 meters) Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby and DTS formats Transmits through obstacles - does not require line-of-sight Long Range performance makes it ideal for multi-room use IR Back Channel for source control with carrier frequency selector HDMI Features Supported: CEC 12-bit Deep Color 3DTV pass-through HDCP pass-through Lip Sync Uncompressed High Definition A/V from source to display Less than 1 frame latency AES 128 Encryption Compatible with legacy DVI displays Sender Unit: 2 HDMI Inputs Local HDMI "Mirrored" Output IR Output port and included Emitter Array for source control Ideal for use with 2 sources in a fixed home theater type installation Flexible mounting options: 1/4"-20 thread, wall mounting, shelf placement Receiver Unit: IR Extender module included for hidden installations Small and compact form factor - can be installed behind the TV Flexible mounting options: 1/4"-20 thread, wall mounting, shelf placement Handheld IR remote for easy setup and operation Firmware update via Mini-USB port using Gefen Syner-G™ software WHDI 1.0, FCC Part 15, IC, and ETSI-compliant Additional Sender units (EXT-WHD-1080P-LR-TX) available separately * Obstructions such as walls and furniture, and RF interference could reduce reception distance. This product operates in the 5 GHz RF region, and features a specific number of channels. Other 5 GHz Transmitters including WiFi Routers may be occupying the same channels and may cause reception issues. See the User Manual for recommendations to help reduce interference. * Due to different transmission power levels, mixing of EXT-WHD-1080P-SR and EXT-WHD-1080P-LR Senders is not recommended. Furthermore, GTV-WHD-1080P-SR and GTV-WHD-1080P-LR Senders are not compatible with this product.

Dimensions & Weight
Dimensions	Sender Unit: 7.2" x 1.3" x 3.9" Receiver Unit: 3.8" x 1.4" x 3.8"
Weight	Sender Unit: 0.5 lb. Receiver Unit: 0.3 lb.

Package Contents
Package Content	(1) Wireless for HDMI 5 GHz LR Sender Unit (1) Wireless for HDMI 5 GHz LR Receiver Unit (2) 5 ft. HDMI Cables (M-M) (1) 5 ft. USB to Mini USB Cable (1) 3 ft. USB to DC plug Cable (2) 5V DC Power Supplies with changeable AC plugs (1) IR Remote Control (1) IR Emitter Array Cable (1) IR Extender Module (4) Screws and Wall Anchors - for wall-mounting the Sender and Receiver (1) Quick-Start Guide
