ASRock Fatal1ty AB350 Gaming-ITX/ac AM4 DDR4 m.2 Mini-ITX Motherboard AMD B350

Note: Our motherboards are Brand New, without original packaging box and additional accessories, but in good condition, 100% working, 90 days factory warranty. The CMOS battery is not included because of the Customs Policy. Please know this before you buy, thanks!
Tips:
1. Please check the picture and DP/N to make sure that our product is exactly the same as yours before you bid.
2. If you have any pre-sale or after-sale questions please feel free to contact us, we will be happy to assist you.



Package Included:
1x Motherboard


Specification:


Exclusive features

ASRock Super Alloy

- Advanced Inductance

- Dual-N MOS

- Nichicon 12k Black Capacitor (Original Japanese High Quality High Conductive Solid Capacitor)

- Black Matte PCB

- High density moisture proof fiber circuit board

- 2 oz copper PCB board

Intel® 802.11 ac wireless networking

ASRock Alloy Socket

ASRock Ultra M. 2 (PCIe Gen3 x4 & SATA3)

ASRock Full Protection (supports all USB, audio, network interfaces)

ASRock Instant Update & App Market



CPU

- Supports AMD AM4 socket A-series APUs (Bristol Ridge) and Ryzen processors (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)

- Digitally powered



Chipset

- AMD Promontory B350



RAM

- Dual channel DDR4 memory technology

- 2 x DDR4 memory slots

- AMD Ryzen series processors (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*

- AMD Ryzen series processors (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*

- AMD 7th Generation A-series APUs support DDR4 2400 / 2133 ECC & (non-ECC), un-buffered memory*

- Maximum system memory capacity: 32GB**

- DIMM sockets feature 15µ gold plated headers



BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

- Support "Plug and Play"

- Compliant with ACPI 5.1, supports Wake Up Events

- Support jumper-free

- Support SMBIOS 2.3

- CPU, DRAM, PCH 1.05V, PROM 2.5V, voltage multi-function regulator



Onboard graphics card

- Integrated AMD Radeon HD Vega series graphics cores on Ryzen series APUs*

- Integrated AMD Radeon HD R-series graphics cores on A-series APUs*

- DirectX 12, Pixel Shader 5.0

- Shared memory defaults to 2GB. Supports up to 16GB of shared memory. **

- Supports 2 x HDMI 1.4, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

- Supports HDMI 1.4 port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (requires HDMI compatible monitor)

- Supports HDCP 1.4 via HDMI 1.4 port

- Supports 1080p Blu-ray Disc (BD) HD playback via HDMI 1.4 port

*Actual level of support depends on CPU

**To get up to 16GB of shared memory requires 32GB of system memory installed.



Sound effect

- 7.1 channel high definition audio with content protection function (Realtek ALC1220 audio codec)

- Support high quality Blu-ray sound

- Support anti-surge

- Nichicon Fine Gold Professional Audio Capacitor

- 120dB SNR D/A converter with differential amplifier

- Pure power

- Direct drive technology

- PCB isolation shield

- Automatic impedance detection for front sound effects

- Layered routing of left and right channels

- Gold plated audio jack

- Supporting the innovative future Sound Blaster Cinema 3



local area network

- Gigabit LAN 10/100/1000 Mb/s

- GigaLAN Intel® I211AT

- Support Wake-On-LAN function

- Support anti-lightning/anti-ESD static electricity

- Supports Energy Efficient Ethernet 802.3 az

- Support PXE



Wireless network card

- Intel® 802.11 ac Wireless LAN Module (included)

- Support IEEE 802.11 a/b/g/n/ac

- Supports Dual Band ( 2.4 /5 GHz)

- Supports high-speed wireless connection up to 433Mbps

- Supports Bluetooth 4.2 / 3.0 + high speed class II



Expansion slot

AMD Ryzen series processors (Matisse, Summit Ridge and Pinnacle Ridge)

- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode) (supports PCIe x16 to two PCIe x8 adapter cables when AMD Ryzen processor is installed) *

AMD 7th Generation A-Series APUs

- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*

AMD Ryzen series processors (Picasso, Raven Ridge)

- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*

AMD Athlon series processors

- 1 x PCI Express 3.0 x16 slot (PCIE1: x4 mode)*

- 1 x vertical M. 2 slot (Key E) with the included WiFi- 802.11 ac PCIe WiFi module (on rear I/O)

- VGA PCIe slot with 15µ gold plated headers (PCIE1)

*Support NVMe SSD boot



Storage

- 4 x SATA3 6.0 Gb/s ports, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug

- 1 x Super M. 2 connector, supports M Key 2280 type M. 2 SATA3 6.0 Gb/s and M. 2 PCIe modules to Gen3 x4 (32 Gb/s) (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge ) or Gen3 x2 (16 Gb/s) (A-series APUs and Athlon-series APUs)*

*Support NVMe SSD boot



Onboard interface

- 1 x LPC header

- 1 x AMD Fan LED Header*

- 1 x CPU Fan Connector ((4-pin))**

- 1 x Chassis Fan Connector ((4-pin))

- 1 x Chassis Optional/Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control) **

- 1 x 24-pin ATX power connector

- 1 x 8-pin 12V Power Connector (High Density Power Connector)

- 1 x front panel audio jack

- 1 x AMD LED Fan USB Header

- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)

*AMD Fan LED header can support up to 12V/3A (36W) and RGB LED strips up to 2.5 meters long.

**CPU fan connector supports up to 1A (12W) power supply.

***Case option / water pump fan supports up to 1.5A ( 1.8W ) water cooling fan.

CHA_FAN1/W_PUMP can auto detect 3-pin or 4-pin fan.

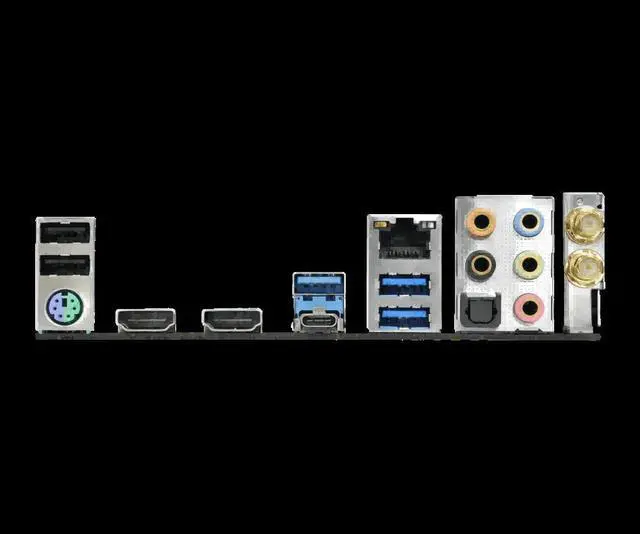

I/O port on the rear panel

- 2 x Antenna Ports

- 1 x PS/2 keyboard/mouse port

- 2 x HDMI ports

- 1 x Optical SPDIF digital audio output port

- 2 x USB 2.0 ports (supports ESD protection) *

- 1 x USB 3.1 Gen1 Type A Connector (supports ESD protection)

- 1 x USB 3.1 Gen1 Type-C port (supports ESD protection)

- 2 x USB 3.1 Gen1 ports (supports ESD protection)

- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)

- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic (gold plated audio jack)

*1 x includes a dedicate
