2nd Generation PCIe 4.0x4 Controller
The 2nd generation PCIe 4.0 controller PS5018-E18 delivers sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
+ PCIe 4.0x4, NVMe 1.4 Interface
+ DDR4 DRAM cache
+ 8 CH with 32 CEs
+ Phison 4th Gen LDPC & RAID ECC
+ Support AES-256 Encryption
+ Thermal Throttle Protection
NAND Flash Selected for High Quality and Performance
Selected High Speed 3D TLC NAND Flash (1200MT/s)
The 3D TLC NAND Flash(96L) is operating at 1200MT/s, which is 50 % more than the prevision version that leads to better performance.
Xtreme Storage Performance
With 2nd generation PCIe 4.0 controller E18, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother gaming, streaming, and graphics intensive rendering.
Sequential Read Speed
Sequential Write Speed
Optimized Aluminum Heat Spreaders with Nanocarbon Coating for 20% Cooler
Challenged passive cooling maximizes surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad, it ensures heat will be effectively transferred to the heatsink. The 7mm height heatsink is compatible with all M.2 slots including the ones under graphics card.
Efficient Heat Spreader Design
Compared with regular heat spreader, the new highly efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS 7000s Gen4 SSD runs 5 times longer at 7GB/s. Enjoy the smoother & upgraded storage performance.
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7000s SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can run at extreme performance longer.
* The test result is based on internal testing for reference onl, actual performance may vary underdifferent circumstances.

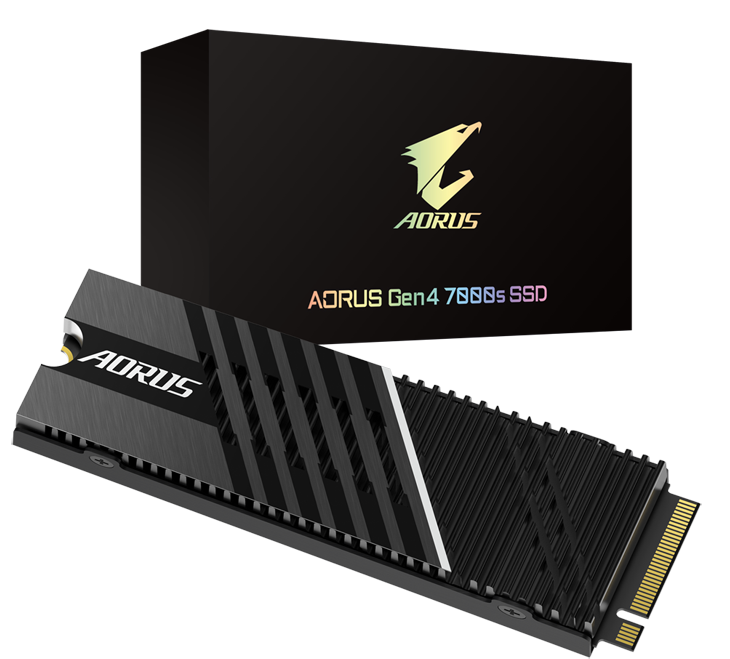

AORUS Gen4 7000s SSD meets SSD expansion requirements of PS5
AORUS Gen4 7000s SSD meets the required performance and dimensions of PS5 M.2 SSD.
According to the expansion requirements of PS5, SSD Sequential read speed needs to be up to 5,500MB/s. However, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, which is better than regular Gen4 SSDs.
Adopting Aluminum Heat Spreaders with Nanocarbon Coating, AORUS Gen4 7000s SSD improves thermal dissipation and helps to prevent throttling.
Looking for the best partner for your PS5? Enjoy the thrilling gaming experience by applying AORUS Gen4 7000s SSD into your PS5 to expand capacity.
* Read speed test result by PS5 M.2 evaluating process.
SSD Tool Box
The newly updated SSD Tool Box is a utility that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function.
SSD tool box function may vary by model.
|Capacity*||Model||Sequential Read MB/s**||Sequential Write MB/s**||Random Read IOPS**||Random Write IOPS**|
|1000GB||AORUS Gen4 7000s SSD 1TB
|7000 MB/s||5500 MB/s||350k||700k|
|2000GB||AORUS Gen4 7000s SSD 2TB
|7000 MB/s||6850 MB/s||650k||700k|
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.4
- Total Capacity: 1000GB*
- Sequential Read Speed: up to 7000 MB/s**
- Sequential Write speed: up to 5500 MB/s**
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- AES-256 Supported
- Highly Efficient Heat Spreader with Nanocarbon Coating
* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.
