Learn more about the GIGABYTE A620M GAMING X
Model
Brand
GIGABYTE
Model
A620M GAMING X
Supported CPU
CPU Socket Type
AM5
CPU Type
Ryzen 7000 Series
Chipsets
Chipset
AMD A620
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Memory Feature
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
SATA RAID
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Max LAN Speed
1Gbps
Rear Panel Ports

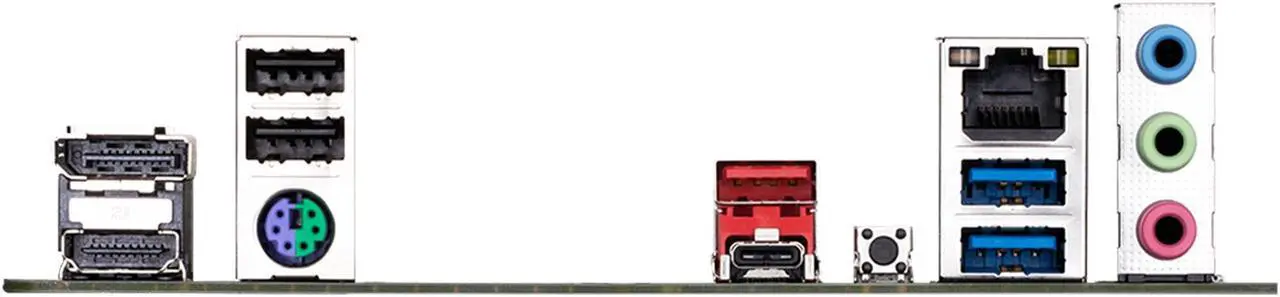

Back I/O Ports
1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
Internal I/O Connectors
Onboard USB
1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors
1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Software Feature
Windows 11
Supported
Features
Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Additional Information
First Listed on Newegg
May 19, 2024
