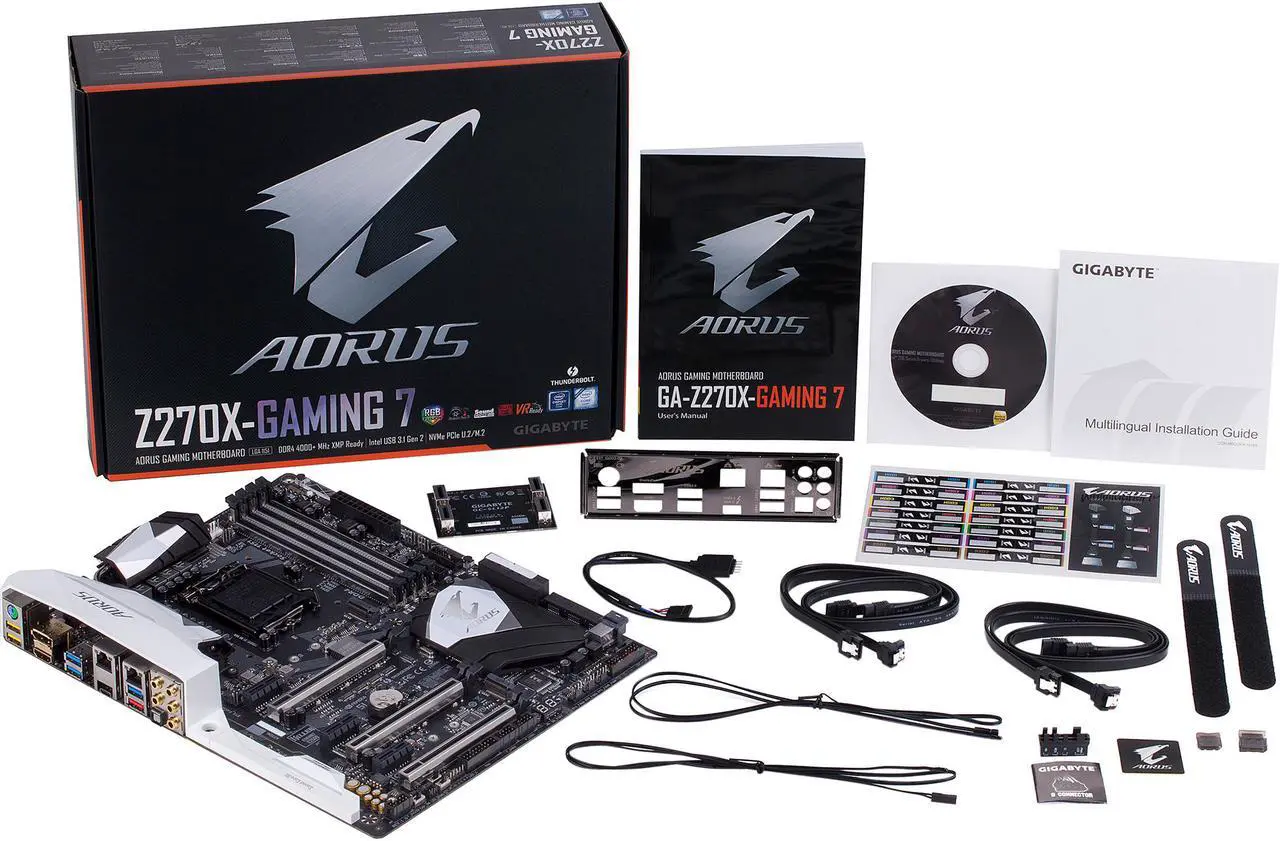

Images from RETAIL item, box contents may vary.

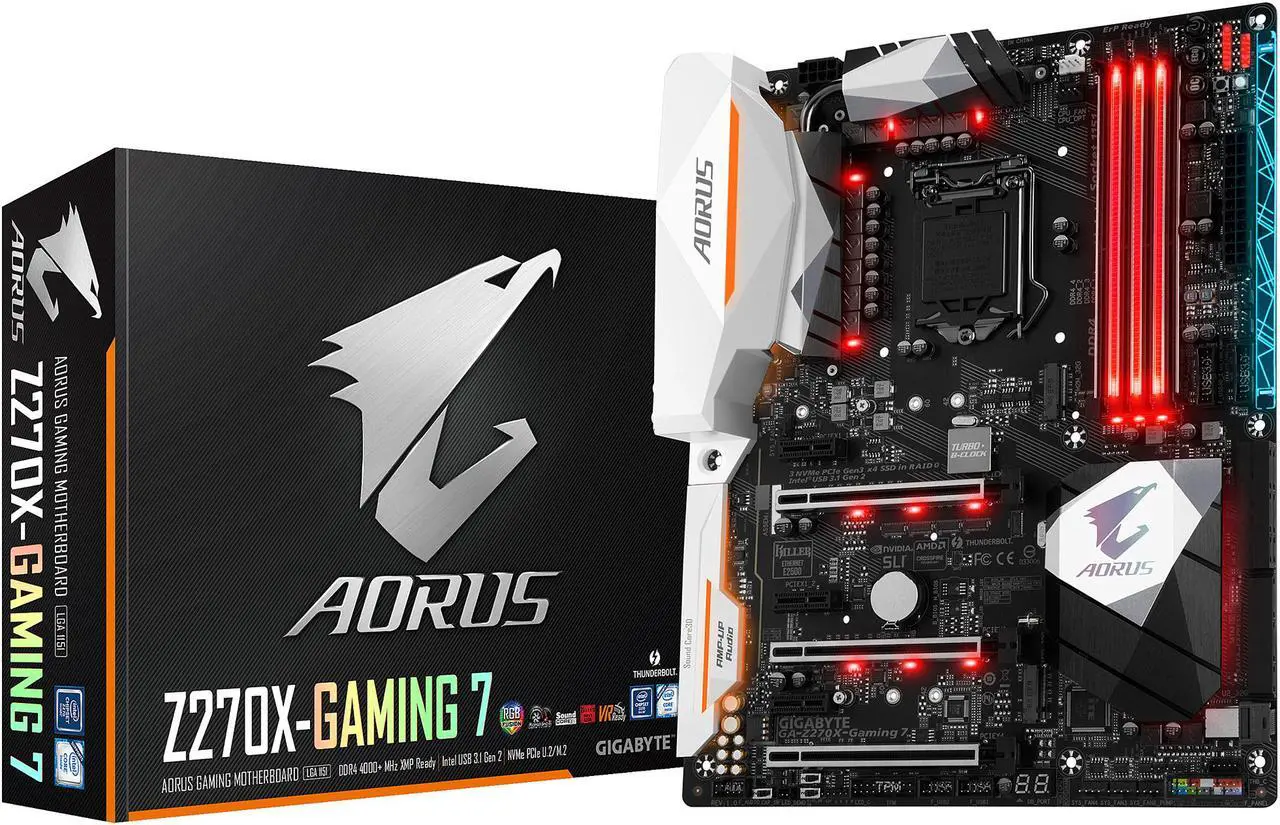

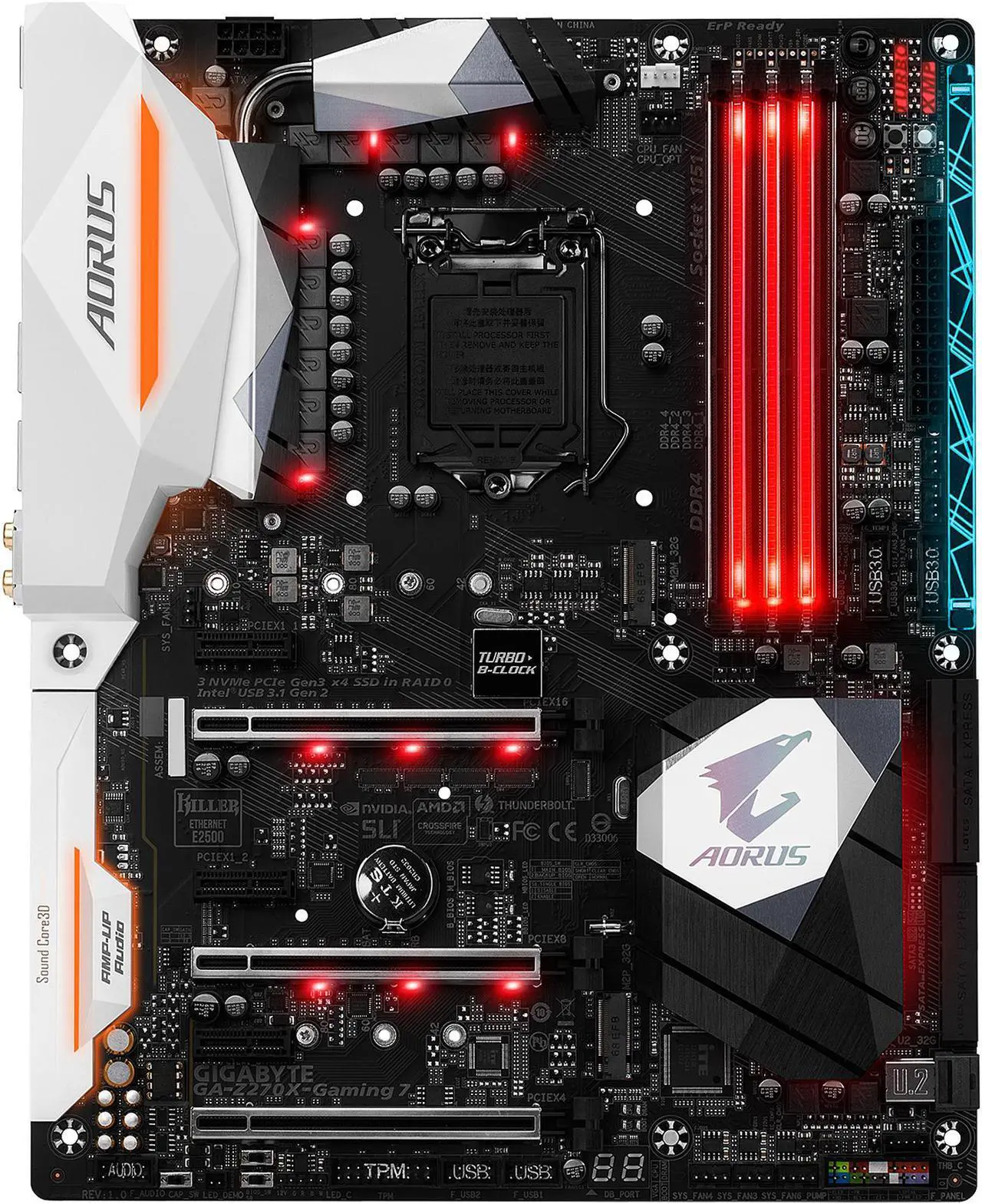

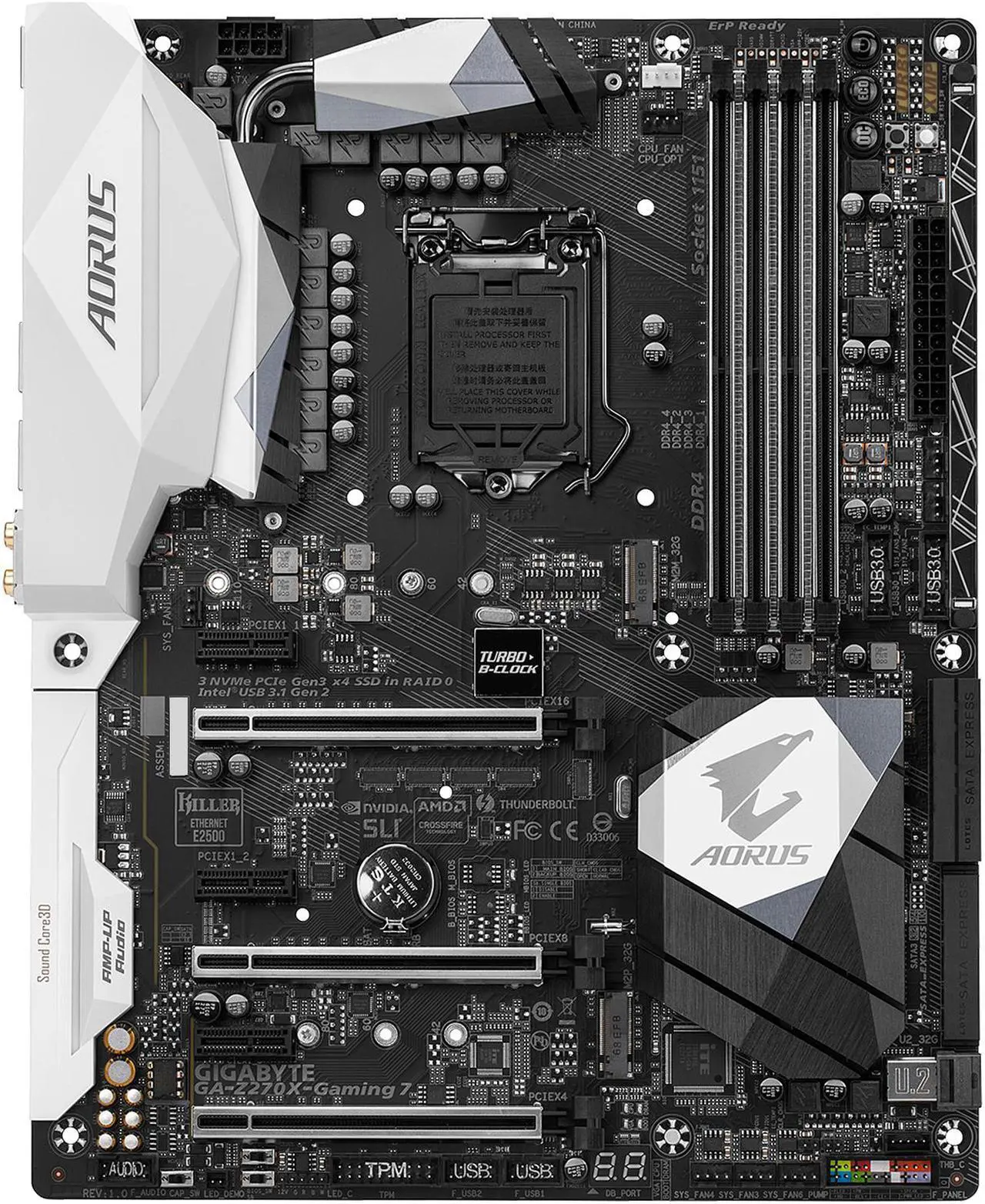

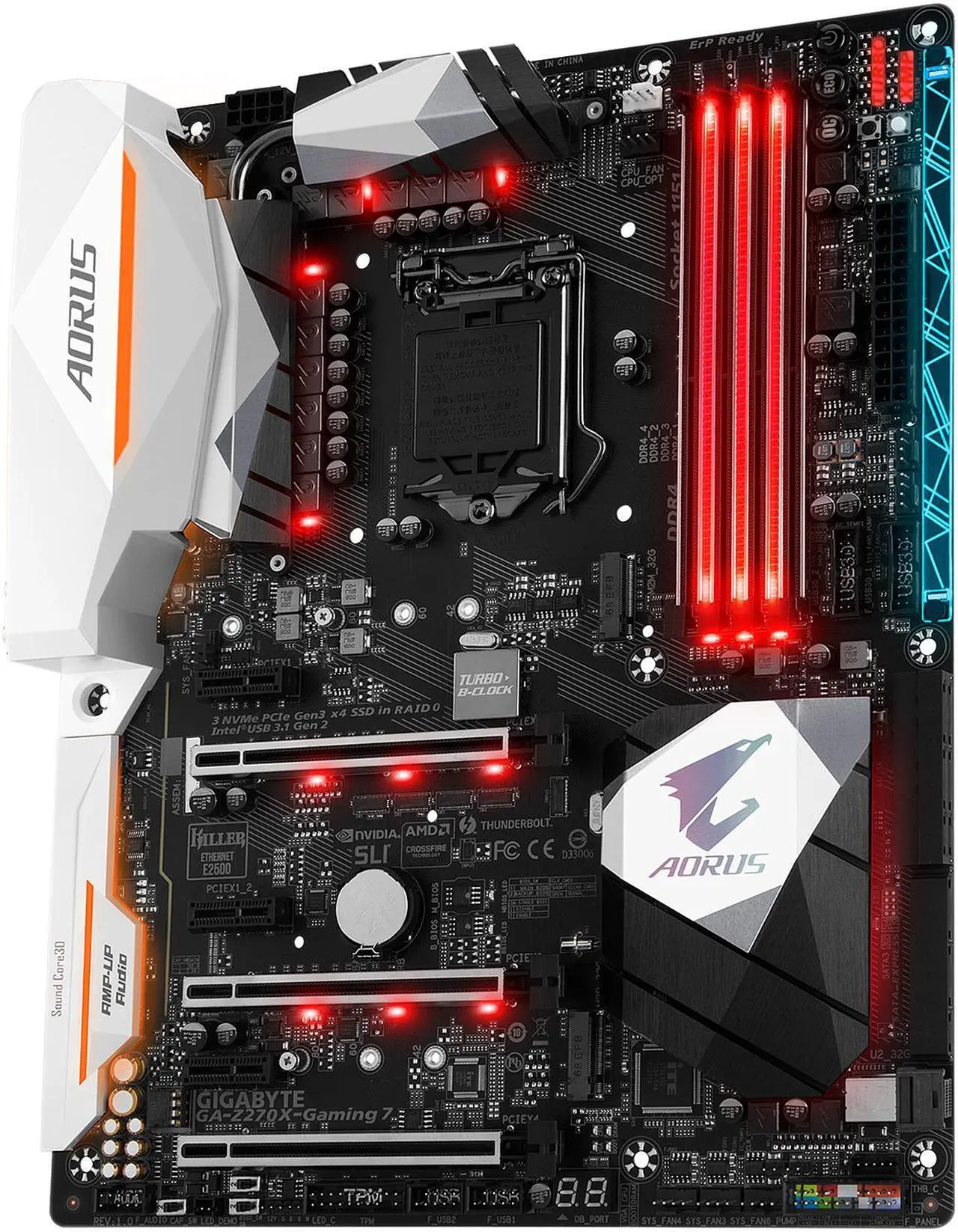

GIGABYTE AORUS GA-Z270X-Gaming 7 (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 ATX Motherboards - Intel
OPEN BOX Product Type
- Intel Z270
- Support for 7th and 6th generation Intel Core i7/i5/i3 processors/ Intel Pentium/Celeron processors in the LGA1151 package
- * Please refer GIGABYTE "CPU Support List" for more information.
- DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Specs
Learn more about the GIGABYTE GA-Z270X-Gaming 7 (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Series | AORUS |
| Model | GA-Z270X-Gaming 7 (rev. 1.0) |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Support for 7th and 6th generation Intel Core i7/i5/i3 processors/ Intel Pentium/Celeron processors in the LGA1151 package * Please refer GIGABYTE "CPU Support List" for more information. |
| Supported CPU Technologies | * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel Z270 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 1 x Intel Thunderbolt 3 connector, supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. * Support for DisplayPort 1.2 version. Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz * Support for DisplayPort 1.2 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1GB |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when an SSD is installed in the M2P_32G connector. |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 slots * The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. The SATA3 1 connector becomes unavailable when the PCIEX1_3 is populated. (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA Express | 3 x SATA Express connectors |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 1 x U.2 connector |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Creative Sound Core 3D chip |
|---|---|
| Audio Channels | 2/5.1-channel |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Second LAN Chipset | Killer E2500 |
| Max LAN Speed | 2 x 1Gbps |

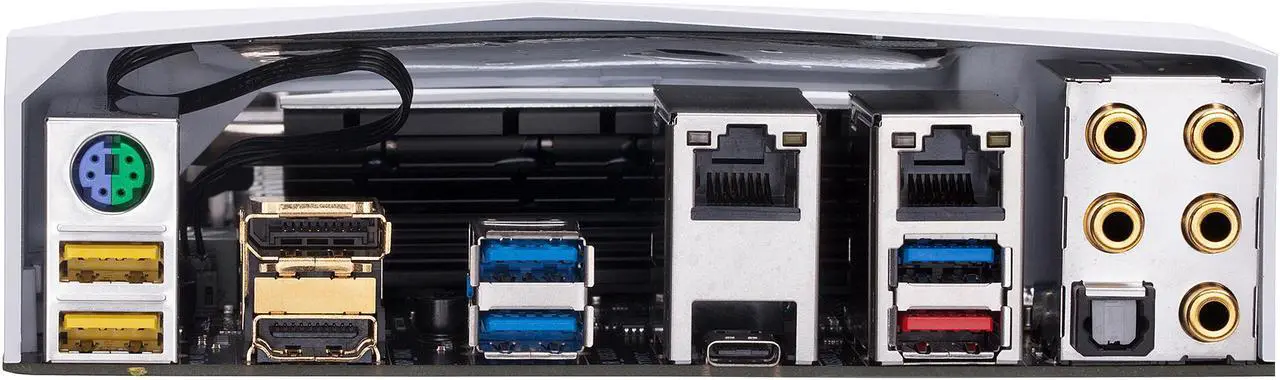

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x Thunderbolt 3 / 6 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| RJ45 | 2 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| Thunderbolt Ports | 1 x Thunderbolt 3 connector (USB Type-C port, with USB 3.1 Gen 2 support) |
| USB 3.1 | 1 x USB 3.1 Gen 2 Type-A port (red) 5 x USB 3.1 Gen 1 ports |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone) |
| Onboard USB | 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header 1 x RGB (RGBW) LED strip extension cable header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x ECO button 1 x OC button 1 x audio gain control switch Voltage Measurement Points 2 x BIOS switches |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology - Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies - Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies I/O Controller - iTE I/O Controller Chip Hardware Monitor - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS - 2 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner - Support for 3TB+ Unlock - Support for Q-Flash - Support for Xpress Install Bundled Software - Norton Internet Security (OEM version) - Intel Optane Memory Ready Operating System - Support for Windows 10/8.1 64-bit - Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
|---|
| Date First Available | July 18, 2017 |
|---|
