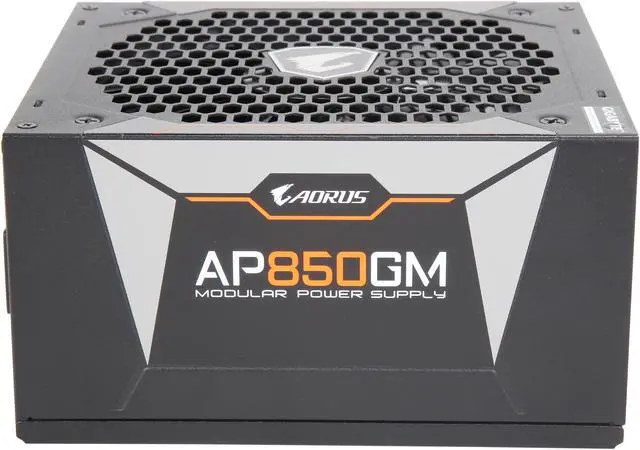

GIGABYTE AORUS P850W GP-AP850GM 850 W ATX 12V v2.31 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
- ATX 12V v2.31
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50 - 60 Hz
- +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected]
+
+
Specs
Reviews (1)
Learn more about the GIGABYTE GP-AP850GM
| Brand | GIGABYTE |
|---|---|
| Series | AORUS P850W |
| Model | GP-AP850GM |
| Type | ATX 12V v2.31 |
|---|---|
| Maximum Power | 850 W |

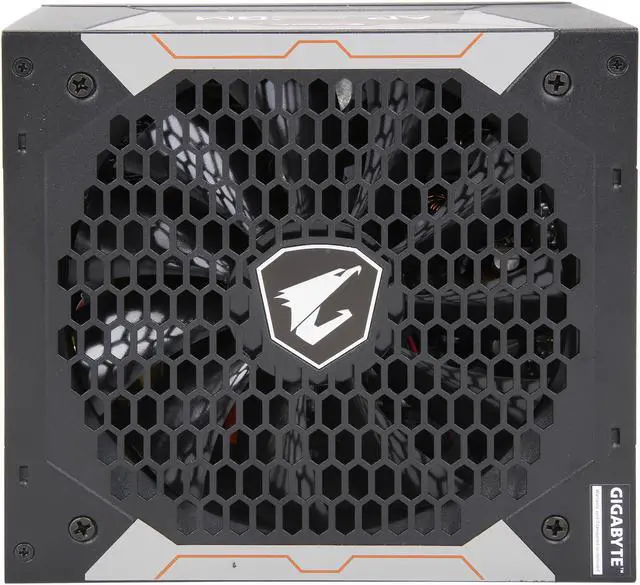

| Fans | 1 x 135mm Double ball bearing fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16m sec at full load (115V) |
| Efficiency | 90% at typical load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | OVP / OPP / SCP / UVP / OCP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50 - 60 Hz |
| Input Current | 12A - 6A |

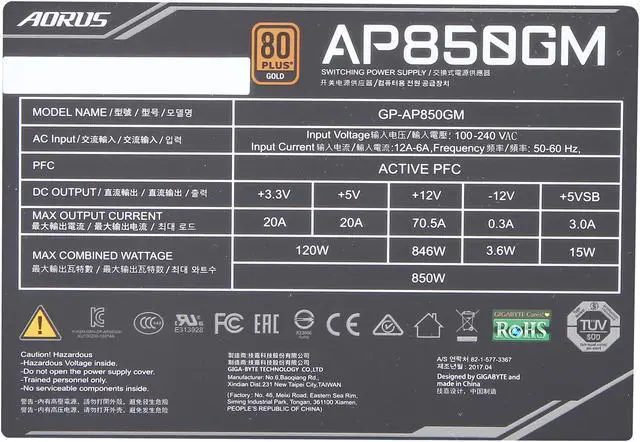

| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
| MTBF | >100,000 Hours |

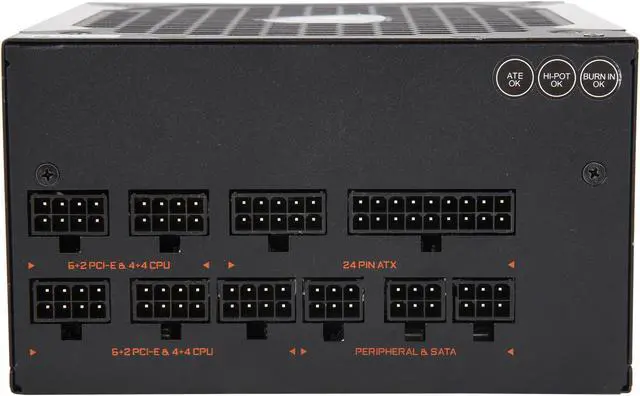

| Connectors | 1 x ATX/MB 20+4 Pin 2 x CPU/EPS 4+4 Pin 6 x PCI-e 6+2 Pin 6 x SATA 5 x 4 Pin Peripheral 2 x 4 Pin Floppy |
| Features | Fully Modular Design High quality 100% Japanese Capacitors 135mm 2 ball bearing smart fan with fan stop function 80 PLUS Gold certified: above 90% efficiency at 50% load Single +12V rail OCP/OTP/OVP/OPP/UVP/SCP protection 10 years warranty (Adjusted according to different regions) |
|---|
| Dimensions | 3.39" x 5.91" x 6.30" |
|---|
| First Listed on Newegg | June 02, 2025 |
|---|
