What connectivity features does this motherboard include for fast networking and expansion?

It includes one PCIe 5.0 x16 slot with reinforced PCIe UD armor, four M.2 slots, USB4, WIFI7, 5GbE LAN, and Bluetooth 5.4.

Which AMD processors is this motherboard designed to support?

It is ready to support AMD Ryzen 9000, 8000, and 7000 Series processors on the AMD Socket AM5 platform.

$249^.99

Free 30-day Returns

Limit 99999 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

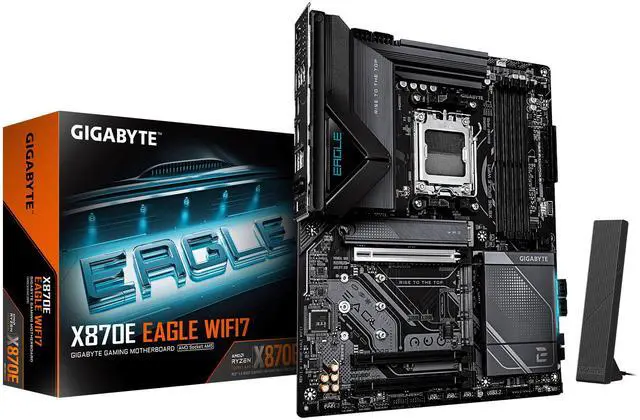

Main image of GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 2 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 3 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 4 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 5 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 6 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 7 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 8 of 8 - GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Shop All GIGABYTE Products

GIGABYTE X870E EAGLE WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch, 5-Year Warranty

Be the first to review this product...

AMD Socket AM5: Ready to support AMD Ryzen 9000/8000/7000 Series Processors.
Enhanced Power Solution: Digital Twin 16+2+2 Power Phase with premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
Boost Your Memory Performance: Compatible with DDR5 Memory and supports 4 DIMMs with AMD EXPO Memory Module Support.
Comprehensive Connectivity: 1x PCIe 5.0 x16 slot with reinforced PCIe UD armor, 4x M.2 slots, USB4.
Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 5GbE LAN, and Bluetooth 5.4.

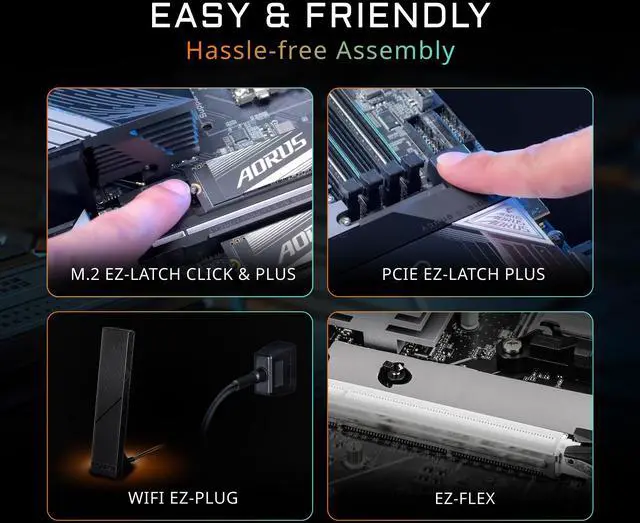

DIY Friendly Design: Smooth building experience with a suite of easy building features, such as PCIe EZ-Latch Plus for single-click release design for GPU, M.2 EZ-Latch Click & Plus for screwless installation of M.2 heatsink and SSD, and WIFI EZ-Plug for quick installation of the WIFI antenna.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Q-Flash Plus: Effortlessly upgrade your BIOS without installing CPU, RAM, or GPU.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	GIGABYTE

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series

Chipsets
Chipset	AMD X870E
South Bridge	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4400
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	0 x PCI Express 2.0 x16
PCI Express x16	3 x PCI Express x16
PCI Express x4	1 x PCI Express x4

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	AMD Radeon Graphics

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 5GbE
Max LAN Speed	5Gbps
Wireless LAN	WiFi IEEE 802.11 a / b / g / n / ac / ax / be
Bluetooth	Yes

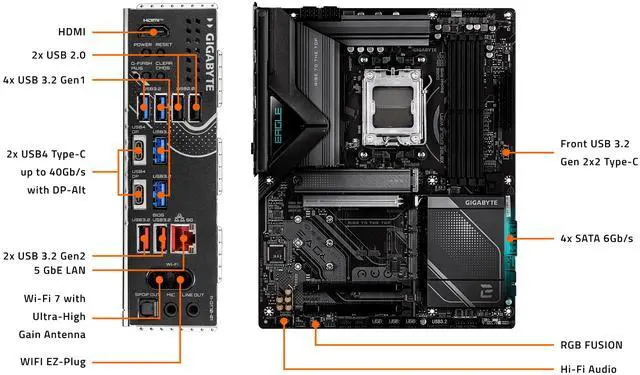

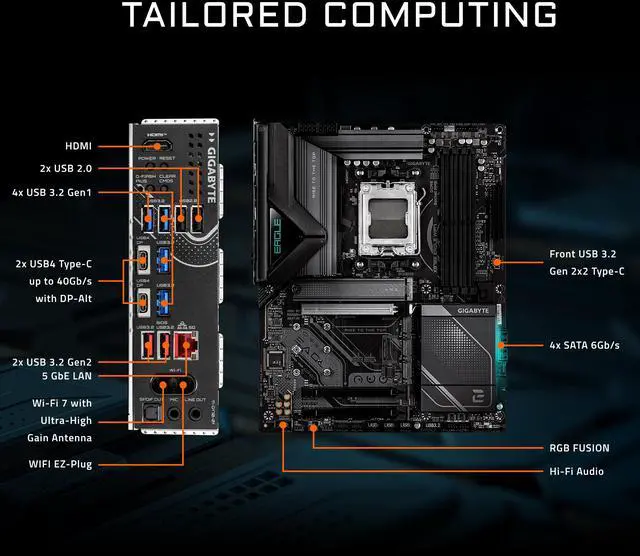

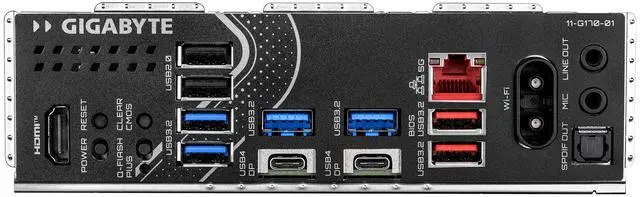

Rear Panel Ports
Video Ports	HDMI + 2 x USB Type-C
S-Video	No
HDMI	1 x HDMI port
RJ45	1 x RJ45
DisplayPort	2 x DisplayPort
USB 3.1	10 x USB 3.1
USB 3.0	8 x USB 3.0
USB 1.1/2.0	8 x USB 2.0/1.1 ports
USB Type-C	2 x USB4 USB Type-C® ports, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
S/PDIF Out	1 x Optical
Game/MIDI Ports	0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 + 3 x USB 2.0

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	30.5cm x 24.4cm
Power Pin	24 Pin

Software Feature
Windows 11	Supported
