Would this work with the rx 9060xt and a i7 8700K

Yes, the GIGABYTE B365 HD3 motherboard supports 8th generation Intel Core i7 processors, including the i7 8700K, and has PCI Express slots compatible with graphics cards like the RX 9060 XT.

is this motherboard cpu overclock capable with power delivery?

The provided product information does not indicate that this motherboard supports CPU overclocking or specific power delivery features related to overclocking. Therefore, it is likely not designed for CPU overclocking.

$230^.31

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Speed Electronics

4.2 (34 seller ratings)

Shipped by Speed Electronics

Best Sellers

ZunTuUa

5 (1 total rating)

+ $29.99 Shipping

Meet Your Seller

Speed Electronics

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

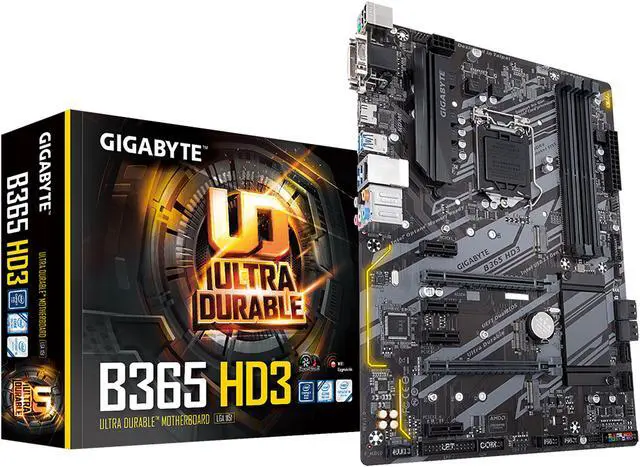

Main image of GIGABYTE B365 HD3 LGA 1151 (300 Series) Intel B365 ATX Intel Motherboard

Alt view image 2 of 4 - GIGABYTE B365 HD3 LGA 1151 (300 Series) Intel B365 ATX Intel Motherboard

Alt view image 3 of 4 - GIGABYTE B365 HD3 LGA 1151 (300 Series) Intel B365 ATX Intel Motherboard

Alt view image 4 of 4 - GIGABYTE B365 HD3 LGA 1151 (300 Series) Intel B365 ATX Intel Motherboard

Customer images

Shop All GIGABYTE Products | Visit Speed Electronics Store

GIGABYTE B365 HD3 LGA 1151 (300 Series) Intel B365 ATX Intel Motherboard

(12)(2) Write a Review

Intel B365
Support for 9th and 8th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1151 package
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (12)

See all Q & A

Model
Brand	GIGABYTE
Model	B365 HD3

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Support for 9th and 8th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs

Chipsets
Chipset	Intel B365

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1GB Actual support may vary by CPU

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Other Slots	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 8.9"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility Operating System: Support for Windows 10 64-bit
