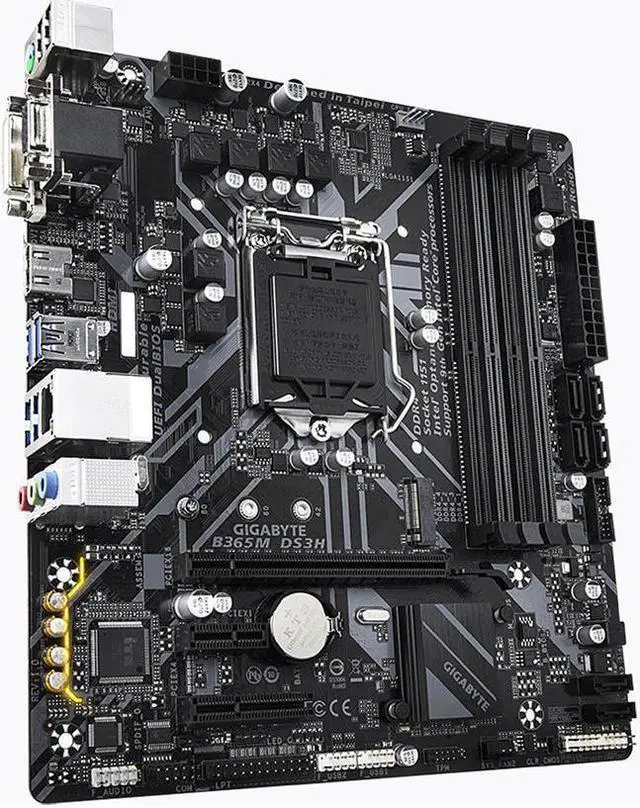

Main image of GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

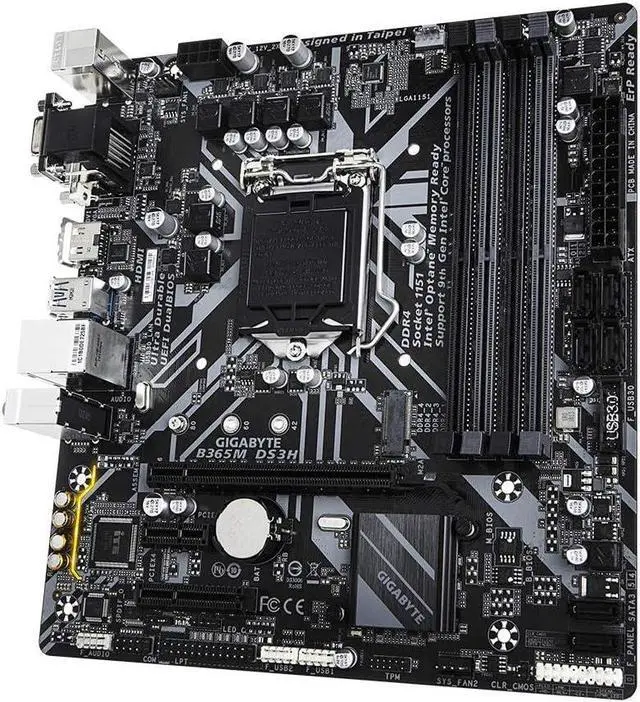

Alt view image 2 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

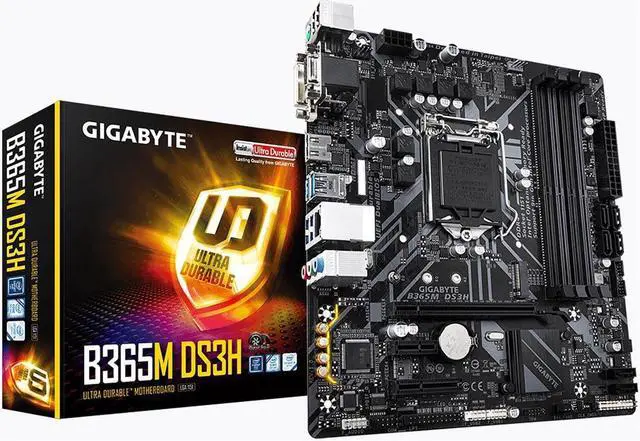

Alt view image 3 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

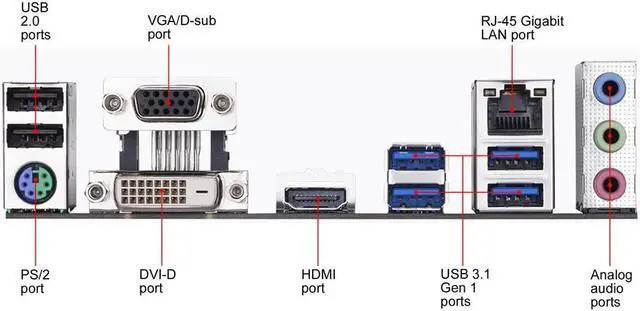

Alt view image 4 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

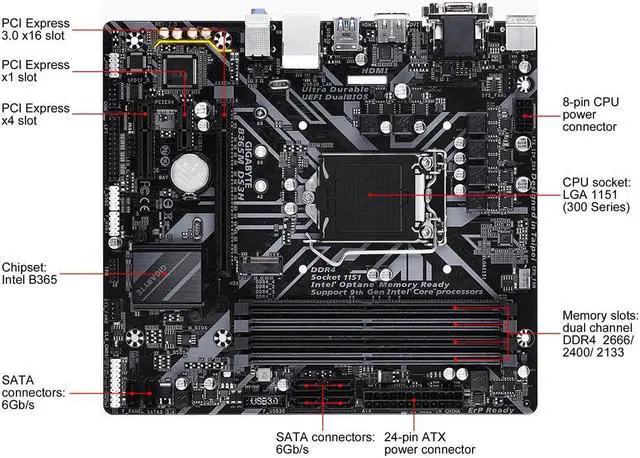

Alt view image 5 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

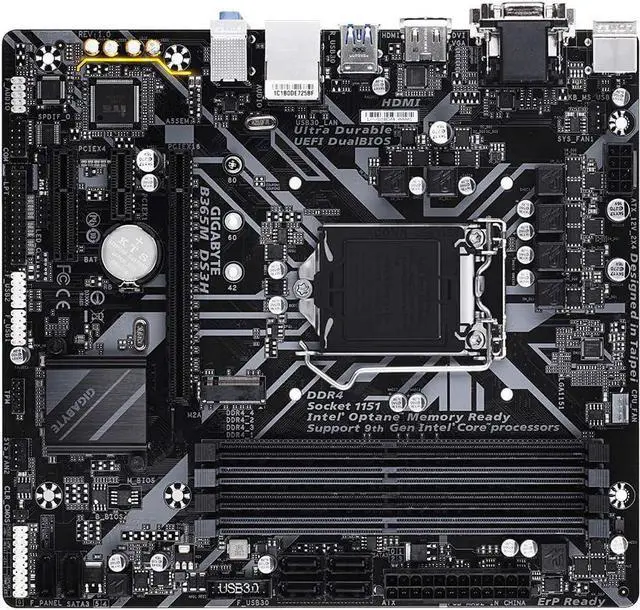

Alt view image 6 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

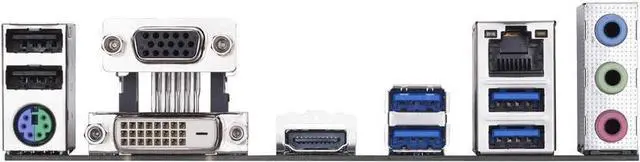

Alt view image 7 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 8 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 9 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 10 of 10 - GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit C.N.E Technology Store

GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

REFURBISHED

Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
RGB FUSION supports RGB LED strips in 7 colors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design
Ultra Durable 15KV Surge LAN Protection
Intel Optane Memory Ready
GIGABYTE UEFI DualBIOS

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 9th and 8th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4 New Hybrid Digital PWM Design High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M. 2 with PCIe Gen3 X4 & SATA interface RGB FUSION supports RGB LED strips in 7 colors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management CEC 2019 Ready, Save the Power as Easy as One Click Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Ultra Durable 15KV Surge LAN Protection Intel Optane Memory Ready GIGABYTE UEFI DualBIOS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by C.N.E Technology Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Support for 9th and 8th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel Core i9/i7/i5 processor.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x4	1 x PCI Express x4 slot
PCI Express x1	1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

Best Sellers

Meet Your Seller

GIGABYTE B365M DS3H LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Refurbished

Learn more about the GIGABYTE B365M DS3H

Customer Reviews of the GIGABYTE B365M DS3H

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	8.9" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps
