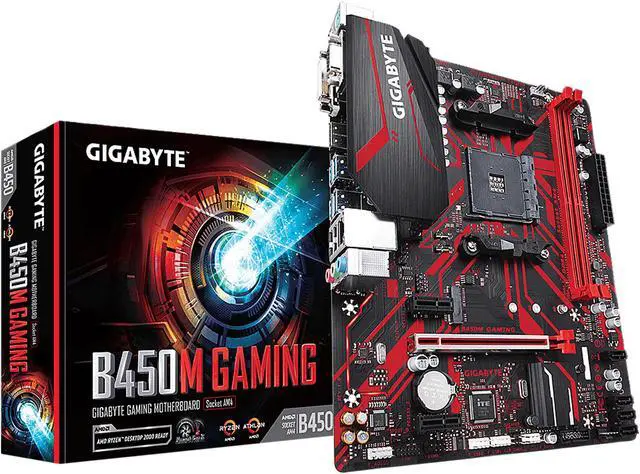

Learn more about the GIGABYTE B450M GAMING
Model
Brand
GIGABYTE
Model
B450M GAMING

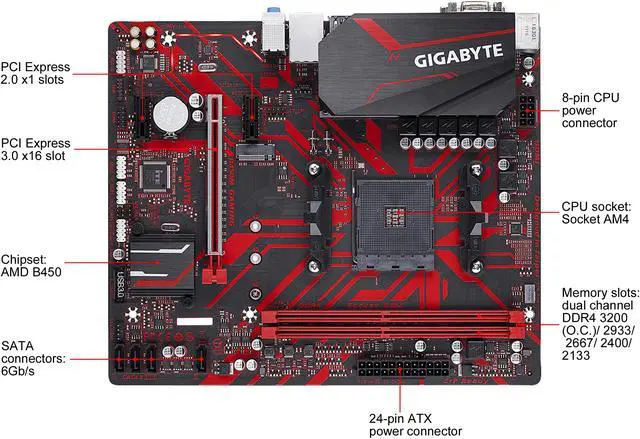

Supported CPU
CPU Socket Type
AM4
CPU Type
AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
Chipsets
Chipset
AMD B450
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1
2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon processor.
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU.
Maximum shared memory of 2GB
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Onboard LAN
LAN Chipset
Realtek GbE LAN chip
Max LAN Speed
1Gbps

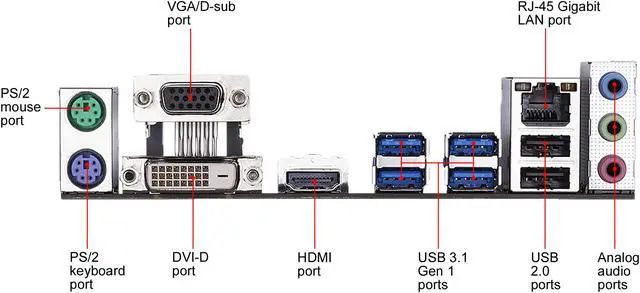

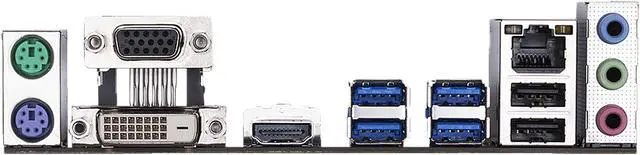

Rear Panel Ports
Back I/O Ports
1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
PS/2
1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports
1 x D-Sub port 1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1 Gen 1 ports
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip / RGB LED strip header 1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB

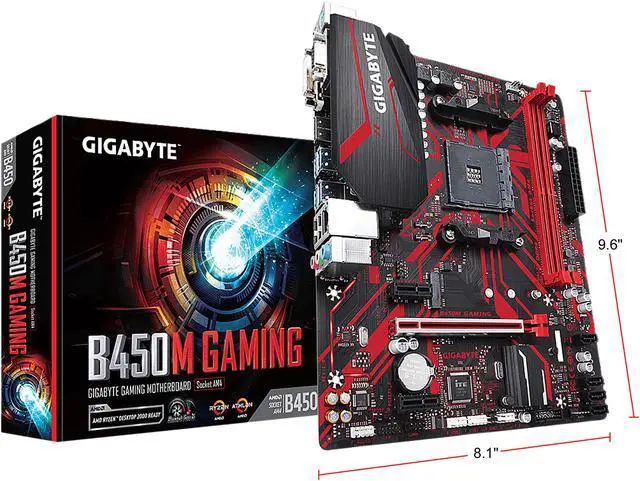

Dimensions (W x L)
9.6" x 8.1"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System: Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Additional Information
First Listed on Newegg
January 14, 2022
