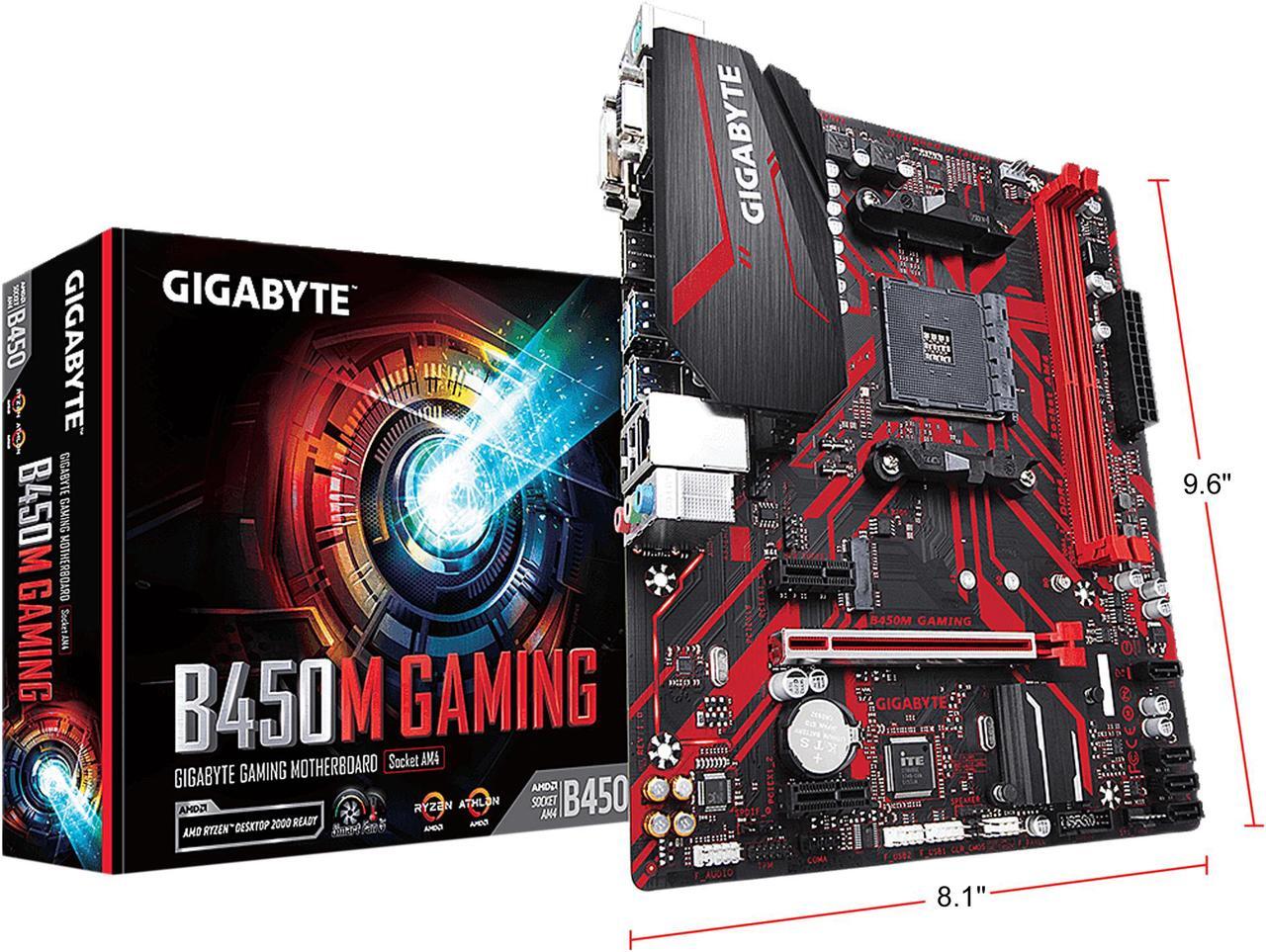

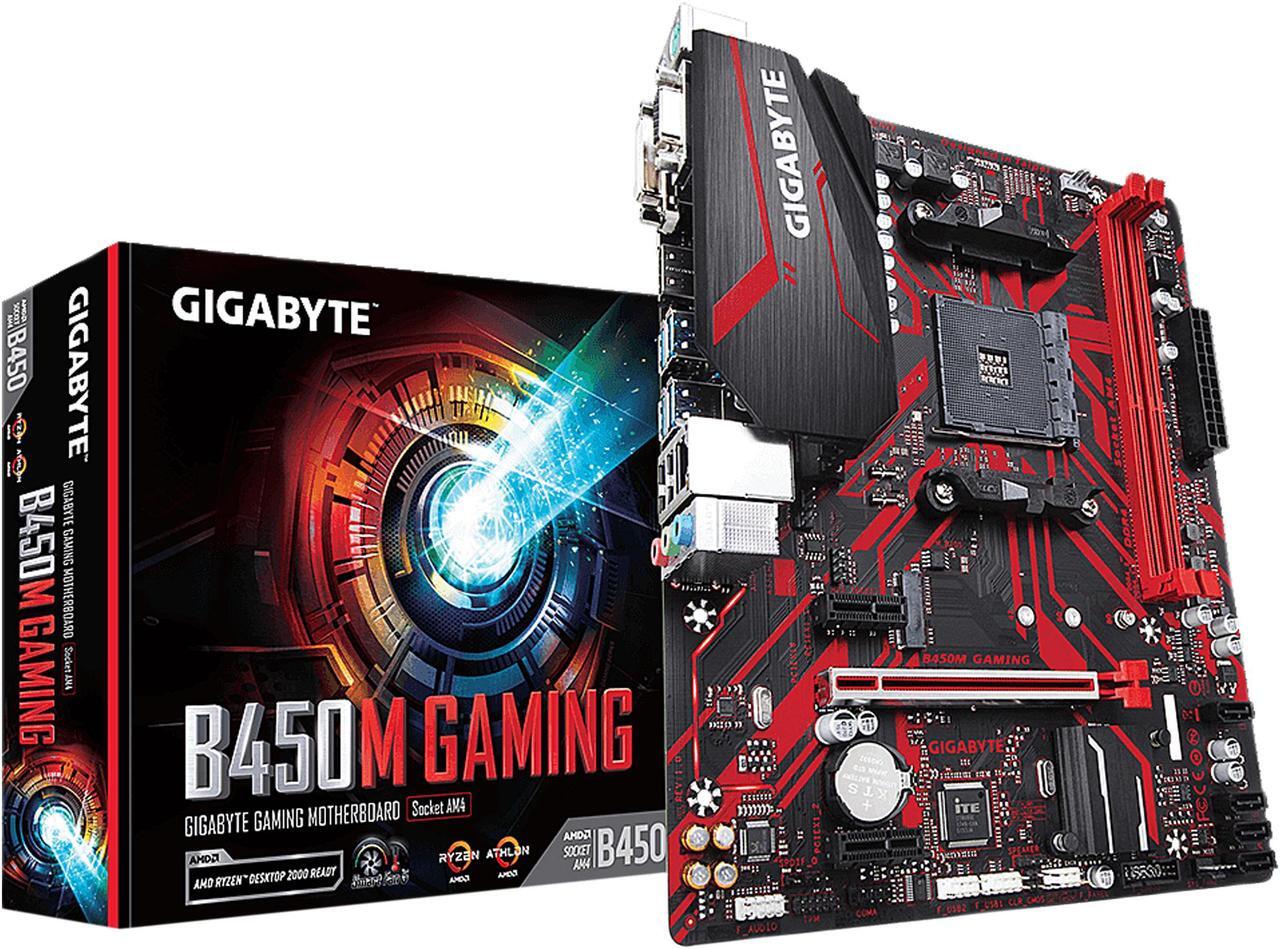

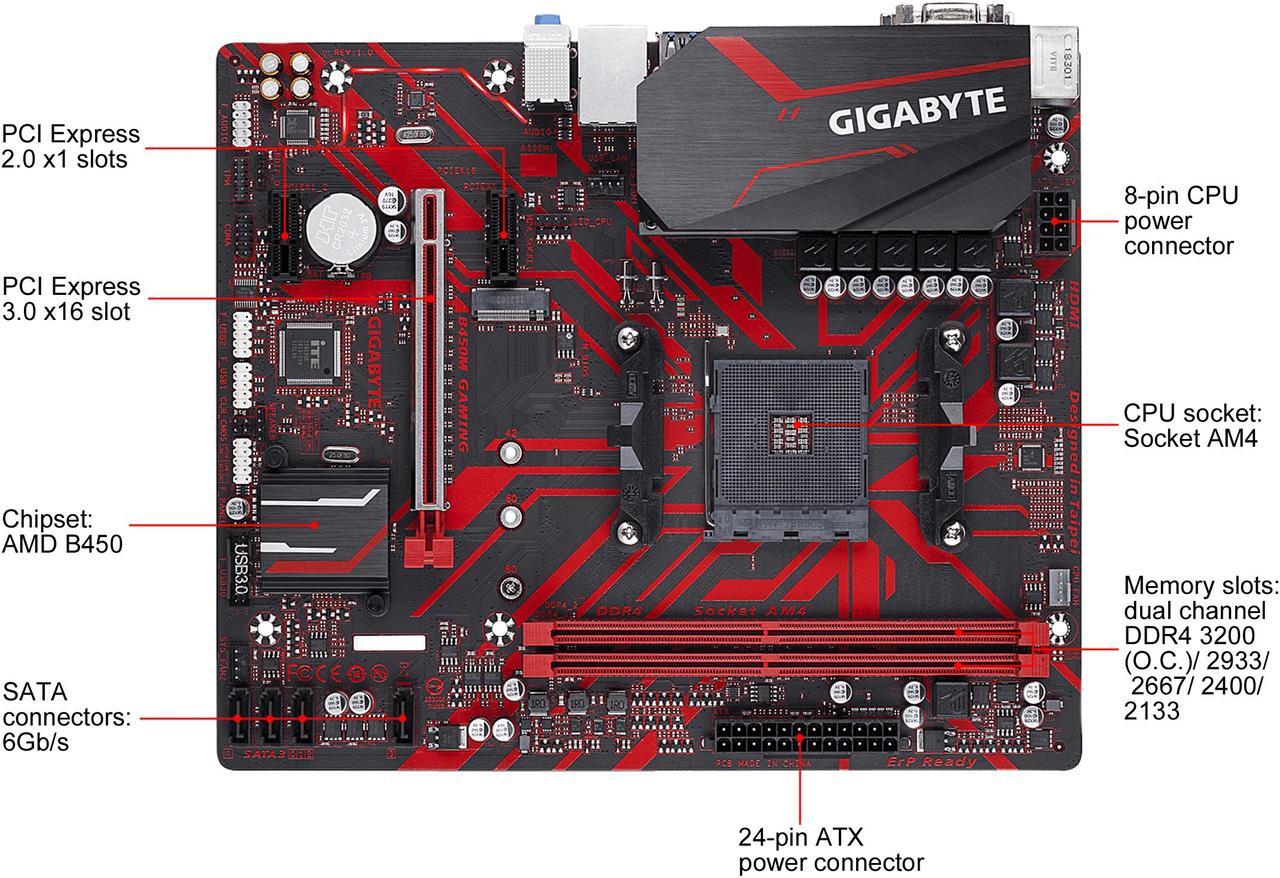

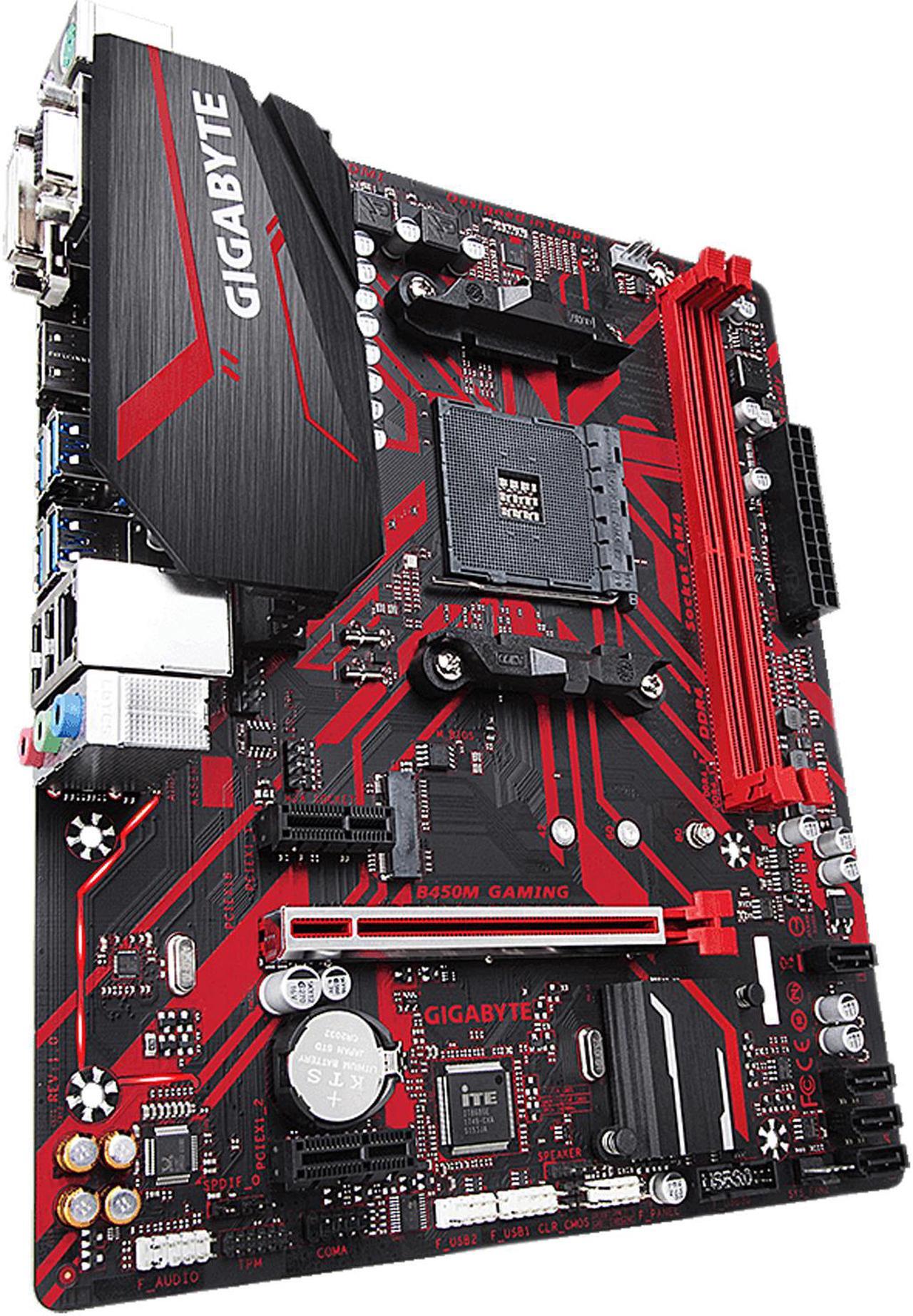

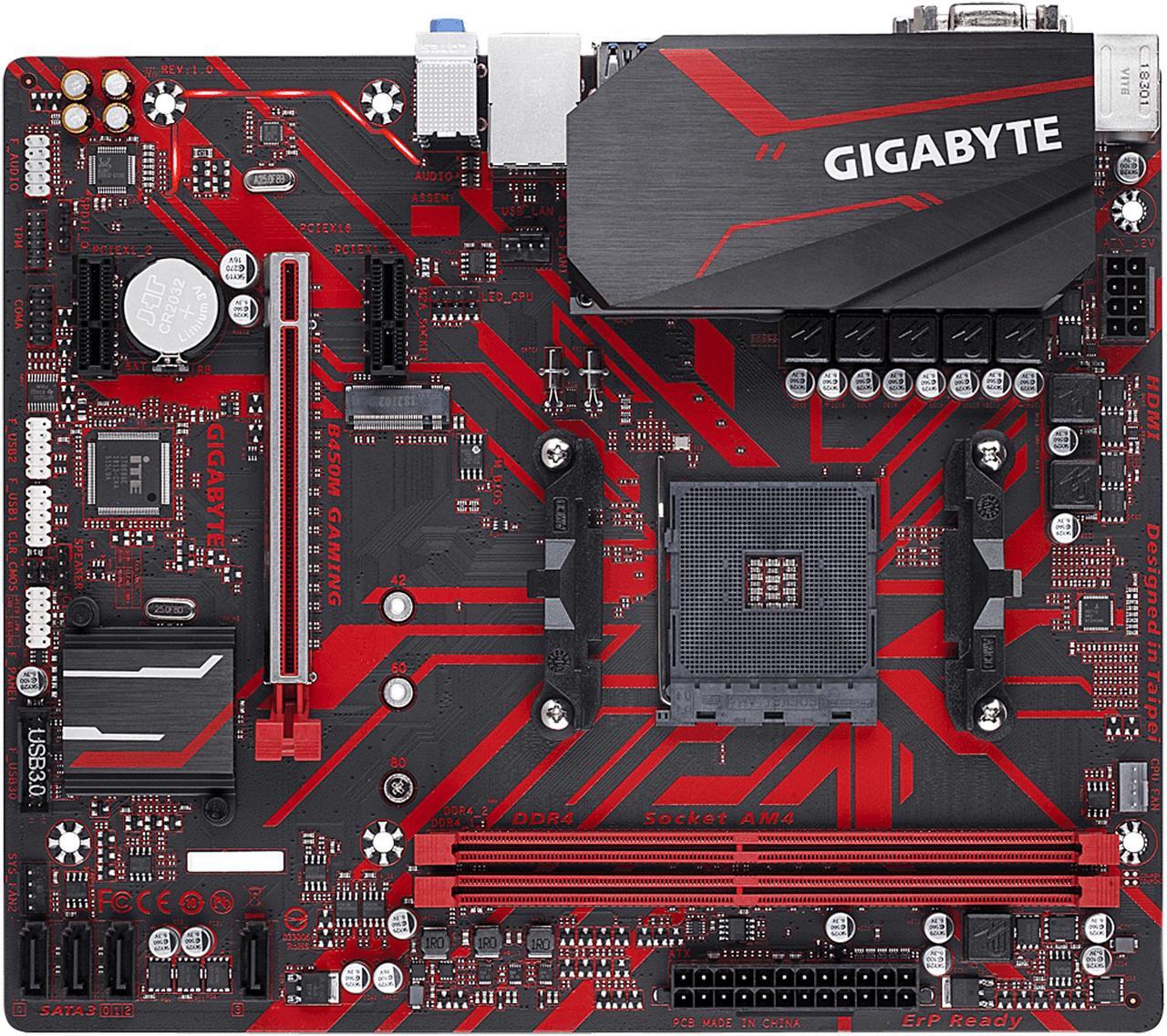

    GIGABYTE B450M GAMING AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD B450
    • AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
    • DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE B450M GAMING

    Model
    Brand GIGABYTE
    Model B450M GAMING
    Supported CPU
    CPU Socket Type AM4
    CPU Type AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
    Chipsets
    Chipset AMD B450
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    PCI Express x1 2 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
    * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon processor.
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
    * Support for HDMI 2.0 version and HDCP 2.2.
    * Actual support may vary by CPU.

    Maximum shared memory of 2GB
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Support for S/PDIF Out
    Onboard LAN
    LAN Chipset Realtek GbE LAN chip
    Max LAN Speed 1Gbps

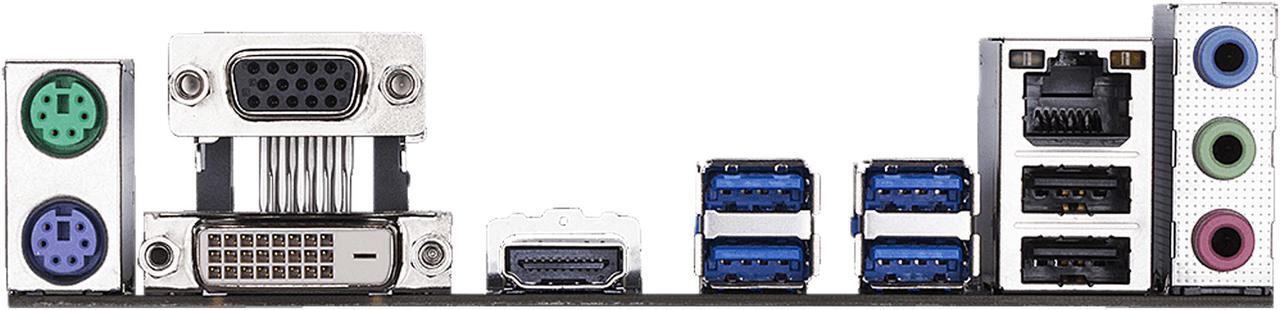

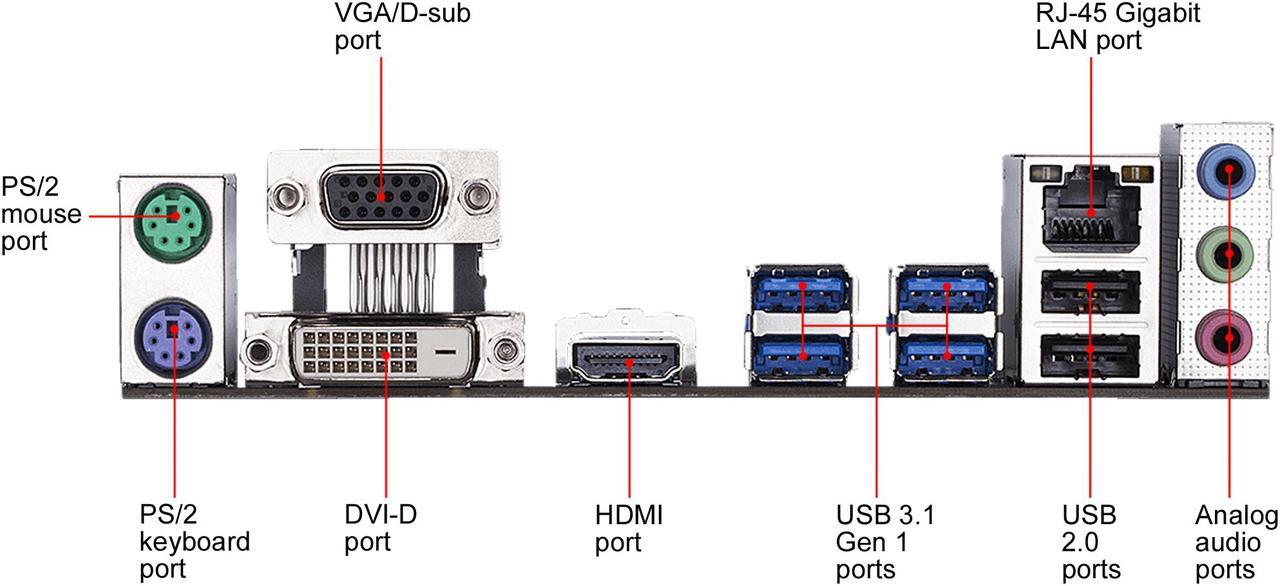

    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
    PS/2 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    Video Ports 1 x D-Sub port
    1 x DVI-D port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.1 4 x USB 3.1 Gen 1 ports
    USB 1.1/2.0 2 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    2 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x CPU cooler LED strip / RGB LED strip header
    1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)
    1 x speaker header
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Physical Spec
    Form Factor Micro ATX
    LED Lighting RGB
    Dimensions (W x L) 9.6" x 8.1"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features I/O Controller:
    iTE I/O Controller Chip

    H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS:
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software:
    Norton Internet Security (OEM version)
    Realtek 8118 Gaming LAN Bandwidth Control Utility

    Operating System:
    Support for Windows 10 64-bit
    Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
