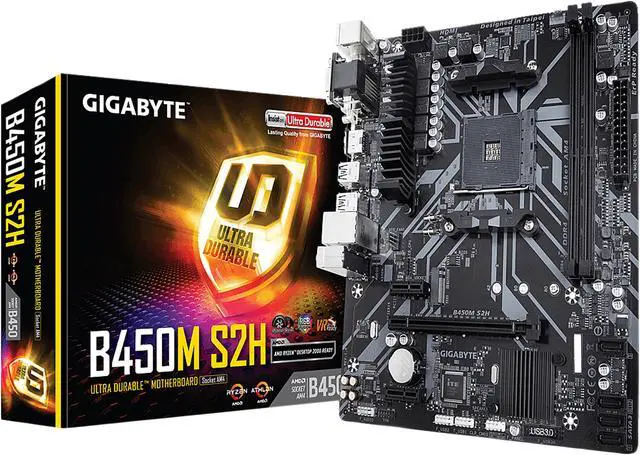

Main image of GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 2 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 3 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 4 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 5 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 6 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 7 of 7 - GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Shop All GIGABYTE Products | Visit ZunTuUa Store

GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

AMD B450
AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by ZunTuUa Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

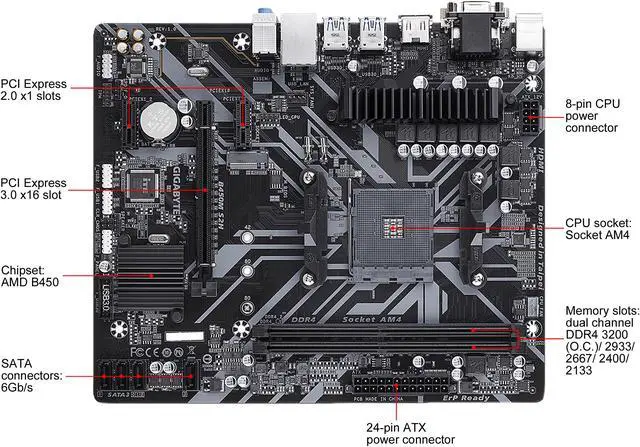

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon 200-series / 7th Generation A-series or Athlon APU.
SATA RAID	0/1/10

Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Best Sellers

Meet Your Seller

GIGABYTE B450M S2H AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

Learn more about the GIGABYTE B450M S2H

Customer Reviews of the GIGABYTE B450M S2H

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

CPU Socket Type	AM4
CPU Type	AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors

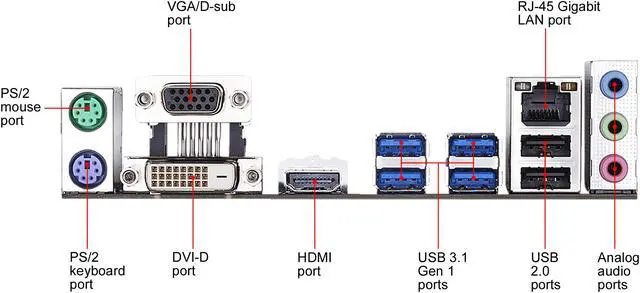

Back I/O Ports	1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip / RGB LED strip header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

Form Factor	Micro ATX
LED Lighting	RGB

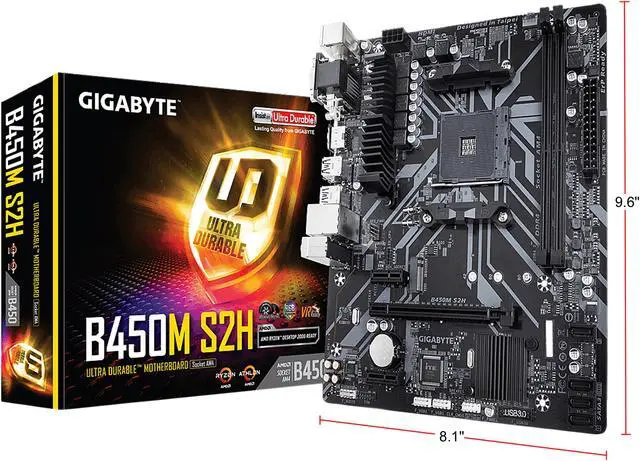

Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Item#: 9SIC42EKP05357
