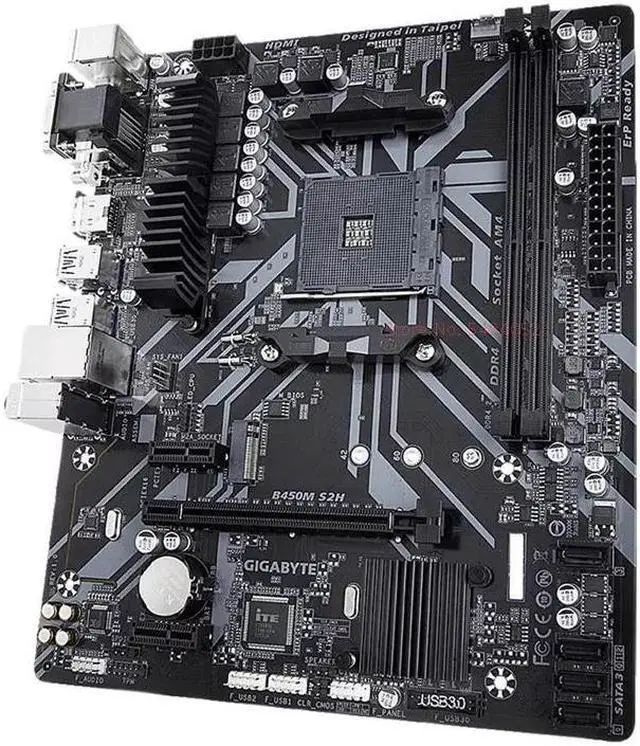

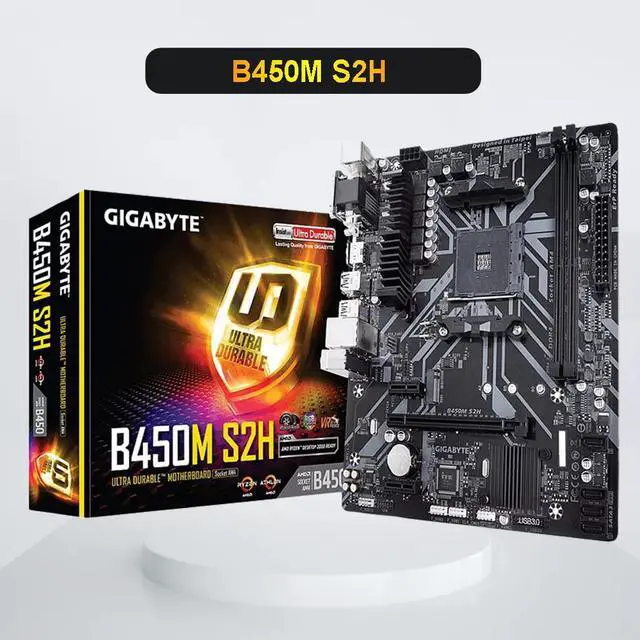

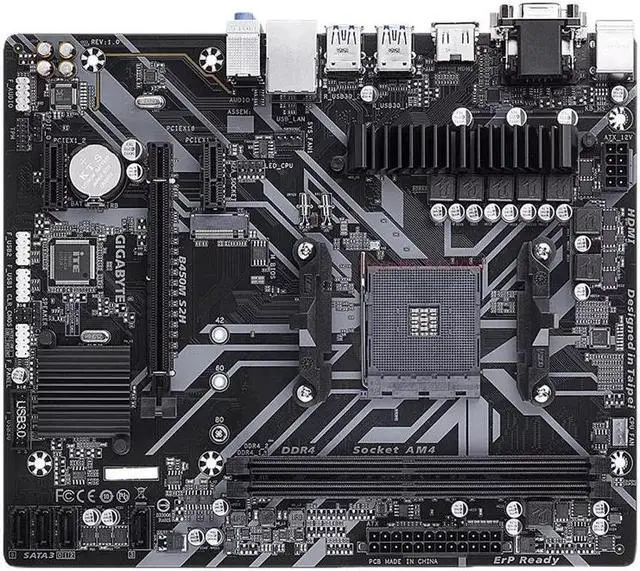

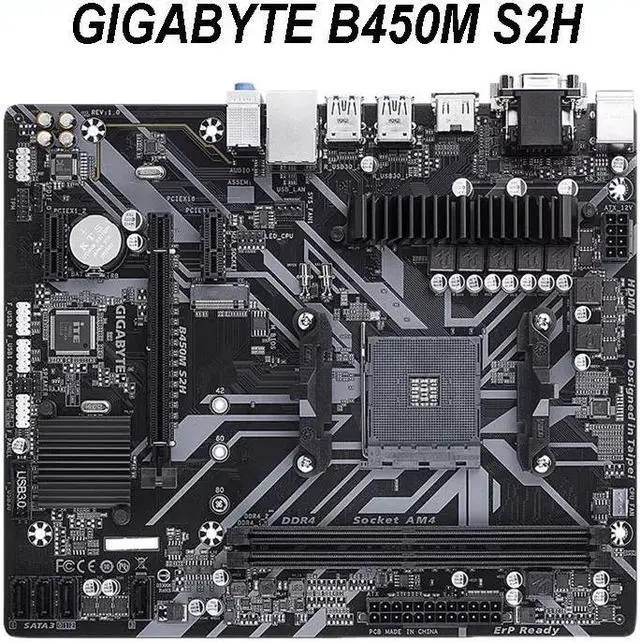

Main image of Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Alt view image 2 of 6 - Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Alt view image 3 of 6 - Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Alt view image 4 of 6 - Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Alt view image 5 of 6 - Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Alt view image 6 of 6 - Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Shop All GIGABYTE Products | Visit Soft_9 Store

Gigabyte GA B450M S2H Motherboard socket AM4 DDR4 B450 Desktop Mainboard M.2 NVMe PCI-E X16 3.0

Used - Very Good

AMD B450
DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI mode will help you find out quickly.

Try me now

I/O Controller: iTE
I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth
Control Utility Operating System: Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Model
Brand	GIGABYTE
Model	B450M S2H

Supported CPU
CPU Socket Type	AM4
CPU Type	AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

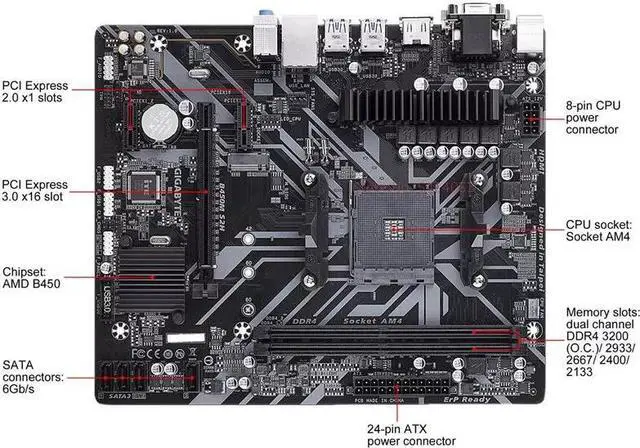

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon 200-series / 7th Generation A-series or Athlon APU.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz* * Support for HDMI 2.0 version and HDCP 2.2.* Maximum shared memory of 2GB * Actual support may vary by CPU.

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

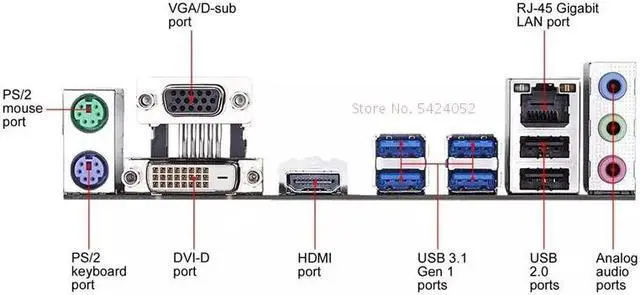

Rear Panel Ports
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	2 x USB 2.0

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
