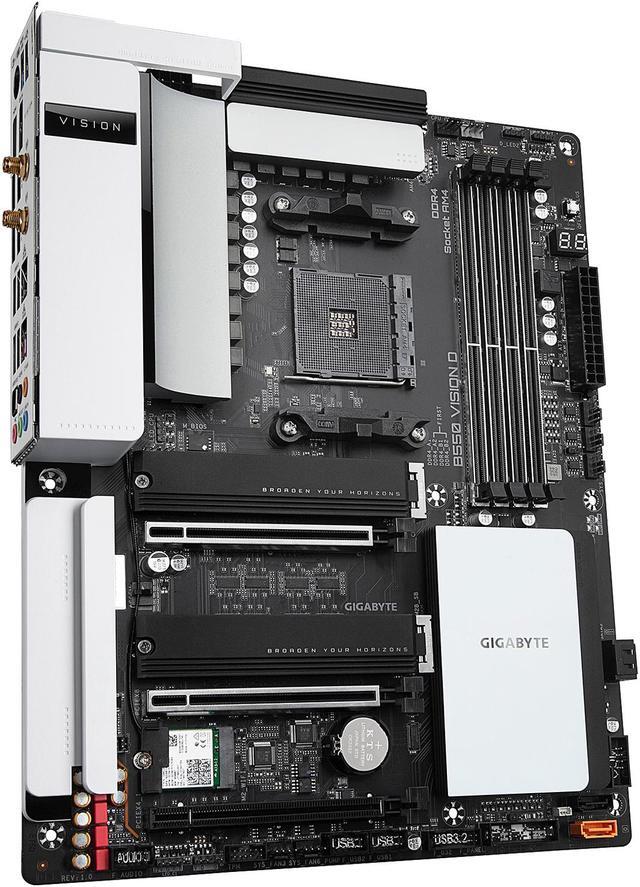

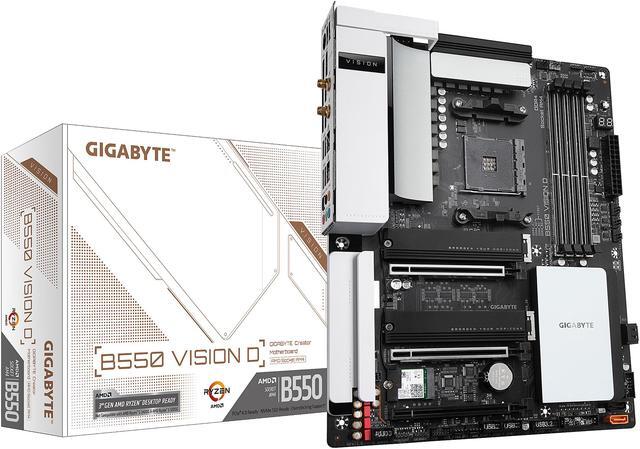

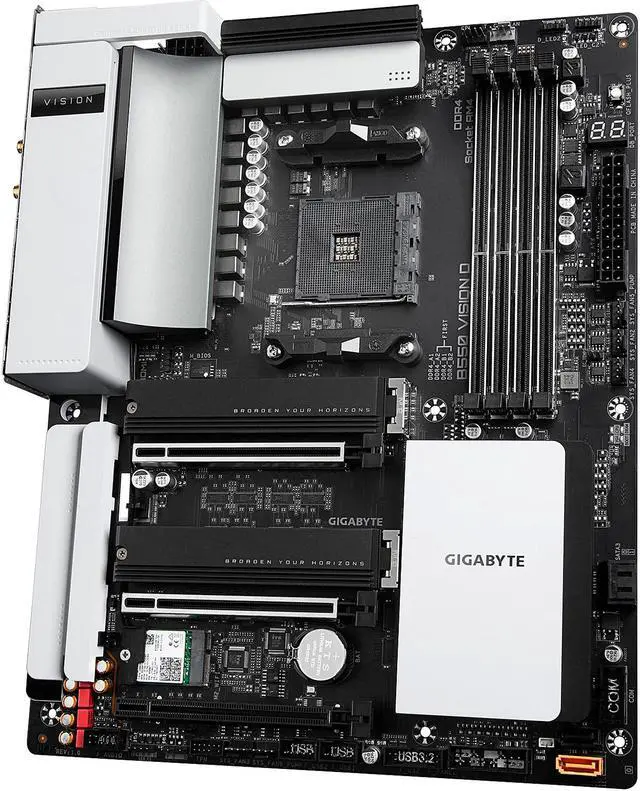

    GIGABYTE B550 VISION D AM4 AMD B550 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Type-C with Thunderbolt 3, WIFI 6, Dual Intel GbE LAN, PCIe 4.0

    • Support for Ryzen 5000 Series with BIOS UPDATE
    • AMD B550
    • Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
    • 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    • New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    • Multi-graphics configurations offer by 2 PCIe 4.0/3.0 x16 and 2 PCIe 3.0 x16 slots
    • Fully Quadro QVL Tested
    • Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors
    • Dual USB 3.2 Gen 2 Type-C with Thunderbolt 3
    • Dual Intel GbE LAN with cFosSpeed
    • Intel Wi-Fi 6 802.11ax
    • Smart Fan 5 Features Multiple Temperature Sensors
    • Hybrid Fan Headers with FAN STOP and Noise Detection
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (27)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the GIGABYTE B550 VISION D

    Model
    Brand GIGABYTE
    Model B550 VISION D
    Supported CPU
    CPU Socket Type AM4
    CPU Type AMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generation AMD Ryzen processors/3rd Gen AMD Ryzen with Radeon Graphics processors
    * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.
    Chipsets
    Chipset AMD B550
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
    3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode
    3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    PCI Express 3.0 x16 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    Supporting PCIe 3.0 x4 mode
    * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    Supporting SATA and PCIe 3.0 x4/x2 SSDs
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller:
    2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16GB
    Onboard Audio
    Audio Chipset Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    Audio Channels 2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Onboard LAN
    LAN Chipset 2 x Intel GbE LAN chips
    Max LAN Speed 2 x 1Gbps
    Wireless LAN Intel Wi-Fi 6 AX200
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    Bluetooth BLUETOOTH 5
    Rear Panel Ports

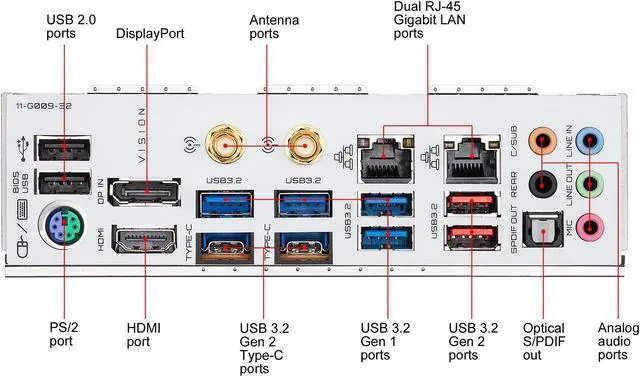

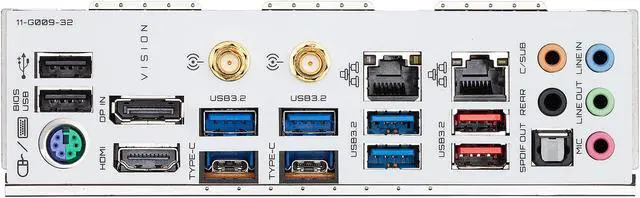

    Back I/O Ports 1 x PS/2 keyboard/mouse port
    1 x DisplayPort In port
    1 x HDMI port
    2 x SMA antenna connectors (2T2R)
    2 x USB 3.2 Gen 2 Type-A ports (red)
    2 x USB Type-C ports with Titan Ridge (USB 3.2 Gen2 support)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    2 x RJ-45 ports
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    1 x SATA DOM power connector
    1 x front panel header
    1 x front panel audio header
    1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
    1 x serial port header
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    Physical Spec
    Form Factor ATX
    LED Lighting RGB

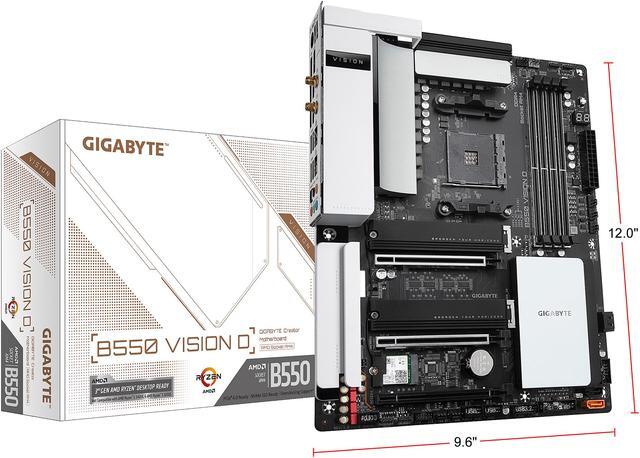

    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features Multi-Graphics Technology:
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    I/O Controller:
    iTE I/O Controller Chip

    H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software:
    Norton Internet Security (OEM version)
    cFosSpeed

    Operating System:
    Support for Windows 10 64-bit
    Additional Information
    Date First Available February 20, 2025
