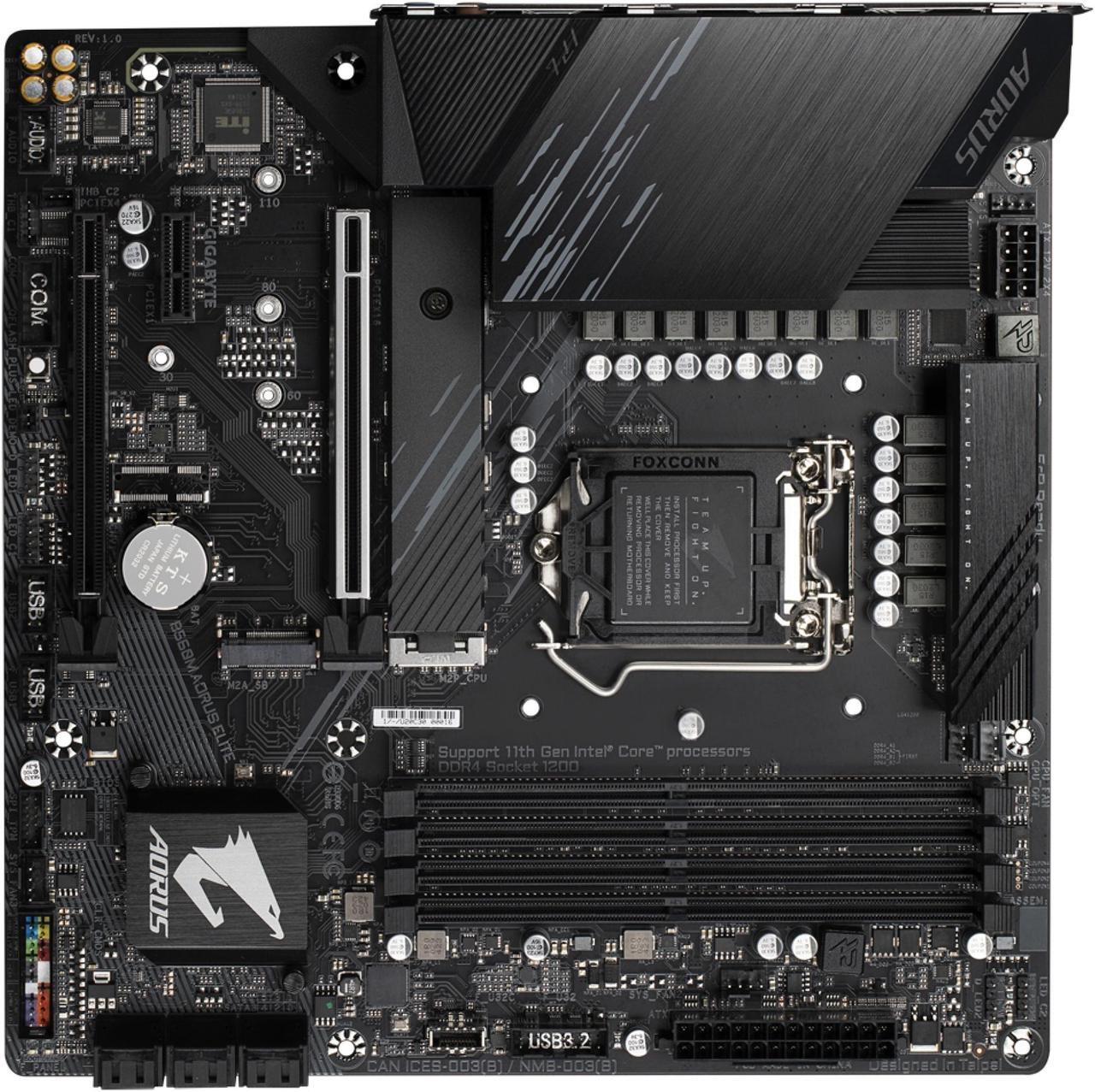

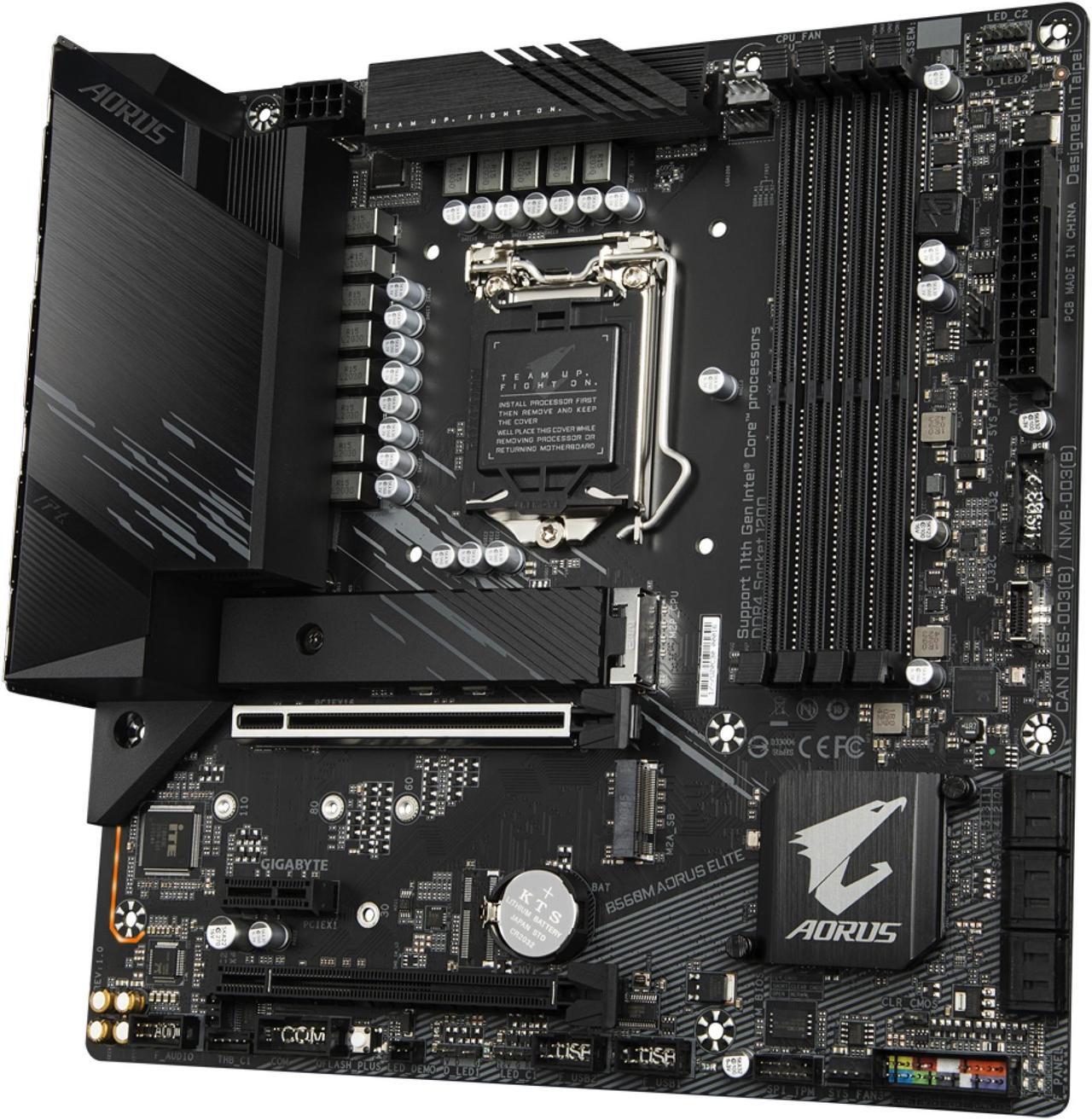

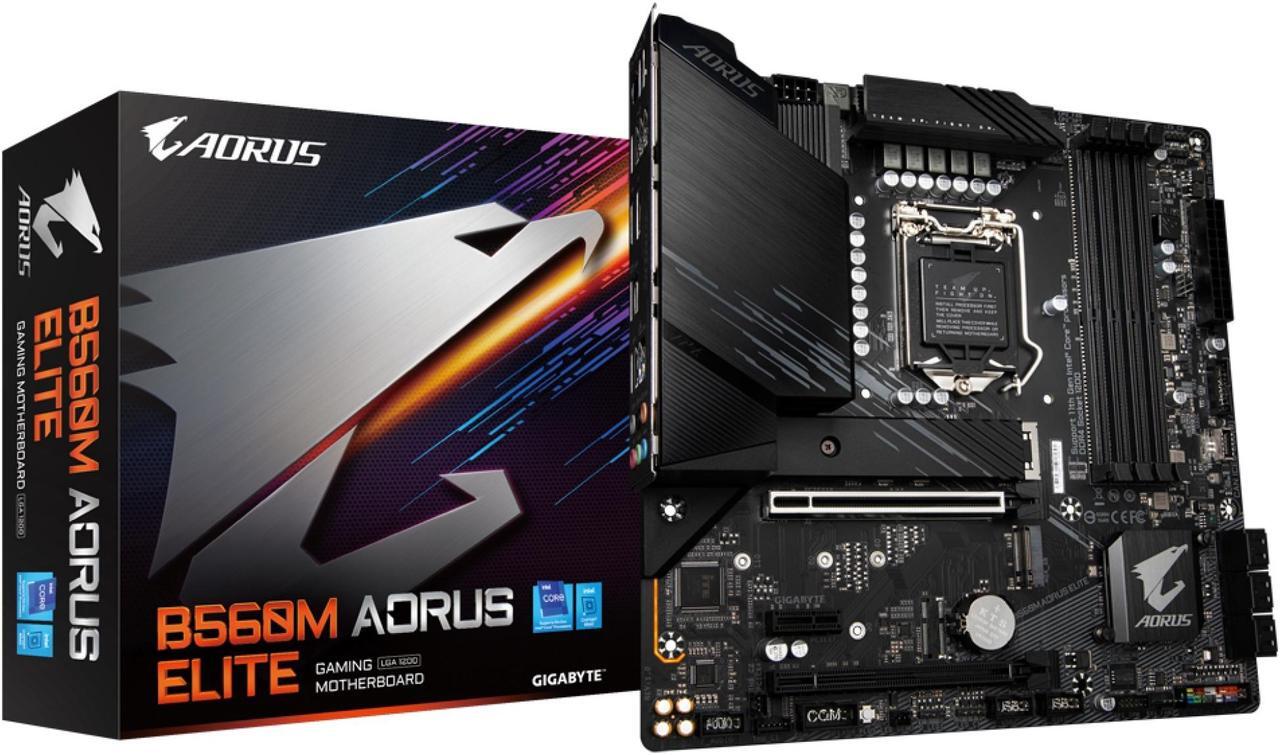

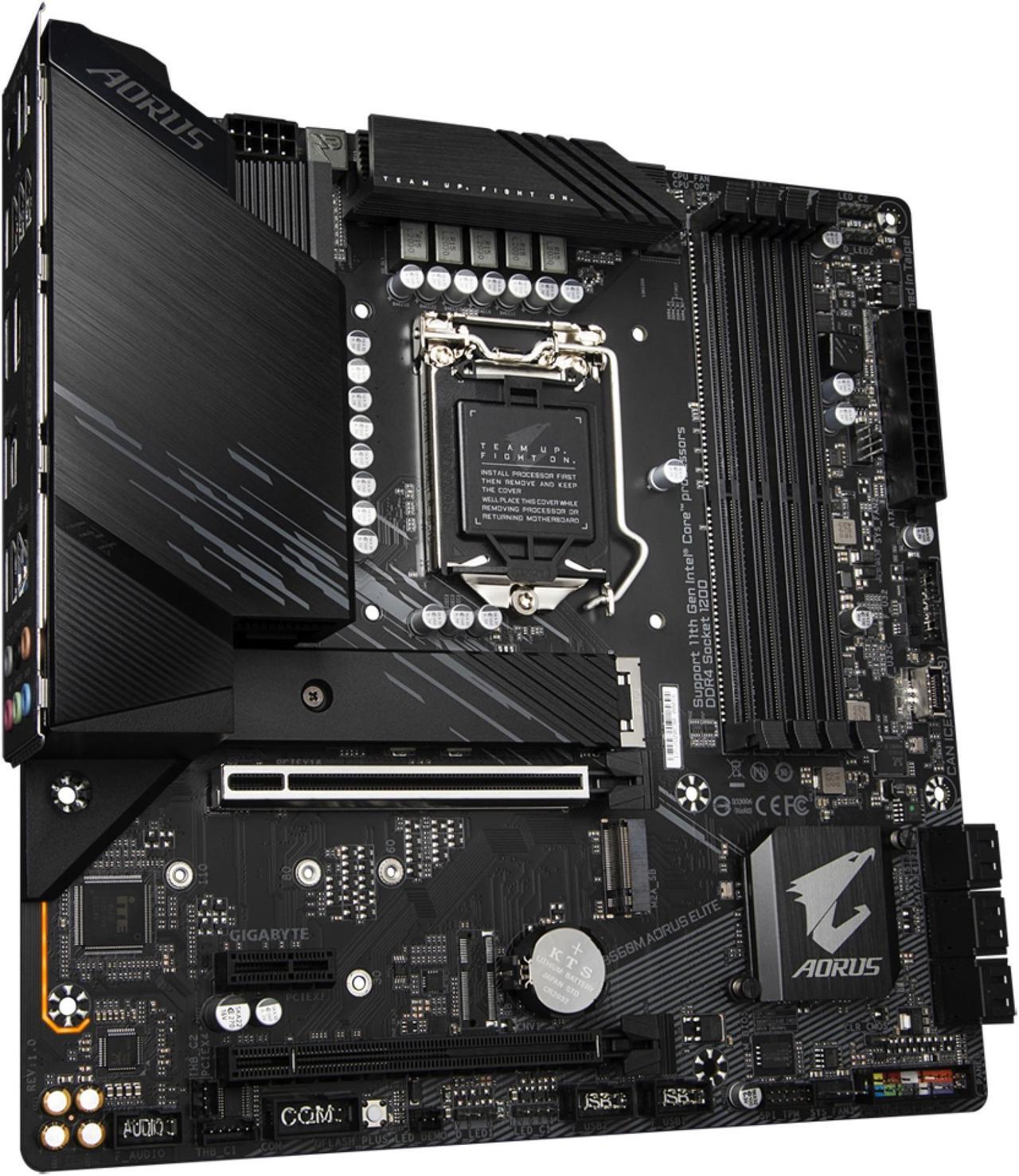

GIGABYTE AORUS B560M AORUS ELITE LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard
- Intel B560
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium / Celeron processors*
- * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
- DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors)
- DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors)
- DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
+
+
Specs
Reviews (3)
Learn more about the GIGABYTE B560M AORUS ELITE
| Brand | GIGABYTE |
|---|---|
| Series | AORUS |
| Model | B560M AORUS ELITE |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Running at x4. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek Audio CODEC |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |

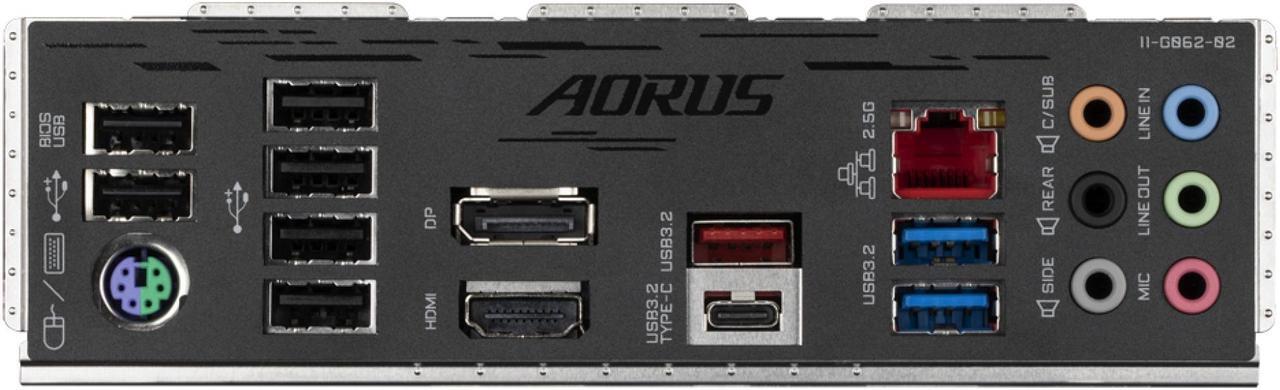

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen2 support 1 x USB 3.2 Gen2 Type-A port (red) 2 x USB 3.2 Gen1 ports 6 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | November 01, 2023 |
|---|
