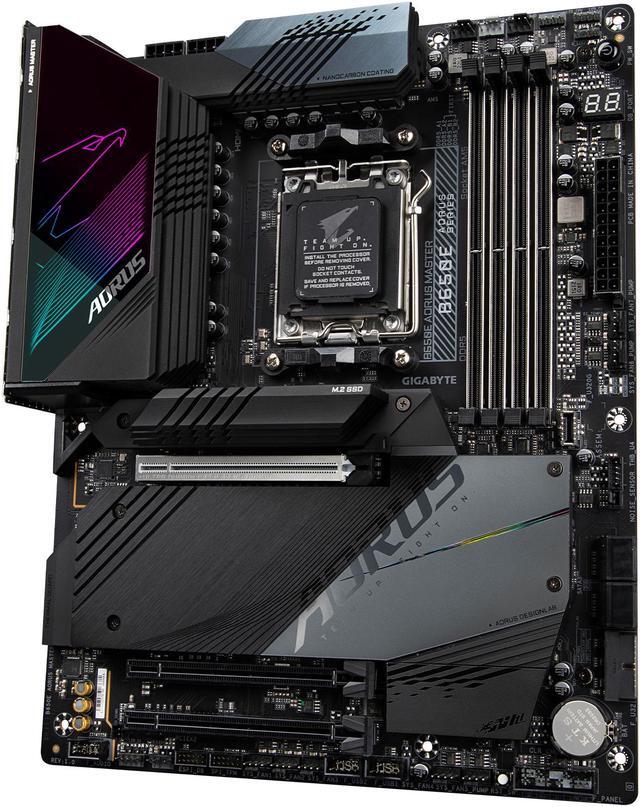

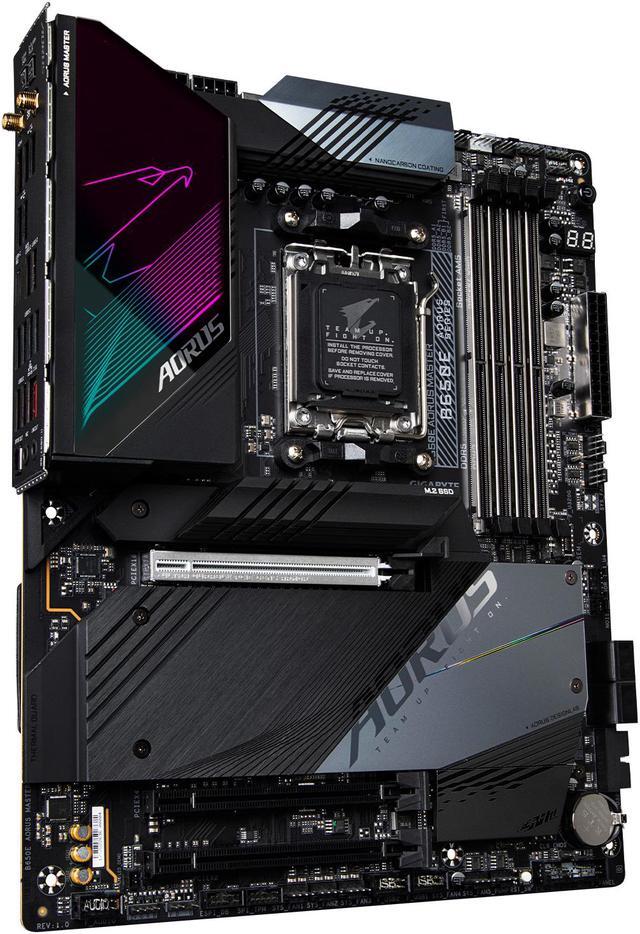

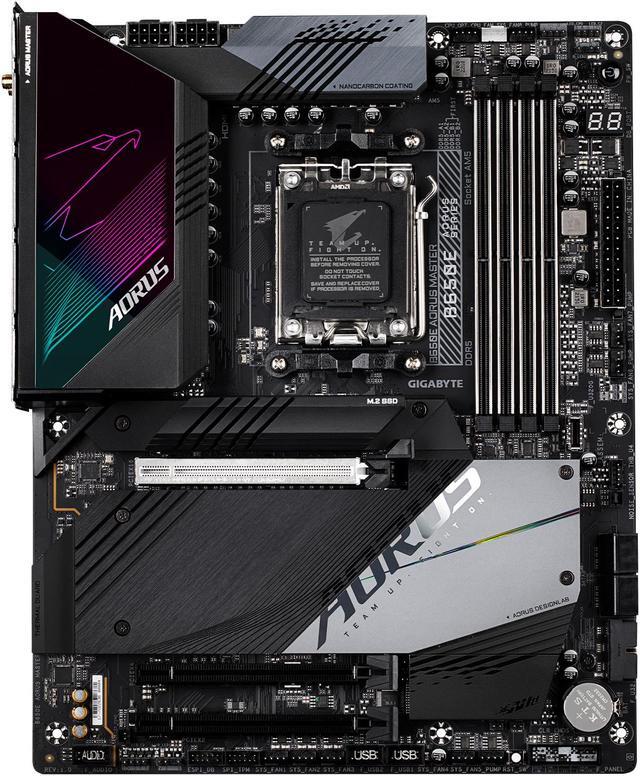

GIGABYTE B650E AORUS MASTER AM5 LGA 1718 AMD B650 ATX Motherboard DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, AMD WiFi 6E, Intel 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus
- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors.
- DDR5 Compatible: 4 DIMMs with AMD EXPO & Intel XMP Memory Module Support.
- Commanding Power Design: Twin 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB.
- Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M.2 Thermal Guard III, PCIe Ultra Durable Armor, NanoCarbon Aluminum Backplate.
- Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.2.
- EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design.
- Fast Networking: Intel 2.5GbE LAN, AMD WiFi 6E 802.11ax.
- Dynamic Audio: ALC1220 CODEC and ESS SABRE Hi-Fi 9118 DAC.
- Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU".
+
+
Specs
Reviews (791)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Detailed Specifications
| Brand | GIGABYTE |
|---|---|
| Series | B650E AORUS MASTER |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 7000 Series Processor |
| Chipset | AMD B650E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules |
| Maximum Memory Supported | 32GB single DIMM, 128GB Total |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU) * Actual support may vary by CPU. |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio |
|---|---|
| Audio Channels | 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN Chipset | Intel 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
| Features | AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:Twin* 16+2+2 Phases Digital VRM Solution Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support Next Generation Storage:4*PCIe 5.0 x4 M.2 Connectors Mega-Heatpipe & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC Fast Networks:Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax Extended Connectivity:DP, HDMI, Front USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card |
|---|
| Date First Available | August 04, 2024 |
|---|
