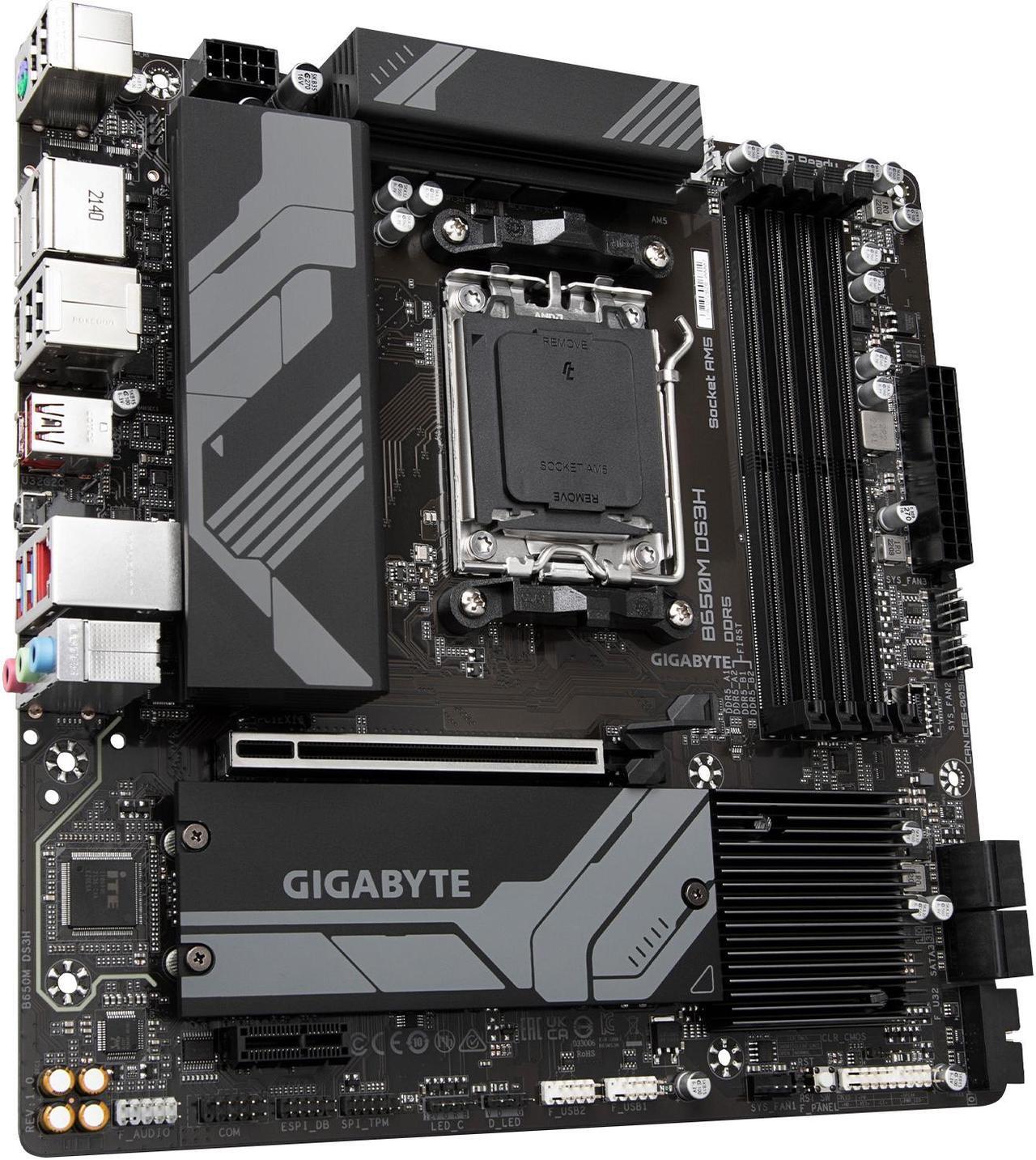

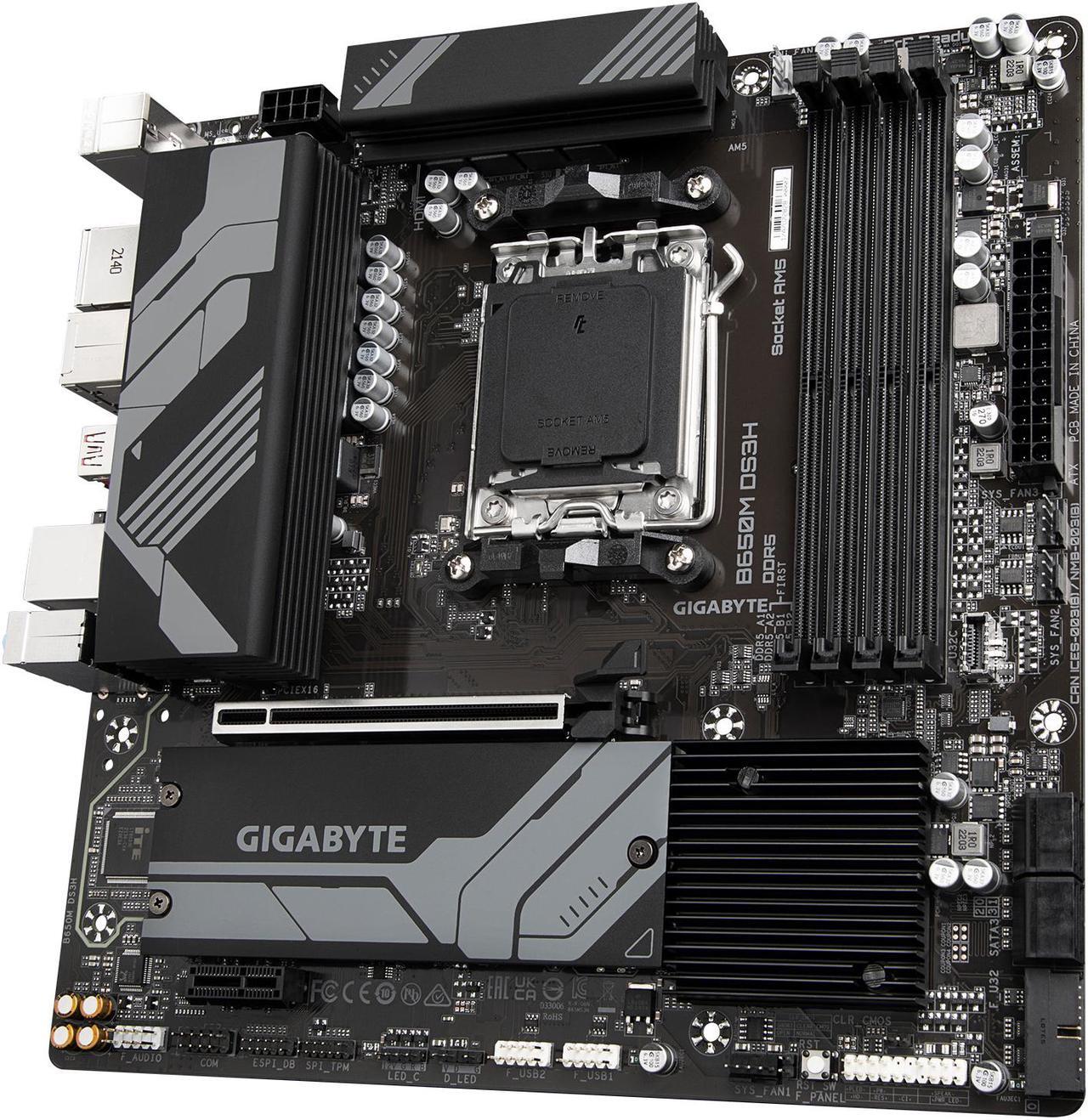

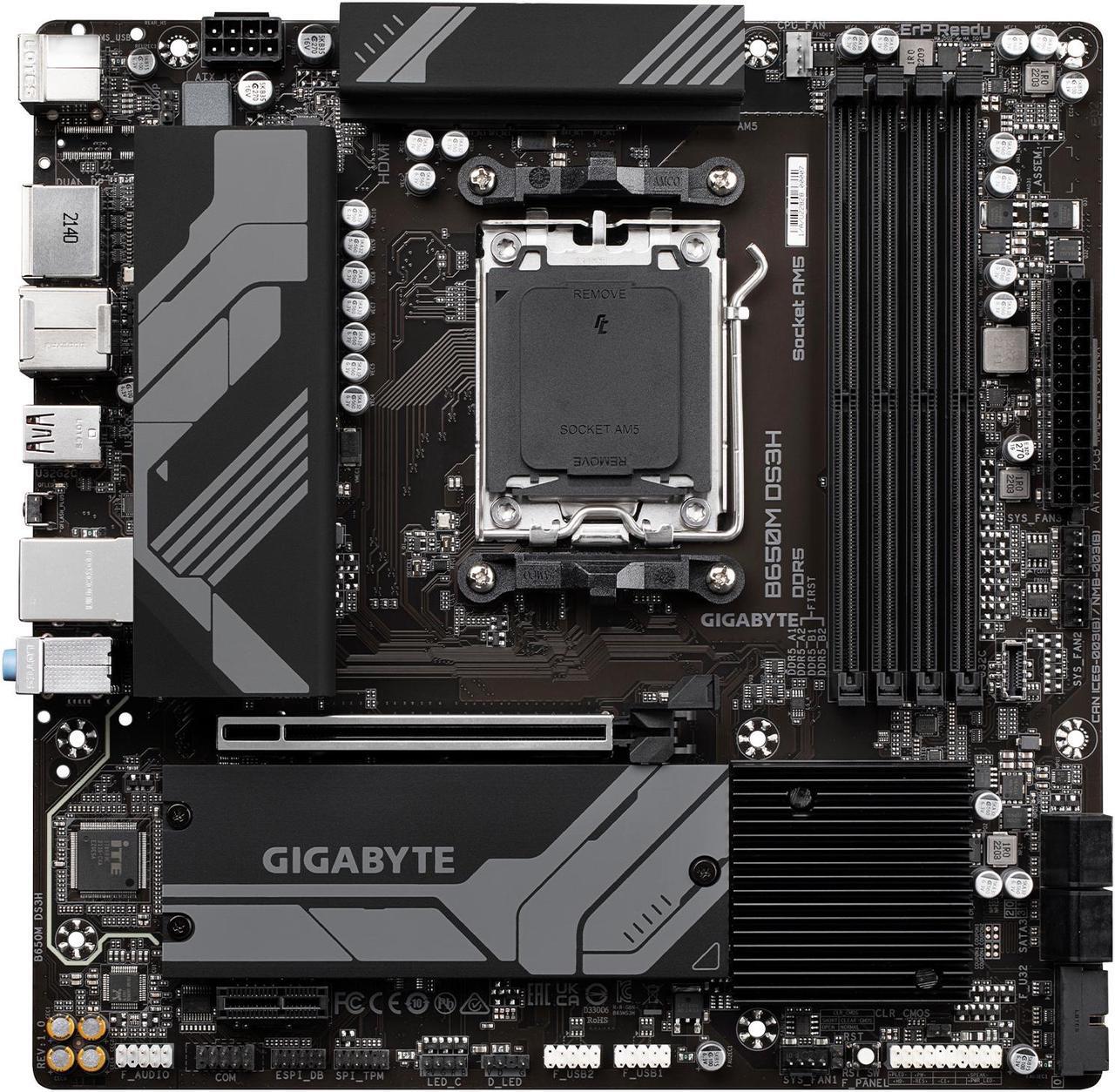

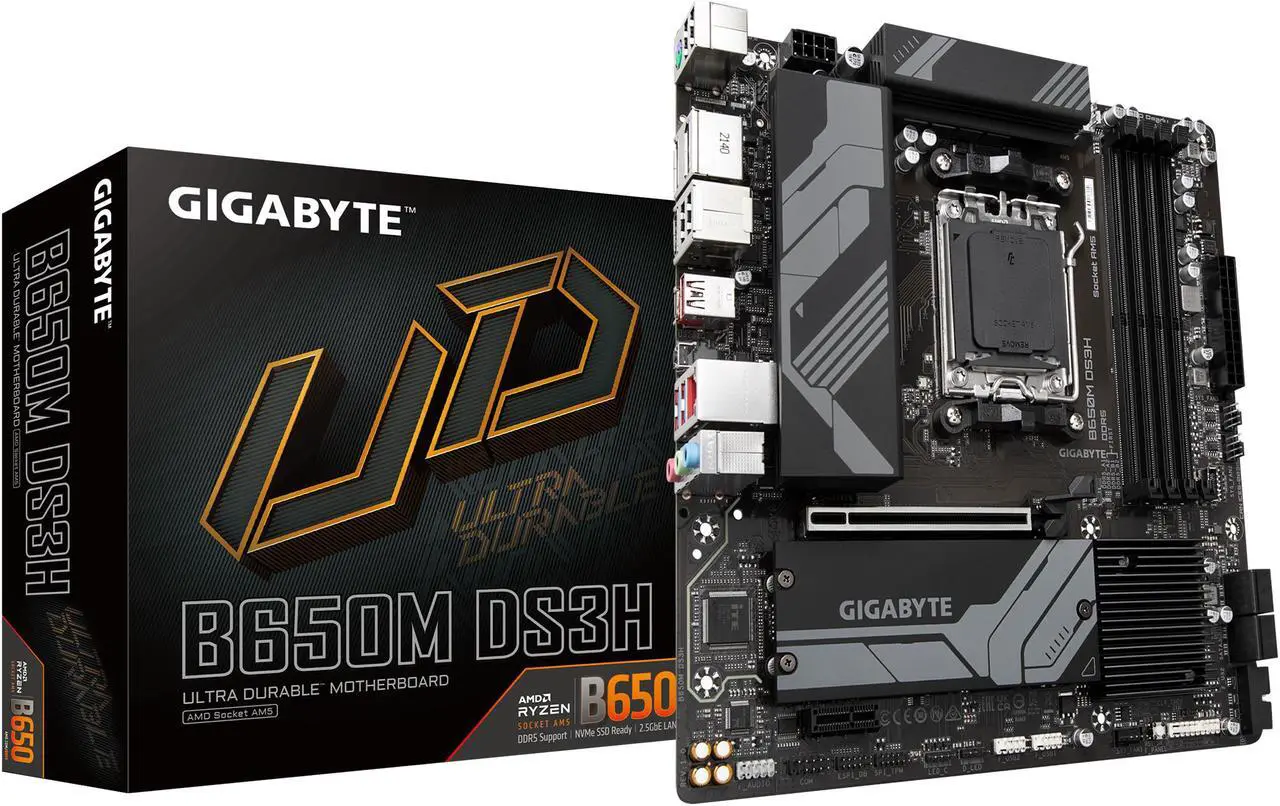

GIGABYTE B650M DS3H AM5 LGA 1718 AMD B650 M-ATX Motherboard with 5-Year Warranty, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, , 2.5GbE LAN
- "5-Year Warranty
- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Sturdy Power Design: Direct 6+2+1 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Next Gen Connectivity: PCIe 5.0, NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Fast Networking: 2.5GbE LAN
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU"
+
+
Specs
Reviews (758)
Learn more about the GIGABYTE B650M DS3H (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | B650M DS3H (rev. 1.0) |
| Part Number | B650M DS3H (rev. 1.0) |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
| Maximum Memory Supported | 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Channel Supported | Dual channel memory architecture |
| ECC Supported | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information. |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Audio Channels | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|

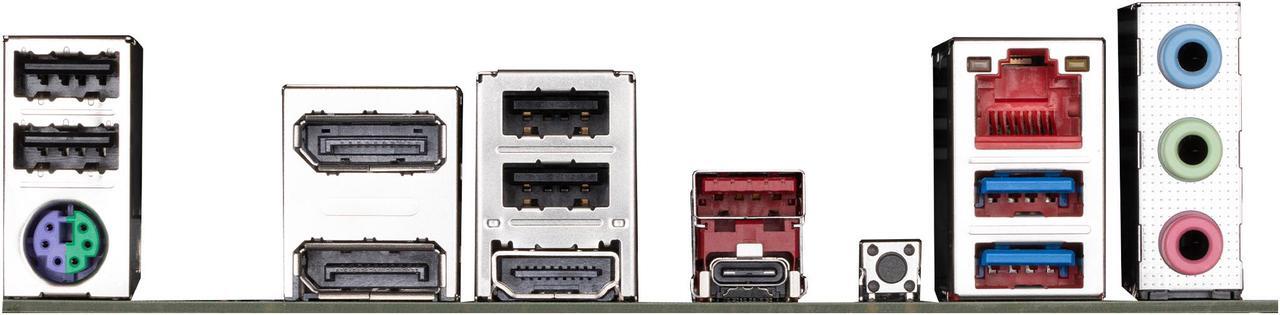

| Back I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 24.4cm x 24.4cm |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
| Features | AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks:2.5GbE LAN Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card |
|---|
| Date First Available | August 19, 2024 |
|---|
