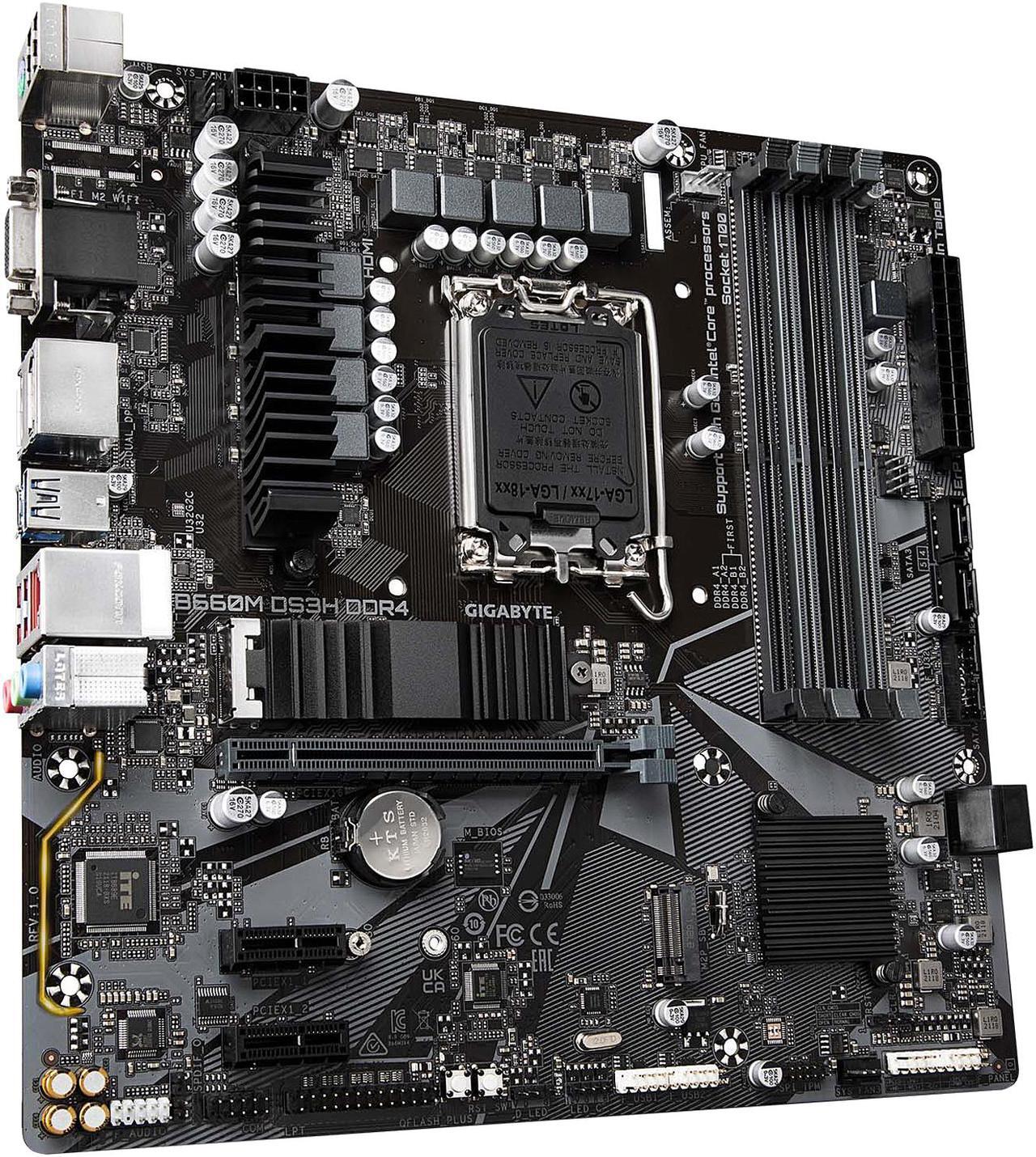

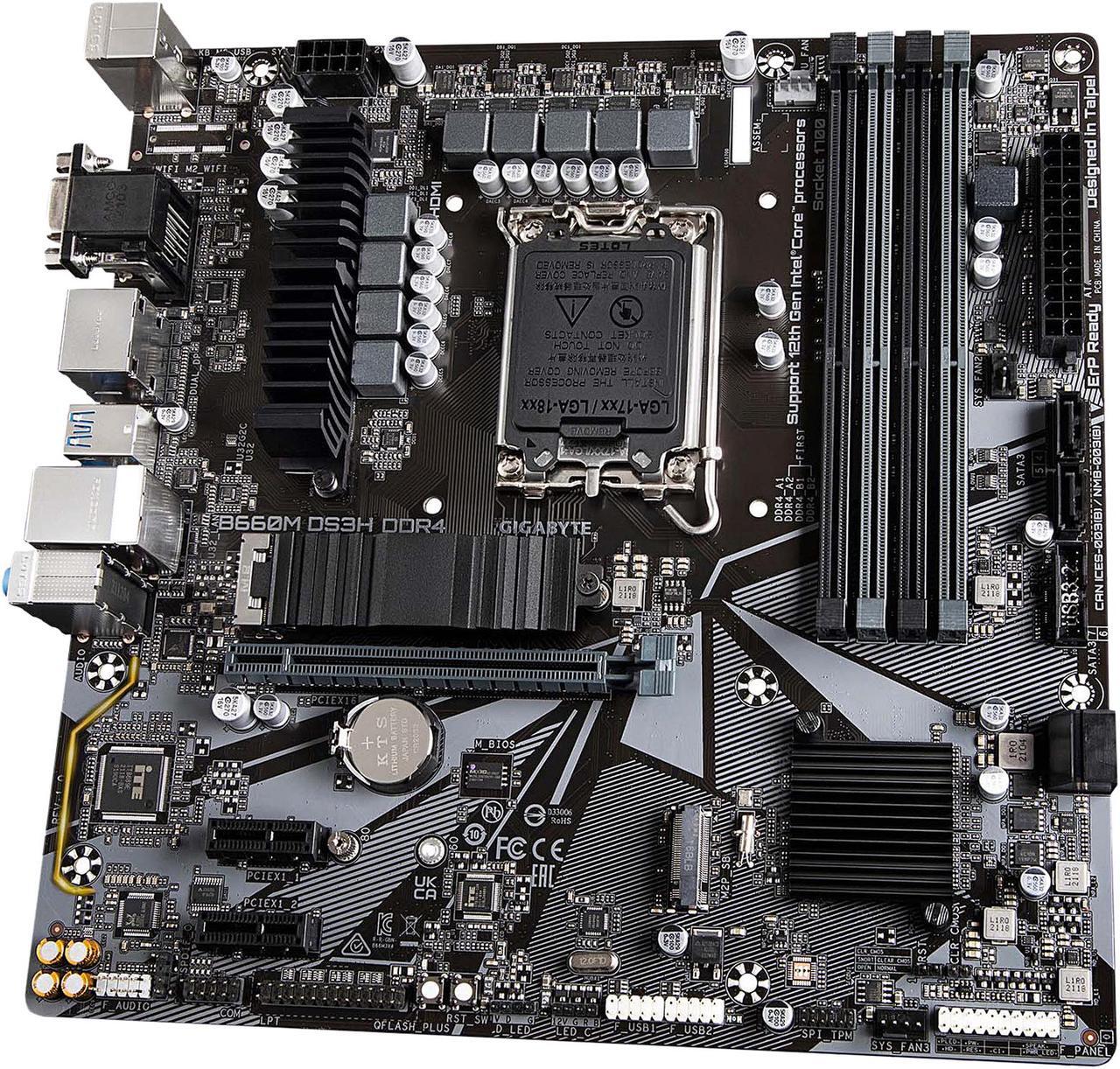

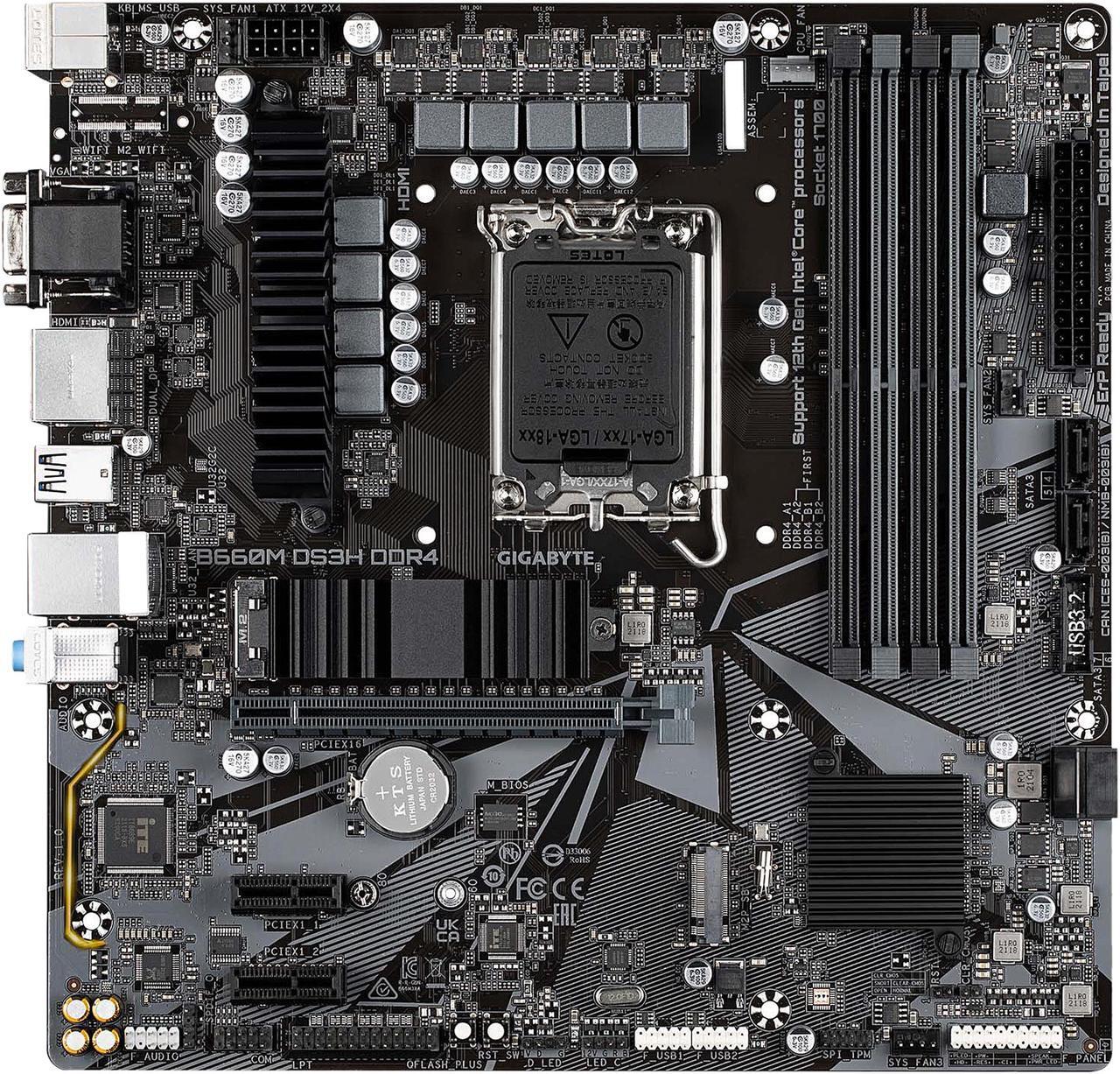

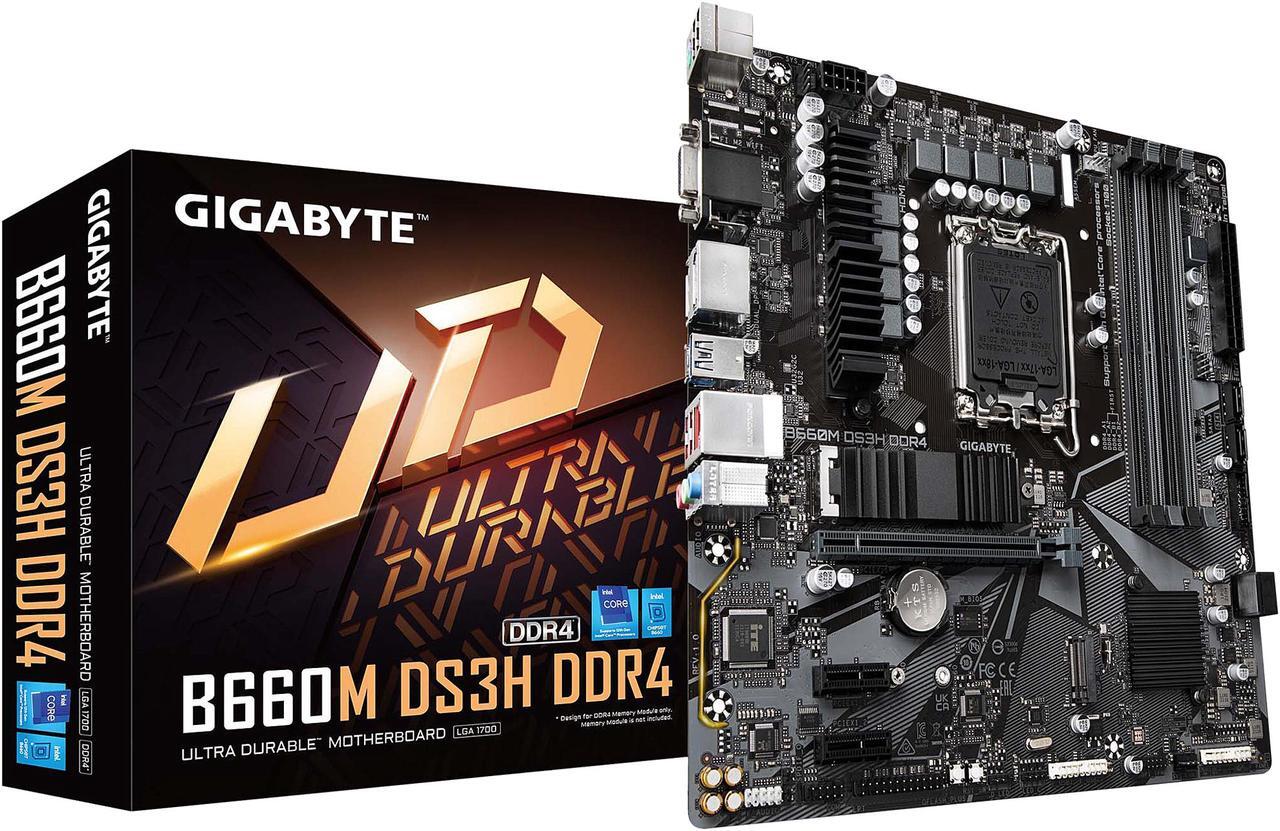

GIGABYTE B660M DS3H DDR4 B660 Intel LGA 1700 M-ATX Motherboard with DDR4, Dual M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, 2.5GbE LAN
- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
- Sturdy Power Design: 6+2+1 Phases Hybrid Power Design, Premium Choke and Capacitors, 8-pin Solid Pin CPU Power Connector
- Comprehensive Thermal Design: M.2 Thermal Guard
- Next Gen Connectivity: PCIe 4.0, Dual NVME PCIe 4.0 x4 M.2, USB 3.2 Gen2 Type-C, HDMI 2.0
- Fast Networking: 2.5GbE LAN
- Dynamic Audio: High-End Audio Capacitors, Audio Noise Guard
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
+
+
Specs
Reviews (179)
Learn more about the GIGABYTE B660M DS3H DDR4
| Brand | GIGABYTE |
|---|---|
| Model | B660M DS3H DDR4 |

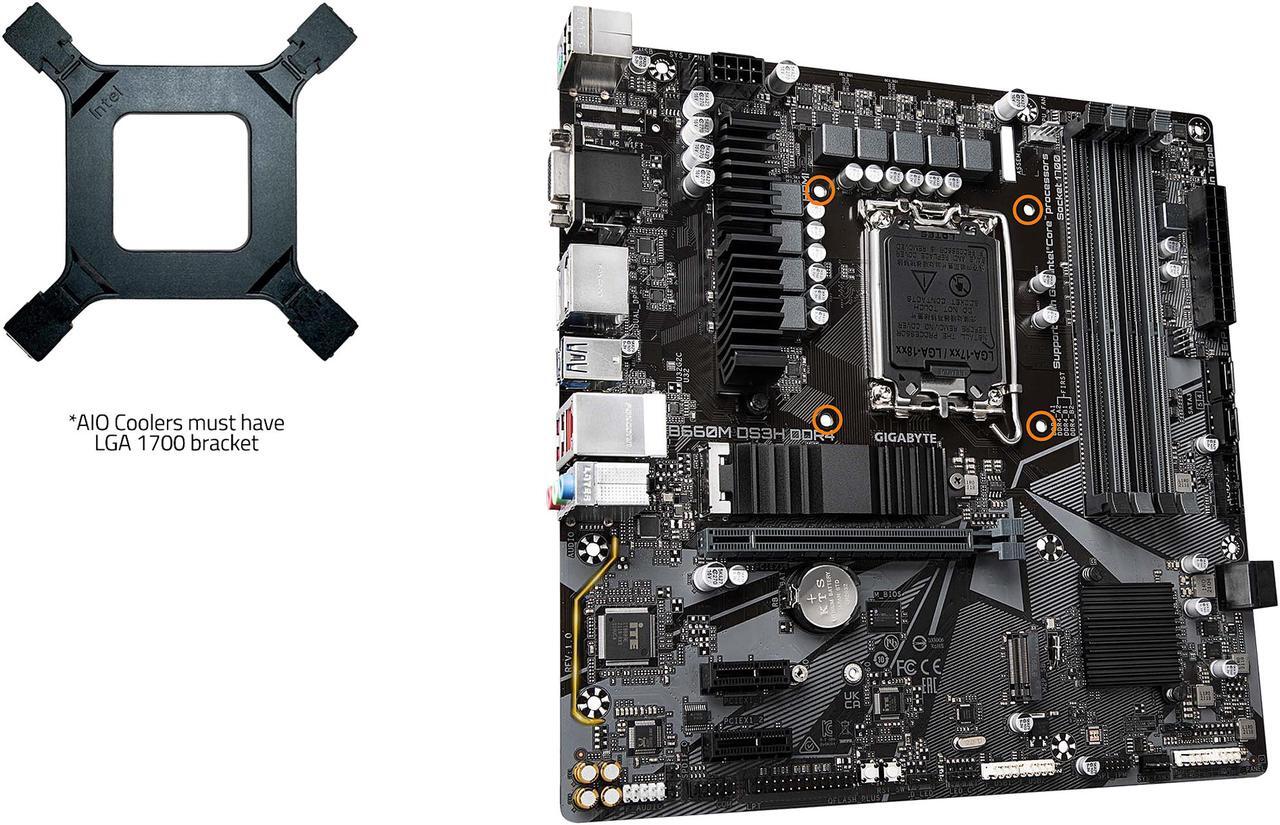

| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 |
| Max LAN Speed | 2.5Gbps |
|---|
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Date First Available | September 25, 2023 |
|---|
