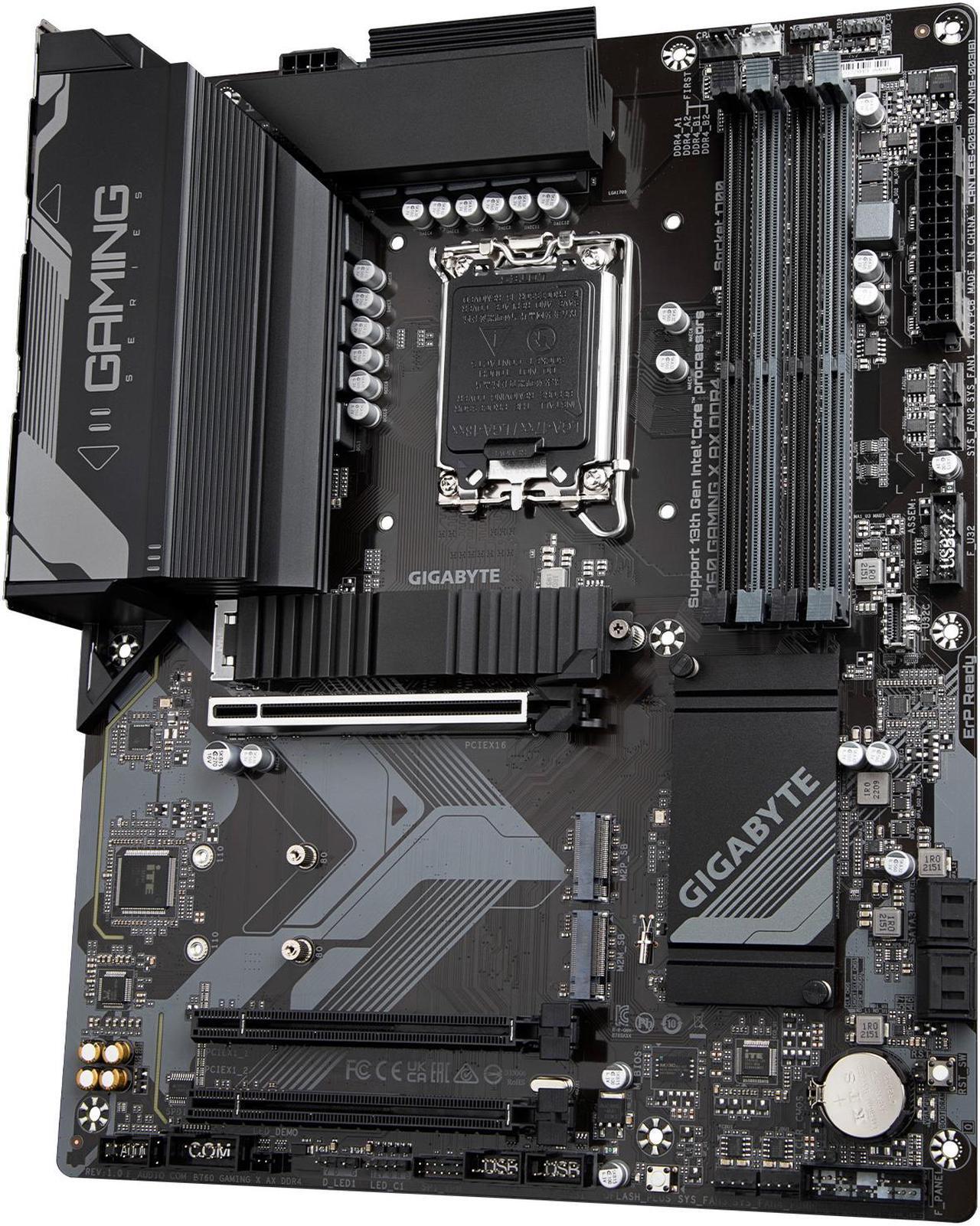

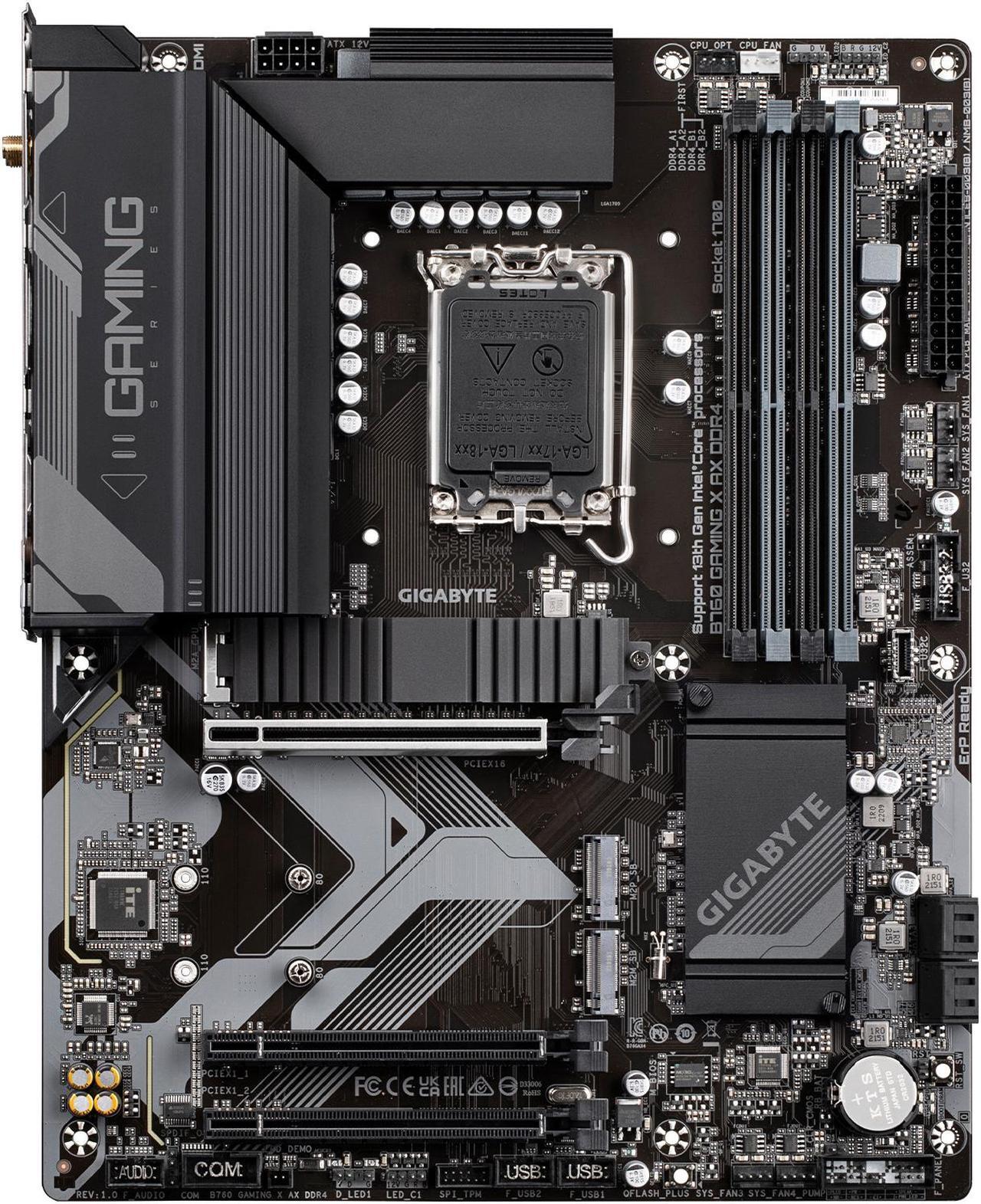

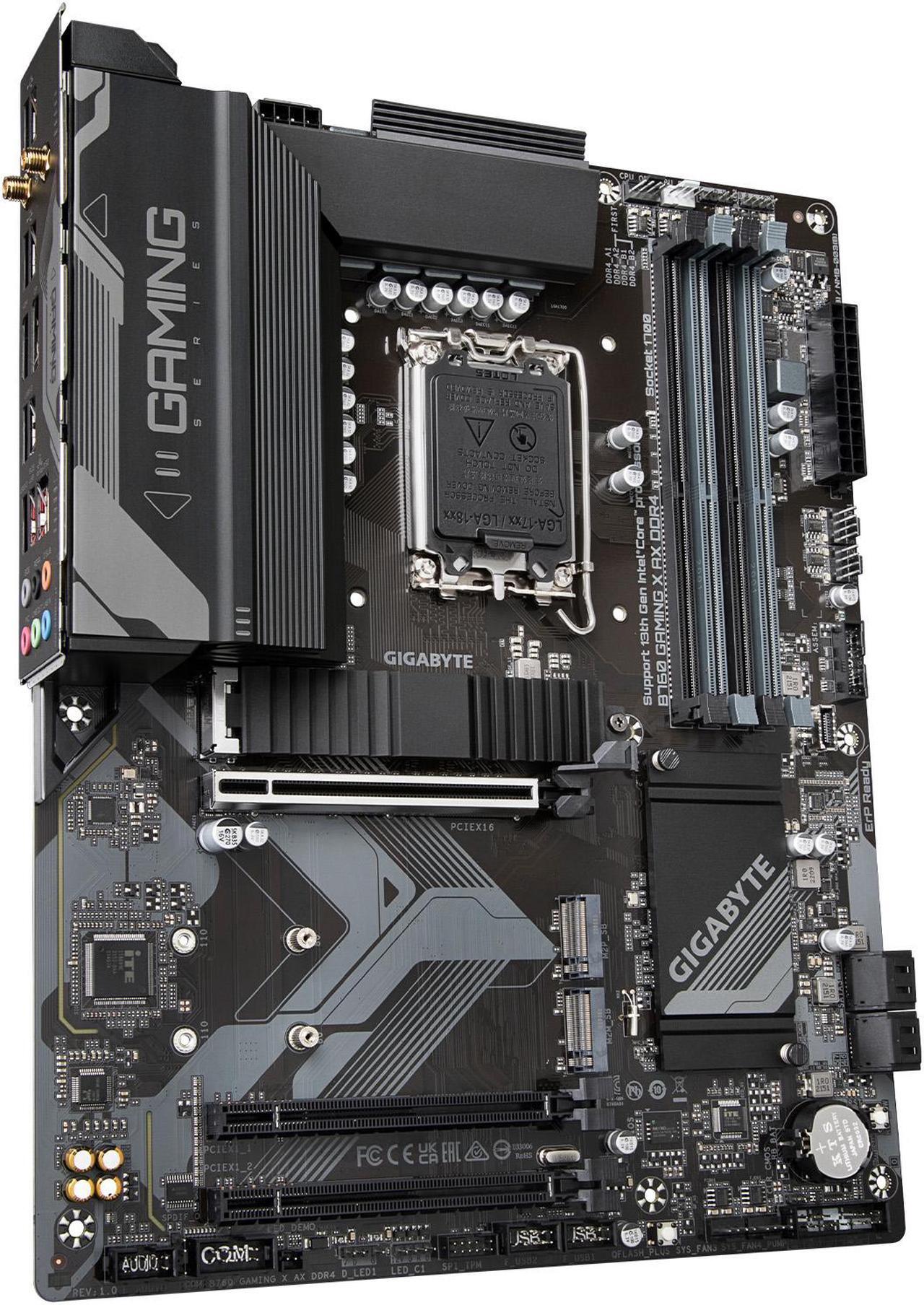

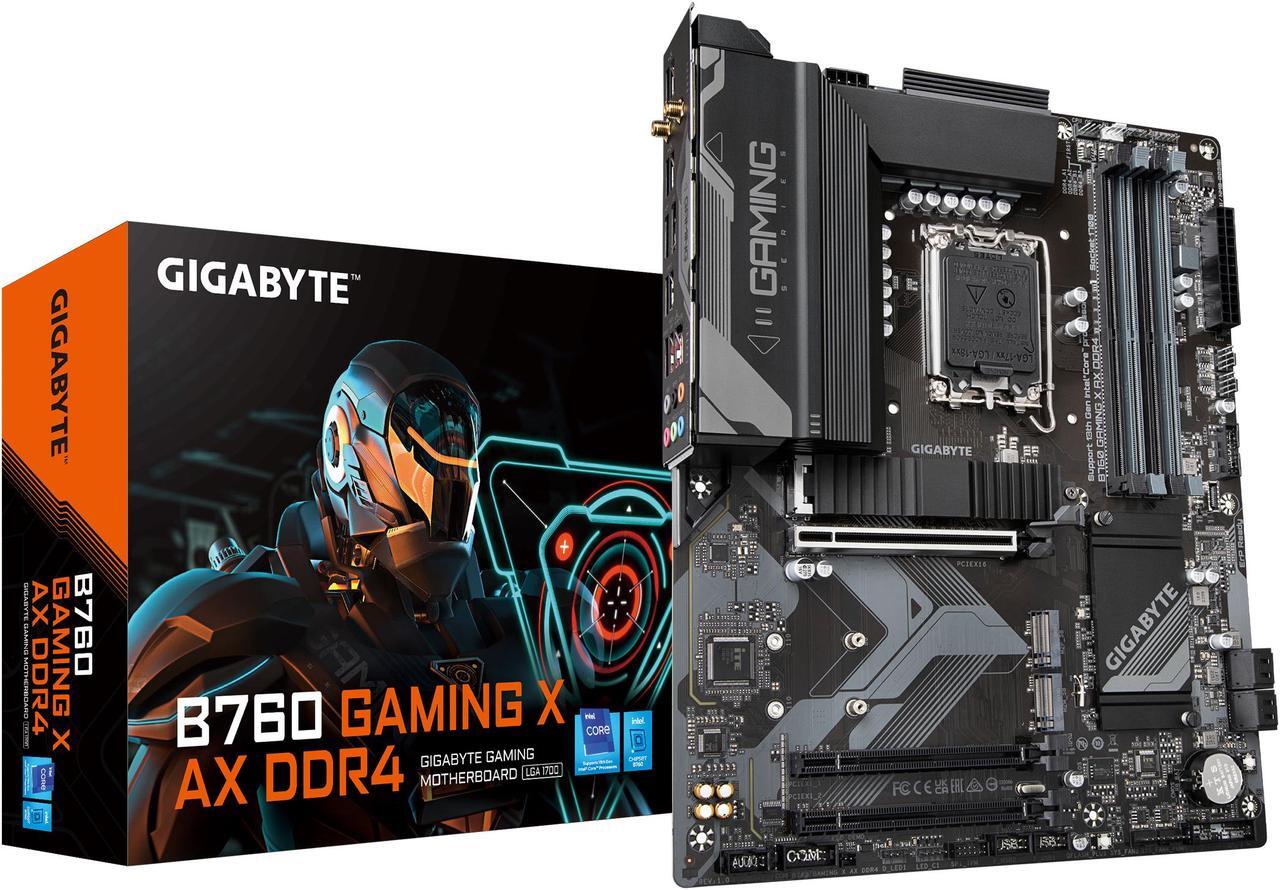

    GIGABYTE B760 GAMING X AX DDR4 LGA 1700 Intel B760 ATX Motherboard with DDR4, Triple M.2, PCIe 4.0, Front USB 3.2 Gen2X2 Type-C, WiFi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

    (117)(15) Write a Review
    • B760M AORUS ELITE AX
    • B760 GAMING X AX DDR4
    • B760M GAMING X AX DDR4
    • B760M DS3H AX DDR4
    • B760M DS3H DDR4
    • B760I AORUS PRO DDR4
    • B760M DS3H AX
    • B760 GAMING X AX
    • B760 AORUS ELITE AX
    • B760 DS3H AC DDR4
    • B760M C
    • B760 DS3H AX
    • B760 DS3H AC
    • B760M GAMING PLUS WIFI DDR4
    • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
    • DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
    • Sturdy Power Design: 8+1+1 Phases Hybrid Digital VRM Design with 60A DrMOS
    • Comprehensive Thermal Design: Fully Covered MOSFET Heatsinks, M.2 Thermal Guard, Integrated I/O Shield
    • Next Gen Connectivity: PCIe 4.0, Triple NVMe PCIe 4.0 M.2, Front USB 3.2 Gen 2 Type-C
    • Fast Networking: 2.5GbE LAN, WiFi 6E
    • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (117)

    Learn more about the GIGABYTE B760 GAMING X AX DDR4

    Model
    Brand GIGABYTE
    Model B760 GAMING X AX DDR4
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
    Chipsets
    Chipset Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16
    PCI Express 3.0 x16 2 x PCI Express 3.0 x16
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 CPU:
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    Onboard LAN
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 6E
    Physical Spec
    Form Factor ATX
    Additional Information
    Date First Available July 10, 2024
