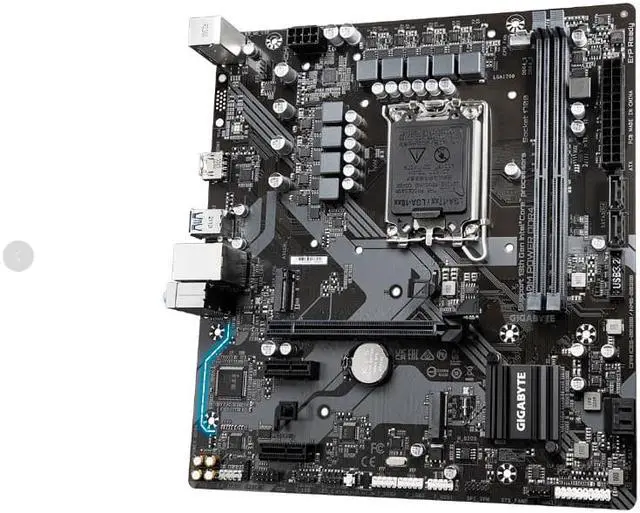

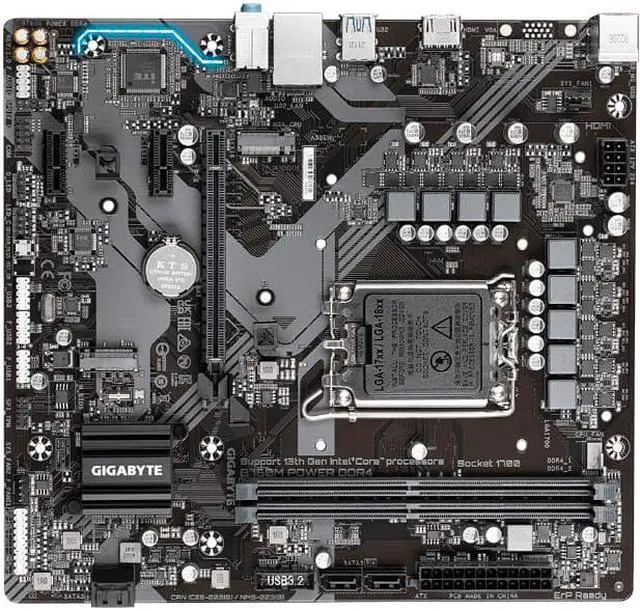

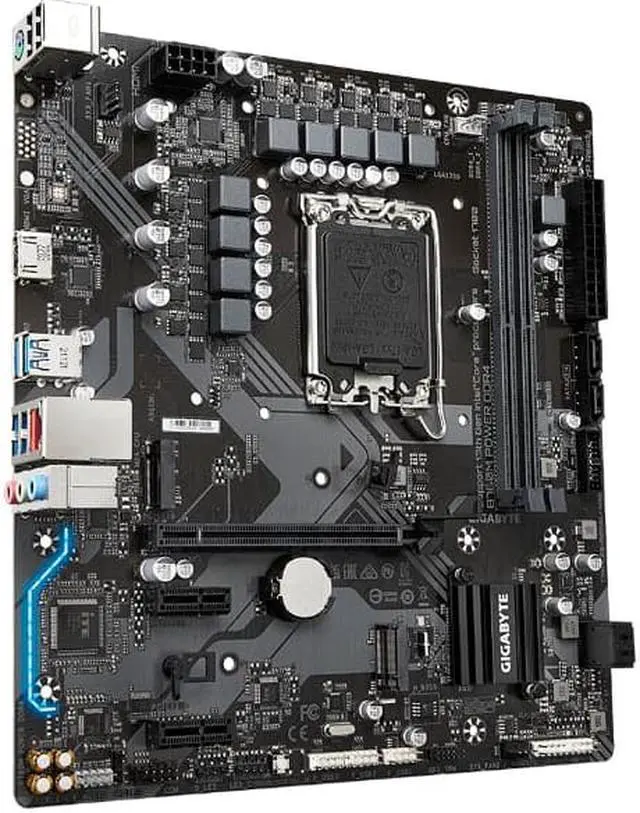

GIGABYTE B760M POWER LGA 1700 Intel B760 M-ATX Motherboard With DDR4*2, 2* M.2, PCIe 4.0, USB 3.2 Gen 1 , 2.5GbE LAN, Q-Flash Plus(OEM , Industrial packaging non-color box)

central processing unit (CPU)
LGA1700 socket, supports 13th and 12th generation Intel® Core, Pentium® Gold and Celeron® processors
L3 cache depends on CPU
(Please visit the GIGABYTE website for a list of supported processors)
chipset
Intel® B760 Express Chipset
Memory
Support DDR4 5333(O. C. )/ 5133(O. C. )/ 5000(O. C. )/ 4933(O. C. )/ 4800(O. C. )/ 4700(O. C. )/ 4600(O. C. )/ 4500(O. C. )/ 4400(O. C. )/ 4300(O. C. )/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3800(O. C. )/ 3733(O. C. )/ 3666(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C.

)/ 3333(O. C. )/ 3300(O. C. )/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2 x DDR4 DIMM slots, can support up to 64 GB (single slot supports 32 GB capacity)
Supports dual-channel memory technology
Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (running in non-ECC mode)
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory
(Please go to the GIGABYTE website to check the supported memory speed and list) )
display function
Graphics-based processor-supports Intel® HD Graphics:
1 HDMI interface, can support up to 4096x2160@60 Hz resolution
* Support HDMI 2.0 version and HDCP 2.3
(The specifications supported by the display function will vary depending on the CPU used)
sound effects
Integrated Realtek® audio chip
Support High Definition Audio
Support 2/4/ 5.1 / 7.1 channel
Support S/PDIF output
* The audio socket function can be redefined through the audio software. To enable 7.1 -channel audio output, please enter the audio software settings
network
Integrated Realtek® 2.5G bE LAN chip ( 2.5 Gbps/1 Gbps/100 Mbps)
expansion slot
Based on CPU:
1 PCI-E x16 slot, supports PCIe 4.0 and x16 operating specifications
Chipset Based:
2 PCI-E x1 slots, supporting PCIe 3.0 and x1 operating specifications
storage device interface
Based on CPU:
1 x M. 2 slot (support Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU)
Chipset Based:
1 x M. 2 slot (support Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD) (M2P_SB)
4 SATA 3.0 ports
SATA hard drives support building RAID 0, RAID 1, RAID 5 and RAID 10
USB
Chipset Based:
6 USB 3.2 Gen 1 ports (4 are on the rear window IO, 2 need to be connected to the USB socket on the motherboard via a cable)
4 USB 2.0 / 1.1 ports (2 are on the rear window IO, 2 need to be connected to the USB socket on the motherboard via a cable)
Based on Chipset+USB 2.0 Hub:
4 USB 2.0 / 1.1 ports, which need to be connected to the USB socket on the motherboard through a cable
Internal socket
1 24 PIN motherboard power supply socket
1 x 8 PIN CPU power socket
1 CPU fan socket
2 system fan sockets
1 programmable LED light with power socket
1 RGB LED light with power socket
2 M. 2 SSD slots
4 SATA 3.0 ports
1 motherboard jumper socket
1 front audio jack
1 digital output interface
1 USB 3.2 Gen 1 socket
3 USB 2.0 / 1.1 sockets
1 security encryption module socket (only used with GC-TPM 2.0 SPI/GC-TPM 2.0 SPI 2.0 )
1 COM socket
1 Q-Flash Plus button
1 system reset pin
1 clear CMOS data pin

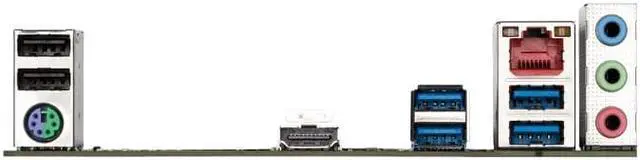

Rear panel unit connection socket
1 PS/2 keyboard/mouse interface
1 HDMI interface
4 USB 3.2 Gen 1 ports
2 USB 2.0 / 1.1 ports
1 RJ-45 network cable interface
3 audio interfaces
I/O controller
Integrated iTE® I/O control chip
hardware monitoring
voltage detection
temperature check
Fan speed detection
Water cooling system flow rate detection
Fan failure warning
Smart Fan Control
* Whether the smart fan control function is supported depends on different cooling fans
BIOS
1 x 128 Mbit flash
Use authorized AMI UEFI BIOS
PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Additional tools
Support GIGABYTE Control Center (GCC)
* The programs supported by GCC will vary with different motherboards; the functions supported by each program will also vary with the specifications of the motherboard.
Support Q-Flash
Support Q-Flash
Bonus software
Norton® Internet Security (OEM version)
LAN bandwidth management software
operating system
Support Windows 11 64-bit
Support Windows 10 64-bit
PCB specification
Micro ATX specification; 24.4 cmx 22.5 cm
