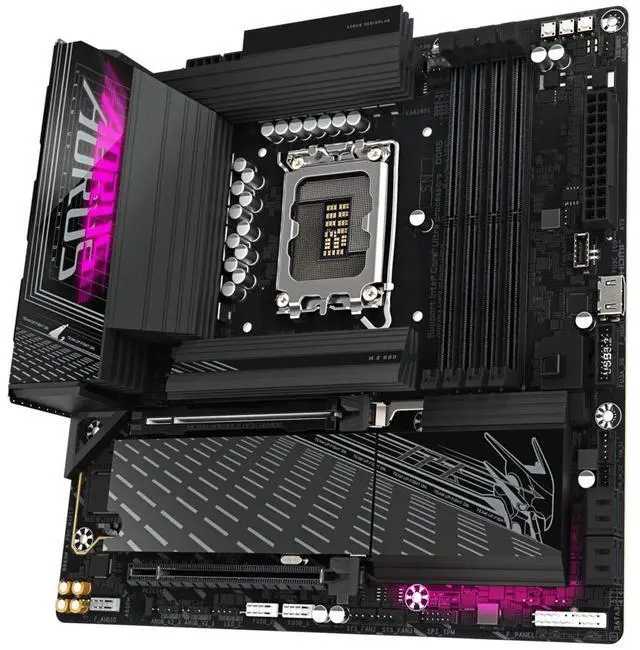

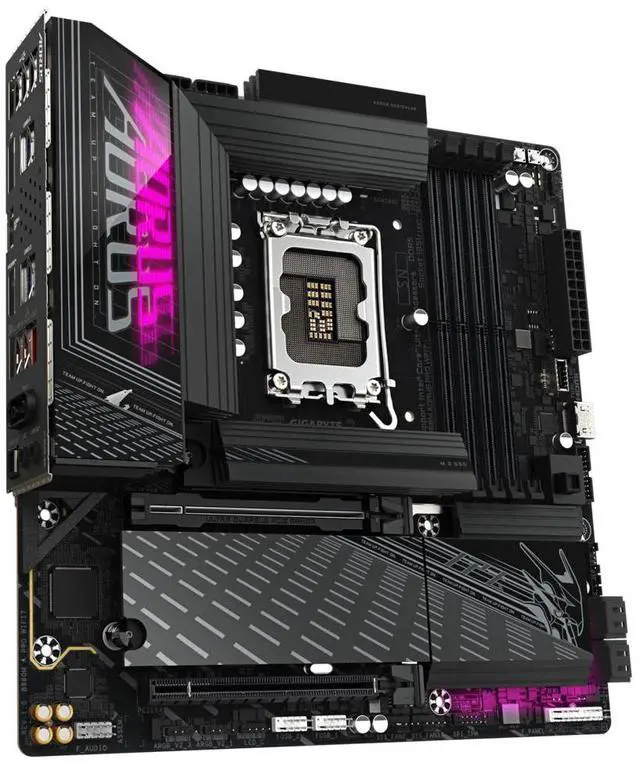

GIGABYTE B860M AORUS PRO WIFI7 Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5,3x M.2, PCIe 5.0, 40Gbps USBC,2.5GbE LAN,WIFI 7

Central Processing Unit (CPU)

LGA1851 socket, supports Intel® Core Ultra processors

(Please refer to the Gigabyte website for a list of supported processors)

L3 Cache depends on CPU

Chipset

Intel® B860 High-Speed Chipset

Memory

Supports DDR5 9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400 / 6200 / 6000 / 5800 / 5600MT/s

4 DDR5 DIMM slots, supporting up to 256 GB (64 GB capacity per slot)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Supports Extreme Memory Profile (XMP) memory modules

(CPU and memory module configuration may affect supported memory module types, speeds, and DRAM module counts. Please check the GIGABYTE website for a list of supported memory modules.)

Display Features

Based on processors with display capabilities - Supports Intel® HD Graphics:

- 1 USB4® USB Type-C® port, supporting USB4 and DisplayPort (DP) technology for display output, supporting resolutions up to 3840x2160@144 Hz

* * Supports DisplayPort Version 2.1.

- One DisplayPort, supporting resolutions up to 3840x2160@144 Hz

** Supports DisplayPort version 2.1.

- One HDMI Port, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI version 2.1 and HDCP 2.3.

- One Front-End HDMI Port, supporting resolutions up to 1920x1080@30 Hz

* Supports HDMI version 1.4.

(Supported display specifications may vary depending on the CPU used.) Supports up to four displays simultaneously.

Audio: Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1 channel audio

* Audio jack functionality can be redefined via audio software. To enable 7.1 channel audio output, please access the audio software settings.

Supports S/PDIF output

Network: Integrated Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module:

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supports 2.4/5/6 GHz wireless bands

- BLUETOOTH 5.4

- Supports 11be 160MHz wireless communication standard

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supports 2.4/5/6 GHz wireless bands

- BLUETOOTH 5.4

- Supports 11be 160MHz wireless communication standard

(Actual transmission speed will vary depending on the usage environment and equipment.)

* Wi-Fi Full functionality of Wi-Fi 7 is based on support for Windows 11 SV3; Windows 10 does not provide related drivers.

**Available channel numbers for Wi-Fi 7 on the 6 GHz carrier are subject to the communication regulations of each country.**

Expansion Slots

Based on CPU:

- 1 PCI-E x16 slot, supporting PCIe 5.0 and x16 operating specifications (PCIEX16)

* The PCIEX16 slot only supports graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in the PCIEX16 slot.

Based on Chipset:

- 1 PCI-E x16 slot, supporting PCIe 4.0 and x4 operating specifications (PCIEX4)

Storage Device Interfaces

Based on CPU:

- 1 M.2 slot (supports Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU)

Based on Chipset:

- 1 M.2 slot (supports Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD) 3. M-key, type 2280 PCIe 4.0 x4/x2 SSD (M2Q_SB)

- 1 M.2 slot (supports Socket 3, M-key, type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2N_SB)

- 4 SATA 3.0 interfaces

SATA hard drives support RAID 0, RAID 1, RAID 5, and RAID 10

USB

CPU-based:

- 1 USB4® USB Type-C® port in the rear I/O panel

Chipset-based:

- 1 USB Type-C® port, supporting USB 3.2 Gen 2, requires a ribbon cable to connect from the motherboard's internal USB socket

- 2 USB 3.2 Gen 2 Type-A ports (red) in the rear I/O panel

- 2 USB 3.2 Gen 1 ports, require a ribbon cable to connect from the motherboard's internal USB socket

Chipset-based + USB 3.2 Gen 1 Hub:

- 4 USB 3.2 Gen 1 ports in the rear I/O panel

Based on chipset + 2 USB 2.0 hubs:

- 8 USB 2.0/1.1 ports (4 in the rear I/O panel, 4 requiring cables to connect from the internal USB sockets on the motherboard)

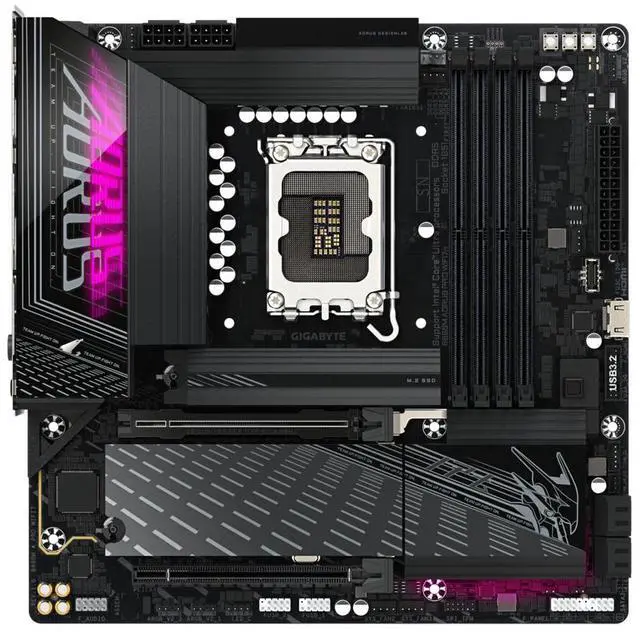

Internal sockets

1 24-pin motherboard power connector

2 8-pin CPU power connectors

1 CPU fan connector

1 CPU fan/water pump connector

3 system fan connectors

1 system fan/water pump connector

3 programmable RGB Gen2 LED strip power connectors

1 RGB LED strip power connector

3 M.2 SSD slots

4 SATA 3.0 ports

1 motherboard jumper connector

1 front audio connector

1 USB Type-C® connector, supporting USB 3.2 Gen 2

1 USB 3.2 Gen 1 connector

2 USB 2.0/1.1 Sockets

2 Thunderbolt Expansion Daughter Card Slots

1 Security Encryption Module Slot (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)

1 HDMI Port (Note)

1 Q-Flash Plus Button

1 Power Button

1 System Reset Button

1 System Reset Pin

1 Clear CMOS Data Pin

(Note) Support for this specification depends on the CPU.

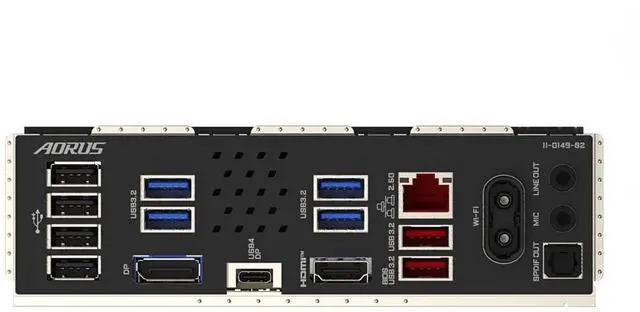

Rear Panel Device Connection Sockets

1 DP Port (Note)

1 HDMI Port (Note)

1 USB4® USB Type-C® (DP(Note)) Port

2 USB 3.2 Gen 2 Type-A Ports (Red)

4 USB 3.2 Gen 1 Ports

4 USB 2.0/1.1 interface

1 RJ-45 network cable interface

2 antenna interfaces (2T2R)

2 audio interfaces

1 digital optical output interface

(Note) Whether this specification is supported depends on the CPU.
