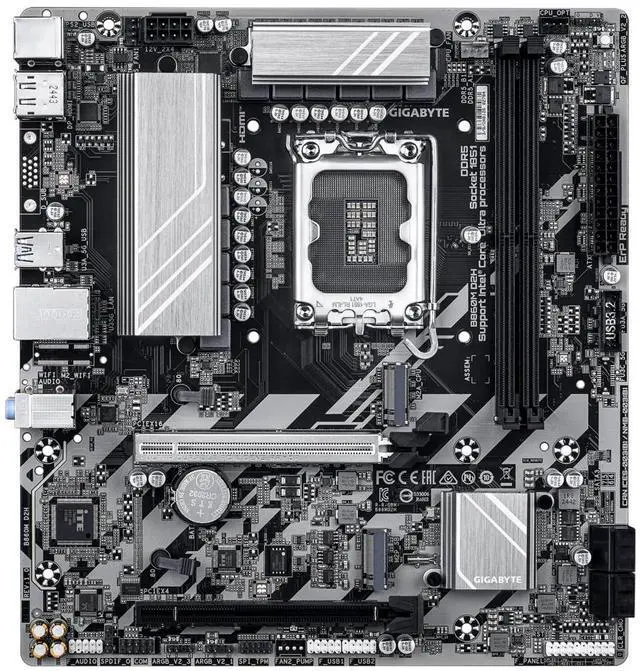

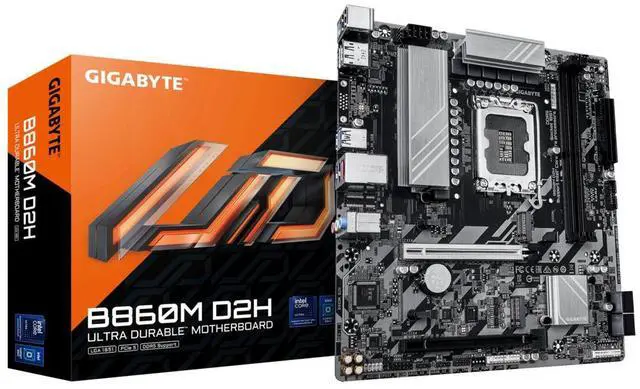

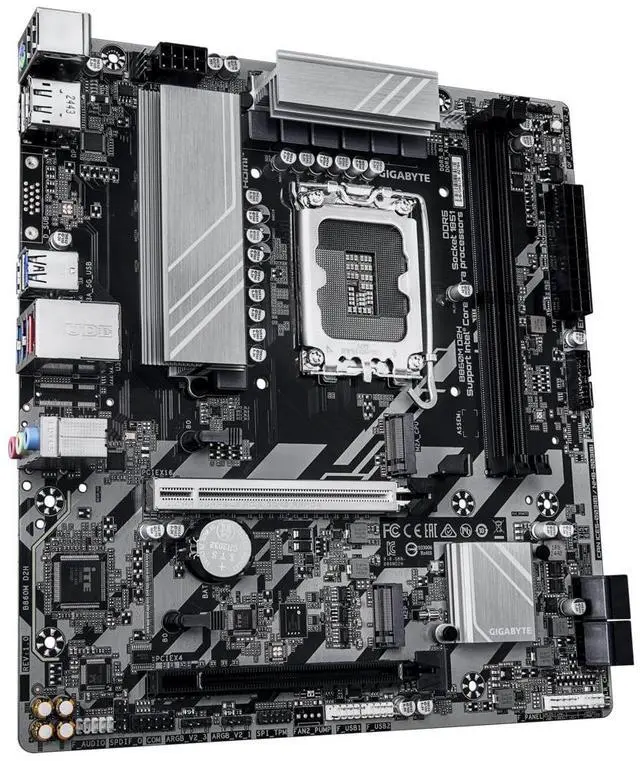

GIGABYTE B860M D2H Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, 2.5GbE LAN

Central Processing Unit (CPU)

LGA1851 socket, supports Intel® Core Ultra processors

(Please refer to the Gigabyte website for a list of supported processors)

L3 cache depends on the CPU

Chipsets

Intel® B860 High-Speed Chipsets

Memory

Supports DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/ 6400 / 6200 / 6000 / 5800 / 5600MT/s

Two DDR5 DIMM slots, supporting up to 128 GB (64 GB per slot)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Supports Extreme Memory Profile (XMP) memory modules

(CPU and memory configuration may affect supported memory types, speeds, and the number of DRAM modules. Please check the GIGABYTE website for a list of supported memory modules.)

Display Capabilities

Based on processors with display capabilities - Supports Intel® HD Graphics:

- One DisplayPort, supporting resolutions up to 3840x2160@144 Hz

* Supports DisplayPort 2.1.

- One HDMI port, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI 2.1 and HDCP 2.3.

(Supported display specifications may vary depending on the CPU used.)

Audio

Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1 channels

* Audio jack functionality can be redefined via audio software. To enable 7.1 channel audio output, please access the audio software settings.

Supports S/PDIF output

Network

Integrated Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU-based:

- One PCI-E x16 slot, supporting PCIe 5.0 and x16 operating specifications (PCIEX16)

* The PCIEX16 slot only supports graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in the PCIEX16 slot.

Chipset-based:

- 1 PCI-E x16 slot, supporting PCIe 4.0 and x4 specifications (PCIe x4)

Storage Device Interface

CPU-based:

- 1 M.2 slot (supports Socket 3, M-key, type 2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU)

Chipset-based:

- 1 M.2 slot (supports Socket 3, M-key, type 2280 PCIe 4.0 x4/x2 SSD) (M2P_SB)

- 4 SATA 3.0 interfaces

SATA hard drives support RAID 0, RAID 1, RAID 5, and RAID 10

USB

Chipset-based:

- 5 USB 3.2 Gen 1 ports (3 in the rear I/O panel, 2 requiring cables from the motherboard's internal USB connectors)

- 3 USB 2.0/1.1 ports in the rear I/O panel

Chipset-based + USB 2.0 Hub:

- 4 USB 2.0/1.1 ports, requiring cables to connect from the internal USB sockets on the motherboard

Internal Sockets

1 24-pin Motherboard Power Socket

1 8-pin CPU Power Socket

1 CPU Fan Socket

1 CPU Fan/Water Pump Socket

1 System Fan Socket

3 Programmable RGB Gen2 LED Strip Power Sockets

2 M.2 SSD Slots

4 SATA 3.0 Ports

1 Motherboard Jumper Socket

1 Front Audio Socket

1 S/PDIF Output Socket

1 USB 3.2 Gen 1 Socket

2 USB 2.0/1.1 Sockets

1 Security Encryption Module Socket (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 only)

1 COM Socket

1 Q-Flash Plus Button

1 System Reset Pin

1 Clear CMOS Data Pin

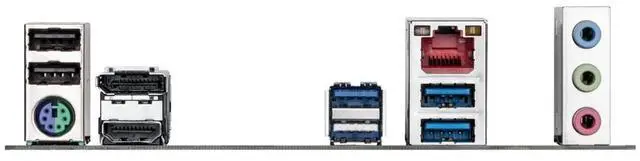

Rear Panel Device Connection Socket

3 USB 2.0/1.1 Interfaces

1 PS/2 Keyboard/Mouse Port

1 DisplayPort (Note)

1 HDMI Port (Note)

3 USB 3.2 Gen 1 Ports

1 RJ-45 Ethernet Port

3 Audio Ports

(Note) Support for this specification depends on the CPU.
