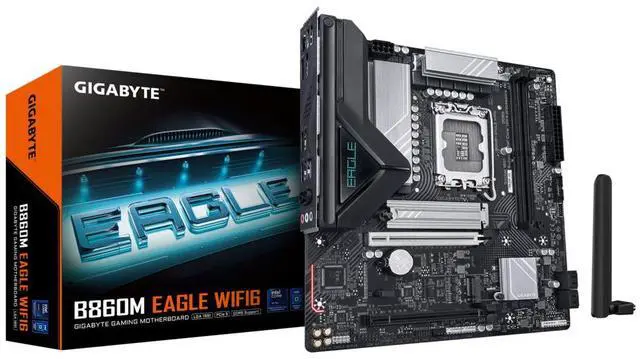

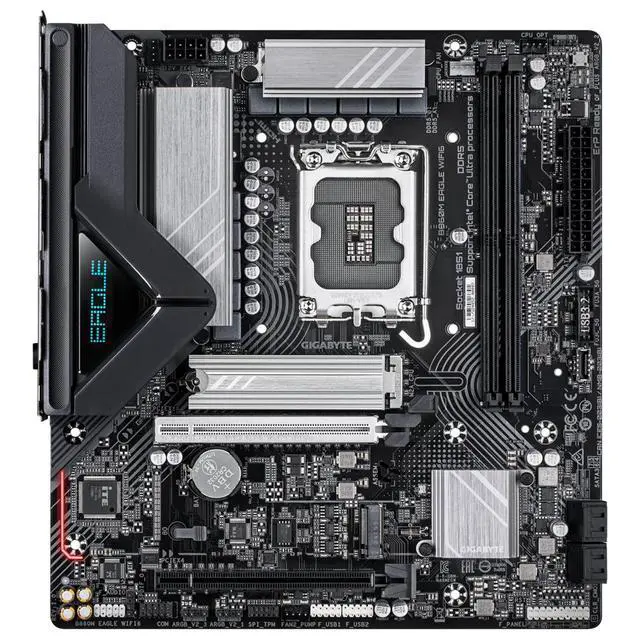

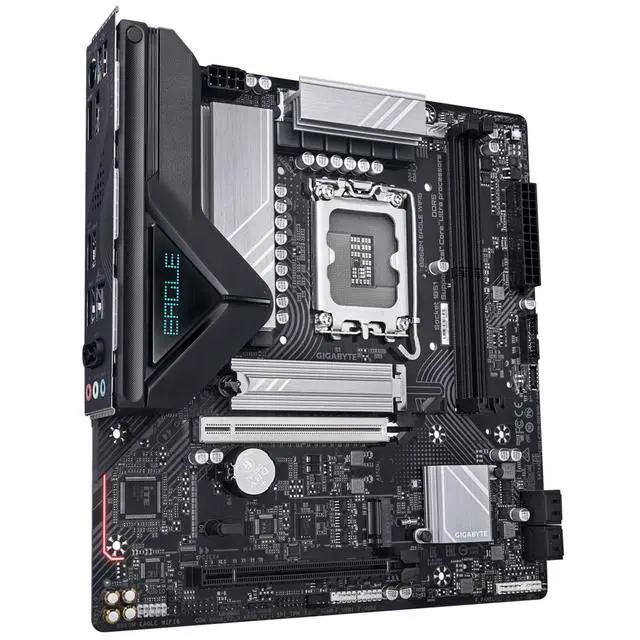

GIGABYTE B860M EAGLE WIFI6 Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, 2.5GbE LAN,WIFI 6

Central Processing Unit (CPU)

LGA1851 socket, supports Intel® Core Ultra processors

(Please refer to the Gigabyte website for a list of supported processors)

L3 Cache depends on CPU

Chipset

Intel® B860 High-Speed Chipset

Memory

Supports DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s

Two DDR5 DIMM slots, supporting up to 128 GB (64 GB capacity per slot)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Supports Extreme Memory Profile (XMP) memory modules

(CPU and memory configuration may affect supported memory types, speeds, and the number of DRAM modules. Please check the GIGABYTE website for a list of supported memory modules.)

Display Features

Based on processors with display capabilities - Supports Intel® HD Graphics:

- One HDMI port, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI version 2.1 and HDCP 2.3.

- One DisplayPort, supporting resolutions up to 3840x2160@144 Hz

*Supports DisplayPort 2.1.

(Display specifications may vary depending on the CPU used.)

Audio:

Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1 channels

*The audio jack functionality can be redefined via audio software. To enable 7.1 channel audio output, please access the audio software settings.

Supports S/PDIF output

Network: Integrated Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module: Realtek® Wi-Fi 6 RTL8851BE

- WIFI a, b, g, n, ac, ax, supports 2.4/5 GHz wireless bands

- BLUETOOTH 5.3

- Supports 11ax 80MHz wireless communication standard

(Actual transmission speed will vary depending on the usage environment and equipment.)

Expansion Slots:

Based on CPU:

- 1 PCI-E x16 slot, supports PCIe 5.0 and x16 operating specifications (PCIEX16)

*PCIEX16 slot only supports graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in a PCIEX16 slot.

Chipset-based:

- 1 PCI-E x16 slot, supporting PCIe 4.0 and x4 specifications (PCIEX4)

Storage Device Interface

CPU-based:

- 1 M.2 slot (supports Socket 3, M-key, type 2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU)

Chipset-based:

- 1 M.2 slot (supports Socket 3, M-key, type 2280 PCIe 4.0 x4/x2 SSD) (M2P_SB)

- 4 SATA 3.0 interfaces

SATA hard drives support RAID 0, RAID 1, RAID 5, and RAID 10

USB

Chipset-based:

- 1 USB Type-C® port, supporting USB 3.2 Gen 1, requires a ribbon cable to connect from the internal USB socket on the motherboard

- 5 USB 3.2 Gen 1 ports (3 in the rear I/O panel, 2 require a ribbon cable to connect from the internal USB socket on the motherboard) (Socket Outlets)

- 3 USB 2.0/1.1 ports in the rear I/O panel

Based on chipset + USB 2.0 Hub:

- 4 USB 2.0/1.1 ports, requiring a ribbon cable to connect from the internal USB socket on the motherboard

Internal Sockets

1 24-pin motherboard power connector

1 8-pin CPU power connector

1 CPU fan connector

1 CPU fan/water pump connector

1 system fan connector

1 system fan/water pump connector

3 programmable RGB Gen2 LED strip power connectors

2 M.2 SSD slots

4 SATA 3.0 ports

1 motherboard jumper connector

1 front audio connector

1 S/PDIF output connector

1 USB Type-C® connector, supporting USB 3.2 Gen 1

1 USB 3.2 Gen 1 connector

2 USB 2.0/1.1 connectors

1 security encryption module connector (limited to GC-TPM2.0 SPI/GC-TPM2.0 SPI) (Using 2.0/GC-TPM2.0 SPI V2)

1 COM socket

1 Q-Flash Plus button

1 System Reset pin

1 Clear CMOS data pin

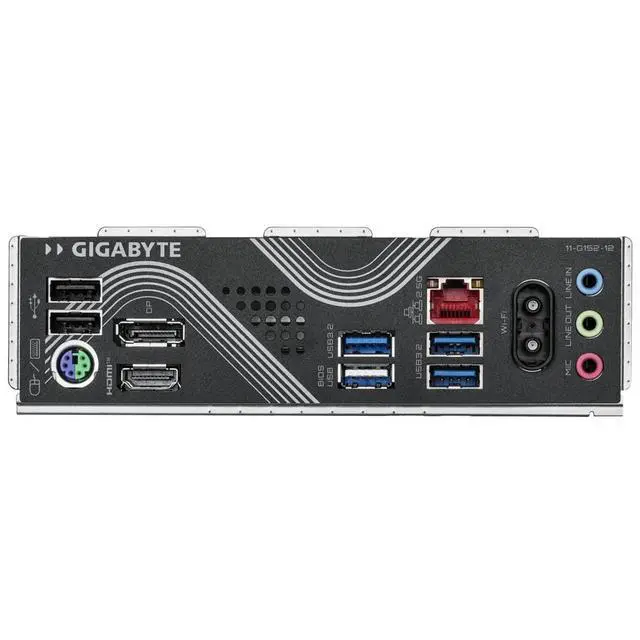

Rear panel device connection socket

1 PS/2 keyboard/mouse port

1 HDMI port (Note)

1 DP port (Note)

3 USB 3.2 Gen 1 ports

3 USB 2.0/1.1 ports

2 antenna connectors (2T2R)

1 RJ-45 Ethernet port

3 audio ports

(Note) Support for this specification depends on the CPU.
