    GIGABYTE BRIX GB-BACE-3160 Mini / Booksize Barebone System

    Be the first to review this product...
    • Intel Celeron Processor J3160 (2M Cache, up to 2.24 GHz)
    • 1 x 204Pin SO-DIMM DDR3L 1600/1066
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GB-BACE-3160

    General
    Brand GIGABYTE
    Series BRIX
    Model GB-BACE-3160
    CPU Supported
    CPU Type Intel Celeron Processor J3160 (2M Cache, up to 2.24 GHz)
    Memory Supported
    Memory installed No Memory
    Memory slot 1 x 204Pin SO-DIMM
    Memory Type Supported DDR3L 1600/1066
    Max Memory Supported 8GB
    Expansion Slots
    Other 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the Wi-Fi+BT card
    Storage
    Hard Drive Installed No Hard Drive
    Serial ATA 1 x SATA 6.0Gb/s
    Graphics
    Integrated Graphics Intel HD Graphics 400
    Audio
    Onboard Audio Realtek ALC255
    Communications
    LAN Realtek RTL8111H
    Max LAN Speed 10/100/1000Mbps
    Extension Bays
    2.5" Internal Bays Supports 2.5" thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
    Front Panel Ports
    Front USB 2 x USB 3.0
    Front Audio Ports 1 x headset phone jack (Side)
    1 x Mic phone jack (Side)
    Card Reader 1 x Micro SD card slot

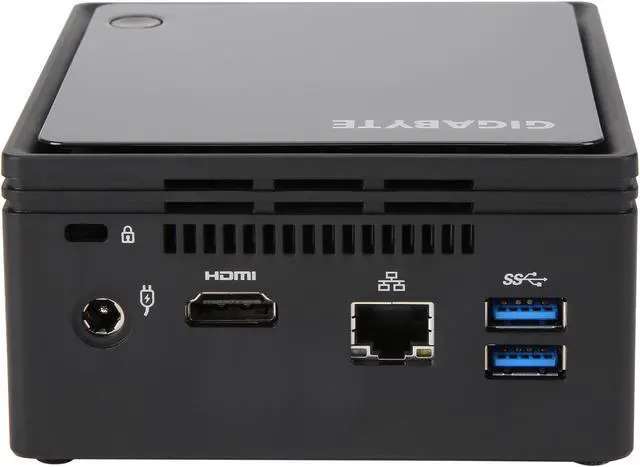

    Back Panel Ports
    VGA 1 x D-sub (Side)
    HDMI 1
    Rear USB 2 x USB 3.0
    RJ45 1
    Other Rear Ports 1 x DC-In
    1 x Kensington lock slot
    Power Supply
    Input AC 100-240V
    Power Supply Output: DC 19V, 2.1A
    Physical SPEC
    Dimensions 2.21" x 4.24" x 4.50"
    Features
    Features Features 14nm Intel J3160 to deliver to the most intuitive and integrated operating systems in the world

    Supports 2.5" thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)

    Ultra compact PC design - 0.69L (56.1 x 107.6 x 114.4mm)

    1 x SO-DIMM DDR3L 1.35V Slots (1066/1600 MHz)

    Intel IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card

    Supports dual displays via a VGA and a HDMI port

    Gigabit LAN

    Audio jack (Headphone/MIC)

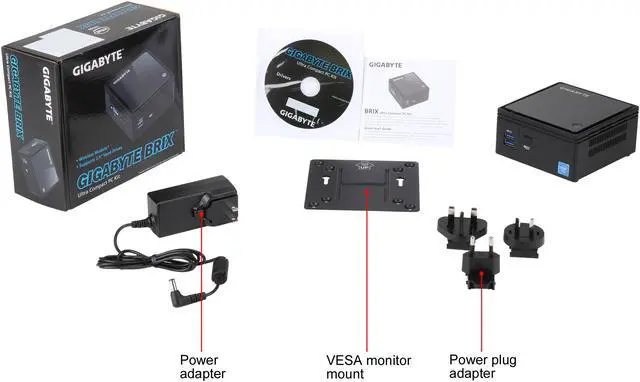

    VESA mounting bracket (75 x 75mm + 100 x 100mm)

    * Wireless module inclusion may vary based on local distribution.
    Additional Information
    First Listed on Newegg July 30, 2022
