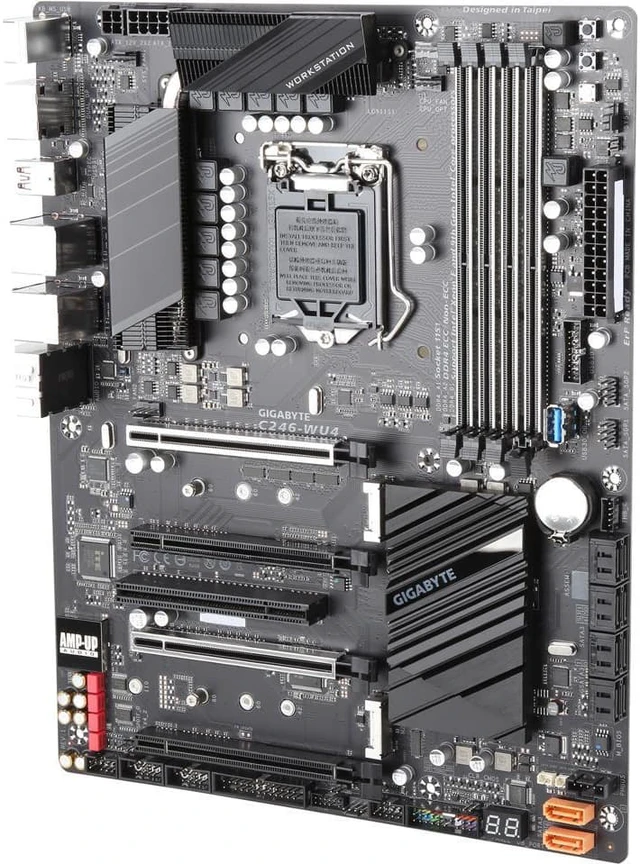

Main image of GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Alt view image 2 of 6 - GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Alt view image 3 of 6 - GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Alt view image 4 of 6 - GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Alt view image 5 of 6 - GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Alt view image 6 of 6 - GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

Shop All GIGABYTE Products | Visit Speed Electronics Store

GIGABYTE C246-WU4 LGA 1151 (300 Series) Intel C246 SATA 6Gb/s ATX Intel Motherboard

REFURBISHED

Be the first to review this product...

Intel C246
LGA1151 package:
Intel Xeon E series processors
9th and 8th Generation Intel Core processors / Intel Pentium processors / Intel Celeron processors
DDR4 2666/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

The last one is the actual picture of the products in stock in the warehouse, thanks

Model
Brand	GIGABYTE
Model	C246-WU4

Supported CPU
CPU Type	LGA 1151 (300 Series)

Chipsets
Chipset	Intel C246

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support: 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Maximum shared memory of 1GB

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) * The PCIEX4_2 slot shares bandwidth with the M2M connector. The PCIEX4_2 slot becomes unavailable when a PCIe SSD is installed in the M2M connector. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	Chipset: 8 x SATA 6Gb/s connectors (SATA3 0~7) Support for RAID 0, RAID 1, RAID 5, and RAID 10 ASMedia ASM1061 chip: 2 x SATA 6Gb/s connectors (GSATA3 0~1), supporting AHCI mode only
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	2 x Intel GbE LAN chips
Max LAN Speed	2 x 1Gbps

Rear Panel Ports

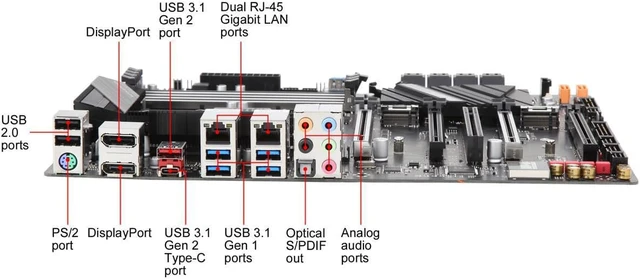

Back I/O Ports	1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x USB Type-C port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 port (USB30_OB) 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x power information detection header 2 x SATA power headers 2 x SATA detection headers 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x system fan/water cooling pump headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x parallel port header 2 x serial port headers 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 4-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS System Information Viewer Support for Q-Flash Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	May 26, 2026
