GIGABYTE G242-Z11 2U Rackmount Server Barebone Socket SP3 DDR4 3200

Be the first to review this product...
  • Up to 4 x NVIDIA PCIe Gen4 GPU cards
  • NVIDIA-Certified system for scalability, functionality, security, and performance
  • Single AMD EPYC 7003 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
  • 1 x dedicated management port
  • 4 x SATA 3.5" hot-swappable HDD/SSD bays in front side
  • 2 x 2.5" Gen4 U.2/SAS/SATA hot-swappable HDD/SSD bays in rear side
  • 2 x PCIe Gen4 expansion slots
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot
  • 2 x 80 PLUS Platinum 1600W (240V) redundant PSU
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE G242-Z11

General
Brand GIGABYTE
Model G242-Z11
Form Factor 2U Rackmount
Workload AI/ML/HPC
CPU Supported
CPU Type Supports AMD EPYC 7003 series processor family
Compatible with AMD EPYC 7002 series processor family
CPU Socket Socket SP3
Installed CPU No CPU Installed
Max Processors 2
Memory Supported
Memory Slots 8 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported DDR4 3200
Channel Supported 8 Channel
Storage Supported
Installed HDD No Storage Installed
Serial ATA Front side_CBPG041: 4 x SATA/SAS ports
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
Graphics
GPU/VPU Aspeed AST2500
Expansion Slots
PCI Express 4 x PCIe x16 slots (Gen4 x16 bus) for GPU cards

Riser Card CRSG120:
- 1 x PCIe x16 slot (Gen4 x16 or x8 bus), FHHL
- 1 x PCIe x8 slots (Gen4 x0 or x8 bus), FHHL

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
Expansion Bays
Hot-Swap Bays Front side: 4 x 3.5" SATA hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SATA devices supported only

Rear side: 2 x 2.5" Gen4 U.2/SAS/SATA hybrid hot-swappable HDD/SSD bays
Panel Ports
Front USB 1 x USB 3.0
VGA 1
Rear USB 2 x USB 3.0
RJ45 1 x MLAN
Other Ports Internal I/O
1 x TPM header
1 x Front panel header
Power Supply
Max. Power 2 x 1600W redundant PSUs
80 PLUS Platinum
System
System Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight

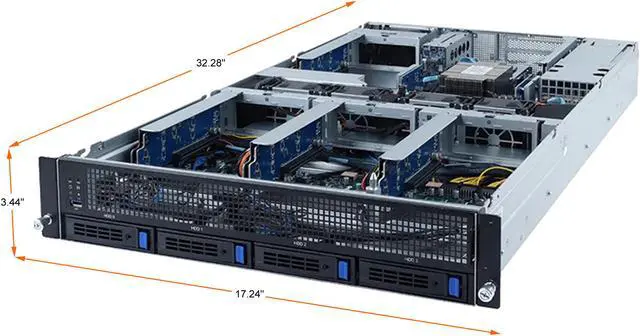

Dimensions 3.44" x 17.24" x 32.28"
Packaging
Package Contents 1 x G242-Z11
1 x CPU heatsink
1 x Rail kit
