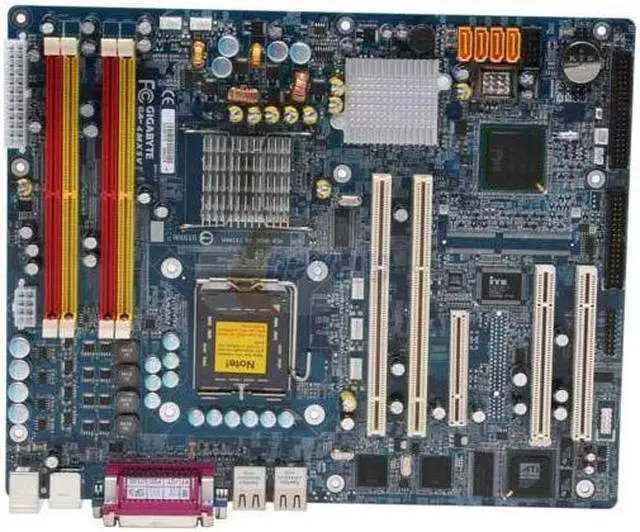

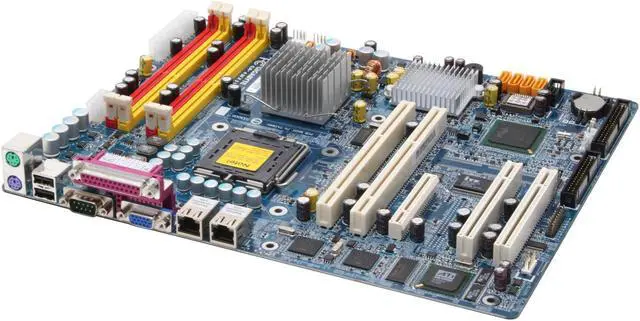

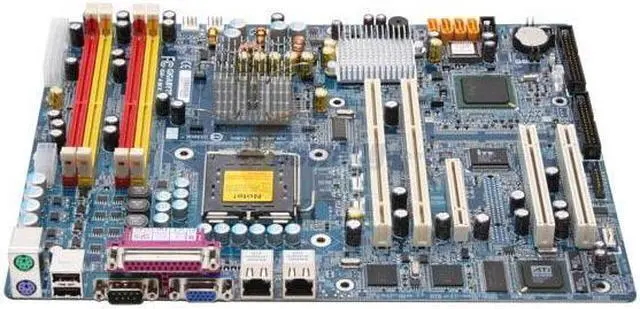

GIGABYTE GA-4MXSV ATX Server Motherboard LGA 775 Intel E7230 DDR2 667

OPEN BOX Product Type
  • LGA 775
  • Intel E7230 Intel 6702 PXH-V
  • 4 x 240Pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the GIGABYTE GA-4MXSV

Model
Brand GIGABYTE
Model GA-4MXSV
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Pentium 4
Chipsets
North Bridge Intel E7230
South Bridge Intel ICH7R
Other Chipset Intel 6702 PXH-V
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 8GB
ECC Supported Yes
Expansion Slots
PCI Express x8 1 x PCI Express x8
PCI Slots 2 x PCI Slots
Storage Devices
SATA 4 x SATA 3.0Gb/s
SATA RAID 0/1/0+1/5
Onboard Video
Onboard Video Chipset ATI ES1000 with 16MB SDRAM
Onboard LAN
LAN Chipset Intel 82573
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82573
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports 1
USB 1.1/2.0 2 x USB 2.0
Features
Features Integrated Super I/O Controller : ITE IT8712F-A
Phoenix Server BIOS, 8MB ROM
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
First Listed on Newegg March 21, 2006
