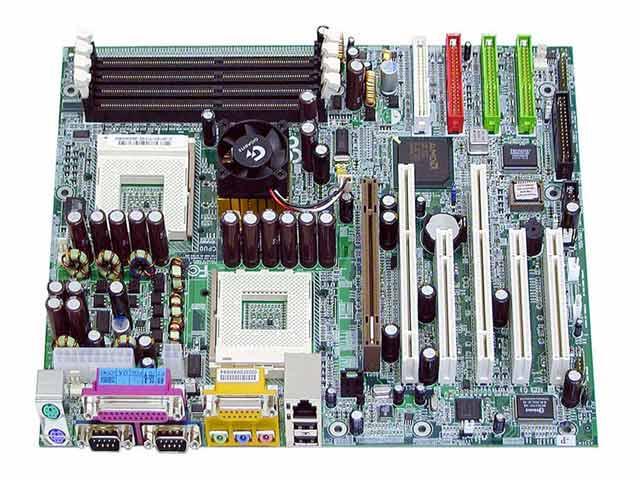

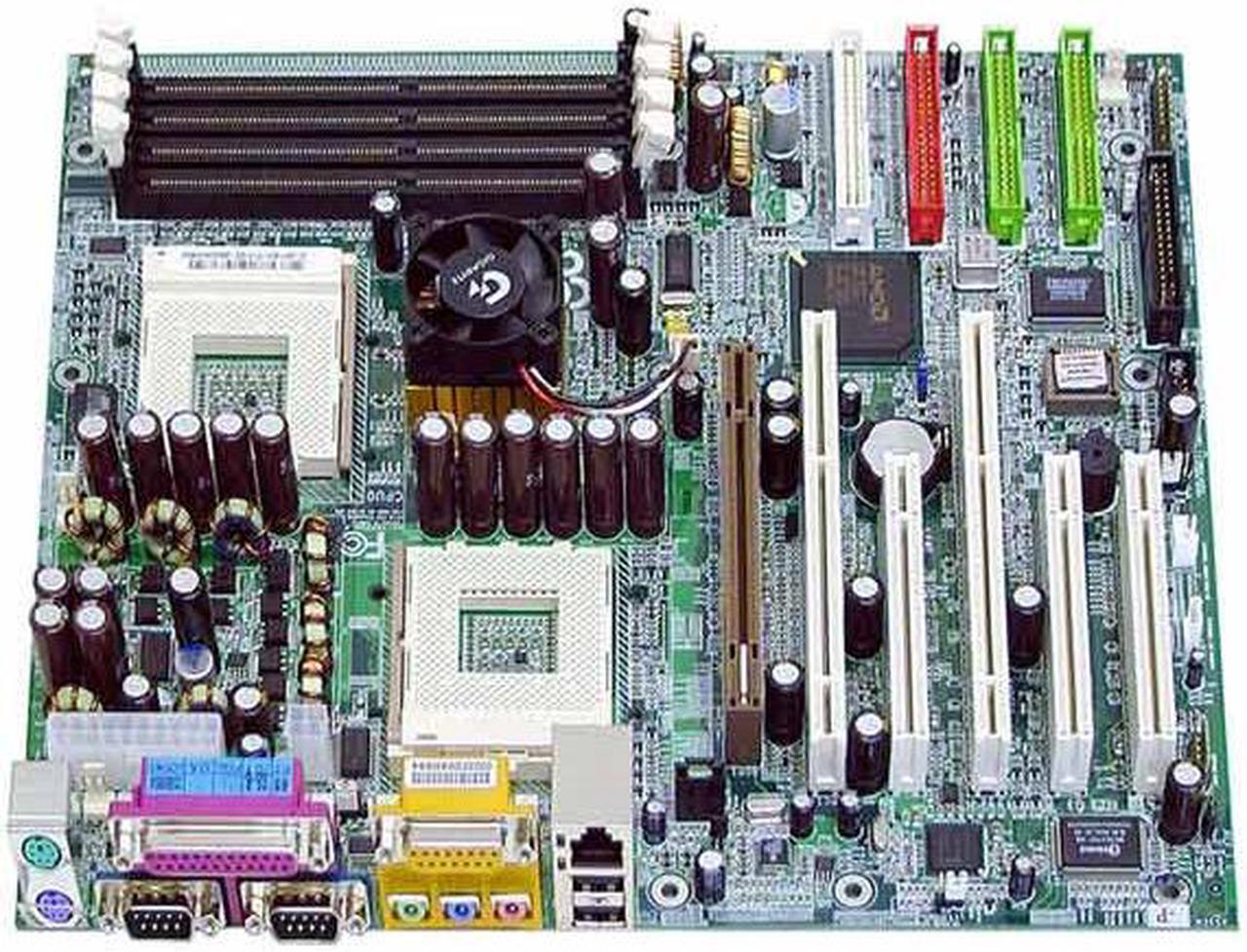

GIGABYTE GA-7DPXDW-P ATX Server Motherboard Dual 462(A) AMD 762
- Dual 462(A)
- AMD 762
- 4 x 184Pin
Specs
Reviews (19)
Learn more about the GIGABYTE GA-7DPXDW-P
| Brand | GIGABYTE |
|---|---|
| Model | GA-7DPXDW-P |
| CPU Socket Type | Dual 462(A) |
|---|---|
| CPU Type | Dual AMD MP Athlon Class |
| System Bus | 266/200 MHz |
| North Bridge | AMD 762 |
|---|---|
| South Bridge | AMD-768 |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 266 (PC 2100) |
| ECC Supported | Yes |
| Registered | Yes |
| AGP Slots | 1 x AGP 2X / 4X |
|---|---|
| PCI-X Slots (64-bit 66MHz) | 2 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| Additional PATA | 2 x ATA 133 4 Dev. Max |
| Additional PATA RAID | 0/1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|
| LAN Chipset | Intel 82550PM |
|---|---|
| LAN Speed | 10/100Mbps |
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 2 x USB 1.1 |
| Game/MIDI Ports | 1 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 1.1 |
|---|
| Features | Wake on LAN Wake on RING SMBus Support IOAPIC Support Serial IRQ Support AC Recovery CPU/System Fan Revolution detect CPU/System temperature detect System Voltage Detect Power Management Support |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 10.6" |
| Date First Available | August 27, 2002 |
|---|
