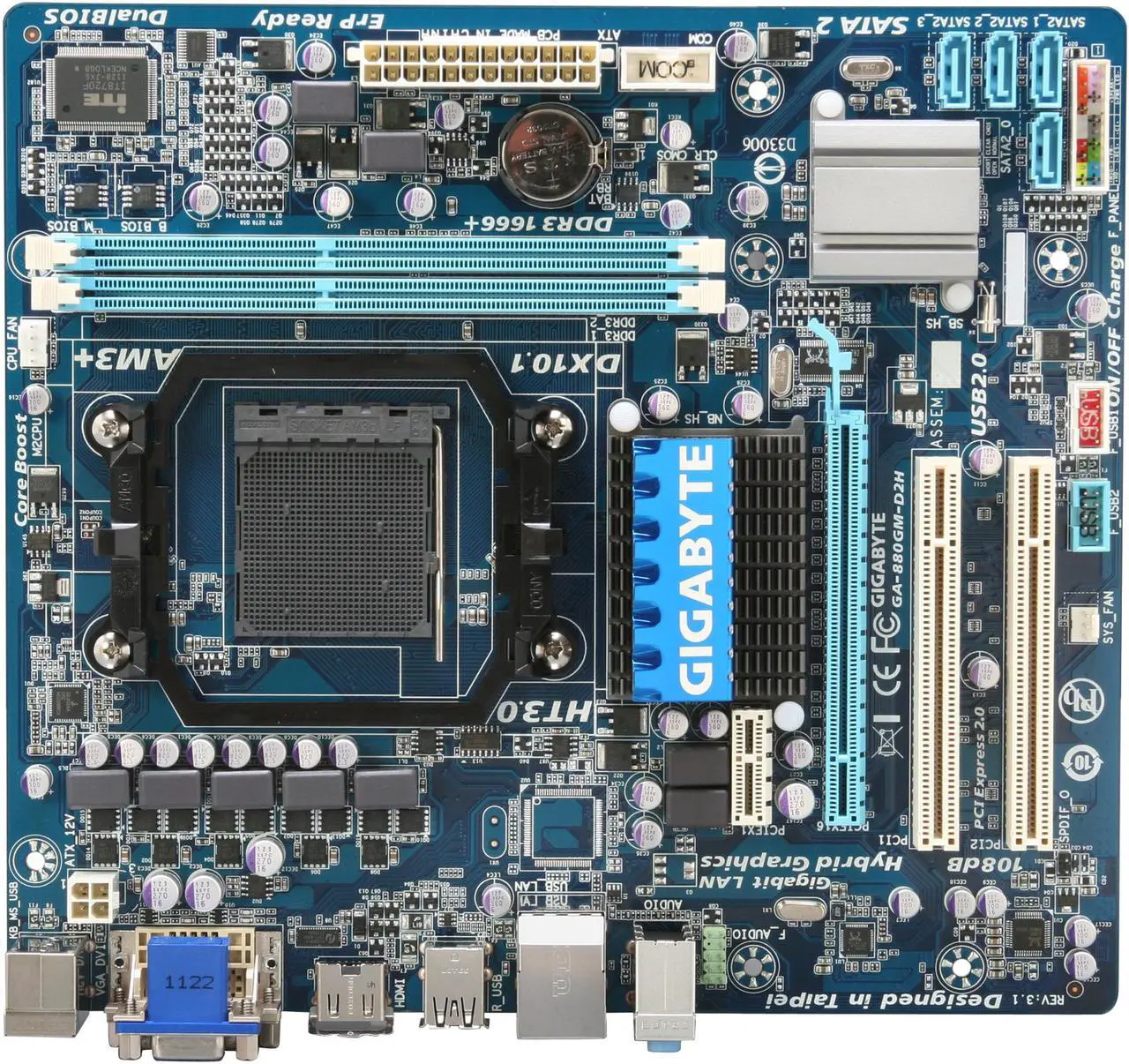

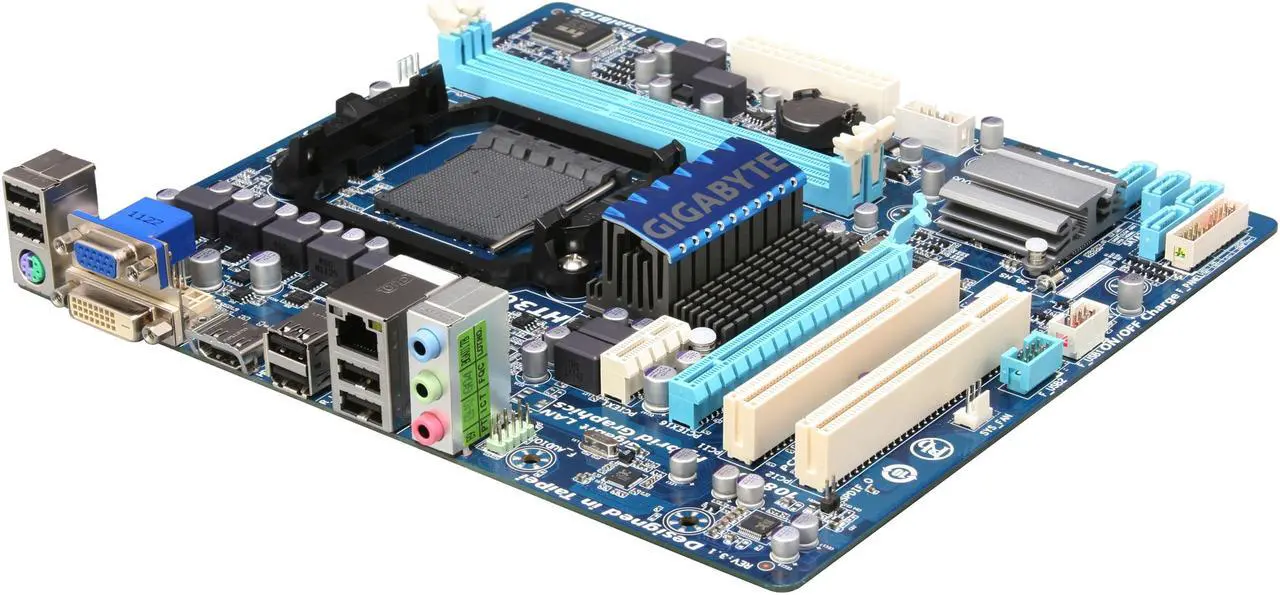

GIGABYTE GA-880GM-D2H (REV. 3.1) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard
- AMD 880G
- FX / Phenom II / Athlon II / Sempron 100 Series (Please refer "CPU Support List" on official website for more information.)
- DDR3 1666 (OC)/1333/1066
Specs
Reviews (92)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-880GM-D2H (REV. 3.1)
| Brand | GIGABYTE |
|---|---|
| Model | GA-880GM-D2H (REV. 3.1) |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | FX / Phenom II / Athlon II / Sempron 100 Series (Please refer "CPU Support List" on official website for more information.) |
| Chipset | AMD 880G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1666 (OC)/1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/10/JBOD |
|---|
| Onboard Video Chipset | ATI Radeon HD 4250 |
|---|
| Audio Chipset | Realtek ALC889 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |

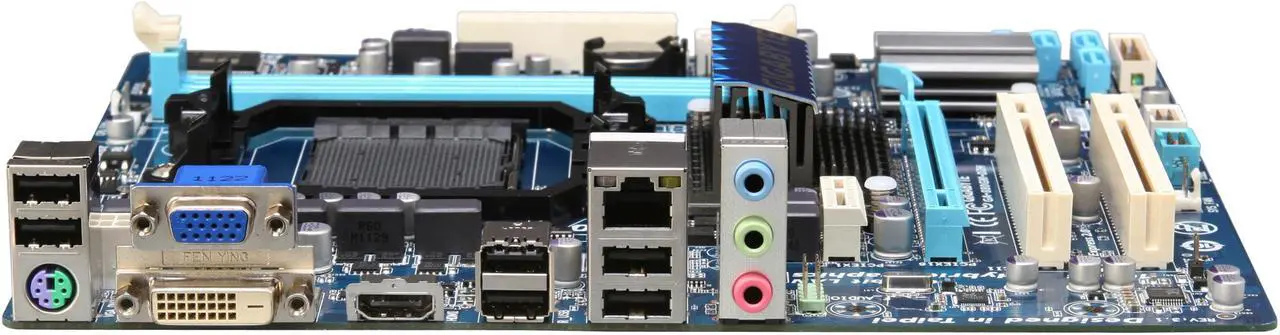

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x clearing CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.66" |
| Power Pin | 24 Pin |
| Features | Get Ready for New Generation of 32nm AMD AM3+ CPU On/Off Charge Technology Supports next generation of 45nm AMD AM3 CPU EC AOD-ACC Support 3x USB Power Boost 108dB Signal-to-Noise ratio playback DualBIOS 3TB+ HDD Support (Hybrid EFI Technology) Ultra Durable 2 - Classic AMD 880G 3D Graphics Performance Upgrade- up to 3DMark 2006 3000 marks!! ATI Hybrid Graphics Technology support |
|---|
| First Listed on Newegg | December 02, 2010 |
|---|
