GIGABYTE GA-945GCMX-S2 LGA 775 Intel 945GC Micro ATX Intel Motherboard
- Intel 945GC
- Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium D / Pentium 4 / Celeron D
- DDR2 667
Specs
Reviews (23)
Learn more about the GIGABYTE GA-945GCMX-S2
| Brand | GIGABYTE |
|---|---|
| Model | GA-945GCMX-S2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium D / Pentium 4 / Celeron D |
| FSB | 1066/800 MHz |
| Chipset | Intel 945GC |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | Intel GMA 950 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8110SC |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Support Intel Core 2 Extreme/ Core 2 Duo FSB 1066 Processor Dual Channel DDR2 667 for advanced system performance Integrated Intel Graphic Media Accelerator 950 Supports dual graphics with PCI-E interface Features SATA 3Gb/s interface Optimized Gigabit LAN connection Intel High Definition 8 Channels Audio Windows Vista Premium certificated |
|---|

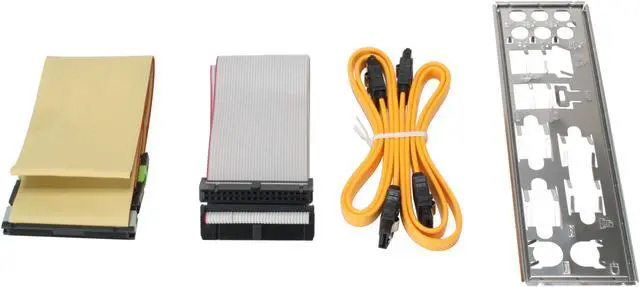

| Package Contents | GA-945GCMX-S2 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | July 26, 2007 |
|---|
