GIGABYTE GA-965QM-DS2 LGA 775 Intel Q965 Express Micro ATX Intel Motherboard

(4) Write a Review
  • Intel Q965 Express
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (4)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-965QM-DS2

Model
Brand GIGABYTE
Model GA-965QM-DS2
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1066/800 MHz
Chipsets
Chipset Intel Q965 Express
South Bridge Intel ICH8DO
Onboard Video
Onboard Video Chipset Intel GMA 3000
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel Nineveh 82566DM
Max LAN Speed 1Gbps

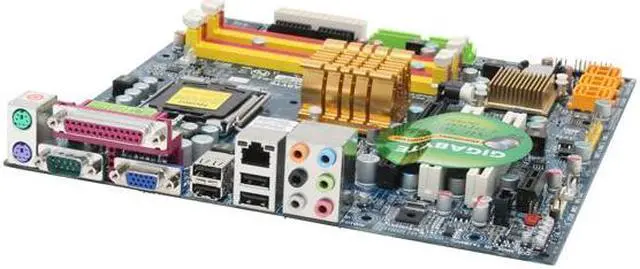

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.

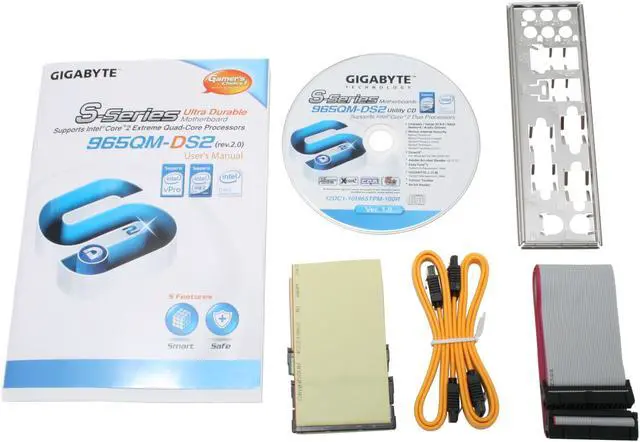

Packaging
Package Contents GA-965QM-DS2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
2 x SATA Cable
Additional Information
First Listed on Newegg March 21, 2007
