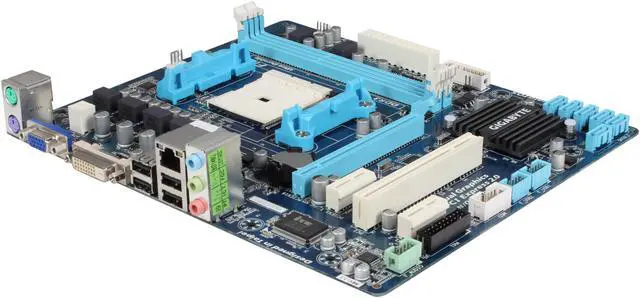

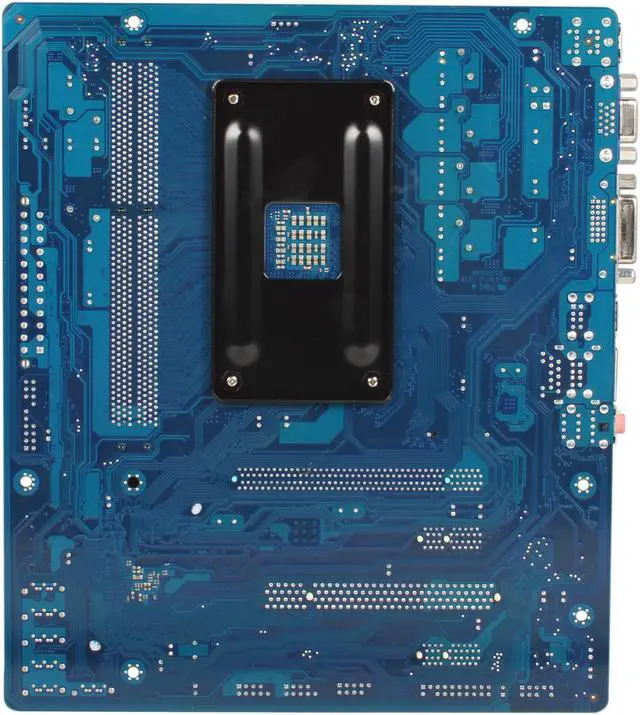

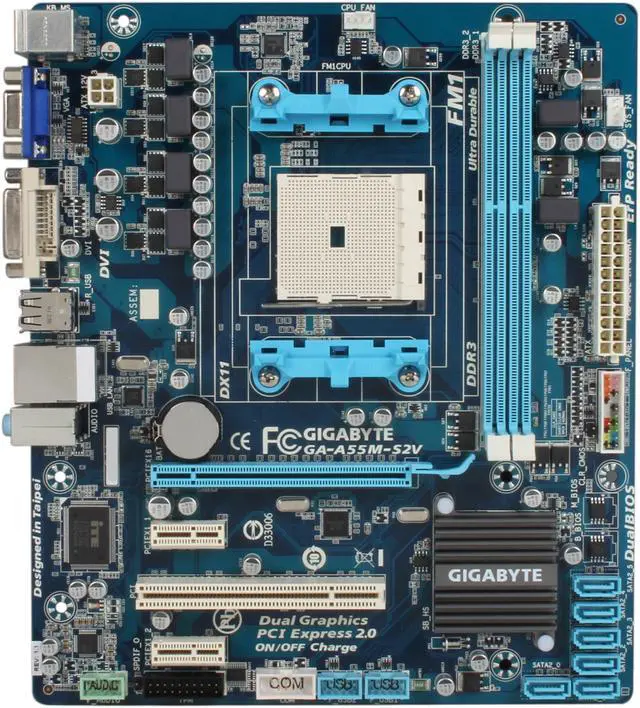

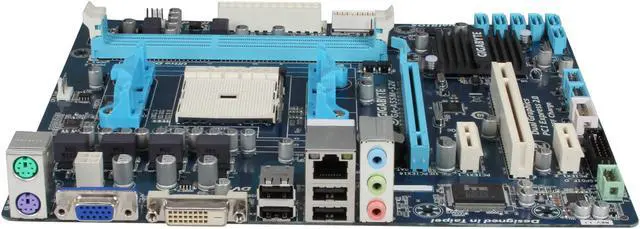

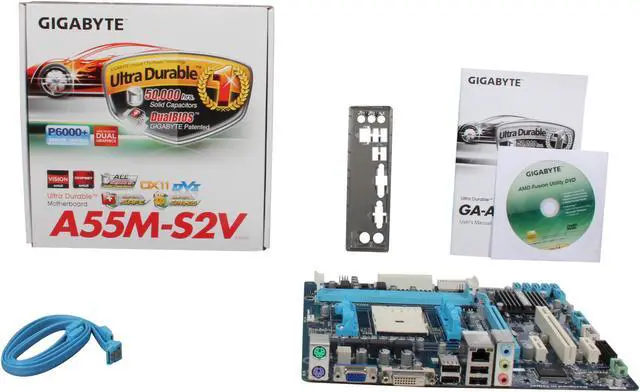

    GIGABYTE GA-A55M-S2V FM1 AMD A55 (Hudson D2) Micro ATX AMD Motherboard

    Used - Good Product Type
    • AMD A55 (Hudson D2)
    • A-Series / Athlon Series / E2-Series / Sempron
    • DDR3 2400(OC) / 1866 / 1600 / 1333 / 1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE GA-A55M-S2V

    Model
    Brand GIGABYTE
    Model GA-A55M-S2V
    Supported CPU
    CPU Socket Type FM1
    CPU Type A-Series / Athlon Series / E2-Series / Sempron
    Chipsets
    Chipset AMD A55 (Hudson D2)
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 2400(OC) / 1866 / 1600 / 1333 / 1066
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x1 2 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    SATA RAID 0/1/10/JBOD
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111E
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
    PS/2 2
    Video Ports D-Sub + DVI
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    1 x APU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x serial port header
    1 x Trusted Platform Module (TPM) header
    1 x clearing CMOS jumper
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 8.27"
    Power Pin 24 Pin
    Features
    Features AMD Dual Graphics: Unrivalled Upgradability

    AMD Fusion Graphics: Most Powerful Integrated Graphics Ever

    DualBIOS 3TB+ HDD Support (Hybrid EFI Technology)

    50,000 Hours All Solid Capacitors

    GIGABYTE Touch BIOS
    Additional Information
    Date First Available May 13, 2025
